Hastelloy C276 Bolts/ Nuts & Fasteners manufacturer

ASTM B574 UNS N10276 Alloy C276 Fasteners Suppliers



ASME SB 574 Alloy C-276 Stud Bolts and Threaded Rod in both Metric and Imperial (BSW, BSF, BA, UNC & UNF) thread forms

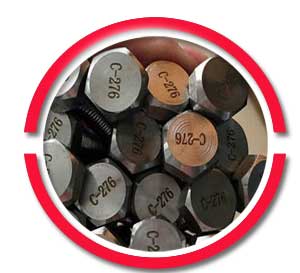

Hastelloy C276 Bolts Nuts are made up of a nickel molybdenum chromium alloy that is produced as a wrought material. These are some of the most versatile alloy material made fasteners on the planet. High Temperature Fasteners Inc. is a leading Hastelloy Fasteners manufacturer and we produce the fasteners in different types, sizes and dimensions. The material has minimum yield strength of up to 379MPa and minimum tensile strength up to 758MPa with elongation rate up to 60.

The Hastelloy C276 Bolts and Nuts can be used in harsh and upset environments such as acidic, basic, brackish and salt water environments. The hastelloy c276 hex bolts are used in acetic acid, and organic acid production plants. The material has excellent acidic resistance to strong oxidizers. The Alloy c276 stud bolts can withstand ferric chlorides and cupric chlorides as well. The material has cobalt, tungsten, iron, silicon, manganese, carbon and vanadium in the composition as well. Because of this specific combination, the C276 Hastelloy Screws also have very high pitting and crevice corrosion resistance.

The specification for this special grade of fasteners is ASTM B574. There are different dimensions according to the different standards of the ASTM B574 UNS N10276 Fasteners. They can come in 3mm to 200mm length, M3 to M56 sizes or 3/6 inches to 2 inches thickness. There are different types of bolts, nuts, screws, studs and others such as Hastelloy C276 Socket Head Cap Screws and more. The applications vary greatly as offshore oil drilling, power generation, petrochemicals, gas processing, specialty chemicals, pharmaceuticals, chemicals, sea water applications, heat exchangers, condensers and many others. Please contact us for your orders in the Hastelloy Threaded Rod and other types of fasteners.





---



---

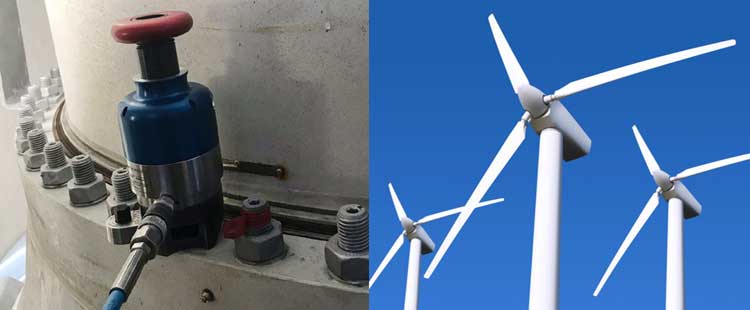

Our Hastelloy C276 Bolts Are Installed In Turbines





---



---



---



---



---

• Mirror Buffed
• Hot Dipped Galvanizing
• Epoxy Coating
• Electro Polished
• Passivation
• Teflon Coating
• Oxidized
• Zinc Plating
• Chrome Plating

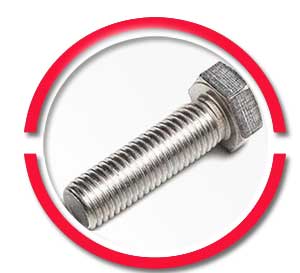

View our sizes, weight chart & dimension table of DIN 2.4819 Hex Bolt, Studs, Flange Bolt, Screws and Washers



---

Finished Hex Nuts Bolt Dimensions Diameter Inches Across Flats Thickness 1/4 7/16 7/32 5/16 1/2 17/64 3/8 9/16 21/64 7/16 11/16 3/8 1/2 3/4 7/16 9/16 7/8 31/64 5/8 15/16 35/64 3/4 1 /18 41/64 7/8 1-5/16 3/4 1 1-1/2 55/64 1-1/8 1-11/16 31/32 1-1/4 1-7/8 1-1/16 1-3/8 2-1/16 1-11/64 1-1/2 2-1/4 1-9/32 1-5/8 2-7/16 1-25/64 1-3/4 2-5/8 1-1/2 1-7/8 2-15/16 1-27/32 2 3 1-23/32 2-1/4 3-3/8 1-59/64 2-1/2 3-3/4 2-9/64 2-3/4 4-1/8 2-23/64 3 4-1/2 2-37/64 3-1/4     3-1/2     3-3/4     4

Heavy Hex Nuts Bolt Dimensions Diameter Inches Across Flats Thickness 1/4 1/2 15/64 5/16 9/16 19/64 3/8 11/16 23/64 7/16 3/4 27/64 1/2 7/8 31/64 9/16 15/16 35/64 5/8 1-1/16 39/64 3/4 1-1/4 47/64 7/8 1-7/16 55/64 1 1-5/8 63/64 1-1/8 1-13/16 1-7/64 1-1/4 2 1-7/32 1-3/8 2-3/16 1-11/32 1-1/2 2-3/8 1-15/32 1-5/8 2-9/16 1-19/32 1-3/4 2-3/4 1-23/32 1-7/8 2-15/16 1-27/32 2 3-1/8 1-31/32 2-1/4 3-1/2 2-13/64 2-1/2 3-7/8 2-29/64 2-3/4 4-1/4 2-45/64 3 4-5/8 2-61/64 3-1/4 5 3-3/16 3-1/2 5-3/8 3-7/16 3-3/4 5-3/4 3-11/16 4 6-1/8 3-15/16



---











Compare our price list of Nickel alloy C276 Nut Bolts before buying C276 Hastelloy forging material



---

---



A trusted hastelloy nuts and bolts manufacturer, buy many Petrochemical, Oil & Gas companies



---



---

• Mechanical Testing Such as Tensile of Area
• Hardness Test
• Chemical Analysis – Spectro Analysis
• Positive Material Identification – PMI Testing
• Flattening Test
• Micro and MacroTest
• Pitting Resistance Test
• Flaring Test
• Intergranular Corrosion (IGC) Test



---

• EN 10204/3.1B,
• Raw Materials Certificate
• 100% Radiography Test Report
• Third Party Inspection Report, etc
