stainless steel 316l bolts and nuts, UNS S31603 Studs suppliers

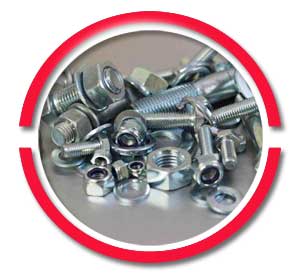

316L Stainless Steel Fasteners

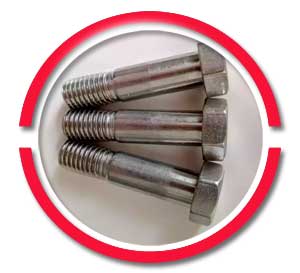

UNS S31603 Bolts And Nuts

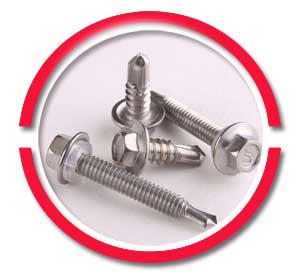

DIN 1.4404 hex head screws
supplies a full range of DIN 1.4404 Threaded rod and hex head screws, view SS 316l nut bolt price list
Grade 316L Stainless Steel Fasteners are a low carbon version of alloy 316. Generally, those alloys which have a low carbon controlled chemistry such as stainless steel 316l bolts and nuts are considered to be structurally weaker.
However, the addition of nitrogen to the alloy of Stainless Steel 316l Nuts is what brings up the yield strength of the metal to that of grade 316. Due to the inclusion of nitrogen in 316l Stainless Steel hex head screws, these fasteners have a much higher resistance to pitting, especially when compared to popular alloy grade 304. Regarded as a marine grade alloy, the SS UNS S31603 Fasteners are useful to combat corrosion in polluted marine atmospheres.
The main advantage of low carbon modified 316l stainless steel bolts is their excellent resistance to intergranular corrosion. Therefore, these SS DIN 1.4404 Fasteners are often used in an as-welded condition. The exhibition of properties such as excellent strength and superior toughness, make the 316l Stainless Steel High Tensile Fasteners well suited to be used for applications in cryogenic temperatures. On the other hand, the specified Astm A193 316l Fasteners are designed to be used in high pressure and/or high temperature environments. Per the above mentioned ASTM, the chemical requirements of the Stainless Steel 316l Hex Head Bolt have been detailed in the specification. Hence, the elements used to alloy the Stainless Steel 316l Hex Head Nut must conform to the specification.
Price List of Stainless Steel 316l Hex Nuts
|
Stainless Steel 316l Hex Nuts Pri ce in China
(Thread Direction Right Hand) |
|
|---|---|
|
Thread Size
|
316l Stainless Steel Hex Nuts Price
|
|
#6-32
|
$33.68 / pkg. of 50
|
|
#6-32
|
$33.68 / pkg. of 50
|
|
#8-32
|
$36.05 / pkg. of 50
|
|
#10-24
|
$36.98 / pkg. of 50
|
|
7/16″-14
|
$22.04 / pkg. of 25
|
|
5/8″-11
|
$35.64 / pkg. of 25
|
|
3/4″-10
|
$41.51 / pkg. of 20
|
|
7/8″-9
|
$15.91 / pkg. of 5
|
Price List of Stainless Steel 316l Bolts
|
Plow Bolt, Plain, 5/8-11×2, Gr 5, PK25
|
$30.65 / pkg. of 25
|
|
Structural Bolt, 1/2-13×1 1/2L, PKG25
|
$13.21 / pkg. of 25
|
|
U bolts, with 5/16 Thread, Zinc Finish
|
$3.71–$7.25
|
|
Hex Nut, SS, Gr SS316l,3/8-16, Plain, PKG50
|
$12.13
|
|
Hex Lag Screw, 3/8×2 1/2 In L, PKG50
|
$19.79
|
|
Flat Washer
|
$0.09–$5.97
|
Price of Metric Hex Bolts, Partially Threaded (DIN 931)
|
M5-0.8 X 30
|
DIN 931
|
M5
|
Coarse
|
30
|
A2-70 Stainless
|
Plain
|
100
|
$11.20
|
|
M5-0.8 X 35
|
DIN 931
|
M5
|
Coarse
|
35
|
A2-70 Stainless
|
Plain
|
100
|
$13.43
|
|
M5-0.8 X 40
|
DIN 931
|
M5
|
Coarse
|
40
|
A2-70 Stainless
|
Plain
|
100
|
$15.03
|
|
M5-0.8 X 45
|
DIN 931
|
M5
|
Coarse
|
45
|
A2-70 Stainless
|
Plain
|
100
|
16.75
|
|
M5-0.8 X 50
|
DIN 931
|
M5
|
Coarse
|
50
|
A2-70 Stainless
|
Plain
|
100
|
$18.33
|
|
M6-1.0 X 10
|
DIN 931
|
M6
|
Coarse
|
10
|
A2-70 Stainless
|
Plain
|
100
|
$8.10
|
|
M6-1.0 X 30
|
DIN 931
|
M6
|
Coarse
|
30
|
A2-70 Stainless
|
Plain
|
100
|
$15.95
|
|
M6-1.0 X 35
|
DIN 931
|
M6
|
Coarse
|
35
|
A2-70 Stainless
|
Plain
|
100
|
$19.10
|
Price List of SS 316l Socket Cap Screw
|
Description
|
Price per 100
|
Pack
|
|---|---|---|
|
M1.4 X 2
|
$31.43
|
25
|
|
M1.4 X 3
|
$32.31
|
25
|
|
M1.4 X 4
|
$33.07
|
25
|
|
M1.4 X 5
|
$33.70
|
25
|
|
M1.4 X 6
|
$34.40
|
25
|
|
M1.4 X 8
|
$35.03
|
25
|
|
M1.4 X 10
|
$36.29
|
25
|
|
M1.4 X 12
|
$36.97
|
25
|
|
M1.4 X 16
|
$39.06
|
25
|
|
M1.6 X 3
|
$7.56
|
100
|
|
M1.6 X 4
|
$6.96
|
100
|
|
M1.6 X 5
|
$7.18
|
100
|
|
M1.6 X 6
|
$7.18
|
100
|
|
M1.6 X 8
|
$7.66
|
100
|
|
M1.6 X 10
|
$8.50
|
100
|
|
M1.6 X 12
|
$8.86
|
100
|
|
M1.6 X 14
|
$13.26
|
100
|
|
M1.6 X 16
|
$9.76
|
50
|
|
M1.6 X 18
|
$21.00
|
50
|
Comparing standards specification of stainless steel 316l fasteners
| Fasteners Material Specification | ASTM A194, ASME SA193, UNS S31603 Bolts |
|---|---|
| Standard | DIN, UNI, ISO, JIS, GB, IS, BS, ASME, ANSI, ASTM and all International Standards |
| Fasteners/ Bolts Size | M2, M2.5, M3, M4, M5, M6, M8, M10, M12, M14, M16, M20, M24, M30, M36 to M160 |
| Length | 3 mm to 200 mm |
| Bolts, Studs Threads: | METRIC, BSW, BSF, UNC, UNF or as required |
| SS 316l Fasteners Standard: | ANSI – American National Standards Institute
DIN: DIN 931, DIN 933, DIN 934, DIN 970 UTS – Unified Thread Standard : UNC, UNF, UNEF, UNS, NPT, NPTF ISO – International Organization for Standardization : ISO 4032, ISO 4033, JIS standards |
| Source of raw materials | Tata Steel, JSPL, RINL, Usha Martin, Dhamm Steel, Mukund Steel etc. |
| SCOPE OF MANUFACTURE |
|
| Fasteners In Form of: | Hex, Square, Round, Threading as per Gauge Etc. |
| Head drive: | Phillips, Slotted, Phillips/Slot, Six-Lobe, etc |
| bolting Test Certificate: | Manufacturer Test Certificate as per EN 10204 / 3.1 |
| Fasteners finishing: | Zinc (yellow, white, blue, black), black oxide, Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Stainless steel: Passivated Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Stainless Steel, Mechanically Applied coating and some special one like DACROMET |
| 316L stainless steel bolts Production process | M2-M24: Cold Froging, hot forging M24-M100, machining and CNC for Customized connecting element |
| bolting materials Surface Coating: |
All surface finishes offered including Geomet & PTFE, Galvanised, Zinc, Electroless Nickel, Sherardized, Dacromet |
| Popular Types of SS 316l Bolts | Hex Bolts, Flange Bolts, Hex Head Bolts, Lag Bolts, Square Bolts, Eye Bolts, U Bolts, T Bolts, Counter sunk Bolts etc. |
| Popular Types of SS 316l Nut | Hex Head Nut, Eye Nut, Dome Nut, Wing Nut, T Nut, Panel Nut, Lock Nut, Coupling Nut, Square Nut, Acorn Nut etc. |
| Popular Types of SS 316l Screw | Hex Head Cap Screws, Socket Set Screws, Anchor Screws, Blind Rivet, Socket Head Screws, Concrete Screws, Shoulder Screws, Panel Screws, Threaded Screws, Machine Screws etc. |
| Popular Types of SS 316l Washer | Machine Washers, Flat Washer, Star Washers, Sealing Washer, Lock Washer, Split Washer etc. |
| Fasteners Packing: | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
Size chart of Stainless Steel 316l Fasteners
|
Stainless Steel 316l Screws Type
|
SIZE
|
GRADE
|
ASME
|
ISO
|
ASTM
|
|---|---|---|---|---|---|
|
Socket Head Cap Screws
|
M1.6 to M64
|
12.9
|
B18.3.1 M
|
4762
|
A574M
|
|
Socket Low Head Cap Screws
|
M4 to M20
|
10.9
|
|
|
|
|
Socket Head Shoulder Screws
|
M6 to M24
|
012.9
|
B18.3.3M
|
|
|
|
Countersunk Socket Head Screws
|
M3 to M20
|
012.9
|
B18.3.5M
|
10642
|
F835M
|
|
Button Head Socket Screws
|
M3 to M12
|
012.9
|
B18.3.4M
|
7380
|
F835M
|
|
Flange Button Head Socket Screws
|
M3 to M10
|
012.9
|
|
|
F835M
|
|
Knurled Point Socket Set Screws
|
M3 to M20
|
45H
|
B18.3.6M
|
4029
|
F912M
|
|
Flat Point Socket Set Screws
|
M6 to M12
|
45H
|
B18.3.6M
|
4026
|
F912M
|
|
Dog Point Socket Set Screws
|
M3 to M20
|
45H
|
B18.3.6M
|
4028
|
F912M
|
|
Cone Point Socket Set Screws
|
M3 to M12
|
45H
|
B18.3.6M
|
4027
|
F912M
|
|
Plain Point Socket Set Screws
|
M3 to M20
|
45H
|
B18.3.6M
|
4029
|
F912M
|
|
Taper Pressure Plug
|
M8 to M22
|
–
|
|
|
|
|
Stainless Steel 316l Bolt Type
|
SIZE
|
PROPERTY CLASS
|
TENSILE STRENGTH
|
STANDARD
|
|---|---|---|---|---|
|
Stainless Steel 316l Hex Head Bolt / Screws
|
M4 to M80
|
10.9
|
1040N / mm2 min
|
ISO 4017 (Full Thread)
ISO 4014 (Half Thread) |
|
Stainless Steel 316l Nuts Type
|
SIZE
|
PROPERTY CLASS
|
STANDARD
|
|---|---|---|---|
|
Hex Nut
|
M6 to M42
|
10
|
ISO 4032
|
|
Nylock Nut
|
M6 to M20 (Gr.8)
M10 to M24 (Gr.10) |
8 & `10
|
DIN 982
|
|
Nylock Nut
|
M6 to M20 (Gr.8)
M10 to M24 (Gr.10) |
8 & 10
|
DIN 985
|
|
Hex Weld Nut
|
M6 to M12
|
8
|
DIN 929
|
|
Stainless Steel 316l Washers Type
|
SIZE
|
HARDNESS
|
STANDARD
|
|---|---|---|---|
|
Square Section Spring Washer
|
3mm to 39mm
|
HV (430 to 530)
|
DIN 7980
|
|
Flat Section Spring Washer
|
3mm to 39mm
|
HV (430 to 530)
|
DIN 127 B
|
|
Hardened Washer
|
12mm to 30mm
|
HV (300 to 370)
|
IS 2016
|
|
Hardened Steel Washer
|
12mm to 56mm
|
Rockwell 26 to 45 (HDG)
Rockwell 38 to 45 (Coated) |
ASTM F436M
|
ISO And DIN designations
|
No.
|
Description
|
|---|---|
|
DIN 84
|
Slotted Cheese Head Machine Screws
|
|
DIN 85
|
Slotted Pan Head Machine Screws
|
|
DIN 94
|
Cotter Pin
|
|
DIN 125A
|
Flat Washer (without Chamfer)
|
|
DIN 125B
|
Flat Washer (with Chamfer)
|
|
DIN 127B
|
Split Lock Washer
|
|
DIN 137B
|
Spring Wave Washer
|
|
DIN 315
|
Wing Nut
|
|
DIN 439B
|
Machine Screws Hex Nut, Finished Hex Jam Nut
|
|
DIN 911
|
Long Arm Hex Key
|
|
DIN 912
|
Hex Socket Head Cap Screws
|
|
DIN 916
|
Hex Socket Set Screws
|
|
DIN 931
|
Hex Head Cap Screws Partially Threaded
|
|
DIN 933
|
Hex Head Cap Screws Fully Threaded
|
|
DIN 934
|
Finished Hex Nut
|
|
DIN 939
|
Double End Stud
|
|
DIN 960
|
Hex Head Cap Screws Partially Threaded
|
|
DIN 961
|
Hex Head Cap Screws Fully Threaded
|
|
DIN 963
|
Slotted Flat Head Machine Screws
|
|
DIN 964
|
Slotted Oval Head Machine Screws
|
|
DIN 965
|
Phillips Flat Head Machine Screws
|
|
DIN 966
|
Phillips Oval Head Machine Screws
|
|
DIN 975
|
Threaded Rod
|
|
DIN 980V
|
Hex Steel Prevailing Torque Lock Nut
|
|
DIN 985
|
Hex Nylon Insert Lock Nut
|
|
DIN 6334
|
Rod Coupling Nut
|
|
DIN 6797A
|
External Tooth Lock Washer
|
|
DIN 6797J
|
Internal Tooth Lock Washer
|
|
DIN 6912
|
Hex Low Socket Head Cap Screws
|
|
DIN 6921
|
Hex Flange Head Screws
|
|
DIN 6923
|
Hex Flange Nut
|
|
ISO 7379
|
Hex Socket Head Shoulder Screws
|
|
ISO 7380
|
Hex Button Socket Head Cap Screws
|
|
DIN 7985
|
Phillips Pan Head Machine Screws
|
|
DIN 7991
|
Hex Flat Socket Head Cap Screws
|
Comaparison between metric sizes to the closest inch equivalent
|
Metric
|
Closest Inch
|
|---|---|
|
M1.4-0.3
|
0-80 (Larger)
|
|
M2-0.4
|
1-64 (Smaller)
|
|
M2.5-0.45
|
3-56 (Larger)
|
|
M3-0.5
|
4-48 (Smaller)
|
|
M3.5-0.6
|
6-40 (Same)
|
|
M4-0.7
|
8-36 (Larger)
|
|
M5-0.8
|
10-32 (Smaller)
|
|
M6-1.0
|
1/4-28 (Larger)
|
|
M7-1.0
|
1/4-28 (Smaller)
|
|
M8-1.25
|
5/16-18 (Smaller)
|
|
M10-1.5
|
3/8-16 (Smaller)
|
|
M12-1.75
|
1/2-13 (Larger)
|
|
M14-2.0
|
9/16-12 (Larger)
|
|
M16-2.0
|
5/8-11 (Smaller)
|
|
M18-2.5
|
3/4-10 (Larger)
|
|
M20-2.5
|
3/4-10 (Smaller)
|
|
M22-2.5
|
7/8-9 (Larger)
|
|
M24-3.0
|
1-8 (Larger)
|
|
M30-3.5
|
1 1/8-7 (Smaller)
|
|
M36-4.0
|
1 3/8-6 (Smaller)
|
ANSI or ASME Standards (inch series)
| ASME B18.1.1 | Small Solid Rivets | ASME B18.8.1 | Clevis Pins and Cotter Pins |
|---|---|---|---|
| ASME B18.1.2 | Large Rivets | ASME B18.8.2 | Taper Pins, Dowel Pins, Straight Pins, Grooved Pins and Spring Pins |
| ASME B18.2.1 | Square and Hex Bolts and Screws | ASME B18.9 | Plow Bolts |
| ASME B18.2.2 | Square and Hex Nuts | ASME B18.10 | Track Bolts and Nuts |
| ASME B18.2.6 | Fasteners for use in Structural Applications | ASME B18.11 | Miniature Screws |
| ASME B18.3 | Socket Cap, Shoulder and Set Screws | ASME B18.13 | Screws and Washer Assemblies (Sems) |
| ASME B18.5 | Round Head Bolts | ASME B18.15 | Forged Eyebolts |
| ASME B18.6.2 | Slotted Head Cap Screws, Square Head Set Screws, and Slotted Headless Set Screws | ASME B18.17 | Wing Nuts, Thumb Screws and Wing Screws |
| ASME B18.6.3 | Machine Screws and Machine Screws Nuts | ASME B18.21.1 | Lock Washers |
| ASME B18.6.4 | Thread Forming and Thread Cutting Tapping Screws and Metallic Drive Screws | ASME B18.22.1 | Plain Washers |
| ASME B18.7 | General Purpose Semi- Tubular Rivets, Full Tubular Rivets, Split Rivets and Rivet Caps | ASME B18.23.1 | Beveled Washers |
Mechanical Strength of type 316l stainless steel fasteners
|
Grade |
Tensile Str |
Yield Str |
Elong |
Hardness |
|
|
Rockwell B (HR B) max |
Brinell (HB) max |
||||
|
316L |
485 |
170 |
40 |
95 |
217 |
Equivalent Material for 316l stainless steel fasteners
|
Grade |
UNS |
Old British |
Euronorm |
Swedish |
Japanese |
||
|
BS |
En |
No |
Name |
||||
|
316L |
S31603 |
316S11 |
– |
1.4404 |
X2CrNiMo17-12-2 |
2348 |
SUS 316L |
Chemical Composition Standard of SS 316l nut bolt
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
|
|
316L |
Min |
– |
– |
– |
– |
– |
16.0 |
2.00 |
10.0 |
– |
|
Max |
0.03 |
2.0 |
0.75 |
0.045 |
0.03 |
18.0 |
3.00 |
14.0 |
0.10 |
Physical Properties of Stainless Steel 316l Fasteners
|
Grade |
Density |
Elastic Modulus |
Mean Co-eff of Thermal Expansion (µm/m/°C) |
Thermal Conductivity |
Specific Heat 0-100°C |
Elec Resistivity |
|||
|
0-100°C |
0-315°C |
0-538°C |
At 100°C |
At 500°C |
|||||
|
316l |
8000 |
193 |
15.9 |
16.2 |
17.5 |
16.3 |
21.5 |
500 |
740 |
