ASTM A276 316l Stainless Steel Round Bar

ASTM A479 Type 316L Rod & Flat Bar Suppliers

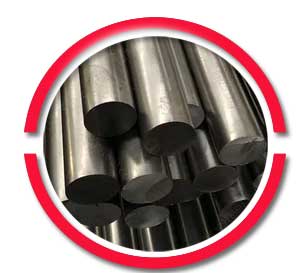

SS 316L Rod

SS 316L Rod

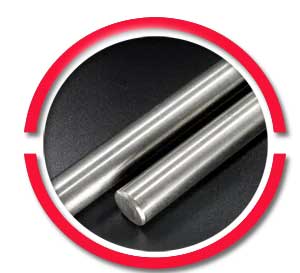

Stainless Steel 316L Round Bar

Stainless Steel 316L Round Bar

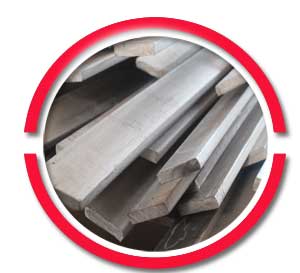

DIN 1.4435 Flat Bar

DIN 1.4435 Flat Bar

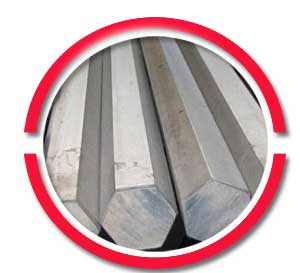

UNS S31603 Hex Bar UNS S31603 Hex Bar

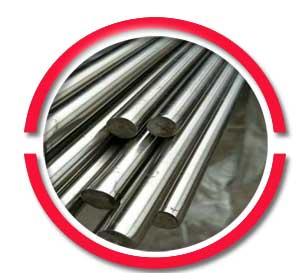

SUS 316L Bright BarSUS 316L Bright Bar

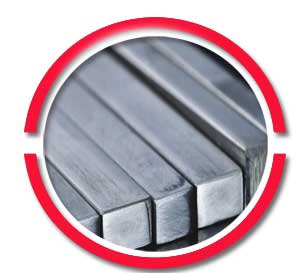

ASTM A276 SS 316L Square Bar

ASTM A276 SS 316L Square Bar

Don’t spend for extra size of Uns S31603 316L Hex bar, we supply custom sizes & shaft for pumps as per BS EN 10088-3:2014 Standard



The alteration of the chemistry for any stainless steel is appropriate for certain speciality operations. One such operation is the welding of 316L Steel Cold Finished Bars. Welding forms a permanent joint in a process based application. It involves the use of heat to melt or solder the product such that the JIS SUS 316L black bar is easily connected to a system. In instances where the content of carbon is really high, there is a formation of carbide precipitation at the grain boundary of these components.

Thus, leading to decay or intergranular corrosion. Also since the presence of high carbon in a product inhibits the formation of good welds. This is because carbon is chemically stable, even at high temperature, which in entirety defeats the purpose of welding. Hence suppliers suggest using 316L stainless steel round bar, as the lower content of carbon discourages carbide precipitation and unlike 316H, it eases welding operation. In addition to easing the process, using 316L stainless steel rods speeds up the joining operation, making it an asset to manufacturers. Typically, most individuals associate 316L stainless steel welding rod with marine grade. And, hence, they often use these bars in marine engineering. Furthermore, the ASTM A479 UNS S31603 hex bar functions well despite being exposed to seawater that contains halides or halogen elements such as Chlorine, fluorine and bromine.

The astm a276 type 316L flat bar is also non-toxic, making them useful additions in the pharma sector as well. Even the food industry, which has a high demand for sanitary products find using the DIN 1.4435 square bar an investment. Industries like pharma and food, frequently clean their equipment using harsh chemicals. Being a non-reactive allot, the ss 316L bright bar is perfect for these applications. Though the cost of using this alloy is much more than grade 304, the benefits offered by AISI 316L threaded bar outnumber grade 304.



Table of Content



SS 316L Rod prices list in india
Round Bar Grade
Dimensions
Price
Stainless Steel Round Bar 316L Price
1/2 inch – 12
Rs 165/ Kilogram
18 meter
Rs 168/ Kilogram
1-2 inch
Rs 200/ Kilogram
1-2 inch,3-4 inch,2-3 inch
Rs 150/ Piece
0-1 inch,3-4 inch
Rs 180/ Piece



Comparing Standards Specification Of Stainless Steel 316L Round Bar
Specification ASTM A276/ A479, ASME SA276/SA479
Grade Stainless Steel 316L (UNS S31603)
Flat bar size 1/2” to 10” in thickness range of 2mm to 150mm
Square bar size 18mm – 47mm (11/16″ to 1-3/4″)
Round bar size Outside Diameter in the range of 4mm to 500mm
Hex Bar size 18mm – 57mm (11/16″ to 2-3/4″)
Bright Bar Outside Diameter in the range of 4mm to 100mm
Channel Bar 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness
Hollow Bar 32mm OD x 16mm ID to 250mm OD x 200mm ID)
Billet Size 1/2″ to 495mm Diameter
Angle bar size 3mm*20mm*20mm~12mm*100mm*100mm
Rectangular bar Size 33 x 30mm to 295 x 1066mm
Finish Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black
Tolerance H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements
Surface Cold Drawn, Bright, Sand Blasting Finished, Hot Rolled Pickled, Hairline, Polished
Condition Hardened & tempered, annealed
Technique 316L Stainless Steel Cold Drawn, Hot Rolled, Forged Round Bar, Rod, Cold Rolled
Processing Bar cutting to 650mm
Section 3.0 to 12.0mm thickness
Form Precision Ground Bar, Flat Bar, Square, Round, Half Round Bar, Rod, Rectangle, Hex (A/F), T-Bar, Channel Bar,Blocks, Round Rod, Threaded, Profiles, Billet, Ingot, I/H Bar, Forging, Rings, Hollow, Triangle etc.
Our 316L Stainless Steel Round bar conforms to NACE MR0175/ISO 15156

Check standard specification & price list of DIN 1.4435 Square Bar, Bright Bars, Forged Bar Ex Shenzhen

ASTM A276 type 316L Rod Surface finish
CD
Cold drawn
P
Polished
BD
Bright drawn
SRE
Slit rolled edge
CG
Centreless ground
HF
Hot finished
CF
Cold finished
HRAP
Hot rolled annealed and pickled
P&T
Peeled and turned
RT
Rough turned/peeled
ST
Smooth turned
PR
Peeled and reeled



SS 316L Hex Bar Condition
H&T
Hardened and tempered.
ANN
Annealed
PH
Precipitation hardened.





Held Wide Stock Of Astm A276 316L Stainless Steel Round Bars



Stainless Steel 316L Square Bar
Stainless Steel 316L Square Bar
Stainless Steel 316L Flat Bar
Stainless Steel 316L Flat Bar
UNS S31603 Stainless Steel Rectangular Bar
UNS S31603 Stainless Steel Rectangular Bar
Stainless Steel 316L Rod
Stainless Steel 316L Rod
Stainless Steel 316L Round Bar
Stainless Steel 316L Round Bar
Stainless Steel Alloy 316L Half-Round Bar
Stainless Steel Alloy 316L Half-Round Bar
Alloy 316L T-Bar
Alloy 316L T-Bar
UNS S31603 Stainless Steel Rounds
UNS S31603 Stainless Steel Rounds
UNS S31603 Stainless Steel Hollow Bar
UNS S31603 Stainless Steel Hollow Bar
Alloy 316L Rebar
Alloy 316L Rebar
Stainless Steel 316L Threaded Bar
Stainless Steel 316L Threaded Bar
Alloy 316L Hexagonal Bar
Alloy 316L Hexagonal Bar
Stainless Steel 316L Hex Bar
Stainless Steel 316L Hex Bar
Alloy 316L Triangle Bar
Alloy 316L Triangle Bar
Stainless Steel Alloy 316L Precision Ground Stock
Stainless Steel Alloy 316L Precision Ground Stock
Alloy 316L Precision Ground Bar
Alloy 316L Precision Ground Bar




UNS S31603 AISI 316L Flat bar Size table
Stainless Steel 316L Flat bar – metric sizes and weights
Flat Size
KG’s per Metre
Standard Length (metres)
Colour Code
10 x 3
0.24
6.0
Blue
13 x 3
0.31
6.0
Blue
13 x 5
0.46
6.0
Orange
16 x 3
0.38
6.0
Blue
16 x 5
0.64
6.0
Orange
16 x 8
1.03
6.0
Red
20 x 3
0.48
6.0
Blue
20 x 5
0.81
6.0
Orange
20 x 6
0.97
6.0
White
20 x 10
1.61
6.0
Yellow
25 x 3
0.60
6.0
Blue
25 x 5
1.01
6.0
Orange
25 x 6
1.21
6.0
White
25 x 8
1.61
6.0
Red
25 x 10
2.01
6.0
Yellow
25 x 12
2.41
6.0
Pink
32 x 3
0.77
6.0
Blue
32 x 5
1.29
6.0
Orange
32 x 6
1.55
6.0
White
32 x 8
2.06
6.0
Red
32 x 10
2.58
6.0
Yellow
32 x 12
3.09
6.0
Pink
40 x 3
0.97
6.0
Blue
40 x 5
1.61
6.0
Orange
40 x 6
1.93
6.0
White
40 x 8
2.58
6.0
Red
40 x 10
3.22
6.0
Yellow
40 x 12
3.86
6.0
Pink
40 x 16
5.15
6.0
Grey
40 x 20
6.14
6.0
Green
50 x 3
1.21
6.0
Blue
50 x 5
2.01
6.0
Orange
50 x 6
2.41
6.0
White
50 x 8
3.22
6.0
Red
50 x 10
4.02
6.0
Yellow
50 x 12
4.83
6.0
Pink
50 x 16
6.44
6.0
Grey
50 x 20
8.05
6.0
Green
50 x 25
10.1
6.0
Purple
65 x 3
1.57
6.0
Blue
65 x 5
2.62
6.0
Orange
65 x 6
3.14
6.0
White
65 x 8
4.18
6.0
Red
65 x 10
5.23
6.0
Yellow
65 x 12
6.28
6.0
Pink
65 x 16
8.37
6.0
Grey
65 x 20
10.5
6.0
Green
65 x 25
13.1
6.0
Purple
75 x 5
3.02
6.0
Orange
75 x 6
3.62
6.0
White
75 x 8
4.83
6.0
Red
75 x 10
6.04
6.0
Yellow
75 x 12
7.24
6.0
Pink
75 x 16
9.66
6.0
Grey
75 x 20
12.1
6.0
Green
75 x 25
15.1
6.0
Purple
75 x 40
24.1
6.0
Yellow
90 x 5
3.62
6.0
Orange
90 x 6
4.35
6.0
White
90 x 8
5.79
6.0
Red
90 x 10
7.24
6.0
Yellow
90 x 12
8.69
6.0
Pink
100 x 5
4.02
6.0
Orange
100 x 6
4.83
6.0
White
100 x 8
6.44
6.0
Red
100 x 10
8.05
6.0
Yellow
100 x 12
9.66
6.0
Pink
100 x 16
12.9
6.0
Grey
100 x 20
16.1
6.0
Green
100 x 25
20.1
6.0
Purple
100 x 50
40.2
6.0
Green
110 x 6
5.31
6.0
White
110 x 8
7.08
6.0
Red
110 x 10
8.85
6.0
Yellow
110 x 12
10.6
6.0
Pink
130 x 5
5.23
6.0
Orange
130 x 6
6.28
6.0
White
130 x 8
8.37
6.0
Red
130 x 10
10.5
6.0
Yellow
130 x 12
12.6
6.0
Pink
130 x 16
16.7
6.0
Grey
130 x 20
20.9
6.0
Green
130 x 25
26.2
6.0
Purple
150 x 5
6.04
6.0
Orange
150 x 6
7.24
6.0
White
150 x 8
9.66
6.0
Red
150 x 10
12.1
6.0
Yellow
150 x 12
14.5
6.0
Pink
150 x 16
19.3
6.0
Grey
150 x 20
24.1
6.0
Green
150 x 25
30.1
6.0
Purple
150 x 50
60.4
6.0
Green
180 x 5
7.24
6.0
Orange
180 x 6
8.69
6.0
White
180 x 10
14.5
6.0
Yellow
180 x 12
17.4
6.0
Pink
180 x 16
23.2
6.0
Grey
180 x 20
29.0
6.0
Green
180 x 25
36.2
6.0
Purple
200 x 6
9.66
6.0
White
200 x 8
12.9
6.0
Red
200 x 10
16.1
6.0
Yellow
200 x 12
19.3
6.0
Pink
200 x 16
25.7
6.0
Grey
200 x 20
32.2
6.0
Green
200 x 25
40.3
6.0
Purple
250 x 6
12.1
6.0
White
250 x 8
16.1
6.0
Red
250 x 10
20.1
6.0
Yellow
250 x 12
24.1
6.0
Pink
250 x 16
32.2
6.0
Grey
250 x 20
40.2
6.0
Green
250 x 25
50.3
6.0
Purple
300 x 6
14.5
6.0
White
300 x 8
19.3
6.0
Red
300 x 10
24.1
6.0
Yellow
300 x 12
29.0
6.0
Pink
300 x 16
38.6
6.0
Grey
300 x 20
48.3
6.0
Green
300 x 25
60.4
6.0
Purple
ASTM A276 type 316L Stainless Steel Hex Bar Standard Sizes
SS hex bar Size in Inches
SS hex bar Wt per Ft
SS hex bar Wt per 12′
3/16″
0.104
1.248
1/4″
0.180
2.160
5/16″
0.290
3.480
3/8″
0.316L
4.920
7/16″
0.560
6.72
1/2″
0.740
8.880
9/16″
0.930
11.16
5/8″
1.150
13.80
11/16″
1.390
16.68
3/4″
1.660
19.92
13/16″
1.950
23.40
7/8″
2.300
27.60
15/16″
2.600
31.20
1″
2.90
34.80
1-1/16″
3.30
39.60
1-1/8″
3.700
44.40
1-1/4″
4.600
55.20
1-5/16″
5.100
61.20
1-3/8″
5.600
67.20
1-7/16″
6.100
73.20
1-1/2″
6.600
79.20
1-5/8″
7.800
93.60
1-3/4″
9.030
108.36
1-7/8″
10.400
124.80
2″
11.80
141.60
2-1/4″
14.920
179.04
2-3/8″
16.920
203.04
2-1/2″
18.42
221.04
3″
26.53
318.36



ASME SA 479 grade 316L Square Bar Size Table
SS 316L Square bar – metric sizes and weights
Square bar Size
KG’s per Metre
Standard Length (metres)
Colour Code
10 x 10
0.81
6.0
Yellow
12 x 12
1.16
6.0
Pink
16 x 16
2.06
6.0
Grey
20 x 20
3.22
6.0
Green
25 x 25
5.03
6.0
Purple
32 x 32
8.24
6.0
Orange
40 x 40
12.8
6.0
Yellow
50 x 50
20.12
6.0
Green
DIN 1.4435 Round Bar Size Chart
Type
SIZES (mm)
SIZES (Inches)
ISO Tolerance
Cold Drawn and Polish
3.00 – 75.00
1/8″ – 3.00″
h8-h9-h10-h11
Cold Drawn and Ground
10.00 – 75.00
5/6″ – 2.50″
h8-h9-h10-h11
Peeled and Polished
40.00 – 150.00
1.50″ – 6.00″
h11, h11-DIN 1013
Peeled and Ground
20.00 – 50.00
3/4″ – 2.00″
h9-h10-h11

Cut to size on request (tolerance +2/-0 mm). 316L Stainless Steel Bars Standard lengths of 2000 mm up to 6000 mm.

5.0
45.0
6.0
50.0
7.0
55.0
8.0
60.0
9.0
65.0
10.0
70.0
12.0
75.0
16.0
80.0
20.0
90.0
25.0
100.0
30.0
130.0
35.0
160.0
40.0
200.0



Size chart of AISI 316L Stainless Steel Hollow Bar
Size mm kg/m Size mm kg/m
20 x 20 x 2.0 1.12 20 x 20 x 2.5 1.35
25 x 25 x 1.5 1.06 25 x 25 x 2.0 1.43
25 X 25 X 2.5 1.74 25 X 25 X 3.0 2.04
30 X 30 X 2.0 1.68 30 X 30 X 2.5 2.14
30 X 30 X 3.0 2.51 40 x 40 x 1.5 1.81
40 x 40 x 2.0 2.31 40 x 40 x 2.5 2.92
40 x 40 x 3.0 3.45 40 x 40 x 4.0 4.46
40 x 40 x 5.0 5.40 50 x 50 x 1.5 2.28
50 x 50 x 2.0 2.93 50 x 50 x 2.5 3.71
50 x 50 x 3.0 4.39 50 x 50 x 4.0 5.72
50 x 50 x 5.0 6.97 60 x 60 x 3.0 5.34
60 x 60 x 4.0 6.97 60 x 60 x 5.0 8.54
60 x 60 x 6.0 9.45 70 x 70 x 3.0 6.28
70 x 70 x 3.6 7.46 70 x 70 x 5.0 10.11
70 x 70 x 6.3 12.50 70 x 70 x 8 15.30
75 x 75 x 3.0 7.07 80 x 80 x 3.0 7.22
80 x 80 x 3.6 8.59 80 x 80 x 5.0 11.70
80 x 80 x 6.0 13.90 90 x 90 x 3.0 8.01
90 x 90 x 3.6 9.72 90 x 90 x 5.0 13.30
90 x 90 x 6.0 15.76 90 x 90 x 8.0 20.40
100 x 100 x 3.0 8.96 100 x 100 x 4.0 12.00
100 x 100 x 5.0 14.80 100 x 100 x 5.0 14.80
100 x 100 x 6.0 16.19 100 x 100 x 8.0 22.90
100 x 100 x 10 27.90 120 x 120 x 5 18.00
120 x 120 x 6.0 21.30 120 X 120 X 6.3 22.30
120 x 120 x 8.0 27.90 120 x 120 x 10 34.20
120 X 120 X 12 35.8 120 X 120 X 12.5 41.60
140 X 140 X 5.0 21.10 140 X 140 X 6.3 26.30
140 X 140 X 8 32.90 140 X 140 X 10 40.40
140 X 140 X 12.5 49.50 150 X 150 X 5.0 22.70
150 X 150 X 6.3 28.30 150 X 150 X 8.0 35.40
150 X 150 X 10 43.60 150 X 150 X 12.5 53.40
150 X 150 X 16 66.40 150 X 150 X 16 66.40
180 X 180 X 5 27.40 180 X 180 X 6.3 34.20
180 X 180 X 8 43.00 180 X 180 X 10 53.00
180 X 180 X 12.5 65.20 180 X 180 X 16 81.40
200 X 200 X 5 30.50 200 X 200 X 6 35.8
200 x 200 x 6.3 38.2 200 x 200 x 8 48.00
200 x 200 x 10 59.30 200 x 200 x 12.5 73.00
200 x 200 x 16 91.50 250 x 250 x 6.3 48.10
250 x 250 x 8 60.50 250 x 250 x 10 75.00
250 x 250 x 12.5 92.60 250 x 250 x 16 117.00
300 x 300 x 6.3 57.90 300 x 300 x 8 73.10
300 x 300 x 10 57.90 300 x 300 x 8 90.70
300 x 300 x 12.5 112.00 300 x 300 x 16 142.00
350 x 350 x 8 85.70 350 x 350 x 10 106.00
350 x 350 x 12.5 132.00 350 x 350 x 16 167.00
400 x 400 x 10 122.00 400 x 400 x 12 141.00
400 x 400 x 12.5mm 152.00 400 x 400 x 16 192



Get AISI 316L cold drawn & hot rolled bar stock at factory price
Specified Minimum Yield Strength Of 316L stainless steel round bar
Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1454 °C (2650 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 40 %
ASME SA 276 grade 316L Hexagonal Bar, rectangular Bar in many sizes & surface finish
Chemical Equation Of UNS S31603 AISI 316L Bar
Grade C Mn Si P S Cr Mo Ni N
SS 316L 0.3 max 2 max 0.75 max 0.045 max 0.030 max 16 – 18 2 – 3 10 – 14 0.10 max



Equivalent Specification Of ASTM A276 type 316L Flat Bar

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 316L 1.4404 / 1.4435 S31603 SUS 316L 316S11 / 316S13 03Ch17N14M3 / 03Ch17N14M2 Z3CND17‐11‐02 / Z3CND18‐14‐032 X2CrNiMo17-12-2 / X2CrNiMo18-14-3



Documentations Provide with SUS 316L Round Bar
  • Commercial invoice
  • Packing list- like number of boxes, quantity, weight, gross weight
  • Quality assurance test report
  • Raw material test report
  • Specification test
  • Laboratory test report
