ASTM B865 UNS N05500 Hex Bar and Flat bar manufacturer in China
Monel K500 Round Bar

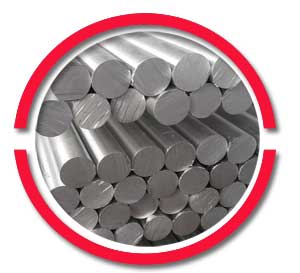

Alloy K500 Rod

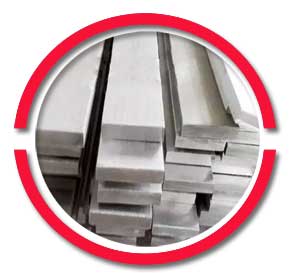

ASTM B865 UNS N05500 Flat Bar

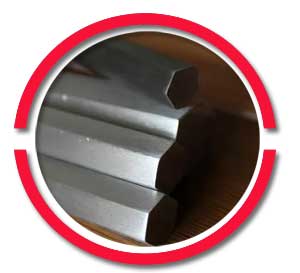

DIN 2.4375 Hex Bar

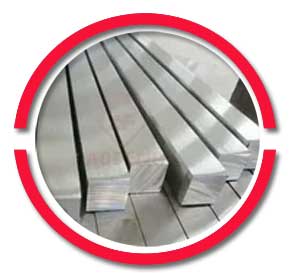

Nickel Alloy K500 Square Bar

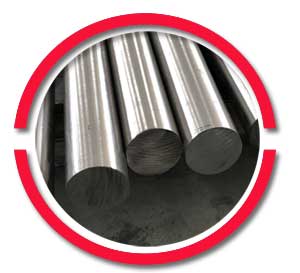

ASME SB 865 Alloy K500 Bright Bar
We help you to save your cost by providing exact size of DIN 2.4375 Square Bar
Table of Content
- ASTM B865 UNS N05500 Bar Surface finish
- Spec Chart Of Monel K500 Round Bar
- 2.4375 Alloy K500 Rod price
- Basic Types Of ASTM B865 UNS N05500 Bar
- Nickel Alloy K500 Bar Tolerances
- Our Stock list of Nickel Alloy K500 bar
- Our Nickel Alloy K500 Bar Special Features
- Mechanical Analysis Of UNS N05500 Bright Bar
- Chemical Composition Standard Of Monel K500 Square bar
- International Specification Comparison chart DIN 2.4375 Forged Bar
- UNS N05500 Round Bar Size Chart
- Industrial Application of Monel K-500 Bright Bars
- K500 Monel Round Bar Weights
Monel K500 Round Bar is made up of a nickel copper alloy that can be hardened through precipitation methods and has extreme corrosion resistance to acids, alkalis and oxidation. High Temperature Fasteners is a leading manufacturer and supplier of the Monel K500 Flat Bar and other types of bars in different dimensions, shapes and types. There are different grades of monel such as 400, 450, 500 and so on. Each of these grades has different chemical composition and a different combination of mechanical properties.
The Monel K500 Hex Bar is strong and is used in the production equipment for oil and gas, propellers, pump shafts and in centrifugal pump parts. The material has minimum yield strength of 690MPa and minimum tensile strength of 965MPa. These very high strength values allow the 2.4375 Alloy K500 Rod and other types to be used in high velocity fluid lines as they do not crack nor do they corrode under harsh conditions. We supply the products in large scales to a wide range of audience and therefore our ASTM B865 UNS N05500 Bar Stock is sufficient to cover any of your orders.
The dimensions of the bars range from 100mm to 3000mm and the diameters of different types range from 0.1mm to 100mm depending on the different standards. The different finishes such as black, bright and others help maintain the corrosion resistance. The use of the UNS N05500 Bright Bar type is seen mostly in the outdoor applications where the bars and rods are visible and create an aesthetic value. Please contact us for the Monel K500 Square bar prices and more information on the different types of products in this grade of monel.
|
CD
|
Cold drawn
|
P
|
Polished
|
|
BD
|
Bright drawn
|
SRE
|
Slit rolled edge
|
|
CG
|
Centreless ground
|
HF
|
Hot finished
|
|
CF
|
Cold finished
|
HRAP
|
Hot rolled annealed and pickled
|
|
P&T
|
Peeled and turned
|
RT
|
Rough turned/peeled
|
|
ST
|
Smooth turned
|
PR
|
Peeled and reeled
|
Alloy K500 Hex Bar Condition
|
H&T
|
Hardened and tempered.
|
|
ANN
|
Annealed
|
|
PH
|
Precipitation hardened.
|
| Specifications | ASTM B 865 / ASME SB 865 / AMS 4676 / QQ N 286, ASTM B865 UNS N05500 Monel K500 |
|---|---|
| Grade | Monel K500 – UNS N05500, Nickel Alloy K500 |
| Common Trade Names |
|
| Round bar size | Diameter: 3-~800mm |
| Hex Bar size | 2-100mm A/F |
| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Square bar size | 4 to 100mm |
| Technique | K500 Monel Cold Drawn, Hot Rolled, Forged Round Bar, Rod, Cold Rolled |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Section | 3.0 to 12.0mm thickness |
| Form | Precision Ground Bar, Flat Bar, Square, Round, Half Round Bar, Rod, Rectangle, Hex (A/F), T-Bar, Channel Bar,Blocks, Round Rod, Threaded, Profiles, Billet, Ingot, I/H Bar, Forging, Rings, Hollow, Triangle etc. |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Surface | Cold Drawn, Bright, Sand Blasting Finished, Hot Rolled Pickled, Hairline, Polished |
| Processing | Bar cutting to 650mm |
| Billet Size | 1/2″ to 495mm Diameter |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Condition | Hardened & tempered, annealed |
| Our K500 Monel Round bar conforms to NACE MR0175/ISO 15156 | |
Check weight, size chart and Price list of ASME SB 865 Alloy K500 Forged Bar Ex Shenzhen
|
Monel K500 Round Bar Price in China
|
Quantity
|
Price
|
|---|---|---|
|
60.0 dia x 250mm long
|
1
|
$723.58
|
|
60.0 dia x 100mm long
|
1
|
$425.72
|
|
60.0 dia x 500mm long
|
1
|
$1,220.95
|
|
60.0 dia x 1000mm long
|
1
|
$2,215.69
|

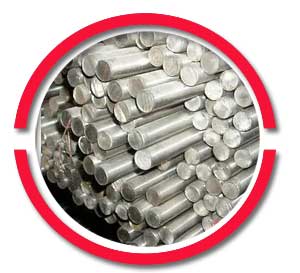

5-500mm Bright Black Surface Hot Cold Rolled Monel K500 Bar

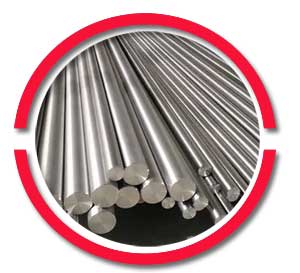

0.5″ Nickel Round Bar K500

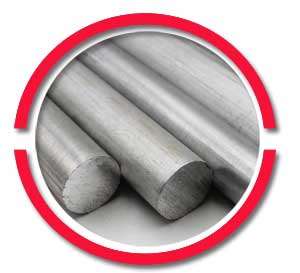

Monel K500 Welding Rod 12mm

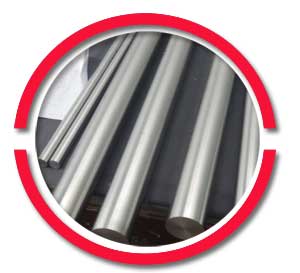

0.625″ Nickel Round Bar K500
Other types of Monel K500 round bar available
We can supply Monel K500 round bar in following forms & shapes:
|
|
| Tolerances for Cold Drawn Monel K500 Round Bar | ||
|---|---|---|
| Shape / Section | Size, diameter or width across flats | Permitted variation |
| mm | mm | |
| Round | ≥6 ≦ 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 100 |
+ 0 to – 0.070 + 0 to – 0.085 + 0 to – 0.100 + 0 to – 0.120 + 0 to – 0.140 |
| Flat (thickness) | < 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 |
+ 0 to – 0.110 + 0 to – 0.130 + 0 to – 0.250 + 0 to – 0.350 |
| Flat (width) | < 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 100 > 100 ≦ 130 > 130 ≦ 160 > 160 ≦ 320 |
+ 0 to – 0.110 + 0 to – 0.130 + 0 to – 0.160 + 0 to – 0.190 + 0 to – 0.220 + 0 to – 0.350 + 0 to – 1.00 + 1.00 to – 1.00 |
| Square and hexagon |
≥ 6 ≦ 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 105 |
+ 0 to – 0.090 + 0 to – 0.110 + 0 to – 0.130 + 0 to – 0.160 + 0 to – 0.250 |
Tolerances of Turned ASTM B865 Monel K500 Round Bar (BS 970-3)
| Turned Monel K500 round bar Tolerances | |
|---|---|
| Monel K500 round bar Size, diameter | Permitted variation |
| mm | mm |
| ≧ 6 ≦ 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 120 > 120 ≦ 180 > 180 ≦ 250 > 250 ≦ 315 > 315 ≦ K500 > K500 |
+ 0 to – 0.070 + 0 to – 0.085 + 0 to – 0.100 + 0 to – 0.120 + 0 to – 0.140 + 0 to – 0.160 + 0 to – 0.185 + 0 to – 0.210 + 0 to – 0.230 + 0 to – 0.250 |
Tolerances of Precision Inconel WERKSTOFF NR. 2.4375 Round Bar (BS 970-3)
| Precision Nickel Alloy 625 Round Bar Tolerances | ||||
|---|---|---|---|---|
| Section | Size, diameter |
Permitted overall variation | ||
| Class A | Class B | Class C | ||
| mm | mm | mm | mm | |
| Round | ≧ 6 <75 | 0.05 | 0.025 | 0.013 |
Tolerance of Inconel UNS N05500 Bright Round Bar (BS EN ISO 286-2 )
| Inconel 625 round bar Tolerance ISO “H” Series in MM | ||||||||
|---|---|---|---|---|---|---|---|---|
| NOMINAL SIZE | h5 | h6 | h7 | h8 | h9 | H10 | H11 | h12 |
| DIAMETER mm | ||||||||
| ~ to 3 | +0.004/0 | +0.006/0 | +0.01/0 | +0.014/0 | +0.025/0 | +0.04/0 | +0.06/0 | +0.1/0 |
| over 3 to 6 | +0.005/0 | +0.008/0 | +0.012/0 | +0.018/0 | +0.03/0 | +0.048/0 | +0.075/0 | +0.12/0 |
| over 6 to 10 | +0.006/0 | +0.009/0 | +0.015/0 | +0.022/0 | +0.036/0 | +0.058/0 | +0.09/0 | +0.15/0 |
| over 10 to 18 | +0.008/0 | +0.011/0 | +0.018/0 | +0.027/0 | +0.043/0 | +0.07/0 | +0.11/0 | +0.18/0 |
| over 18 to 30 | +0.009/0 | +0.013/0 | +0.021/0 | +0.033/0 | +0.052/0 | +0.084/0 | +0.13/0 | +0.21/0 |
| over 30 to 50 | +0.011/0 | +0.016/0 | +0.025/0 | +0.039/0 | +0.062/0 | +0.1/0 | +0.16/0 | +0.25/0 |
| over 50 to 80 | +0.013/0 | +0.019/0 | +0.03/0 | +0.046/0 | +0.074/0 | +0.12/0 | +0.19/0 | +0.3/0 |
| over 80 to 120 | +0.015/0 | +0.022/0 | +0.035/0 | +0.054/0 | +0.087/0 | +0.14/0 | +0.22/0 | +0.35/0 |
| over 120 to 180 | +0.018/0 | +0.025/0 | +0.04/0 | +0.063/0 | +0.1/0 | +0.16/0 | +0.25/0 | +0.4/0 |
| over 180 to 250 | +0.02/0 | +0.029/0 | +0.046/0 | +0.072/0 | +0.115/0 | +0.185/0 | +0.29/0 | +0.46/0 |
| Alloy | Product form | Dimension |
|---|---|---|
| ALLOY K-500 (66 Ni/32 Cu/2 Al) | Rod; cold drawn | Dia=5.0 mm, Weight=0.17 kg/m |
| ALLOY K-500 (66 Ni/32 Cu/2 Al) | Rod; hot rolled, annealed, centerless ground | Dia=12.0 mm, Weight=0.96 kg/m |
| ALLOY K-500 (66 Ni/32 Cu/2 Al) | Rod; hot rolled, annealed, peeled | Dia=16.0 mm, Weight=1.6 kg/m |
| ALLOY K-500 (66 Ni/32 Cu/2 Al) | Rod; peeled, solution annealed | Dia=19.05 mm, Weight=2.41 kg/m |
| ALLOY K-500 (66 Ni/32 Cu/2 Al) | Rod; hot rolled, annealed, peeled | Dia=25.0 mm, Weight=3.5 kg/m |
| ALLOY K-500 (66 Ni/32 Cu/2 Al) | Rod; hot rolled, solution annealed | Dia=30.0 mm, Weight=6.05 kg/m |
| ALLOY K-500 (66 Ni/32 Cu/2 Al) | Rod; hot rolled, annealed, peeled | Dia=45.0 mm, Weight=13.7 kg/m |
| ALLOY K-500 (66 Ni/32 Cu/2 Al) | Rod; hot rolled, annealed, peeled | Dia=55.0 mm, Weight=20.1 kg/m |
| ALLOY K-500 (66 Ni/32 Cu/2 Al) | Rod; hot formed, solution annealed | Dia=60.0 mm, Weight=24.2 kg/m |
| ALLOY K-500 (66 Ni/32 Cu/2 Al) | Rod; hot formed, solution annealed | Dia=100.0 mm, Weight=66.3 kg/m |
- Packaging list (laminated) placed with box/crate.
- Bundles strapped with plastic strips.
- End of Monel K500 ASTM B865 Round Bar protected by plastic caps.
- Each radius of U-Bend tube separated by a separator.
- Each bundle covered with plastic for protection against extreme weather.
| Density | 8.44 g/cm3 |
| Melting Point | 1350 °C (2460 °F) |
| Tensile Strength | Psi – 160000 , MPa – 1100 |
| Yield Strength (0.2%Offset) | Psi – 115000 , MPa – 790 |
| Elongation | 20 % |
Monel K500 |
|
| Ni | 63.0 min |
| Fe | 0.5 – 2 |
| C | 0.25 max |
| Mn | 1.5 max |
| Si | 0.5 max |
| Cu | 27.0 – 33.0 |
| Al | 2.3 – 3.15 |
| Ti | 0.35 – 0.85 |
| S | 0.010 max |
|
Standard
|
Monel K500 |
|---|---|
|
UNS
|
N05500 |
|
Werkstoff Nr.
|
2.4375 |
The sizes of Monel UNS N05500 Bars can also be selected when using the THD model.
| Size & Dimensions of Monel K500 round bar | |||||||
|---|---|---|---|---|---|---|---|
| Metric | US Bar | ASTM/ Canadian | Japanese | ||||
| Bar Size | Diam. (mm) | Bar Size | Diam. (Inch) | Bar Size | Diam. (mm2) | Bar Size | Diam. (mm) |
| 5 | 5 | #2 | 0.250 | 10M | 100 | 6 | 6 |
| 5.5 | 5.5 | #3 | 0.375 | 15M | 200 | 10 | 10 |
| 6 | 6 | #4 | 0.500 | 20M | 300 | 13 | 13 |
| 7 | 7 | #5 | 0.K500 | 25M | 500 | 16 | 16 |
| 8 | 8 | #6 | 0.750 | 30M | 700 | 19 | 19 |
| 9 | 9 | #7 | 0.875 | 35M | 1000 | 22 | 22 |
| 10 | 10 | #8 | 1.000 | 45M | 1500 | 25 | 25 |
| 11 | 11 | #9 | 1.125 | 55M | 2500 | 29 | 29 |
| 12 | 12 | #10 | 1.250 | 32 | 32 | ||
| 14 | 14 | #11 | 1.375 | 35 | 35 | ||
| 16 | 16 | #12 | 1.500 | 38 | 38 | ||
| 18 | 18 | #13 | 1.K500 | 41 | 41 | ||
| 20 | 20 | #14 | 1.750 | 44 | 44 | ||
| 22 | 22 | #15 | 1.875 | 48 | 48 | ||
| 25 | 25 | #16 | 2.000 | 51 | 51 | ||
| 28 | 28 | #18 | 2.250 | 57 | 57 | ||
| 32 | 32 | ||||||
| 36 | 36 | ||||||
| 40 | 40 | ||||||
| 44 | 44 | ||||||
| 50 | 50 | ||||||
Buy your sizes from our Monel K-500 Bright Bars, pump shaft, cold / hot rolled bar
- Seawater cooling equipment.
- Pulp and paper processing.
- Processing plant for sulphuric, phosphoric and acetic acids.
- Wires in electrostatic precipitators.
- Oil refinery components.
- Components in gas scrubbing plants.
| Round Bar | ||||||||
|---|---|---|---|---|---|---|---|---|
| Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
| 3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3″ | 10.900 | 35.762 |
| 1/8″ | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4″ | 12.800 | 41.996 |
| 5/32″ | 0.029 | 0.095 | 7/8″ | 0.926 | 3.038 | 3-1/2″ | 14.850 | 48.772 |
| 4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4″ | 17.001 | 55.780 |
| 3/16″ | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4″ | 19.306 | 63.340 |
| 5mm | 0.047 | 0.154 | 1″ | 1.210 | 3.970 | 4-1/4″ | 21.908 | 72.249 |
| 7/32″ | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2″ | 24.4487 | 80.340 |
| 6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4″ | 27.366 | 90.249 |
| 1/4″ | 0.076 | 0.249 | 1-1/8″ | 1.534 | 5.033 | 5″ | 30.461 | 99.940 |
| 7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2″ | 36.690 | 121.000 |
| 5/16″ | 0.118 | 0.387 | 1-1/4″ | 1.924 | 6.349 | 6″ | 43.860 | 143.900 |
| 8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2″ | 51.093 | 167.630 |
| 9mm | 0.152 | 0.498 | 1-3/8″ | 2.303 | 7.550 | 7″ | 59.432 | 196.000 |
| 3/8″ | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2″ | 68.226 | 225.000 |
| 10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8″ | 77.586 | 254.55 |
| 11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10″ | 121.048 | 397.140 |
| 7/16″ | 0.232 | 0.761 | 1-1/2″ | 2.715 | 8.951 | |||
| 12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
|
1/2″
|
0.303 | 0.994 |
1-5/8″
|
3.200 | 10.449 | |||
|
13mm
|
0.318 | 1.043 |
1-3/4″
|
3.712 | 12.179 | |||
|
14mm
|
0.368 | 1.207 |
45mm
|
3.807 | 12.555 | |||
|
9/16″
|
0.383 | 1.256 |
1-7/8″
|
4.260 | 13.977 | |||
|
15mm
|
0.424 | 1.391 |
48mm
|
4.330 | 14.205 | |||
|
5/8″
|
0.473 | 1.551 |
50mm
|
4.698 | 15.414 | |||
|
16mm
|
0.481 | 1.578 |
2″
|
4.848 | 15.906 | |||
|
17mm
|
0.543 | 1.791 |
2-1/8″
|
5.475 | 17.963 | |||
|
11/16″
|
0.573 | 1.880 |
2-1/4″
|
6.135 | 20.128 | |||
|
18mm
|
0.610 | 2.001 |
60mm
|
6.768 | 22.205 | |||
|
3/4″
|
0.682 | 2.237 |
2-3/8″
|
6.838 | 22.435 | |||
|
2-1/2″
|
7.576 | 24.856 | ||||||
|
2-5/8″
|
8.354 | 27.409 | ||||||
|
2-3/4″
|
9.169 | 30.083 | ||||||
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Monel UNS N05500 Cold Drawn and Polish Round Bar | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
| Alloy K500 Cold Drawn and Ground Bar | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| K500 Monel Peeled and Polished Round Bar | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Monel Alloy K500 Peeled and Ground Bar | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
DIN 2.4375 Rectangular Bar in cut to sizes, Supplier of Nickel Alloy K500 Round Bar conforms to NACE MR0175/ISO 15156
