Monel Alloy 400 Round Bar Manufacturer

ASTM B164 UNS N04400 Rod suppliers in China

Monel 400 Round Bar
Monel 400 Round Bar

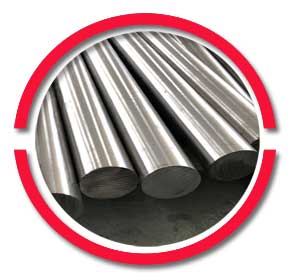

Alloy 400 Rod
Alloy 400 Rod

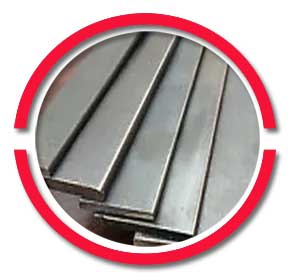

ASTM B164 UNS N04400 Flat Bar

ASTM B164 UNS N04400 Flat Bar

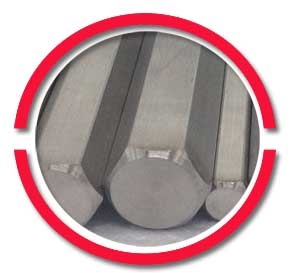

DIN 2.4068 Hex Bar

DIN 2.4068 Hex Bar

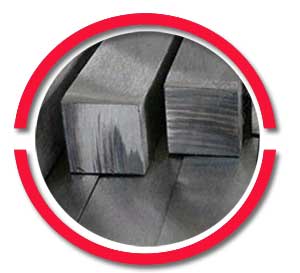

Nickel Alloy 400 Square Bar

Nickel Alloy 400 Square Bar

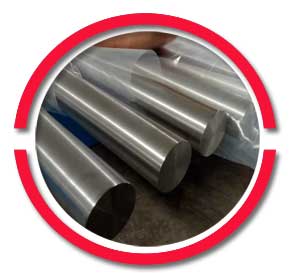

Monel Round Bar

Monel Round Bar



Ready stock of ASME SB164 2.4068 Flat Bar in 3mm Thickness x 25mm Width



Table of Content



High Temperature Fasteners Inc. is a leading Monel Round Bar manufacturer and supplier in different grades, types and dimensions. There are Monel 400, 450, 500 and other grades based on the composition difference. These grades also have different mechanical properties. The Monel 400 Round Bar costs less than the other grades and is one of the most used monel grades. There are round, hex, square, rectangular and other types of bars that are used in different application types.

The Monel 400 Flat Bar and other bars have carbon, 28% copper, iron, 63% nickel, phosphorus, lead, sulfur, silicon and manganese in the composition. The lead content is limited to a maximum of 0.005%. The Monel 400 Hex Bar is used mostly for its high strength due to the shape and in structural applications. The material has 550MPa minimum tensile strength and 450MPa minimum yield strength. The 2.4068 Alloy 400 Rod has different dimensions according to the different ASME and ASTM standards.

The diameter of the round bars range from 0.1mm to 100mm for different types such as wires, bars and rods. As a leading supplier, we maintain a good ASTM B164 UNS N04400 Bar Stock in hand and we can cover any of your orders. The length of the bars range from 100mm to 3000mm. There are different finishes to the bars that range from black, painted and UNS N04400 Bright Bar types. The finishes enhance the corrosion resistance properties of the products. The material has very good ductility, thermal conductivity, alkaline resistance and general corrosion resistance as well. Please contact us to know more about the different types of bars such as the Monel 400 Square bar and others with the prices.



Specification And Material Grade Of Monel Round Bar
Monel® alloy 400 Rod,
Diameter:3.0mm, Temper: Annealed
Monel® alloy 400 Rod,
Diameter:6.35mm, Temper: As drawn
Monel® alloy 400 Rod,
Diameter:12.7mm, Temper: As drawn
Monel® alloy 400 Rod,
Diameter:20mm, Temper: Annealed
Monel® alloy 400 Rod,
Diameter:40mm, Temper: Annealed



International Specifications QQ-N-281 , BS3076NA13, DIN 17753, VdTUV 263
Specifications ASTM B164, AMS 4675, AMS 4730, AMS 4731
Grade Monel 400 – UNS N04400, Nickel Alloy 400 (66 Ni/34 Cu)
Technique 400 Monel Cold Drawn, Hot Rolled, Forged Round Bar, Rod, Cold Rolled
Tolerance H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements
Finish Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black
Round bar size Diameter: 3-~800mm
Hex Bar size 2-100mm A/F
Flat bar size Thickness: 2 -100mm
Width: 10 to 500mm
Square bar size 4 to 100mm
Section 3.0 to 12.0mm thickness
Form Precision Ground Bar, Flat Bar, Square, Round, Half Round Bar, Rod, Rectangle, Hex (A/F), T-Bar, Channel Bar,Blocks, Round Rod, Threaded, Profiles, Billet, Ingot, I/H Bar, Forging, Rings, Hollow, Triangle etc.
Rectangles Size 33 x 30mm to 295 x 1066mm
Surface Cold Drawn, Bright, Sand Blasting Finished, Hot Rolled Pickled, Hairline, Polished
Processing Bar cutting to 650mm
Billet Size 1/2″ to 495mm Diameter
Channel Bar 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness
Hollow Bar 32mm OD x 16mm ID to 250mm OD x 200mm ID)
Angle bar size 3mm*20mm*20mm~12mm*100mm*100mm
Condition Hardened & tempered, annealed
Our 400 Monel Round bar conforms to NACE MR0175/ISO 15156



Check live price of Alloy 400 cold drawn bar, wide stock of Nickel Alloy 400 Hex Bar & Square Bar Ex Shenzhen



monel 400 round bar price
Monel Monel 400 Round Bar Price in China
Quantity
Price List
Monel 400 Hex Bar / Rod 10 (A/F) x 1000mm Length
1
$101.16
Monel 400 Round Bar 10.0 dia x 500mm long
1
£63.00
10.0 dia x 1000mm long
1
£81.00
10.0 dia x 2000mm long
1
£120.00



Other types of Monel 400 round bar available

We can supply Monel 400 round bar in following forms & shapes:

  • Channel Bars
  • Flat Bars
  • Blocks
  • Round
  • Rings
  • Square
  • T-Bars
  • Precision Ground Bars
  • Hollow
  • Round Rod
  • Rod
  • Forging
  • Hex (A/F)
  • Billet
  • Rectangle
  • I/H Bars
  • Triangle
  • Half Round Bars
  • Threaded
  • Profiles
  • Ingot
  • Rectangular Bar
Most Frequent Types Of ASTM B164 UNS N04400 Bar

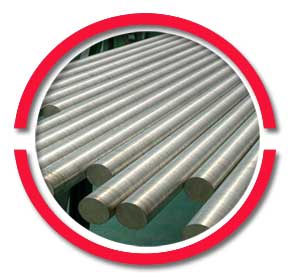

0.375 Nickel Round Bar 400
0.375″ Nickel Round Bar 400

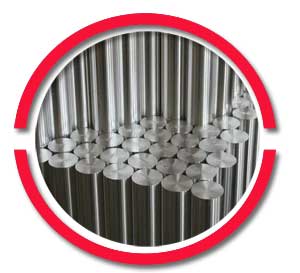

0.5 Nickel Round Bar 400
0.5″ Nickel Round Bar 400

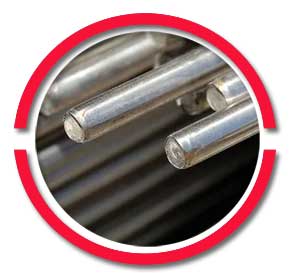

0.25 Nickel Round Bar 400
0.25″ Nickel Round Bar 400

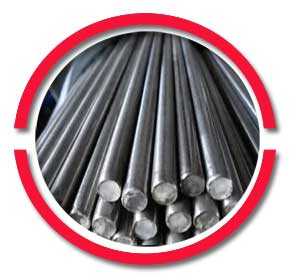

0.625 Nickel Round Bar 400
0.625″ Nickel Round Bar 400



Our Stock list of Nickel Alloy 400 bar
Description Diameter Shape Specification
ALLOY 400 COLD DRAWN SR 1.250 DIA 1.2500 BAR / ROD ROUND WN221
ALLOY 400 HOT FINISHED ANN 1.00 DIA 1.0000 BAR / ROD ROUND ASTM B164 ASME SB164
ALLOY 400 HOT FINISHED ANN 1.500 DIA 1.5000 BAR / ROD ROUND ASTM B164 ASME SB164
ALLOY 400 HOT FINISHED ANN 2.000 DIA 2.0000 BAR / ROD ROUND ASTM B164 ASME SB164
ALLOY 400 HOT FINISHED ANN 3.500 DIA 3.5000 BAR / ROD ROUND ASTM B164 ASME SB164
ALLOY 400 HOT FINISHED ANN .750 DIA 0.7500 BAR / ROD ROUND ASTM B164 ASME SB164
ALLOY 400 HOT FINISHED ROD ANN 1.750 DIA 1.7500 BAR / ROD ROUND ASTM B164 ASME SB164



Nickel Alloy 400 Bar Performance
  • Excellent weldability
  • Outstanding corrosion & alkaline resistance
  • High strength over a broad range of temperatures
  • Magnetic capability
  • Solid thermal conductivity
  • Good ductility



ASTM B164 UNS N04400 Bar Surface finish
CD
Cold drawn
P
Polished
BD
Bright drawn
SRE
Slit rolled edge
CG
Centreless ground
HF
Hot finished
CF
Cold finished
HRAP
Hot rolled annealed and pickled
P&T
Peeled and turned
RT
Rough turned/peeled
ST
Smooth turned
PR
Peeled and reeled



Alloy 400 Hex Bar Condition
H&T
Hardened and tempered.
ANN
Annealed
PH
Precipitation hardened.
Minimum Yield Strength Chart Of Monel 400 Flat Bar
Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.8 g/cm3 1350 °C (2460 °F) Psi – 80000 , MPa – 550 Psi – 35000 , MPa – 240 40 %



Chemical Structure Of ASTM B164 UNS N04400 Rod
Grade Ni Fe C Mn Si Cu Al S
Monel 400 63.0 min 1.0 – 2.5 0.3 max 2.0 max 0.5 max 28.0 – 34.0 0.50 max 0.02 max



Equivalent Table Of ASME SB164 2.4068 Hex Bar
STANDARD WERKSTOFF NR. UNS GOST AFNOR JIS BS EN
Monel 400 2.4360 N04400 МНЖМц 28-2,5-1,5 NU-30M NW 4400 NA 13 NiCu30Fe



UNS N04400 Round Bar Size Chart

The sizes of Monel UNS N04400 Bars can also be selected when using the THD model.

Size & Dimensions of Monel 400 round bar
Metric US Bar ASTM/ Canadian Japanese
Bar Size Diam. (mm) Bar Size Diam. (Inch) Bar Size Diam. (mm2) Bar Size Diam. (mm)
5 5 #2 0.250 10M 100 6 6
5.5 5.5 #3 0.375 15M 200 10 10
6 6 #4 0.500 20M 300 13 13
7 7 #5 0.400 25M 500 16 16
8 8 #6 0.750 30M 700 19 19
9 9 #7 0.875 35M 1000 22 22
10 10 #8 1.000 45M 1500 25 25
11 11 #9 1.125 55M 2500 29 29
12 12 #10 1.250 32 32
14 14 #11 1.375 35 35
16 16 #12 1.500 38 38
18 18 #13 1.400 41 41
20 20 #14 1.750 44 44
22 22 #15 1.875 48 48
25 25 #16 2.000 51 51
28 28 #18 2.250 57 57
32 32
36 36
40 40
44 44
50 50
400 Monel Round Bar Weights
Round Bar
Size Kgs / Foot Kgs / Mtr Size Kgs / Foot Kgs / Mtr Size Kgs / Foot Kgs / Mtr
3mm 0.017 0.055 20mm 0.753 2.470 3″ 10.900 35.762
1/8″ 0.019 0.062 22mm 0.908 2.979 3-1/4″ 12.800 41.996
5/32″ 0.029 0.095 7/8″ 0.926 3.038 3-1/2″ 14.850 48.772
4mm 0.030 0.098 24mm 1.080 3.543 3-3/4″ 17.001 55.780
3/16″ 0.043 0.141 25mm 1.180 3.871 4″ 19.306 63.340
5mm 0.047 0.154 1″ 1.210 3.970 4-1/4″ 21.908 72.249
7/32″ 0.058 0.190 26mm 1.271 4.170 4-1/2″ 24.4487 80.340
6mm 0.068 0.223 27mm 1.368 4.490 4-3/4″ 27.366 90.249
1/4″ 0.076 0.249 1-1/8″ 1.534 5.033 5″ 30.461 99.940
7mm 0.091 0.298 30mm 1.691 5.548 5-1/2″ 36.690 121.000
5/16″ 0.118 0.387 1-1/4″ 1.924 6.349 6″ 43.860 143.900
8mm 0.120 0.398 32mm 1.894 6.314 6-1/2″ 51.093 167.630
9mm 0.152 0.498 1-3/8″ 2.303 7.550 7″ 59.432 196.000
3/8″ 0.170 0.557 35mm 2.390 7.553 7-1/2″ 68.226 225.000
10mm 0.189 0.620 36mm 2.438 7.999 8″ 77.586 254.55
11mm 0.228 0.748 38mm 2.792 8.903 10″ 121.048 397.140
7/16″ 0.232 0.761 1-1/2″ 2.715 8.951
12mm 0.271 0.889 40mm 3.009 9.872
1/2″
 0.303 0.994
1-5/8″
 3.200 10.449
13mm
 0.318 1.043
1-3/4″
 3.712 12.179
14mm
 0.368 1.207
45mm
 3.807 12.555
9/16″
 0.383 1.256
1-7/8″
 4.260 13.977
15mm
 0.424 1.391
48mm
 4.330 14.205
5/8″
 0.473 1.551
50mm
 4.698 15.414
16mm
 0.481 1.578
2″
 4.848 15.906
17mm
 0.543 1.791
2-1/8″
 5.475 17.963
11/16″
 0.573 1.880
2-1/4″
 6.135 20.128
18mm
 0.610 2.001
60mm
 6.768 22.205
3/4″
 0.682 2.237
2-3/8″
 6.838 22.435

2-1/2″
 7.576 24.856

2-5/8″
 8.354 27.409

2-3/4″
 9.169 30.083



Type SIZES (mm) SIZES (Inches) ISO Tolerance
Monel UNS N04400 Cold Drawn and Polish Round Bar 3.00 – 75.00 1/8″ – 3.00″ h8-h9-h10-h11
Alloy 400 Cold Drawn and Ground Bar 10.00 – 75.00 5/6″ – 2.50″ h8-h9-h10-h11
400 Monel Peeled and Polished Round Bar 40.00 – 150.00 1.50″ – 6.00″ h11, h11-DIN 1013
Monel Alloy 400 Peeled and Ground Bar 20.00 – 50.00 3/4″ – 2.00″ h9-h10-h11



Typical Application of Nickel 400 bar
  • Heat Exchangers
  • Pharmaceutical Equipment
  • Specialty Chemicals
  • Gas Processing
  • Sea Water Equipment
  • Pulp & Paper Industry
  • Off-Shore Oil Drilling Companies



Why to pay extra when we provide Monel 400 Forged Bar in exact sizes as per AMS 4675/4730/4731 , Get free quote Now!



Nickel Alloy 400 Bar  Tolerances
Tolerances for Cold Drawn Monel 400 Round Bar
Shape / Section Size, diameter or width across flats Permitted variation
mm mm
Round ≥6 ≦ 18
> 18 ≦ 30
> 30 ≦ 50
> 50 ≦ 80
> 80 ≦ 100		 + 0 to – 0.070
+ 0 to – 0.085
+ 0 to – 0.100
+ 0 to – 0.120
+ 0 to – 0.140
Flat (thickness) < 18
> 18 ≦ 30
> 30 ≦ 50
> 50 ≦ 80		 + 0 to – 0.110
+ 0 to – 0.130
+ 0 to – 0.250
+ 0 to – 0.350
Flat (width) < 18
> 18 ≦ 30
> 30 ≦ 50
> 50 ≦ 80
> 80 ≦ 100
> 100 ≦ 130
> 130 ≦ 160
> 160 ≦ 320		 + 0 to – 0.110
+ 0 to – 0.130
+ 0 to – 0.160
+ 0 to – 0.190
+ 0 to – 0.220
+ 0 to – 0.350
+ 0 to – 1.00
+ 1.00 to – 1.00
Square and
hexagon		 ≥ 6 ≦ 18
> 18 ≦ 30
> 30 ≦ 50
> 50 ≦ 80
> 80 ≦ 105		 + 0 to – 0.090
+ 0 to – 0.110
+ 0 to – 0.130
+ 0 to – 0.160
+ 0 to – 0.250

Tolerances of Turned ASTM B164 Monel 400 Round Bar (BS 970-3)

Turned Monel 400 round bar Tolerances
Monel 400 round bar Size, diameter Permitted variation
mm mm
≧ 6 ≦ 18
> 18 ≦ 30
> 30 ≦ 50
> 50 ≦ 80
> 80 ≦ 120
> 120 ≦ 180
> 180 ≦ 250
> 250 ≦ 315
> 315 ≦ 400
> 400		 + 0 to – 0.070
+ 0 to – 0.085
+ 0 to – 0.100
+ 0 to – 0.120
+ 0 to – 0.140
+ 0 to – 0.160
+ 0 to – 0.185
+ 0 to – 0.210
+ 0 to – 0.230
+ 0 to – 0.250

Tolerances of Precision Inconel WERKSTOFF NR. 2.4068 Round Bar (BS 970-3)

Precision Nickel Alloy 625 Round Bar Tolerances
Section Size,
diameter		 Permitted overall variation
Class A Class B Class C
mm mm mm mm
Round ≧ 6 <75 0.05 0.025 0.013

Tolerance of Inconel UNS N04400 Bright Round Bar (BS EN ISO 286-2 )

Inconel 625 round bar Tolerance ISO “H” Series in MM
NOMINAL SIZE h5 h6 h7 h8 h9 H10 H11 h12
DIAMETER mm
~ to 3 +0.004/0 +0.006/0 +0.01/0 +0.014/0 +0.025/0 +0.04/0 +0.06/0 +0.1/0
over 3 to 6 +0.005/0 +0.008/0 +0.012/0 +0.018/0 +0.03/0 +0.048/0 +0.075/0 +0.12/0
over 6 to 10 +0.006/0 +0.009/0 +0.015/0 +0.022/0 +0.036/0 +0.058/0 +0.09/0 +0.15/0
over 10 to 18 +0.008/0 +0.011/0 +0.018/0 +0.027/0 +0.043/0 +0.07/0 +0.11/0 +0.18/0
over 18 to 30 +0.009/0 +0.013/0 +0.021/0 +0.033/0 +0.052/0 +0.084/0 +0.13/0 +0.21/0
over 30 to 50 +0.011/0 +0.016/0 +0.025/0 +0.039/0 +0.062/0 +0.1/0 +0.16/0 +0.25/0
over 50 to 80 +0.013/0 +0.019/0 +0.03/0 +0.046/0 +0.074/0 +0.12/0 +0.19/0 +0.3/0
over 80 to 120 +0.015/0 +0.022/0 +0.035/0 +0.054/0 +0.087/0 +0.14/0 +0.22/0 +0.35/0
over 120 to 180 +0.018/0 +0.025/0 +0.04/0 +0.063/0 +0.1/0 +0.16/0 +0.25/0 +0.4/0
over 180 to 250 +0.02/0 +0.029/0 +0.046/0 +0.072/0 +0.115/0 +0.185/0 +0.29/0 +0.46/0
Manufacturer & supplier of Alloy 400 Bright Bar and pump shaft in China as per international standard DIN 17753, QQ-N-281, BS3076NA13, VdTUV 263
