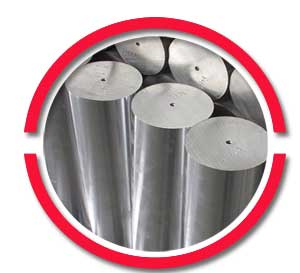

Inconel Round Bar

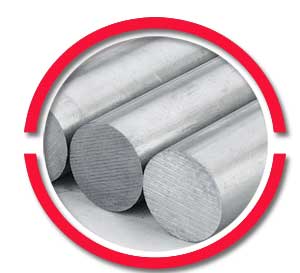

Inconel 600 Round Bar

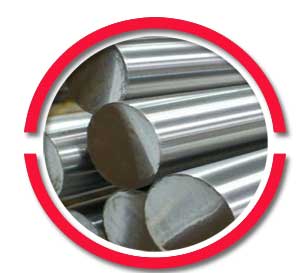

Alloy 600 Rod

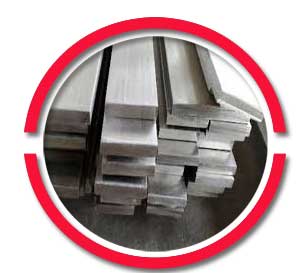

ASTM B166 UNS N06600 Flat Bar

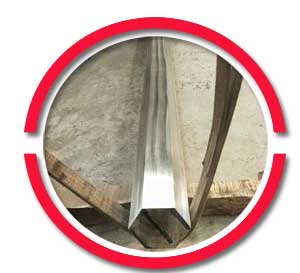

DIN 2.4816 Hex Bar

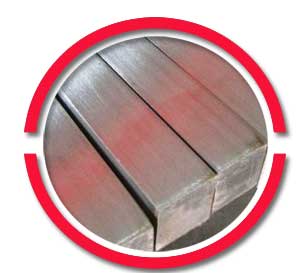

Nickel Alloy 600 Square Bar
Manufacturer & supplier of Nickel Alloy 600 Square Bar & DIN 2.4816 cold drawn bars
Table of Content
- Inconel Round Bar Standard Specifications
- price of ASTM B166 UNS N06600 Bar in india
- Stock of Inconel 600® (AMS 5665) bar at our Warehouse
- Various Types Of Inconel 600 Round bar
- Nickel Alloy 600 Tolerances
- DIN 2.4816 Hex Bar Standard Sizes
- 600 Inconel Round Bar Weights
- UNS N06600 Round Bar Size Chart
- Nickel 600 Flat bar Size table
- Yield Strength Of Inconel 600 Rod
- Chemical Material Composition Of ASTM B166 UNS N06600 Bar
- Equivalent Material Of Alloy 600 Hex Bar
- Inconel 600 Bar Destructive and Non-Destructive Testing
- ASTM B166 UNS N06600 Bar Surface finish
As a leading Inconel Round Bar manufacturer, High Temperature Fasteners Inc. produces the Inconel bars in different types, shapes and grades. The chemical composition differs from grade to grade and the applications differ as well. The Inconel 600 Round Bar has 72% nickel, 14% chromium, iron, carbon, manganese, sulfur, silicon and copper in the composition. The material has high melting point of 1413 degrees Celsius.
The ASTM B166 UNS N06600 Bar has 310MPa minimum yield strength and 655MPa minimum tensile strength. The material has good oxidation resistance even in elevated temperatures. The corrosion resistance against organic and inorganic acids of the Inconel 600 Rod is very high so it is used in chemical processing industries as well. The material has resistance to chloride ion stress corrosion cracking as well.
The specification and the standards cover the bars of 3mm to 800mm in diameter with lengths varying up to 6000mm. The Alloy 600 Hex Bar can be hot rolled, cold drawn, cold drawn or forged. The applications include nuclear power plants, nuclear reactors, heat treat furnace applications and gas turbine components as well. The Inconel 600 Flat Bar and other bars can also be used in electronic parts and jet engine applications. Please feel free to contact us for more information on the 600 Inconel Square Bar and other bar types with a complete price list.
| International Specifications | BS 3072-3076 (NA14) DIN 17742, DIN 17750, DIN 17754 WERKSTOFF Nr 2.4816 TÜV 305 AFNOR-NC 15 Fe |
|---|---|
| Grade | Inconel 600 – UNS N06600, Nickel Alloy 600 |
| Specification | ASTM B166 UNS N06600, AMS 5665 |
| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Square bar size | 4 to 100mm |
| Round bar size | Diameter: 3-~800mm |
| Hex Bar size | 2-100mm A/F |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Section | 3.0 to 12.0mm thickness |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Billet Size | 1/2″ to 495mm Diameter |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Condition | Hardened & tempered, annealed |
| Technique | 600 Inconel Cold Drawn, Hot Rolled, Forged Round Bar, Rod, Cold Rolled |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Cold Drawn, Bright, Sand Blasting Finished, Hot Rolled Pickled, Hairline, Polished |
| Processing | Bar cutting to 650mm |
| Form | Precision Ground Bar, Flat Bar, Square, Round, Half Round Bar, Rod, Rectangle, Hex (A/F), T-Bar, Channel Bar,Blocks, Round Rod, Threaded, Profiles, Billet, Ingot, I/H Bar, Forging, Rings, Hollow, Triangle etc. |
| Our 600 Inconel Round bar conforms to NACE MR0175/ISO 15156 | |
Check dimensions and weight chart of ASME SB 166 N06600 Hot Rolled Bar and Pump Shaft
|
Inconel 600 Round Bar Price List
|
Quantity
|
Price in China
|
|---|---|---|
|
200.0mm dia x 10mm long
|
1
|
$344.23
|
|
200.0mm dia x 25mm long
|
1
|
$695.48
|
|
200.0mm dia x 50mm long
|
1
|
$1,278.55
|
|
200.0mm dia x 100mm long
|
1
|
$1,900.97
|
|
200.0mm dia x 250mm long
|
1
|
$4,310.54
|
| Alloy | Product form | Dimension |
|---|---|---|
| Alloy 600 AMS 5665 (75 Ni/16 Cr) | annealed, centerless ground h9 | Dia=10.0 mm, Weight=0.7 kg/m |
| Alloy 600 AMS 5665 (75 Ni/16 Cr) | annealed, centerless ground | Dia=12.0 mm, Weight=1.0 kg/m |
| Alloy 600 AMS 5665 (75 Ni/16 Cr) | cold drawn, annealed | Dia=16.0 mm, Weight=1.8 kg/m |
| Alloy 600 AMS 5665 (75 Ni/16 Cr) | hot finished, annealed, ground | Dia=20.0 mm, Weight=2.7 kg/m |
| Alloy 600 AMS 5665 (75 Ni/16 Cr) | hot worked, annealed | Dia=25.4 mm, Weight=4.2 kg/m |
| Alloy 600 (75 Ni/16 Cr) | hot finished, annealed, ground | Dia=30.0 mm, Weight=6.2 kg/m |
| Alloy 600 AMS 5665 (75 Ni/16 Cr) | extruded round, machined, annealed | Dia=35.0 mm, Weight=8.3 kg/m |
| Alloy 600 AMS 5665 (75 Ni/16 Cr) | hot worked, annealed, peeled | Dia=40.0 mm, Weight=10.9 kg/m |
| Alloy 600 AMS 5665 (75 Ni/16 Cr) | hot finished, annealed, peeled | Dia=45.0 mm, Weight=13.8 kg/m |
| Alloy 600 AMS 5665 (75 Ni/16 Cr) | forged, annealed, peeled | Dia=50.4 mm, Weight=16.6 kg/m |
| Alloy 600 AMS 5665 (75 Ni/16 Cr) | annealed, peeled | Dia=60.0 mm, Weight=24.4 kg/m |
| Alloy 600 AMS 5665 (75 Ni/16 Cr) | peeled | Dia=65.0 mm, Weight=28.0 kg/m |
| Alloy 600 AMS 5665 (75 Ni/16 Cr) | hot worked, annealed, peeled | Dia=76.2 mm, Weight=39.5 kg/m |
| Alloy 600 AMS 5665 (75 Ni/16 Cr) | hot rolled, annealed, peeled | Dia=90.0 mm, Weight=54.0 kg/m |
| Alloy 600 AMS 5665 (75 Ni/16 Cr) | peeled, annealed | Dia=100.0 mm, Weight=67.0 kg/m |
| Alloy 600 AMS 5665 (75 Ni/16 Cr) | annealed, peeled | Dia=115.0 mm, Weight=86.0 kg/m |
| Alloy 600 AMS 5665 (75 Ni/16 Cr) | forged, annealed, machined | Dia=130.0 mm, Weight=116 kg/m |
| Alloy 600 AMS 5665 (75 Ni/16 Cr) | forged, annealed, peeled | Dia=150.0 mm, Weight: 146 kg/m |
| Alloy 600 AMS 5665 (75 Ni/16 Cr) | forged, annealed, turned | Dia=200.0 mm, Weight=265 kg/m |

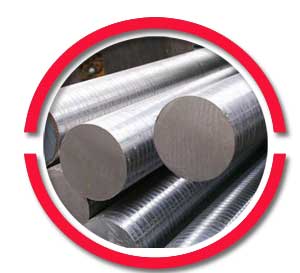

Bright Finished UNS N06600 Inconel 600 Round Bar

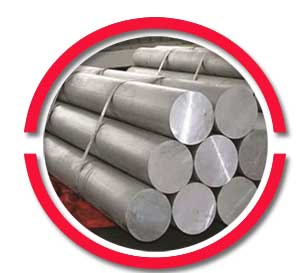

Inconel 600 Round Bar 150mm

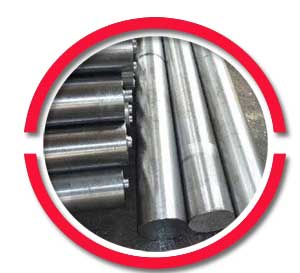

2.4816 Nickel Alloy Hollow Bar

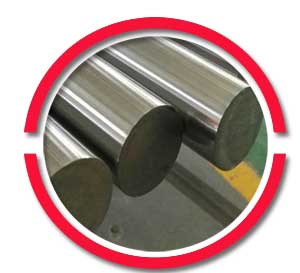

Inconel 600 8mm Round Bar
| Tolerances for Cold Drawn Inconel 600 Round Bar | ||
|---|---|---|
| Shape / Section | Size, diameter or width across flats | Permitted variation |
| mm | mm | |
| Round | ≥6 ≦ 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 100 |
+ 0 to – 0.070 + 0 to – 0.085 + 0 to – 0.100 + 0 to – 0.120 + 0 to – 0.140 |
| Flat (thickness) | < 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 |
+ 0 to – 0.110 + 0 to – 0.130 + 0 to – 0.250 + 0 to – 0.350 |
| Flat (width) | < 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 100 > 100 ≦ 130 > 130 ≦ 160 > 160 ≦ 320 |
+ 0 to – 0.110 + 0 to – 0.130 + 0 to – 0.160 + 0 to – 0.190 + 0 to – 0.220 + 0 to – 0.350 + 0 to – 1.00 + 1.00 to – 1.00 |
| Square and hexagon |
≥ 6 ≦ 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 105 |
+ 0 to – 0.090 + 0 to – 0.110 + 0 to – 0.130 + 0 to – 0.160 + 0 to – 0.250 |
Tolerances of Turned ASTM B166 Inconel 600 Round Bar (BS 970-3)
| Turned Inconel 600 round bar Tolerances | |
|---|---|
| Inconel 600 round bar Size, diameter | Permitted variation |
| mm | mm |
| ≧ 6 ≦ 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 120 > 120 ≦ 180 > 180 ≦ 250 > 250 ≦ 315 > 315 ≦ 400 > 400 |
+ 0 to – 0.070 + 0 to – 0.085 + 0 to – 0.100 + 0 to – 0.120 + 0 to – 0.140 + 0 to – 0.160 + 0 to – 0.185 + 0 to – 0.210 + 0 to – 0.230 + 0 to – 0.250 |
Tolerances of Precision Inconel WERKSTOFF NR. 2.4816 Round Bar (BS 970-3)
| Precision Nickel Alloy 600 Round Bar Tolerances | ||||
|---|---|---|---|---|
| Section | Size, diameter |
Permitted overall variation | ||
| Class A | Class B | Class C | ||
| mm | mm | mm | mm | |
| Round | ≧ 6 <75 | 0.05 | 0.025 | 0.013 |
Tolerance of Inconel UNS N06600 Bright Round Bar (BS EN ISO 286-2 )
| Inconel 600 round bar Tolerance ISO “H” Series in MM | ||||||||
|---|---|---|---|---|---|---|---|---|
| NOMINAL SIZE | h5 | h6 | h7 | h8 | h9 | H10 | H11 | h12 |
| DIAMETER mm | ||||||||
| ~ to 3 | +0.004/0 | +0.006/0 | +0.01/0 | +0.014/0 | +0.025/0 | +0.04/0 | +0.06/0 | +0.1/0 |
| over 3 to 6 | +0.005/0 | +0.008/0 | +0.012/0 | +0.018/0 | +0.03/0 | +0.048/0 | +0.075/0 | +0.12/0 |
| over 6 to 10 | +0.006/0 | +0.009/0 | +0.015/0 | +0.022/0 | +0.036/0 | +0.058/0 | +0.09/0 | +0.15/0 |
| over 10 to 18 | +0.008/0 | +0.011/0 | +0.018/0 | +0.027/0 | +0.043/0 | +0.07/0 | +0.11/0 | +0.18/0 |
| over 18 to 30 | +0.009/0 | +0.013/0 | +0.021/0 | +0.033/0 | +0.052/0 | +0.084/0 | +0.13/0 | +0.21/0 |
| over 30 to 50 | +0.011/0 | +0.016/0 | +0.025/0 | +0.039/0 | +0.062/0 | +0.1/0 | +0.16/0 | +0.25/0 |
| over 50 to 80 | +0.013/0 | +0.019/0 | +0.03/0 | +0.046/0 | +0.074/0 | +0.12/0 | +0.19/0 | +0.3/0 |
| over 80 to 120 | +0.015/0 | +0.022/0 | +0.035/0 | +0.054/0 | +0.087/0 | +0.14/0 | +0.22/0 | +0.35/0 |
| over 120 to 180 | +0.018/0 | +0.025/0 | +0.04/0 | +0.063/0 | +0.1/0 | +0.16/0 | +0.25/0 | +0.4/0 |
| over 180 to 250 | +0.02/0 | +0.029/0 | +0.046/0 | +0.072/0 | +0.115/0 | +0.185/0 | +0.29/0 | +0.46/0 |
|
SS hex bar Size in Inches
|
SS hex bar Wt per Ft
|
SS hex bar Wt per 12′
|
|---|---|---|
|
3/16″
|
0.104
|
1.248
|
|
1/4″
|
0.180
|
2.160
|
|
5/16″
|
0.290
|
3.480
|
|
3/8″
|
0.600
|
4.920
|
|
7/16″
|
0.560
|
6.72
|
|
1/2″
|
0.740
|
8.880
|
|
9/16″
|
0.930
|
11.16
|
|
5/8″
|
1.150
|
13.80
|
|
11/16″
|
1.390
|
16.68
|
|
3/4″
|
1.660
|
19.92
|
|
13/16″
|
1.950
|
23.40
|
|
7/8″
|
2.300
|
27.60
|
|
15/16″
|
2.600
|
31.20
|
|
1″
|
2.90
|
34.80
|
|
1-1/16″
|
3.30
|
39.60
|
|
1-1/8″
|
3.700
|
44.40
|
|
1-1/4″
|
4.600
|
55.20
|
|
1-5/16″
|
5.100
|
61.20
|
|
1-3/8″
|
5.600
|
67.20
|
|
1-7/16″
|
6.100
|
73.20
|
|
1-1/2″
|
6.600
|
79.20
|
|
1-5/8″
|
7.800
|
93.60
|
|
1-3/4″
|
9.030
|
108.36
|
|
1-7/8″
|
10.400
|
124.80
|
|
2″
|
11.80
|
141.60
|
|
2-1/4″
|
14.920
|
179.04
|
|
2-3/8″
|
16.920
|
203.04
|
|
2-1/2″
|
18.42
|
221.04
|
|
3″
|
26.53
|
318.36
|
| Round Bar | ||||||||
|---|---|---|---|---|---|---|---|---|
| Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
| 3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3″ | 10.900 | 35.762 |
| 1/8″ | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4″ | 12.800 | 41.996 |
| 5/32″ | 0.029 | 0.095 | 7/8″ | 0.926 | 3.038 | 3-1/2″ | 14.850 | 48.772 |
| 4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4″ | 17.001 | 55.780 |
| 3/16″ | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4″ | 19.306 | 63.340 |
| 5mm | 0.047 | 0.154 | 1″ | 1.210 | 3.970 | 4-1/4″ | 21.908 | 72.249 |
| 7/32″ | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2″ | 24.4487 | 80.340 |
| 6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4″ | 27.366 | 90.249 |
| 1/4″ | 0.076 | 0.249 | 1-1/8″ | 1.534 | 5.033 | 5″ | 30.461 | 99.940 |
| 7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2″ | 36.690 | 121.000 |
| 5/16″ | 0.118 | 0.387 | 1-1/4″ | 1.924 | 6.349 | 6″ | 43.860 | 143.900 |
| 8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2″ | 51.093 | 167.630 |
| 9mm | 0.152 | 0.498 | 1-3/8″ | 2.303 | 7.550 | 7″ | 59.432 | 196.000 |
| 3/8″ | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2″ | 68.226 | 225.000 |
| 10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8″ | 77.586 | 254.55 |
| 11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10″ | 121.048 | 397.140 |
| 7/16″ | 0.232 | 0.761 | 1-1/2″ | 2.715 | 8.951 | |||
| 12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
|
1/2″
|
0.303 | 0.994 |
1-5/8″
|
3.200 | 10.449 | |||
|
13mm
|
0.318 | 1.043 |
1-3/4″
|
3.712 | 12.179 | |||
|
14mm
|
0.368 | 1.207 |
45mm
|
3.807 | 12.555 | |||
|
9/16″
|
0.383 | 1.256 |
1-7/8″
|
4.260 | 13.977 | |||
|
15mm
|
0.424 | 1.391 |
48mm
|
4.330 | 14.205 | |||
|
5/8″
|
0.473 | 1.551 |
50mm
|
4.698 | 15.414 | |||
|
16mm
|
0.481 | 1.578 |
2″
|
4.848 | 15.906 | |||
|
17mm
|
0.543 | 1.791 |
2-1/8″
|
5.475 | 17.963 | |||
|
11/16″
|
0.573 | 1.880 |
2-1/4″
|
6.135 | 20.128 | |||
|
18mm
|
0.610 | 2.001 |
60mm
|
6.768 | 22.205 | |||
|
3/4″
|
0.682 | 2.237 |
2-3/8″
|
6.838 | 22.435 | |||
|
2-1/2″
|
7.576 | 24.856 | ||||||
|
2-5/8″
|
8.354 | 27.409 | ||||||
|
2-3/4″
|
9.169 | 30.083 | ||||||
The sizes of Inconel UNS N06600 Bars can also be selected when using the THD model.
| Size & Dimensions of Inconel 600 round bar | |||||||
|---|---|---|---|---|---|---|---|
| Metric | US Bar | ASTM/ Canadian | Japanese | ||||
| Bar Size | Diam. (mm) | Bar Size | Diam. (Inch) | Bar Size | Diam. (mm2) | Bar Size | Diam. (mm) |
| 5 | 5 | #2 | 0.250 | 10M | 100 | 6 | 6 |
| 5.5 | 5.5 | #3 | 0.375 | 15M | 200 | 10 | 10 |
| 6 | 6 | #4 | 0.500 | 20M | 300 | 13 | 13 |
| 7 | 7 | #5 | 0.625 | 25M | 500 | 16 | 16 |
| 8 | 8 | #6 | 0.750 | 30M | 700 | 19 | 19 |
| 9 | 9 | #7 | 0.875 | 35M | 1000 | 22 | 22 |
| 10 | 10 | #8 | 1.000 | 45M | 1500 | 25 | 25 |
| 11 | 11 | #9 | 1.125 | 55M | 2500 | 29 | 29 |
| 12 | 12 | #10 | 1.250 | 32 | 32 | ||
| 14 | 14 | #11 | 1.375 | 35 | 35 | ||
| 16 | 16 | #12 | 1.500 | 38 | 38 | ||
| 18 | 18 | #13 | 1.625 | 41 | 41 | ||
| 20 | 20 | #14 | 1.750 | 44 | 44 | ||
| 22 | 22 | #15 | 1.875 | 48 | 48 | ||
| 25 | 25 | #16 | 2.000 | 51 | 51 | ||
| 28 | 28 | #18 | 2.250 | 57 | 57 | ||
| 32 | 32 | ||||||
| 36 | 36 | ||||||
| 40 | 40 | ||||||
| 44 | 44 | ||||||
| 50 | 50 | ||||||
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Inconel UNS N06600 Cold Drawn and Polish Round Bar | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
| Alloy 600 Cold Drawn and Ground Bar | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| 600 Inconel Peeled and Polished Round Bar | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Inconel Alloy 600 Peeled and Ground Bar | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
|
Inconel 600 Flat bar – metric sizes and weights
|
|||
|---|---|---|---|
|
Flat Size
|
KG’s per Metre
|
Standard Length (metres)
|
Colour Code
|
|
10 x 3
|
0.24
|
6.0
|
Blue
|
|
13 x 3
|
0.31
|
6.0
|
Blue
|
|
13 x 5
|
0.46
|
6.0
|
Orange
|
|
16 x 3
|
0.38
|
6.0
|
Blue
|
|
16 x 5
|
0.64
|
6.0
|
Orange
|
|
16 x 8
|
1.03
|
6.0
|
Red
|
|
20 x 3
|
0.48
|
6.0
|
Blue
|
|
20 x 5
|
0.81
|
6.0
|
Orange
|
|
20 x 6
|
0.97
|
6.0
|
White
|
|
20 x 10
|
1.61
|
6.0
|
Yellow
|
|
25 x 3
|
0.60
|
6.0
|
Blue
|
|
25 x 5
|
1.01
|
6.0
|
Orange
|
|
25 x 6
|
1.21
|
6.0
|
White
|
|
25 x 8
|
1.61
|
6.0
|
Red
|
|
25 x 10
|
2.01
|
6.0
|
Yellow
|
|
25 x 12
|
2.41
|
6.0
|
Pink
|
|
32 x 3
|
0.77
|
6.0
|
Blue
|
|
32 x 5
|
1.29
|
6.0
|
Orange
|
|
32 x 6
|
1.55
|
6.0
|
White
|
|
32 x 8
|
2.06
|
6.0
|
Red
|
|
32 x 10
|
2.58
|
6.0
|
Yellow
|
|
32 x 12
|
3.09
|
6.0
|
Pink
|
|
40 x 3
|
0.97
|
6.0
|
Blue
|
|
40 x 5
|
1.61
|
6.0
|
Orange
|
|
40 x 6
|
1.93
|
6.0
|
White
|
|
40 x 8
|
2.58
|
6.0
|
Red
|
|
40 x 10
|
3.22
|
6.0
|
Yellow
|
|
40 x 12
|
3.86
|
6.0
|
Pink
|
|
40 x 16
|
5.15
|
6.0
|
Grey
|
|
40 x 20
|
6.14
|
6.0
|
Green
|
|
50 x 3
|
1.21
|
6.0
|
Blue
|
|
50 x 5
|
2.01
|
6.0
|
Orange
|
|
50 x 6
|
2.41
|
6.0
|
White
|
|
50 x 8
|
3.22
|
6.0
|
Red
|
|
50 x 10
|
4.02
|
6.0
|
Yellow
|
|
50 x 12
|
4.83
|
6.0
|
Pink
|
|
50 x 16
|
6.44
|
6.0
|
Grey
|
|
50 x 20
|
8.05
|
6.0
|
Green
|
|
50 x 25
|
10.1
|
6.0
|
Purple
|
|
65 x 3
|
1.57
|
6.0
|
Blue
|
|
65 x 5
|
2.62
|
6.0
|
Orange
|
|
65 x 6
|
3.14
|
6.0
|
White
|
|
65 x 8
|
4.18
|
6.0
|
Red
|
|
65 x 10
|
5.23
|
6.0
|
Yellow
|
|
65 x 12
|
6.28
|
6.0
|
Pink
|
|
65 x 16
|
8.37
|
6.0
|
Grey
|
|
65 x 20
|
10.5
|
6.0
|
Green
|
|
65 x 25
|
13.1
|
6.0
|
Purple
|
|
75 x 5
|
3.02
|
6.0
|
Orange
|
|
75 x 6
|
3.62
|
6.0
|
White
|
|
75 x 8
|
4.83
|
6.0
|
Red
|
|
75 x 10
|
6.04
|
6.0
|
Yellow
|
|
75 x 12
|
7.24
|
6.0
|
Pink
|
|
75 x 16
|
9.66
|
6.0
|
Grey
|
|
75 x 20
|
12.1
|
6.0
|
Green
|
|
75 x 25
|
15.1
|
6.0
|
Purple
|
|
75 x 40
|
24.1
|
6.0
|
Yellow
|
|
90 x 5
|
3.62
|
6.0
|
Orange
|
|
90 x 6
|
4.35
|
6.0
|
White
|
|
90 x 8
|
5.79
|
6.0
|
Red
|
|
90 x 10
|
7.24
|
6.0
|
Yellow
|
|
90 x 12
|
8.69
|
6.0
|
Pink
|
|
100 x 5
|
4.02
|
6.0
|
Orange
|
|
100 x 6
|
4.83
|
6.0
|
White
|
|
100 x 8
|
6.44
|
6.0
|
Red
|
|
100 x 10
|
8.05
|
6.0
|
Yellow
|
|
100 x 12
|
9.66
|
6.0
|
Pink
|
|
100 x 16
|
12.9
|
6.0
|
Grey
|
|
100 x 20
|
16.1
|
6.0
|
Green
|
|
100 x 25
|
20.1
|
6.0
|
Purple
|
|
100 x 50
|
40.2
|
6.0
|
Green
|
|
110 x 6
|
5.31
|
6.0
|
White
|
|
110 x 8
|
7.08
|
6.0
|
Red
|
|
110 x 10
|
8.85
|
6.0
|
Yellow
|
|
110 x 12
|
10.6
|
6.0
|
Pink
|
|
130 x 5
|
5.23
|
6.0
|
Orange
|
|
130 x 6
|
6.28
|
6.0
|
White
|
|
130 x 8
|
8.37
|
6.0
|
Red
|
|
130 x 10
|
10.5
|
6.0
|
Yellow
|
|
130 x 12
|
12.6
|
6.0
|
Pink
|
|
130 x 16
|
16.7
|
6.0
|
Grey
|
|
130 x 20
|
20.9
|
6.0
|
Green
|
|
130 x 25
|
26.2
|
6.0
|
Purple
|
|
150 x 5
|
6.04
|
6.0
|
Orange
|
|
150 x 6
|
7.24
|
6.0
|
White
|
|
150 x 8
|
9.66
|
6.0
|
Red
|
|
150 x 10
|
12.1
|
6.0
|
Yellow
|
|
150 x 12
|
14.5
|
6.0
|
Pink
|
|
150 x 16
|
19.3
|
6.0
|
Grey
|
|
150 x 20
|
24.1
|
6.0
|
Green
|
|
150 x 25
|
30.1
|
6.0
|
Purple
|
|
150 x 50
|
60.4
|
6.0
|
Green
|
|
180 x 5
|
7.24
|
6.0
|
Orange
|
|
180 x 6
|
8.69
|
6.0
|
White
|
|
180 x 10
|
14.5
|
6.0
|
Yellow
|
|
180 x 12
|
17.4
|
6.0
|
Pink
|
|
180 x 16
|
23.2
|
6.0
|
Grey
|
|
180 x 20
|
29.0
|
6.0
|
Green
|
|
180 x 25
|
36.2
|
6.0
|
Purple
|
|
200 x 6
|
9.66
|
6.0
|
White
|
|
200 x 8
|
12.9
|
6.0
|
Red
|
|
200 x 10
|
16.1
|
6.0
|
Yellow
|
|
200 x 12
|
19.3
|
6.0
|
Pink
|
|
200 x 16
|
25.7
|
6.0
|
Grey
|
|
200 x 20
|
32.2
|
6.0
|
Green
|
|
200 x 25
|
40.3
|
6.0
|
Purple
|
|
250 x 6
|
12.1
|
6.0
|
White
|
|
250 x 8
|
16.1
|
6.0
|
Red
|
|
250 x 10
|
20.1
|
6.0
|
Yellow
|
|
250 x 12
|
24.1
|
6.0
|
Pink
|
|
250 x 16
|
32.2
|
6.0
|
Grey
|
|
250 x 20
|
40.2
|
6.0
|
Green
|
|
250 x 25
|
50.3
|
6.0
|
Purple
|
|
300 x 6
|
14.5
|
6.0
|
White
|
|
300 x 8
|
19.3
|
6.0
|
Red
|
|
300 x 10
|
24.1
|
6.0
|
Yellow
|
|
300 x 12
|
29.0
|
6.0
|
Pink
|
|
300 x 16
|
38.6
|
6.0
|
Grey
|
|
300 x 20
|
48.3
|
6.0
|
Green
|
|
300 x 25
|
60.4
|
6.0
|
Purple
|
Know in detail about exact specification of Alloy 600 Forged Bars & hexagonal bar with best price Ex Shenzhen
Other types of inconel 600 round bar available
We can supply inconel 600 round bar in following forms & shapes:
|
|
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
Are you searching your specific size and length in Inconel 600 Rectangular bar? Check our stock with price list
| Grade | Ni | Cr | Fe | C | Mn | S | Si | Cu |
|---|---|---|---|---|---|---|---|---|
| Inconel 600 | 72.0 min | 14.0 – 17.0 | 6.0 – 10.0 | 0.15 max | 1.0 max | 0.015 max | 0.5 max | 0.5 max |
| STANDARD | WERKSTOFF NR. | UNS | GOST | AFNOR | JIS | BS | EN | OR |
|---|---|---|---|---|---|---|---|---|
| Inconel 600 | 2.4816 | N06600 | МНЖМц 28-2,5-1,5 | NC15FE11M | NCF 600 | NA 13 | NiCr15Fe | ЭИ868 |
- Mechanical examining like tensile, Elongation and reduction of area.
- Chemical examination
- Radiographic Test
- Pitting Corrosion Test
- Positive material recognition
- Eddy Current test
- Buckling & Crushing test
|
CD
|
Cold drawn
|
P
|
Polished
|
|
BD
|
Bright drawn
|
SRE
|
Slit rolled edge
|
|
CG
|
Centreless ground
|
HF
|
Hot finished
|
|
CF
|
Cold finished
|
HRAP
|
Hot rolled annealed and pickled
|
|
P&T
|
Peeled and turned
|
RT
|
Rough turned/peeled
|
|
ST
|
Smooth turned
|
PR
|
Peeled and reeled
|
Alloy 600 Hex Bar Condition
|
H&T
|
Hardened and tempered.
|
|
ANN
|
Annealed
|
|
PH
|
Precipitation hardened.
|
