offer high quality UNS N02200 Hex Bolts and Nuts, Studs at Lowest price in China
carries a complete line of DIN 2.4066 Socket Head Cap Screw and Threaded Rod suppliers in mumbai, China
The nut sizes range through the same range as well. The washers come in sizes ranging from M1 through M64 or #4 through 3 inches and other custom sizes. The DIN 2.4066 Studs and other fasteners are made up of a material composition of carbon, manganese, silicon, sulfur, copper, iron and 99% nickel. This composition provides the material with 8.9 grams per centimeter cube density. The melting point of the material is at 1446 degrees Celsius.
The minimum tensile strength is 462MPa and the minimum yield strength is 148MPa. The ASTM B160 Alloy 200 Threaded Rod and other fasteners are used in connecting two elements together with high toughness. Since the corrosion resistance is very high, the removal or disassembling of these fasteners is quite easy. Please feel free to contact us for more information on the different types of fasteners and their prices.

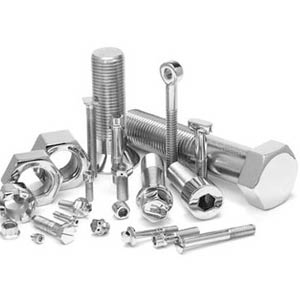

Nickel Alloy 200 Fasteners

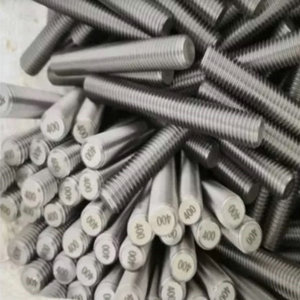

DIN 2.4066 Studs

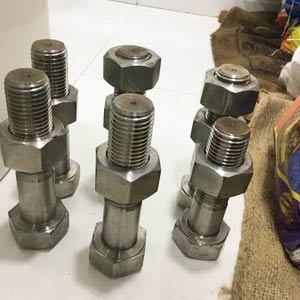

UNS N02200 Hex Bolts
Table of Content
| Fasteners Material Specification | ASME SB 160/ ASTM B 160, UNS 2200 Bolts |
|---|---|
| Standard | JIS, BS, IS, ASME, ANSI, ISO, GB, ASTM, DIN, UNI |
| Fasteners/ Bolts Size | M3, M16, M30, M36, M6, M12, M24, M10, M2.5, M20, M5, M2, M14, M4, M8, to M160 |
| Length | 3 to 200 mm |
| Bolts, Studs Threads: | UNC, METRIC, BSW, UNF, BSF, or as required |
| Fasteners Standard: | ANSI – American National Standards Institute
UTS – Unified Thread Standard : UNC, UNF, UNEF, UNS, NPT, NPTF DIN: DIN 934, DIN 933, DIN 931, DIN 970 ISO : ISO 4033, ISO 4032, JIS standards |
| Source of raw materials | Mukund Steel, JSPL, RINL, Dhamm Steel,Tata Steel, Usha Martinetc. |
| Fasteners In Form of: | Square, Hex, Threading, Round Etc. |
| Head drive: | Slotted, Phillips, Six-Lobeetc |
| Production process | hot forging M24 to M100, machining and CNC , M2 to M24: Cold Froging, |
| bolting materials Coating: |
All surface finishes offered including Galvanised, Zinc, Sherardized, PTFE & Geomet , Electroless Nickel, Dacromet |
| bolting Test Certificate: | EN 10204 / 3.1 |
| Fasteners Packing: | IN BULK: pallet, canton, carton / Small Boxs / pallet, or custom |
Alloy 200 metric Screws or bolts suppliers in China. ready stock of Nickel 200 material at best Price in China.
|
Nickel 200 Fasteners Price List
|
Price Per Pcs.
|
|---|---|
|
Nickel 200 Hex head bolt price
|
USD $6.65
|
|
Alloy 200 Machine bolt price
|
USD $5.55
|
|
2.4066
Screws price |
USD $3.46
|
|
UNS N02200 Socket Head Cap Screw price
|
USD $3.46
|
Please note this is an approx Cost of Nickel Fasteners in China. For final Nickel Alloy Bolts and Nuts price list please mail us.
Nickel 200 Nuts & Washers
Alloy 200 Rings
Nickel 200 Springs
Alloy 200 Hex Head Bolts
Nickel 200 Nuts and Bolts
Nickel Alloy 200 Bolts and Nuts
Nickel 200 Exhaust Bolts
Nickel 200 Hex Bolts
Nickel 200 Anchor Bolt
Nickel Alloy 200 Square U Bolts
Alloy 200 Carriage Bolts
Alloy 200 Countersunk Bolts
Nickel 200 Stud Bolts
Nickel 200 M10 Bolts
Alloy 200 U Bolts
Nickel 200 Lag Bolts
Nickel 200 Threaded Rod
Alloy 200 Threaded Inserts
Nickel 200 Threaded Stud
Double End Threaded Rod
Nickel Alloy 200 Flat Head Screws
Alloy 200 Machine Screws
Nickel 200 Self Tapping Screws
Alloy 200 Self Drilling Screw
Alloy 200 Nord Lock Washers
Nickel 200 Hex Nuts
Alloy 200 Barrel Nuts
Alloy 200 Wheel Nuts
Nickel 200 Washers
Nickel 200 Flat Washers
Alloy 200 Belleville Washers
Alloy 200 Spring Washers
Nickel 200 Dowel Pins
Alloy 200 Spring Pin
Nickel 200 Studs
Nickel 200 Exhaust Studs
Nickel 200 Socket Head Cap Screws
Alloy 200 Set Screws
Nickel 200 Cap Screws
Nickel 200 Hex Cap Screws
we are professional Nickel Alloy Fasteners suppliers in Shenzhen, China, get free quote from Nickel 200 Fasteners manufacturers in China
|
Nickel 200 Bolt Type
|
STANDARD
|
PROPERTY CLASS
|
SIZE
|
TENSILE STRENGTH
|
|---|---|---|---|---|
|
Nickel 200 Hex Head Bolt / Screws
|
ISO 4017 (Full Thread)
ISO 4014 (Half Thread) |
10.9
|
M4 to M80
|
1040N / mm2 min
|
|
GRADE
|
Screws Type
|
ASME
|
SIZE
|
ISO
|
ASTM
|
|---|---|---|---|---|---|
|
12.9
|
Socket Head Cap Screws
|
B18.3.1 M
|
M1.6 to M64
|
4762
|
A574M
|
|
45H
|
Flat Point Socket Set Screws
|
B18.3.6M
|
M6 to M12
|
4026
|
F912M
|
|
012.9
|
Countersunk Socket Head Screws
|
B18.3.5M
|
M3 to M20
|
10642
|
F835M
|
|
45H
|
Cone Point Socket Set Screws
|
B18.3.6M
|
M3 to M12
|
4027
|
F912M
|
|
10.9
|
Socket Low Head Cap Screws
|
|
M4 to M20
|
|
|
|
012.9
|
Button Head Socket Screws
|
B18.3.4M
|
M3 to M12
|
7380
|
F835M
|
|
45H
|
Knurled Point Socket Set Screws
|
B18.3.6M
|
M3 to M20
|
4029
|
F912M
|
|
012.9
|
Socket Head Shoulder Screws
|
B18.3.3M
|
M6 to M24
|
|
|
|
45H
|
Plain Point Socket Set Screws
|
B18.3.6M
|
M3 to M20
|
4029
|
F912M
|
|
012.9
|
Flange Button Head Socket Screws
|
|
M3 to M10
|
|
F835M
|
|
–
|
Taper Pressure Plug
|
|
M8 to M22
|
|
|
|
45H
|
Dog Point Socket Set Screws
|
B18.3.6M
|
M3 to M20
|
4028
|
F912M
|
|
Nuts Type
|
PROPERTY CLASS
|
SIZE
|
STANDARD
|
|---|---|---|---|
|
Hex Weld Nut
|
8
|
M6 to M12
|
DIN 929
|
|
Nylock Nut
|
8 & `10
|
M6 to M20 (Gr.8)
M10 to M24 (Gr.10) |
DIN 982
|
|
Hex Nut
|
10
|
M6 to M42
|
ISO 4032
|
|
Nylock Nut
|
8 & 10
|
M6 to M20 (Gr.8)
M10 to M24 (Gr.10) |
DIN 985
|
|
Washers Type
|
HARDNESS
|
SIZE
|
STANDARD
|
|---|---|---|---|
|
Flat Section Spring Washer
|
HV (430 – 530)
|
3mm to 39mm
|
DIN 127 B
|
|
Hardened Steel Washer
|
Rockwell 26-45 (HDG)
Rockwell 38 -45 (Coated) |
12mm to 56mm
|
ASTM F436M
|
|
Hardened Washer
|
HV (300 – 370)
|
12mm to 30mm
|
IS 2016
|
|
Square Section Spring Washer
|
HV (430-530)
|
3mm to 39mm
|
DIN 7980
|
Below table compares to the nearest inch equivalent of different metric sizes
| Closest Inch | Metric |
|---|---|
| 1 to 64 (Smaller) | M2 to 0.04 |
| 0 to 80 (Larger) | M1.04 to 0.03 |
| 4 to 48 (Smaller) | M3 to 0.05 |
| 3 to 56 (Larger) | M2.05 to 0.045 |
| 1 3/8 to 6 (Smaller) | M36 to 4.00 |
| 6 to 40 (Same) | M3.05 to 0.06 |
| 10 to 32 (Smaller) | M5 to 0.08 |
| 8 to 36 (Larger) | M4 to 0.07 |
| 1/4 to 28 (Larger) | M6 to 1.00 |
| 5/16 to 18 (Smaller) | M8 to 1.025 |
| 1/4 to 28 (Smaller) | M7 to 1.00 |
| 3/8 to 16 (Smaller) | M10 to 1.05 |
| 9/16 to 12 (Larger) | M14 to 2.00 |
| 1/2 to 13 (Larger) | M12 to 1.075 |
| 5/8 to 11 (Smaller) | M16 to 2.00 |
| 3/4 to 10 (Smaller) | M20 to 2.05 |
| 3/4 to 10 (Larger) | M18 to 2.05 |
| 1 to 8 (Larger) | M24 to 3.00 |
| 7/8 to 9 (Larger) | M22 to 2.05 |
| 1 1/8 to 7 (Smaller) | M30 to 3.05 |
ISO and DIN designations
|
No.
|
Description
|
|---|---|
|
DIN 85
|
Slotted Pan Head Machine Screws
|
|
DIN 127B
|
Split Lock Washer
|
|
DIN 137B
|
Spring Wave Washer
|
|
DIN 125B
|
with Chamfer Flat Washer
|
|
DIN 315
|
Wing Nut
|
|
DIN 94
|
Cotter Pin
|
|
DIN 911
|
Long Arm Hex Key
|
|
DIN 439B
|
Machine Screws Finished Hex Jam Nut and Hex Nut
|
|
DIN 912
|
Hex Socket Head Cap Screws
|
|
DIN 125A
|
without Chamfer Flat Washer
|
|
DIN 931
|
Partially Threaded Hex Head Cap Screws
|
|
DIN 916
|
Hex Socket Set Screws
|
|
DIN 933
|
Fully Threaded Hex Head Cap Screws
|
|
DIN 939
|
Double End Stud
|
|
DIN 934
|
Finished Hex Nut
|
|
DIN 966
|
Phillips Oval Head Machine Screws
|
|
DIN 960
|
Partially Threaded Hex Head Cap Screws
|
|
DIN 84
|
Slotted Cheese Head Machine Screws
|
|
DIN 963
|
Slotted Flat Head Machine Screws
|
|
DIN 961
|
Fully Threaded Hex Head Cap Screws
|
|
ISO 7380
|
Hex Button Socket Head Cap Screws
|
|
DIN 964
|
Slotted Oval Head Machine Screws
|
|
DIN 965
|
Phillips Flat Head Machine Screws
|
|
DIN 985
|
Hex Nylon Insert Lock Nut
|
|
DIN 980V
|
Hex Steel Prevailing Torque Lock Nut
|
|
DIN 6334
|
Rod Coupling Nut
|
|
DIN 6797J
|
Internal Tooth Lock Washer
|
|
DIN 6797A
|
External Tooth Lock Washer
|
|
DIN 6912
|
Hex Low Socket Head Cap Screws
|
|
DIN 6923
|
Hex Flange Nut
|
|
DIN 6921
|
Hex Flange Head Screws
|
|
ISO 7379
|
Hex Socket Head Shoulder Screws
|
|
DIN 975
|
Threaded Rod
|
|
DIN 7985
|
Phillips Pan Head Machine Screws
|
|
DIN 7991
|
Hex Flat Socket Head Cap Screws
|
|
Nickel 200
|
C
|
Ni
|
Mn
|
Mo
|
Si
|
P
|
Fe
|
Cu
|
S
|
Cr
|
|
0.15 max
|
99.0 min
|
0.35 max
|
–
|
0.1 max
|
–
|
0.4 max
|
0.25 max
|
0.01 max
|
–
|
|
Density
|
Elongation
|
Yield Strength (0.2%Offset)
|
Melting Point
|
Tensile Strength
|
|
8.9 g/cm3
|
45 %
|
Psi – 21500 , MPa – 148
|
1446 °C (2635 °F)
|
Psi – 67000 , MPa – 462
|
Equivalent Grades for Nickel Nuts and Bolts
|
STANDARD
|
BS
|
WERKSTOFF NR.
|
UNS
|
EN
|
AFNOR
|
JIS
|
GOST
|
|
Nickel 200
|
NA 11
|
2.4066
|
N02200
|
Ni 99.2
|
N-100M
|
NW 2200
|
НП-2
|
