Inconel 625 Round Bar

ASTM B446/ ASME SB 446 UNS N06625 Rod manufacturer and supplier

Inconel 625 Round Bar
Inconel 625 Round Bar

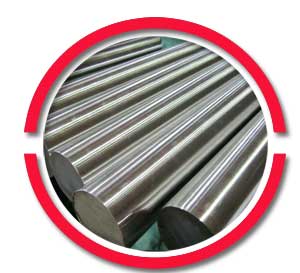

Alloy 625 Rod
Alloy 625 Rod

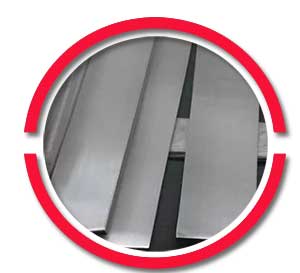

ASTM B446 UNS N06625 Flat Bar

ASTM B446 UNS N06625 Flat Bar

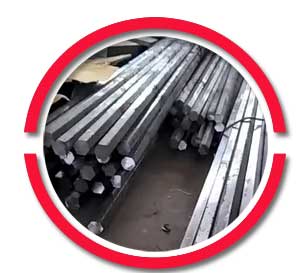

DIN 2.4856 Hex Bar

DIN 2.4856 Hex Bar

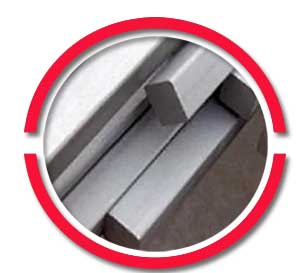

Nickel Alloy 625 Square Bar

Nickel Alloy 625 Square Bar

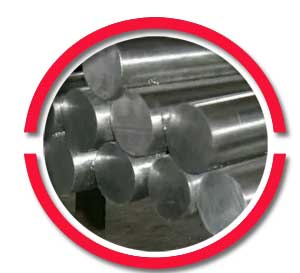

Inconel Alloy 625 Bright Bar

Inconel Alloy 625 Bright Bar

select Alloy 625 Hex Bar from Our stock in China, Check updated price list of Din 2.4856 Flat Bar

Table of Content

Inconel 625 Round Bar is made up of a material consisting of 58% nickel, 20% chromium, 5% iron, manganese, silicon, 8% molybdenum, cobalt, aluminum, titanium, niobium, tantalum, phosphorus and sulfur. High Temperature Fasteners Inc. is a leading manufacturer and supplier of the Inconel 625 Flat Bar and other types in various dimensions and sizes. The bars can come in different conditions such as hardened and tempered, annealed or precipitation hardened.

The Inconel 625 Hex Bar can be polished, slit rolled, cold drawn, bright drawn, cold finished, smooth turned or peeled and reeled. The different finishes of the different types of 2.4856 Alloy 625 Rod can help in the corrosion resistance and strength of the products. The material has very high strength values up to 517MPa minimum yield strength and 930MPa minimum tensile strength. The ASTM B446 UNS N06625 Bar Stock is available with us and we can supply any size of order instantly. Our prices are competitive to the market.

The outer diameters of the bars range from 32mm to 250mm depending on the application requirements. The different finishes such as the UNS N06625 Bright Bar are used in marine, sea water, chemical, petrochemical, heat exchanger, oil and gas and acid production industries. Please contact us with your Inconel 625 Square bar orders and more information and pricing.

Material Standards And Grades Of Inconel 625 Round Bar
Solid Rod ASME SB 466, ASTM B 446, VdTUV 499, ISO 9723, EN 10095, SME Code Case 1935, DIN 17752, BS 3076 NA21
Solid Bar ASME Code Case 1935, ASME SB 466, ISO 9723, AMS 5666, ASTM B 446, BS 3076 NA21, VdTUV 499, DIN 17752, EN 10095,
Forging Stock DIN 17754, ASME SB 564, SME Code Case 1935, AMS 5666, ASTM B 564, ISO 9725,
International Specifications VdTüV 499, ISO 9723, ISO 9724, BS3076NA21, EN 10095, ISO 9725, DIN 17752, DIN 17754, DIN 17753, WERKSTOFF Nr 2.4856
Grade Inconel 625 – Nickel Alloy 625, ASTM B446, UNS N06625, AMS 5666, AMS 5837
Specification of Bar
 ASTM B 446, AMS 5666, ASME SB 466, VdTUV 499, ISO 9723, EN 10095, BS 3076 NA21, ASME Code Case 1935, DIN 17752
Specification of Rod
 ASME SB 466, ASTM B 446, VdTUV 499, ISO 9723, EN 10095, BS 3076 NA21, SME Code Case 1935, DIN 17752
Hex Bar 2-100mm A/F
Flat bar Thickness: 2 -100mm
Width: 10 to 500mm
Channel Bar section; 5.0 to 6.0 thick, 80 x 40mm to 150 x 75mm
Round bar Diameter: 3-~800mm
Square bar 4 to 100mm
Section 3 to 12 mm thick.
Rectangles 33 x 30 to 295 x 1066
Billet 1/2″ to 495 Dia.
Angle bar 3*20*20~12*100*100 mm
Hollow Bar 32mm Outside Diameter x 16mm Inside Diameter to 250mm Outside Diameter x 200mm Inside Diameter
Form Flat Bar, Hollow, Round, Square, Triangle, Rectangle, Half Round Bar, Rod, T-Bar, Precision Ground Bar, Hex (A/F), Blocks, Channel Bar, Threaded, Round Rod, Billet, Profiles, I/H Bar, Ingot, Rings, Forging etc.
Technique Hot Rolled, Cold Drawn, Rod, Forged Round Bar, Cold Rolled
Condition annealed, Hardened & tempered
Surface Bright, Cold Drawn, Hot Rolled Pickled, Sand Blasting Finished, Polished, Hairline

buy cut to size Nickel Alloy 625 Hot / Cold drawn bar and SAE/AMS 5666 Square Bar at lowest price

price of Inconel Alloy 625 Bar in india
Inconel 625 Round Bar Price in China
Quantity
Price in USD
190.0 Dia x 25mm long
2
$ 977.41
190.0 Dia x 50mm long
1
$ 765.84
190.0 Dia x 100mm long
1
$ 1294.14
190.0 Dia x 250mm long
1
$ 2932.24
ASTM B446 UNS N06625 Bar Stock
Inconel 625 Round Bar

* HR RT – Hot Rolled Rough Turned
CG – Centerless Ground

 .260 CG
1/4 CG
11/16 CG
.385 CG
.3225 CG
5/16 CG
3/8 CG
.4475 CG
7/16 CG
.510 CG
1/2 CG
.5725 CG
9/16 CG
.635 CG
5/8 CG		 .760 CG
3/4 CG
.885 CG
7/8 CG
1.135 CG
1.010 CG
1 CG
1-1/8 CG
1.260 CG
1-1/4 CG
1-1/2 CG
1-3/8 CG
1-3/4 CG
1-5/8 CG
2 CG		 2-1/2 CG
2-1/4 CG
2-1/8 CG
2-3/8 CG
2-3/4 CG
2-5/8 CG
3-1/2 CG
3 CG
4 HR RT
3-3/4 HR RT
5 HR RT
4-1/2 HR RT
6 HR RT
5-1/2 HR RT
8 HR RT
lloy Product form Dimension
ALLOY 625 (61 Ni/22 Cr/9 Mo) Rod; annealed, cold drawn Dia=12.0 mm, Weight=1.0 kg/m
Rod; annealed, cold drawn Dia=16.0 mm, Weight=1.7 kg/m
Rod; annealed, peeled
Rod; annealed, cold drawn
Rod; annealed, peeled Dia=20.0 mm, Weight=2.7 kg/m
Rod; annealed, hot worked, peeled Dia=25.0 mm, Weight=4.5 kg/m
ALLOY 625 (61 Ni/22 Cr/9 Mo) Rod; annealed, hot worked, peeled Dia=40.0 mm, Weight=10.6 kg/m
Rod; annealed, hot finished, peeled Dia=44.5 mm, Weight=13.1 kg/m
INCONEL 625 (61 Ni/22 Cr/9 Mo) Rod; machined, hot finished, annealed Dia=30.0 mm, Weight=6.1 kg/m
ALLOY 625 (61 Ni/22 Cr/9 Mo) Rod; forged, annealed, peeled Dia=65.4 mm, Weight=26.7 kg/m
Rod; machined, annealed, forged Dia=76.2 mm, Weight=38.5 kg/m
Rod; annealed, peeled Dia=50.8 mm, Weight=17.1 kg/m
Rod; hot worked, peeled, annealed Dia=160.0 mm, Weight=160 kg/m
Rod; hot worked, annealed, peeled, Dia=85.0 mm, Weight=47.9 kg/m
INCONEL 625 (61 Ni/22 Cr/9 Mo) Rod; annealed, peeled, hot worked Dia=81.0 mm, Weight=42.5 kg/m
ALLOY 625 (61 Ni/22 Cr/9 Mo) Rod; hot worked, peeled, annealed Dia=130.0 mm, Weight=112 kg/m
Rod; hot worked, peeled, annealed Dia=101.6 mm, Weight=68.4 kg/m
Rod; annealed, forged Dia=190.0 mm, Weight=234 kg/m
basic Types Of ASME SB 446 UNS N06625 Rod

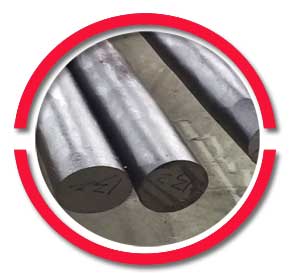

Inconel 625 N06625 Dia.35mm 45mm 50mm Round Bars
Inconel 625 N06625 Dia.35mm 45mm 50mm Round Bars

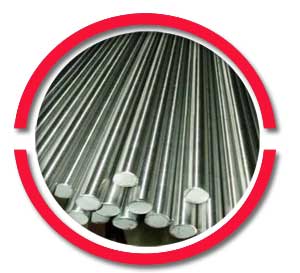

rough turned finished Inconel 625 round bar
rough turned finished Inconel 625 round bar

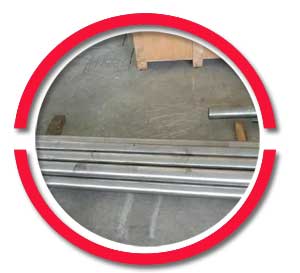

Inconel 625 hot rolled steel round bar
Inconel 625 hot rolled steel round bar

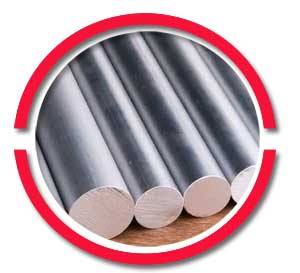

Inconel 625 annealed round bar ASTM B446
Inconel 625 annealed round bar ASTM B446
Other types of inconel 625 round bar available

We can supply inconel 625 round bar in following forms & shapes:

  • Channel Bars
  • Flat Bars
  • Blocks
  • Round
  • Rings
  • Square
  • T-Bars
  • Precision Ground Bars
  • Hollow
  • Round Rod
  • Rod
  • Forging
  • Hex (A/F)
  • Billet
  • Rectangle
  • I/H Bars
  • Triangle
  • Half Round Bars
  • Threaded
  • Profiles
  • Ingot
  • Rectangular Bar
Alloy 625 bar Features
  • Excellent brazeability and weldability
  • Outstanding thermal-fatigue strength and fatigue
  • creep, High tensile, and rupture strength
  • Excellent oxidation resistance
  • Immune to chloride ion stress corrosion cracking
Typical Mechanical Property Ranges Of Inconel 625 Flat Bar
Elongation
Density
Tensile Strength
Melting Point
Yield Strength (0.2%Offset)
42.5 %
8.4 g/cm3
Psi – 135,000 , MPa – 930
1350 °C (2460 °F)
Psi – 75,000 , MPa – 517
Chemical Properties Of 2.4856 Alloy 625 Rod
Grade
Fe
Ni
C
Cr
Si
Mn
Mo
Al
Co
Ti
P
Nb + Ta
S
Inconel 625
5.0 max
58.0 min
0.10 max
20.0 – 23.0
0.50 max
0.50 max
8.0 – 10.0
0.40 max
1.0 max
0.40 max
0.015 max
3.15 – 4.15
0.015 max

Material Equivalent Of UNS N06625 Bright Bar
STANDARD
EN
UNS
WERKSTOFF NR.
GOST
JIS
AFNOR
BS
OR
Inconel 625
NiCr22Mo9Nb
N06625
2.4856
ХН75МБТЮ
NCF 625
NC22DNB4M
NA 21
ЭИ602
DIN 2.4856 Hex Bar Standard Sizes
SS hex bar Size in Inches
SS hex bar Wt per Ft
SS hex bar Wt per 12′
3/16″
0.104
1.248
1/4″
0.180
2.160
5/16″
0.290
3.480
3/8″
0.625
4.920
7/16″
0.560
6.72
1/2″
0.740
8.880
9/16″
0.930
11.16
5/8″
1.150
13.80
11/16″
1.390
16.68
3/4″
1.660
19.92
13/16″
1.950
23.40
7/8″
2.300
27.60
15/16″
2.625
31.20
1″
2.90
34.80
1-1/16″
3.30
39.60
1-1/8″
3.700
44.40
1-1/4″
4.625
55.20
1-5/16″
5.100
61.20
1-3/8″
5.625
67.20
1-7/16″
6.100
73.20
1-1/2″
6.625
79.20
1-5/8″
7.800
93.60
1-3/4″
9.030
108.36
1-7/8″
10.400
124.80
2″
11.80
141.60
2-1/4″
14.920
179.04
2-3/8″
16.920
203.04
2-1/2″
18.42
221.04
3″
26.53
318.36
Nickel Alloy 625 Tolerances
Cold Drawn Alloy 625 Round Bar Tolerances
Section/Shape diameter, Size or width across flats variation Permitted
mm mm
Flat (width) < 18
> 18 ≦ 30
> 30 ≦ 50
> 50 ≦ 80
> 80 ≦ 100
> 100 ≦ 130
> 130 ≦ 160
> 160 ≦ 320		 + 0 to – 0.0110
+ 0 to – 0.0130
+ 0 to – 0.0160
+ 0 to – 0.0190
+ 0 to – 0.0220
+ 0 to – 0.0350
+ 0 to – 1.000
+ 1.000 to – 1.000
Round ≥6 ≦ 18
> 18 ≦ 30
> 30 ≦ 50
> 50 ≦ 80
> 80 ≦ 100		 + 0 to – 0.0070
+ 0 to – 0.0085
+ 0 to – 0.0100
+ 0 to – 0.0120
+ 0 to – 0.0140
Square and
hexagon		 ≥ 6 ≦ 18
> 18 ≦ 30
> 30 ≦ 50
> 50 ≦ 80
> 80 ≦ 105		 + 0 to – 0.0090
+ 0 to – 0.0110
+ 0 to – 0.0130
+ 0 to – 0.0160
+ 0 to – 0.0250
Flat (thickness) < 18
> 18 ≦ 30
> 30 ≦ 50
> 50 ≦ 80		 + 0 to – 0.0110
+ 0 to – 0.0130
+ 0 to – 0.0250
+ 0 to – 0.0350

Turned ASTM B446 Inconel 625 Round Bar (BS 970-3) Tolerances

Tolerances of Turned Nickel 625 round bar
Inconel 625 round bar diameter, Size variation Permitted
mm mm
≧ 6 ≦ 18
> 18 ≦ 30
> 30 ≦ 50
> 50 ≦ 80
> 80 ≦ 120
> 120 ≦ 180
> 180 ≦ 250
> 250 ≦ 315
> 315 ≦ 400
> 400		 + 0 to – 0.0070
+ 0 to – 0.0085
+ 0 to – 0.0100
+ 0 to – 0.0120
+ 0 to – 0.0140
+ 0 to – 0.0160
+ 0 to – 0.0185
+ 0 to – 0.0210
+ 0 to – 0.0230
+ 0 to – 0.0250

Tolerances of Precision Inconel WERKSTOFF NR. 2.4856 Round Bar (BS 970-3)

Precision Nickel Alloy 625 Round Bar Tolerances
Section
diameter, Size		 overall variation Permitted
Class B Class A Class C
mm mm mm mm
Round ≧ 6 <75 0.025 0.05 0.013

Alloy 625 Bright Round Bar (BS EN ISO 286-2 ) Tolerance

in MM Nickel 625 round bar Tolerance ISO “H” Series
NOMINAL SIZE h8 h6 h5 h7 H10 h9 h12 H11
DIAMETER mm
over 3 to 6 +0.018/0 +0.008/0 +0.005/0 +0.012/0 +0.048/0 +0.03/0 +0.12/0 +0.075/0
~ to 3 +0.014/0 +0.006/0 +0.004/0 +0.01/0 +0.04/0 +0.025/0 +0.1/0 +0.06/0
over 6 to 10 +0.022/0 +0.009/0 +0.006/0 +0.015/0 +0.058/0 +0.036/0 +0.15/0 +0.09/0
over 18 to 30 +0.033/0 +0.013/0 +0.009/0 +0.021/0 +0.084/0 +0.052/0 +0.21/0 +0.13/0
over 10 to 18 +0.027/0 +0.011/0 +0.008/0 +0.018/0 +0.07/0 +0.043/0 +0.18/0 +0.11/0
over 180 to 250 +0.072/0 +0.029/0 +0.02/0 +0.046/0 +0.185/0 +0.115/0 +0.46/0 +0.29/0
over 30 to 50 +0.039/0 +0.016/0 +0.011/0 +0.025/0 +0.1/0 +0.062/0 +0.25/0 +0.16/0
over 80 to 120 +0.054/0 +0.022/0 +0.015/0 +0.035/0 +0.14/0 +0.087/0 +0.35/0 +0.22/0
over 50 to 80 +0.046/0 +0.019/0 +0.013/0 +0.03/0 +0.12/0 +0.074/0 +0.3/0 +0.19/0
over 120 to 180 +0.063/0 +0.025/0 +0.018/0 +0.04/0 +0.16/0 +0.1/0 +0.4/0 +0.25/0
625 Inconel Round Bar Weights
Round Bar
Size Kgs / Mtr Kgs / Foot Size Kgs / Mtr Kgs / Foot Size Kgs / Mtr Kgs / Foot
3mm 0.0055 0.0017 20mm 2.0470 0.0753 3″ 35.0762 10.0900
1/8″ 0.0062 0.0019 22mm 2.0979 0.0908 3 to 1/4″ 41.0996 12.0800
5/32″ 0.0095 0.0029 7/8″ 3.0038 0.0926 3 to 1/2″ 48.0772 14.0850
4mm 0.0098 0.0030 24mm 3.0543 1.0080 3 to 3/4″ 55.0780 17.0001
3/16″ 0.0141 0.0043 25mm 3.0871 1.0180 4″ 63.0340 19.0306
5mm 0.0154 0.0047 1″ 3.0970 1.0210 4 to 1/4″ 72.0249 21.0908
7/32″ 0.0190 0.0058 26mm 4.0170 1.0271 4 to 1/2″ 80.0340 24.04487
6mm 0.0223 0.0068 27mm 4.0490 1.0368 4 to 3/4″ 90.0249 27.0366
1/4″ 0.0249 0.0076 1 to 1/8″ 5.0033 1.0534 5″ 99.0940 30.0461
7mm 0.0298 0.0091 30mm 5.0548 1.0691 5 to 1/2″ 121.0000 36.0690
5/16″ 0.0387 0.0118 1 to 1/4″ 6.0349 1.0924 6″ 143.0900 43.0860
8mm 0.0398 0.0120 32mm 6.0314 1.0894 6 to 1/2″ 167.0630 51.0093
9mm 0.0498 0.0152 1 to 3/8″ 7.0550 2.0303 7″ 196.0000 59.0432
3/8″ 0.0557 0.0170 35mm 7.0553 2.0390 7 to 1/2″ 225.0000 68.0226
10mm 0.0620 0.0189 36mm 7.0999 2.0438 8″ 254.055 77.0586
11mm 0.0748 0.0228 38mm 8.0903 2.0792 10″ 397.0140 121.0048
7/16″ 0.0761 0.0232 1 to 1/2″ 8.0951 2.0715
12mm 0.0889 0.0271 40mm 9.0872 3.0009
1/2″
 0.0994 0.0303
1 to 5/8″
 10.0449 3.0200
13mm
 1.0043 0.0318
1 to 3/4″
 12.0179 3.0712
14mm
 1.0207 0.0368
45mm
 12.0555 3.0807
9/16″
 1.0256 0.0383
1 to 7/8″
 13.0977 4.0260
15mm
 1.0391 0.0424
48mm
 14.0205 4.0330
5/8″
 1.0551 0.0473
50mm
 15.0414 4.0698
16mm
 1.0578 0.0481
2″
 15.0906 4.0848
17mm
 1.0791 0.0543
2 to 1/8″
 17.0963 5.0475
11/16″
 1.0880 0.0573
2 to 1/4″
 20.0128 6.0135
18mm
 2.0001 0.0610
60mm
 22.0205 6.0768
3/4″
 2.0237 0.0682
2 to 3/8″
 22.0435 6.0838
2 to 1/2″
 24.0856 7.0576
2 to 5/8″
 27.0409 8.0354
2 to 3/4″
 30.0083 9.0169
Type
SIZES (mm)
ISO Tolerance
SIZES (Inches)
Peeled and Polished
40.00 to 150.00
h11-DIN 1013
1.50″ to 6.00″
Cold Drawn and Ground
10.00 to 75.00
h9-h8-h11-h10
5/6″ to 2.50″
Cold Drawn and Polish
3.00 to 75.00
h9-h8-h11-h10
1/8″ to 3.00″
Peeled and Ground
20.00 to 50.00
h10-h9-h11
3/4″ to 2.00″
ASTM B446 UNS N06625 Bar Surface finish
RT
Rough turned/peeled
P&T
Peeled and turned
SRE
Slit rolled edge
BD
Bright drawn
P
Polished
CD
Cold drawn
HRAP
Hot rolled annealed and pickled
CF
Cold finished
HF
Hot finished
CG
Centreless ground
PR
Peeled and reeled
ST
Smooth turned
Alloy 625 Hex Bar Condition
ANN
Annealed
H&T
Hardened and tempered.
PH
Precipitation hardened.
Nickel 625 Flat bar Size table
Inconel 625 Flat bar – metric sizes and weights
Flat Size
Standard Length (metres)
KG’s per Metre
Colour Code
13 x 3
6.00
0.031
Blue
10 x 3
6.00
0.024
Blue
16 x 3
6.00
0.038
Blue
13 x 5
6.00
0.046
Orange
16 x 5
6.00
0.064
Orange
20 x 3
6.00
0.048
Blue
16 x 8
6.00
1.003
Red
20 x 5
6.00
0.081
Orange
20 x 10
6.00
1.061
Yellow
20 x 6
6.00
0.097
White
25 x 5
6.00
1.001
Orange
25 x 3
6.00
0.060
Blue
25 x 6
6.00
1.021
White
25 x 10
6.00
2.001
Yellow
25 x 8
6.00
1.061
Red
25 x 12
6.00
2.041
Pink
32 x 5
6.00
1.029
Orange
32 x 3
6.00
0.077
Blue
32 x 6
6.00
1.055
White
32 x 10
6.00
2.058
Yellow
32 x 8
6.00
2.006
Red
32 x 12
6.00
3.009
Pink
40 x 5
6.00
1.061
Orange
40 x 3
6.00
0.097
Blue
40 x 6
6.00
1.093
White
40 x 10
6.00
3.022
Yellow
40 x 8
6.00
2.058
Red
40 x 12
6.00
3.086
Pink
40 x 20
6.00
6.014
Green
40 x 16
6.00
5.015
Grey
50 x 3
6.00
1.021
Blue
50 x 6
6.00
2.041
White
50 x 5
6.00
2.001
Orange
50 x 8
6.00
3.022
Red
50 x 10
6.00
4.002
Yellow
50 x 16
6.00
6.044
Grey
50 x 20
6.00
8.005
Green
50 x 12
6.00
4.083
Pink
50 x 25
6.00
10.01
Purple
65 x 5
6.00
2.062
Orange
65 x 3
6.00
1.057
Blue
65 x 6
6.00
3.014
White
65 x 10
6.00
5.023
Yellow
65 x 12
6.00
6.028
Pink
65 x 8
6.00
4.018
Red
65 x 16
6.00
8.037
Grey
65 x 25
6.00
13.01
Purple
65 x 20
6.00
10.05
Green
75 x 5
6.00
3.002
Orange
75 x 8
6.00
4.083
Red
75 x 6
6.00
3.062
White
75 x 10
6.00
6.004
Yellow
75 x 16
6.00
9.066
Grey
75 x 20
6.00
12.01
Green
75 x 12
6.00
7.024
Pink
75 x 25
6.00
15.01
Purple
90 x 5
6.00
3.062
Orange
90 x 6
6.00
4.035
White
75 x 40
6.00
24.01
Yellow
90 x 8
6.00
5.079
Red
90 x 12
6.00
8.069
Pink
100 x 5
6.00
4.002
Orange
100 x 6
6.00
4.083
White
90 x 10
6.00
7.024
Yellow
100 x 8
6.00
6.044
Red
100 x 12
6.00
9.066
Pink
100 x 16
6.00
12.09
Grey
100 x 10
6.00
8.005
Yellow
100 x 20
6.00
16.01
Green
100 x 50
6.00
40.02
Green
100 x 25
6.00
20.01
Purple
110 x 8
6.00
7.008
Red
110 x 10
6.00
8.085
Yellow
110 x 6
6.00
5.031
White
110 x 12
6.00
10.06
Pink
130 x 6
6.00
6.028
White
130 x 5
6.00
5.023
Orange
130 x 10
6.00
10.05
Yellow
130 x 8
6.00
8.037
Red
130 x 12
6.00
12.06
Pink
130 x 20
6.00
20.09
Green
130 x 16
6.00
16.07
Grey
130 x 25
6.00
26.02
Purple
150 x 6
6.00
7.024
White
150 x 5
6.00
6.004
Orange
150 x 8
6.00
9.066
Red
150 x 12
6.00
14.05
Pink
150 x 10
6.00
12.01
Yellow
150 x 16
6.00
19.03
Grey
150 x 25
6.00
30.01
Purple
150 x 20
6.00
24.01
Green
150 x 50
6.00
60.04
Green
180 x 6
6.00
8.069
White
180 x 5
6.00
7.024
Orange
180 x 10
6.00
14.05
Yellow
180 x 12
6.00
17.04
Pink
180 x 25
6.00
36.02
Purple
200 x 6
6.00
9.066
White
180 x 16
6.00
23.02
Grey
300 x 25
6.00
60.04
Purple
180 x 20
6.00
29.00
Green
200 x 8
6.00
12.09
Red
200 x 12
6.00
19.03
Pink
200 x 16
6.00
25.07
Grey
200 x 10
6.00
16.01
Yellow
200 x 20
6.00
32.02
Green
250 x 6
6.00
12.01
White
250 x 8
6.00
16.01
Red
200 x 25
6.00
40.03
Purple
250 x 10
6.00
20.01
Yellow
250 x 20
6.00
40.02
Green
250 x 25
6.00
50.03
Purple
300 x 6
6.00
14.05
White
250 x 12
6.00
24.01
Pink
250 x 16
6.00
32.02
Grey
300 x 8
6.00
19.03
Red
300 x 12
6.00
29.00
Pink
300 x 10
6.00
24.01
Yellow
300 x 16
6.00
38.06
Grey
300 x 20
6.00
48.03
Green
We stock and supply inconel 625 Bars as per international standards which includes VdTÜV 499, BS 3076NA21, ISO 9723/9724/9725, DIN 17752/1775417753, EN 10095 and many more
UNS N06625 Round Bar Size Chart

The sizes of Inconel UNS N06625 Bars can also be selected when using the THD model.

Size & Dimensions of Inconel 625 round bar
Metric US Bar ASTM/ Canadian Japanese
Diam. (mm) Bar Size Diam. (Inch) Bar Size Diam. (mm2) Bar Size Diam. (mm) Bar Size
5 5 0.0250 #2 100 10M 6 6
5.05 5.05 0.0375 #3 200 15M 10 10
6 6 0.0500 #4 300 20M 13 13
7 7 0.0625 #5 500 25M 16 16
8 8 0.0750 #6 700 30M 19 19
9 9 0.0875 #7 1000 35M 22 22
10 10 1.0000 #8 1500 45M 25 25
11 11 1.0125 #9 2500 55M 29 29
12 12 1.0250 #10 32 32
14 14 1.0375 #11 35 35
16 16 1.0500 #12 38 38
18 18 1.0625 #13 41 41
20 20 1.0750 #14 44 44
22 22 1.0875 #15 48 48
25 25 2.0000 #16 51 51
28 28 2.0250 #18 57 57
32 32
36 36
40 40
44 44
50 50
Cut to size Inconel 625 Forged Bar available at lowest price in Shenzhen
Inconel 625 Bar Application Area
  • Plant equipment in chemical processing field
  • Seawater applications
  • Flare stacks
  • Nuclear field applications
  • Offshore industry marine equipment
  • Bellows
  • Aerospace applications
