titanium bolt manufacturers in China

Reckoned to be a lightweight, high strength alloy, many titanium bolt manufacturers in China recommend these fasteners to clients in the aerospace industries. In comparison to several stainless steel grades, the Grade 5 Titanium Lock Nut is a less dense fastener.

titanium nuts and bolts, View titanium bolts price, oldest Aerospace Titanium Fasteners manufacturers

titanium bolt
titanium bolt
Titanium Fasteners
Titanium Fasteners
Aerospace Titanium Fasteners
Aerospace Titanium Fasteners



supplies a full range of Ti-6al-4v Bolts, Titanium Nuts and Screws, Aircraft Fasteners, Titanium Grade 2 Fasteners

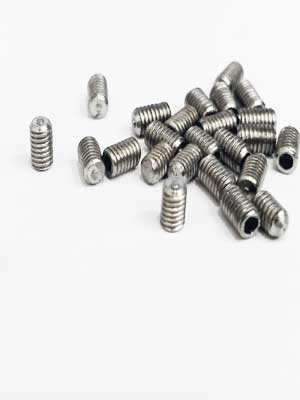

High Quality Titanium Bolts
High Quality Titanium Bolts

The mechanical properties of titanium will vary depending on the grade used. For instance, Titanium Bolts And Fasteners produced from alloys grade 1, grade 2, grade 3 and grade 4 are referred to as commercially pure titanium grades. Whereas the alloys after grade 5 Titanium 12 Point Bolts have different elements added in the alloy, thus improving some of its characteristics. Commonly, Titanium Socket Head Cap Screws and above are alloyed with elements such as aluminium, vanadium molybdenum, manganese and iron. Titanium Grade 2 Fasteners, which are referred to as a commercially pure titanium grade is heat resistant and exhibit good formability as well as superior corrosion resistance properties.

Titanium Grade 5 Hex Head Bolt is also known by its trade name as 6AL-4V. Grade 5 Aerospace Titanium Fasteners are a  titanium alloyed product that contains about 6% Aluminum along with 4% Vanadium. Grade 5 Ti Threaded Stud Bolt is a medium strength product. Apart from their high tensile strength property and density ratio, the corrosion resistant Titanium Aircraft Fasteners have the ability to withstand moderately high temperatures without becoming susceptible to creeping.



Price list of Titanium Bolts
Type
Quantity
Price
M6x20 Titanium Screws 6AL4V Aerospace 4pc Button Head (with ISO 7380 Button Hex Heads)
4
$7.98
M6 Titanium Ti Socket Hex Bolts Cap Screws 10 15 20 25 30 35 40 45 50 55 60 65mm
1
$2.09
M6x30mm M6X35mm M6x40mm Ti Titanium Bike Countersunk Screws Allen Flat Head Bolt
1
$2.25
M6x25 Titanium Screw 6AL4V Aerospace Allen Hex Tapered Socket Cap Head 4 pieces
4
$7.98
Titanium Ti Bicycle M6x16 M6X18 M6X20 M6X25mm Screws Allen Hex Socket Head Bolts
1
$1.53
Titanium M6 x 15 16 18 20 25 30 35 40 45 50 65mm Bolt for Bicycle Headset Brake
1
$3.49
M6X10mm M6x16 M6X18 M6x20 M6X25mm Titanium Ti Bolts Allen Hex Tapered Head Screw
1
$1.71
1pc M6x30mm DIN912 Titanium Ti Screw Bolt Allen Hex Socket Cap Head
1
$2.09
Washer Gasket Durable Caliper Bolt M6x20mm Bike Titanium Screw Disc Brake
1
$1.55
M6x15 Titanium Screws 6AL4V Aerospace 4pc Button Head M6x15mm by ACER Racing
4
$8.98
M6 Titanium Ti Socket Hex Bolts Cap Screws 10 15 20 25 30 35 40 45 50 55 60 65mm
1
$1.01
M6*1mm Titanium Socket Flange Bolt Cap Screw 10 15 20 25 30 35 40 45 50 55 60 65
1
$1.35

Please note this is an approx Cost of Titanium Bolts in China. For final Titanium Fasteners price list please mail us.



Material Specification chart of Titanium Bolts and Nuts
Titanium Fasteners Material Specification ASTM B 348 ASME SB 348
Standard DIN, UNI, ISO, JIS, GB, IS, BS, ASME, ANSI, ASTM and all International Standards
Titanium Fasteners/ Bolts Size M2, M2.5, M3, M4, M5, M6, M8, M10, M12, M14, M16, M20, M24, M30, M36 to M160
Length 3 mm to 200 mm
Titanium Bolts, Studs Threads: METRIC, BSW, BSF, UNC, UNF or as required
Application wise Titanium Fasteners
  • Titanium Bicycle Bolts
  • Titanium Motorcycle Bolts
  • Titanium Chainring Bolts
  • Titanium Archery Bolts
  • Titanium Aerospace Bolts
  • Titanium Aircraft Bolts
  • Titanium Bike Bolts
  • Titanium Motorcycle Disc Bolts
Titanium Alloy Fasteners Standard: ANSI – American National Standards Institute
  • MS / NAS/ AN/ AS / AGS/ DIN/ EN/ NSN/ NFL
  • ANSI B 18.2.4 2M
  • ANSI B 28.2.4 1M
  • Titanium Alloy Stud Bolt length are defined in ASME B16.5 standard
  • Titanium Alloy Hex nuts are defined in ASME B18.2.2
  • ASME B18.5

DIN: DIN 931, DIN 933, DIN 934, DIN 970

UTS – Unified Thread Standard : UNC, UNF, UNEF, UNS, NPT, NPTF

ISO – International Organization for Standardization : ISO 4032, ISO 4033, JIS standards
Stocking distributor of Alcoa Fastening Systems (Arconic) incorporating Kaynar, Republic and Simmonds, Paolo Astori, Maclean Esna, Greer and SPS.
SCOPE OF MANUFACTURE
  • Hot Forged Titanium Fasteners, Nut / Bolt; up to M36 / 1-1/2” Dia, up to 1100mm lg
  • CNC Machined Titanium Fasteners, Nut / Bolt; up to M100 / 4” Dia, up to 1500mm lg
Titanium Fasteners In Form of: Hex, Square, Round, Threading as per Gauge Etc.
Head drive: Phillips, Slotted, Phillips/Slot, Six-Lobe, etc
Popular Types of Titanium Alloy Bolts Titanium Hex Bolts, Flange Bolts, Hex Head Bolts, Lag Bolts, Square Bolts, Eye Bolts, U Bolts, T Bolts, Counter sunk Bolts etc.
Popular Types of Titanium Alloy Nut
  • Metric nuts: hex and anchor
  • Press nuts: fixed and floating
  • Sealing nuts: standard and miniature
  • Shank nuts
  • Spline nuts
  • Hex nuts: nylon insert, all metal; heavy, light, and miniature
  • Twelve point (double hex) nuts
  • Aircraft Nut Plates: anchor nut plates, fixed nut plates, floating nut plates, high strength nut plates, self-locking nut plates
  • Anchor nuts & Plate nuts: one-lug, two-lug, corner, right-angle; full-size, miniature; fixed, floating; locking, and non-locking
  • Barrel nuts and retainers
  • Solid Nuts
  • Capped nuts & Dome nuts: anchor and hex
  • Clinch nuts: nylon insert, all metal; heavy, light, and miniature
  • Clip nuts: sheet metal, connector mounting
Popular Types of Titanium Alloy Washer Titanium Machine Washers, Flat Washer, Star Washers, Sealing Washer, Lock Washer, Split Washer etc.
Titanium Rivets for aerospace industry
  • Structural Rivets
  • Solid Rivets
  • Blind Rivets
Aerospace Titanium Inserts & Potted Inserts
  • Threaded Inserts are the first choice because of its high quality, load bearing threads even in single thin sheets.
  • Wire thread Inserts for a durable and permanent screw thread when inserted into pre-tapped holes.
  • Keensert Inserts for high strength joints in low strength materials.
Titanium Fasteners Packing: IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request
Titanium bolting Test Certificate: Manufacturer Test Certificate as per EN 10204 / 3.1
Titanium Fasteners finishing: Zinc (yellow, white, blue, black), black oxide,
Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Stainless steel: Passivated
Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Stainless Steel, Mechanically Applied coating and some special one like DACROMET
Production process M2-M24: Cold Froging, hot forging M24-M100, machining and CNC for Customized connecting element
Titanium bolting materials Surface Coating:
  • Teflon Coated Fasteners
  • Phosphate Coated Fasteners
  • Zinc Coated Fasteners
  • Ptfe Coated Titanium Fasteners
  • Xylon Coated Fasteners
  • Cadmium Coated Fasteners
  • Hot Dipped Galvanizing Coated Fasteners

All surface finishes can be supplied, including Zinc, Galvanised, Sherardized, Electroless Nickel, Dacromet, Geomet & PTFE.



Are you looking for Titanium Alloy Washers, Titanium Threaded Rod, Ti Lock Nut, Titanium 12 Point Bolts suppliers?



Material Equivalent Grades for Titanium Fasteners
STANDARD WERKSTOFF NR. UNS
Titanium Grade2 3.7035 R50400
Titanium Grade5 3.7165 R56400



Mechanical Characteristics of Titanium Fasteners
Grade Tensile Strength (min) Yield Strength 0.2% Offset Elongation in 2 inch or 50mm % (min)

KSI

MPa

KSI

MPa

Gr.1

35

240

20 – 45

138 – 310

24

Gr.2

50

345

40 – 65

275 – 450

20

Gr.3

65

450

55 – 80

380 – 550

18

Gr.4

80

550

≥70

≥483

15

Gr.5

138

950

≥128

≥880

14

Gr.7

50

345

≥40

≥275

24

Gr.9

125

860

≥105

≥725

10

Gr.12

70

483

≥50

≥345

18

Gr.23

125

860

≥115

≥790

15



Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Titanium Gr. 2 4.5 g/cm3 1665 °C (3030 °F) Psi – 49900 , MPa – 344 Psi – 39900 , MPa – 275 20 %
Titanium Gr. 5 4.43 g/cm3 1632 °C (2970 °F) Psi – 138000 , MPa – 950 Psi – 128000 , MPa – 880 14 %
Chemical Material Composition of Titanium Fasteners
Grade
Fe%
C%
N%
H%
O%
Al%
V%
Mo%
Ni%
Pd%
Ti

Gr1

0.2

0.08

0.03

0.015

0.18

—

—

—

—

—

BAL.

Gr2

0.3

0.08

0.03

0.015

0.25

—

—

—

—

—

BAL.

Gr3

0.3

0.08

0.05

0.015

0.35

—

—

—

—

—

BAL.

Gr4

0.3

0.08

0.05

0.015

0.40

—

—

—

—

—

BAL

Gr5

0.25

0.08

0.03

0.015

0.02

5.5 – 6.75

3.5 – 4.5

—

—

—

BAL

Gr7

0.3

0.08

0.03

0.015

0.25

—

—

—

—

0.12 – 0.25

BAL.

Gr9

0.25

0.08

0.03

0.015

0.15

2.5 – 3.3

2.0 – 3.0

—

—

—

BAL.

Gr12

0.3

0.08

0.03

0.015

0.25

—

—

0.2 – 0.4

0.6 – 0.9

—

BAL.

Gr23

0.3

0.08

0.03

0.015

0.13

5.5 – 6.75

—

—

—

—

BAL



We deliver a wide range of Titanium Bolts And Fasteners, Titanium U Bolt and Socket Head Cap Screws, Grade 5 Titanium Lock Nut
Sizes table of Titanium Fasteners
Titanium Bolt Type
SIZE
PROPERTY CLASS
TENSILE STRENGTH
STANDARD
Titanium Hex Head Bolt / Screws
M4 to M80
10.9
1040N / mm2 min
ISO 4017 (Full Thread)
ISO 4014 (Half Thread)



Titanium Nuts Type
SIZE
PROPERTY CLASS
STANDARD
Titanium Hex Nut
M6 to M42
10
ISO 4032
Titanium Nylock Nut
M6 to M20 (Gr.8)
M10 to M24 (Gr.10)
8 & `10
DIN 982
Titanium Nylock Nut
M6 to M20 (Gr.8)
M10 to M24 (Gr.10)
8 & 10
DIN 985
Titanium Hex Weld Nut
M6 to M12
8
DIN 929



Titanium Washers Type
SIZE
HARDNESS
STANDARD
Square Section Spring Washer, Titanium
3mm to 39mm
HV (430 to 530)
DIN 7980
Flat Section Spring Washer, Titanium
3mm to 39mm
HV (430 to 530)
DIN 127 B
Hardened Washer, Titanium
12mm to 30mm
HV (300 to 370)
IS 2016
Hardened Steel Washer, Titanium
12mm to 56mm
Rockwell 26 to 45 (HDG)
Rockwell 38 to 45 (Coated)



Buy from Low-cost Titanium Flange Bolts, Grade 5 Hex Head Bolt, Allen Bolts, Wheel Nuts, Ti Threaded Stud Bolt manufacturer at factory price



Keep Stock of Titanium Fasteners
Titanium Grade 1 Fasteners CP Titanium Grade 1 Allen Bolts, Titanium Alloy Grade 1 Studs, Ti CP Grade 1 Hex Bolts, CP Grade 1 Titanium Nuts and Bolts, CP Grade 1 Titanium Hex Head Bolts,
Titanium Grade 2 Fasteners Grade 2 Titanium U Bolts, Cp Gr2 Titanium Material Studs, Grade 2 Titanium Hex Bolts, Cp Titanium Grade 2 Nuts and Bolts, Cp Gr2 Titanium Material Hex Head Bolts, Grade 2 Titanium Allen Bolts, Titanium Grade 2 Anchor Bolts for sale
Titanium Grade 3 Fasteners R50550 Wheel Nuts, Grade 3 Titanium Alloy Allen Bolts,Cp Titanium Grade 3 Studs, Titanium CP2 Grade 3 Hex Bolts,CP Grade 3 Titanium Nuts and Bolts,Titanium Cp Grade 3 Hex Head Bolts, Ti Grade 3 Anchor Bolts, Cp Ti Grade 3 U Bolts, Titan-Grade 3 Lug Nuts (3.7055),
Titanium Grade 4 Fasteners CP Grade 4 Titanium Studs, Titanium Grade 4 UNS R50700 Wheel Nuts, Commercially Pure Titanium Grade 4 Hex Bolts, Commercially Pure Grade 4 Titanium Hex Head Bolts, Titanium CP1 Grade 4 Allen Bolts, Grade 4 Titanium Bolts and Nuts, Grade 4 Titanium Ti70 Alloy Anchor Bolts, Titanium Grade 4 Nuts and Bolts, Titanium-Grade 4 (3.7065) U Bolts, R50700 Lug Nuts, Ti CP-70 (Grade 4) Titanium Bolt M10, Cp 70 Titanium Shoulder Bolts, CP Ti Grade 4
Titanium Grade 5 Fasteners Ti-6al-4v Studs, Ti Alloy Grade 5 Hex Bolts, TC4 grade titanium alloy Bolts and Nuts, Ti-6AL-4V ELI Titanium Hex Head Bolts, Ti Alloy Grade 5 material Allen Bolts, Ti Alloy Grade 5 Anchor Bolts, Ti-6AL-4V ELI Titanium U Bolts, Ti-6AL-4V ELI Titanium Lug Nuts, Ti-6AL-4V ELI Titanium Nuts and Bolts, Ti-6al-4v Wheel Nuts, Ti Grade 5 Shoulder Bolts, Ti-6al-4v Grade 5 Composition, TC4 Titanium Alloy,
Titanium Grade 6 Fasteners Titanium Anchor Bolts, Titanium Grade 6 Nuts and Bolts, Ti Grade 6 Studs, Ti5Al2.5Sn Grade 6 Hex Head Bolts, Grade 6 Titanium 5Al-2.5Sn Allen Bolts, Grade 6 (3.7115)Titanium Alloy Grade 6 U Bolts, Grade 6 Titanium Alloy Hex Bolts
Titanium Grade 7 Fasteners Titanium Alloy Grade 7 U Bolts, Titanium Gr 7 Nuts and Bolts, Grade 7 Titanium Alloy Hex Bolts, Ti Grade 7 Hex Head Bolts, Alloy Ti Gr 7 Allen Bolts, Titanium-Grade 7 (3.7235) Anchor Bolts, R52400, CP Grade 7 Titanium Material, Ti Grade 7 Lug Nuts, Titanium CP Grade 7 Wheel Nuts, Grade 7 (3.7235, R52400) Titanium Shoulder Bolts, Gr 7 Titanium Studs
Titanium Grade 9 Fasteners Ti-3al-2.5v Alloy Studs, Ti-3al-2.5v Grade.9 Hex Bolts, Grade 9 Ti 3Al 2.5V Alloy, Titanium Gr9 Hex Head Bolts, Titanium Alloy Grade 9 Allen Bolts, Ti Alloy Grade 9 Anchor Bolts, Grade 9 Titanium Alloy U Bolts,Titanium Ti-3al-2.5v Nuts and Bolts, Ti Grade 9 Lug Nuts, Grade 9 Titanium Wheel Nuts, Titanium Grade 9 Shoulder Bolts, Titanium Ti-3Al-2.5V (Grade 9), Ti3Al2.5V, UNS R56320 Bolts and Nuts
Titanium Grade 11 Fasteners CP Grade 11 Lug Nuts, Ti Alloy Grade 11 Hex Bolts, Titanium Palladium Grade 11 Hex Head Bolts, Ti Grade 11 Allen Bolts, Titanium Gr11 Nuts and Bolts, Titanium Alloy Grade 11 Studs, Grade 11 titanium Anchor Bolts, Titanium Grade 11 U Bolts
Titanium Grade 12 Fasteners Ti Alloy Grade 12 Hex Bolts, Titanium Gr12 Nuts and Bolts, Titanium Alloy Grade 12 Studs
6-2-4-2 Titanium Fasteners Ti-6al-2sn-4zr-2mo Titanium Alloy Shoulder Bolts, Titanium 6-2-4-2 Studs, Titanium Alloy 6-2-4-2 Hex Bolts, Ti 6-2-4-2 Titanium Alloy Hex Head Bolts, Titanium 6-2-4-2 Alloy Allen Bolts, Titanium Ti-6al-2sn-4zr-2mo Anchor Bolts, 6-2-4-2 Titanium Nuts and Bolts, 6242 Titanium Alloy U Bolts, Ti-6al-2sn-4zr-2mo-Si Lug Nuts , 6-4 Titanium Alloy Wheel Nuts, Ti 6 2 4 2 UNS R54620 UNS R54621, Alloy Ti Gr 6 – 2 – 4 – 6 Bolts and Nuts



Common Types Of Titanium Fasteners Weight Chart
