2205 Duplex Stainless Steel Round Bar

ASTM A276 Type 2205 Duplex Rod & Hex Bar stock from 4mm – 300mm as per BS EN 10088-3:2014 Standard

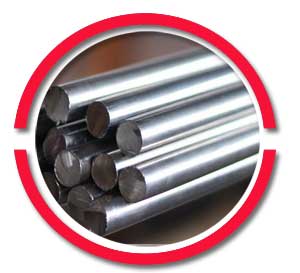

Duplex Round Bar
Duplex Round Bar

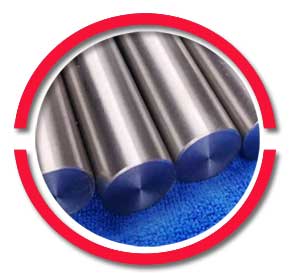

Duplex 2205 Round Bar
Duplex 2205 Round Bar

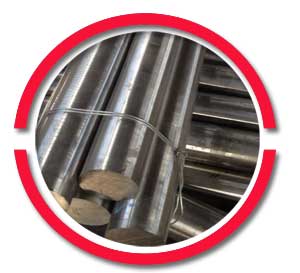

ASTM A276 Type 2205 Duplex Rod

ASTM A276 Type 2205 Duplex Rod

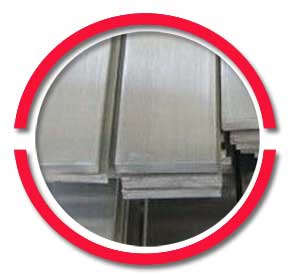

ASTM A479 grade 2205 Flat Bar
ASTM A479 grade 2205 Flat Bar

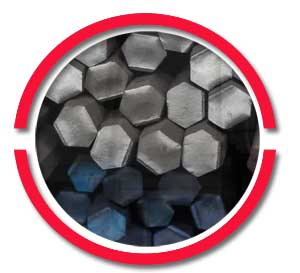

Duplex 2205 Hex Bar
Duplex 2205 Hex Bar

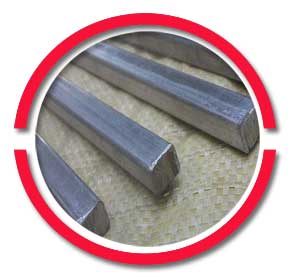

ASME SA479 grade 2205 Square Bar

ASME SA479 grade 2205 Square Bar



Duplex Round Bar manufacturer & supplier of ASTM A479 grade 2205 Flat Bar, Square Bar & Hot rolled bar in China



Table of Content

High Temperature Fasteners Inc. is a leading Duplex Round Bar manufacturer and supplier. The duplex round bars are made up of a material known for the ferritic and austenitic stainless steel qualities. The Duplex 2205 Round Bar is the most used of duplex steel categories. There are standard duplex, super duplex and lean duplex categories in the Duplex Stainless Steel Round Bar grades. The 2205 is a standard duplex steel and it is used for its corrosion resistance, strength and cost effectiveness.

The specifications are ASTM A276 and ASTM 479.  There are different dimensions to the ASTM A479 Duplex Rod based on different dimensions. The size ranges from 6mm to 120mm. The diameter ranges from 6mm to 350mm. The length of the ASTM A276 Type 2205 Duplex Rod ranges from 100mm to 6000mm. The finishes can range from black, bright, rough turned and matt finish. The material is made up of carbon, phosphorus, manganese, nitrogen, sulfur, silicon and 22% chromium, 4.5% nickel and 3% molybdenum in the composition.

There are different forms such as the Duplex 2205 Hex Bar, round bar, flat bar and square bars. The different shapes help serve in different application types. The square bar is used for strength and in structural applications. The Duplex Flat Bar is used for its low weight and it is useful for structural lattices. The corrosion resistance of the material with strength makes the bars to be used in petroleum, petrochemical, marine, power generation and in many other applications. Please contact us to get more information on the Duplex Square Bar, other types and the prices.





Material Specification Chart Of Duplex Round Bar
Specifications ASTM A276, A479 / ASME SA276, SA479
Grade Duplex 2205 – UNS S32205/uns S31803
Technique Cold Drawn, Hot Rolled, Forged Round Bar, Rod, Cold Rolled
Tolerance H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements
Standard DIN, AISI, API, ASTM, EN, JIS, ASME, BS Round Bars
Finish Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black
Section 3.0 to 12.0mm thickness
Form Precision Ground Bar, Flat Bar, Square, Round, Half Round Bar, Rod, Rectangle, Hex (A/F), T-Bar, Channel Bar,Blocks, Round Rod, Threaded, Profiles, Billet, Ingot, I/H Bar, Forging, Rings, Hollow, Triangle etc.
Surface Cold Drawn, Bright, Sand Blasting Finished, Hot Rolled Pickled, Hairline, Polished
Processing Bar cutting to 650mm
Certificates EN 10204 / 3.1
Round bar size Diameter: 3-~800mm
Flat bar size Thickness: 2 -100mm
Width: 10 to 500mm
Hex Bar size 2-100mm A/F
Square bar size 4 to 100mm
Angle bar size 3mm*20mm*20mm~12mm*100mm*100mm
Billet Size 1/2″ to 495mm Diameter
Channel Bar 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness
Hollow Bar 32mm OD x 16mm ID to 250mm OD x 200mm ID)
Rectangles Size 33 x 30mm to 295 x 1066mm
Condition Hardened & tempered, annealed
Our Duplex Round bar conforms to NACE MR0175/ISO 15156



Call for small piece of Duplex cold drawn bar and Duplex 2205 Welding Rod to test before buying



General Characteristics Of Duplex Stainless Steel Round Bar
  • It is an extra Low Carbon Duplex Stainless steel,
  • PREN value 34 (Pitting Resistance Equivalent Number: %Cr +3.3*%Mo+16*%N)
  • It has good weldabilitywith minimal inter-granular corrosion in as welded condition.
  • Its yield strength is nearly twice as that of the Austenitic Stainless Steels.
  • Exhibits high resistance to corrosion fatigue, pitting and crevice corrosion and erosion-corrosion.
  • It has high resistance to SCC in chloride and in hydrogen sulfide containing environments.



Duplex 2205 Round Bar Surface finish
CD
Cold drawn
P
Polished
BD
Bright drawn
SRE
Slit rolled edge
CG
Centreless ground
HF
Hot finished
CF
Cold finished
HRAP
Hot rolled annealed and pickled
P&T
Peeled and turned
RT
Rough turned/peeled
ST
Smooth turned
PR
Peeled and reeled



ASTM A479 Duplex Rod Condition
H&T
Hardened and tempered.
ANN
Annealed
PH
Precipitation hardened.



Check latest ASTM A276 Type 2205 Duplex Rod
Price list
Duplex 2205 round bar Price list Price in INR Price in Pound sterling Price in in UAE Dirham
2205 Duplex Stainless Steel Round Bar Price per kg in China INR 250-370 Per Kg USD $ 3.90-5.10 Per Kg AED 12.25-15.48 Per Kg



Check Online Inventory of Duplex Stainless Steel Round Bar available

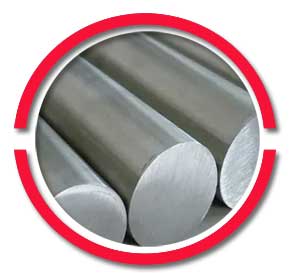

Duplex Stainless Steel Round Bar Dia 3mm To 450mm
Duplex Stainless Steel Round Bar Dia 3mm To 450mm

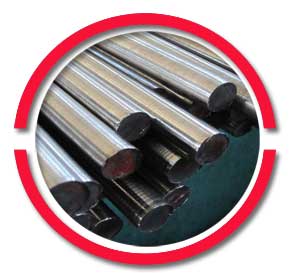

Duplex 2205 Solid Round 20mm Stainless Steel Bar
Duplex 2205 Solid Round 20mm Stainless Steel Bar

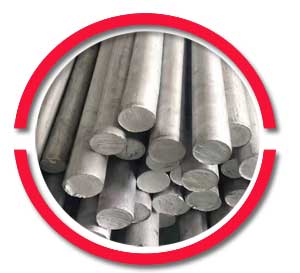

High Hardness 24mm Duplex Round Bar 2205
High Hardness 24mm Duplex Round Bar 2205

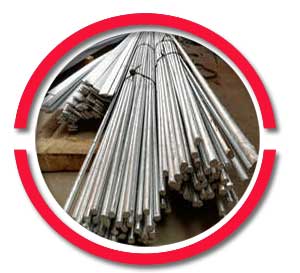

2mm Duplex 2205 Round Bar
2mm Duplex 2205 Round Bar



What Are The Different Types Of 2205 Duplex Stainless Steel Round Bar available

We can supply Duplex round bar in following forms & shapes:

  • Rings
  • Square
  • T-Bars
  • Precision Ground Bars
  • Hollow
  • Round Rod
  • Rod
  • Channel Bars
  • Flat Bars
  • Blocks
  • Round
  • Triangle
  • Half Round Bars
  • Threaded
  • Profiles
  • Ingot
  • Rectangular Bar
  • Forging
  • Hex (A/F)
  • Billet
  • Rectangle
  • I/H Bars



standards of Duplex 2205 Round bar
Grade EN 10088-3 EN 10272 AD2000-
W2/W10		 ASTM A 479 ASME SA 479 NACE MR 0175
Duplex 2205 Round Bars 20-450 mm 20-160 mm – 20-450 mm 20-450 mm Independent of size



Length of Duplex 2205 Round Bar
  • Metric system: standard length is 9 – 12 metres
  • USA : 40 feet



Duplex Flat Bar Size
Duplex Steel UNS S31803 flat bar sizes in mm
Duplex Steel UNS S31803 Flat Bar Size (inch)
Duplex Steel UNS S31803 Flat Bar Thickness (mm)
Duplex Steel UNS S31803 Flat Bar Thickness (in Inches)
22
7/8
17 & 18
2/3 – 5/7
25
1
5 to 20
3/16 – 4/5
30
1-3/16
5 to 20
3/16 – 4/5
32
1-1/4
6 to 20
1/4 – 4/5
35
1-3/8
5 to 20
3/16 – 3/16
40
1-4/7
5 to 25
3/16 – 1
45
1-7/9
5 to 25
3/16 – 1
47
1-6/7
17,25 & 32
2/3, 1 & 1-1/4
50
2
5 to 32
3/16 – 1-1/4
55
2-1/16
5 to 25
3/16 – 1
57
2-1/4
32
1-1/4
60
2-3/8
5 to 35
3/16 – 1-3/8
63
2-1/2
10 to 30
3/8 – 1-3/16
65
2-5/9
10 to 30 & 35
3/8 – 1-3/16, & 1-3/8
70
2-3/4
6 to 25 & 40
1/4 – 1, & 1-4/7
75
3
8 to 25
5/16 – 1
80
3-1/8
8 to 20
5/16 – 4/5
90
3-1/2
8 to 20
5/16- 4/5
100
4
8, 10, 12
5/16, 3/8, 1/2
Duplex Stainless Steel Round Bar
Weights
Round Bar
Size Kgs / Foot Kgs / Mtr Size Kgs / Foot Kgs / Mtr Size Kgs / Foot Kgs / Mtr
3mm 0.017 0.055 20mm 0.753 2.470 3″ 10.900 35.762
1/8″ 0.019 0.062 22mm 0.908 2.979 3-1/4″ 12.800 41.996
5/32″ 0.029 0.095 7/8″ 0.926 3.038 3-1/2″ 14.850 48.772
4mm 0.030 0.098 24mm 1.080 3.543 3-3/4″ 17.001 55.780
3/16″ 0.043 0.141 25mm 1.180 3.871 4″ 19.306 63.340
5mm 0.047 0.154 1″ 1.210 3.970 4-1/4″ 21.908 72.249
7/32″ 0.058 0.190 26mm 1.271 4.170 4-1/2″ 24.4487 80.340
6mm 0.068 0.223 27mm 1.368 4.490 4-3/4″ 27.366 90.249
1/4″ 0.076 0.249 1-1/8″ 1.534 5.033 5″ 30.461 99.940
7mm 0.091 0.298 30mm 1.691 5.548 5-1/2″ 36.690 121.000
5/16″ 0.118 0.387 1-1/4″ 1.924 6.349 6″ 43.860 143.900
8mm 0.120 0.398 32mm 1.894 6.314 6-1/2″ 51.093 167.630
9mm 0.152 0.498 1-3/8″ 2.303 7.550 7″ 59.432 196.000
3/8″ 0.170 0.557 35mm 2.390 7.553 7-1/2″ 68.226 225.000
10mm 0.189 0.620 36mm 2.438 7.999 8″ 77.586 254.55
11mm 0.228 0.748 38mm 2.792 8.903 10″ 121.048 397.140
7/16″ 0.232 0.761 1-1/2″ 2.715 8.951
12mm 0.271 0.889 40mm 3.009 9.872
1/2″
 0.303 0.994
1-5/8″
 3.200 10.449
13mm
 0.318 1.043
1-3/4″
 3.712 12.179
14mm
 0.368 1.207
45mm
 3.807 12.555
9/16″
 0.383 1.256
1-7/8″
 4.260 13.977
15mm
 0.424 1.391
48mm
 4.330 14.205
5/8″
 0.473 1.551
50mm
 4.698 15.414
16mm
 0.481 1.578
2″
 4.848 15.906
17mm
 0.543 1.791
2-1/8″
 5.475 17.963
11/16″
 0.573 1.880
2-1/4″
 6.135 20.128
18mm
 0.610 2.001
60mm
 6.768 22.205
3/4″
 0.682 2.237
2-3/8″
 6.838 22.435

2-1/2″
 7.576 24.856

2-5/8″
 8.354 27.409

2-3/4″
 9.169 30.083



ASTM A276 Type 2205 Duplex Rod Sizes

OD = outside diameter, ID = inside diameter



Size
Chucked true to OD
Chucked true to ID
OD,
mm
ID,
mm
Max. OD,
mm
Min. ID,
mm
Max. OD,
in.
Min. ID,
in.
Max. OD,
mm
Min. ID,
mm
Max. OD,
in.
Min. ID,
in.
32
20
31
21.9
1.220
0.862
30
21
1.185
0.827
32
16
31
18
1.220
0.709
30
17
1.181
0.669
36
25
35
26.9
1.378
1.059
34.1
26
1.343
1.024
36
20
35
22
1.378
0.866
34
21
1.339
0.827
36
16
35
18.1
1.378
0.713
33.9
17
1.335
0.669
40
28
39
29.9
1.535
1.177
38.1
29
1.500
1.142
40
25
39
27
1.535
1.063
38
26
1.496
1.024
40
20
39
22.1
1.535
0.870
37.9
21
1.492
0.827
45
32
44
33.9
1.732
1.335
43.1
33
1.697
1.299
45
28
44
30
1.732
1.181
43
29
1.693
1.142
45
20
44
22.2
1.732
0.874
42.8
21
1.685
0.827
50
36
49
38
1.929
1.496
48
37
1.890
1.457
50
32
49
34.1
1.929
1.343
47.9
33
1.886
1.299
50
25
49
27.2
1.929
1.071
47.8
26
1.882
1.024
56
40
55
42
2.165
1.654
54
41
2.126
1.614
56
36
55
38.1
2.165
1.500
53.9
37
2.122
1.457
56
28
55
30.3
2.165
1.193
53.7
29
2.114
1.142
63
50
62
51.9
2.441
2.043
61.1
51
2.406
2.008
63
45
62
47
2.441
1.850
61
46
2.402
1.811
63
40
62
42.2
2.441
1.661
60.8
41
2.394
1.614
63
36
62
38.3
2.441
1.508
60.7
37
2.390
1.457
63
32
62
34.4
2.441
1.354
60.6
33
2.386
1.299
71
56
69.9
58
2.752
2.283
68.9
57
2.713
2.244
71
45
69.9
47.3
2.752
1.862
68.6
46
2.701
1.811
71
40
69.9
42.4
2.752
1.669
68.5
41
2.697
1.614
71
36
69.9
38.5
2.752
1.516
68.4
37
2.693
1.457
75
60
73.8
62
2.906
2.441
72.8
61
2.866
2.402
75
50
73.8
52.2
2.906
2.055
72.6
51
2.858
2.008
75
40
73.8
42.5
2.906
1.673
72.3
41
2.846
1.614
80
63
78.8
65
3.102
2.559
77.8
64
3.063
2.520
80
50
78.8
52.4
3.102
2.053
77.4
51
3.047
2.008
80
45
78.8
47.5
3.102
1.870
77.3
46
3.043
1.811
80
40
78.8
42.6
3.102
1.677
77.2
41
3.039
1.614
85
67
83.7
69.1
3.295
2.720
82.6
68
3.252
2.677
85
55
83.7
57.4
3.295
2.260
82.3
56.0
3.240
2.205
85
45
83.7
47.6
3.295
1.874
82.1
46.0
3.232
1.811
90
71
88.6
73.1
3.488
2.878
87.6
72.1
3.449
2.839
90
63
88.6
65.3
3.488
2.571
87.3
64.0
3.437
2.520
90
56
88.6
58.5
3.488
2.303
87.1
57.0
3.429
2.244
90
50
88.6
52.6
3.488
2.071
87.0
51.0
3.425
2.008
95
75
93.5
77.3
3.681
3.041
92.4
76.2
3.641
2.997
95
67
93.5
69.3
3.681
2.728
92.2
68.0
3.630
2.677
95
50
93.5
52.7
3.681
2.075
91.8
51.0
3.614
2.008
100
80
98.5
82.3
3.878
3.240
97.4
81.2
3.835
3.197
100
71
98.5
73.4
3.878
2.890
97.2
72.1
3.827
2.839
100
63
98.5
65.5
3.878
2.579
97.0
64.0
3.819
2.520
100
56
98.5
58.7
3.878
2.311
96.8
57.0
3.811
2.244
106
80
104.4
82.5
4.110
3.248
103.1
81.2
4.059
3.197
106
71
104.4
73.5
4.110
2.894
103.0
72.1
4.055
2.839
106
63
104.4
65.7
4.110
2.587
102.7
64.0
4.043
2.520
106
56
104.4
58.9
4.110
2.319
102.5
57.0
4.035
2.244
112
90
110.3
92.5
4.343
3.642
109.2
91.4
4.299
3.598
112
80
110.3
82.6
4.343
3.252
108.9
81.2
4.287
3.197
112
71
110.3
73.7
4.343
2.902
108.7
72.1
4.280
2.839
112
63
110.3
65.8
4.343
2.591
108.5
64.0
4.272
2.520
118
90
116.2
92.7
4.575
3.650
114.9
91.4
4.524
3.598
118
80
116.2
82.8
4.575
3.260
114.6
81.2
4.512
3.197
118
71
116.2
73.8
4.575
2.906
114.5
72.1
4.508
2.839
118
63
116.2
66.0
4.575
2.598
114.2
64.0
4.496
2.520
125
100
123.1
102.7
4.846
4.043
121.9
101.5
4.799
3.996
125
90
123.1
92.8
4.846
3.654
121.7
91.4
4.791
3.598
125
80
123.1
82.9
4.846
3.264
121.4
81.2
4.780
3.197
125
71
123.1
74.0
4.846
2.913
121.3
72.1
4.772
2.839
132
106
130.0
108.8
5.118
4.283
128.8
107.6
5.071
4.236
132
90
130.0
93.0
5.118
3.661
128.4
91.4
5.055
3.598
132
80
130.0
83.1
5.118
3.272
128.1
81.2
5.043
3.197
132
71
130.0
74.2
5.118
2.921
121.2
72.1
5.035
2.839
140
112
137.9
115
5.429
4.528
136.6
113.7
5.378
4.476
140
100
137.9
103.1
5.429
4.059
136.3
101.5
5.366
3.996
140
90
137.9
93.2
5.429
3.669
136.1
91.4
5.358
3.598
140
80
137.9
83.3
5.429
3.280
135.8
81.2
5.346
3.197
150
125
147.7
128.1
5.815
5.043
146.5
126.9
5.768
4.996
150
106
147.7
109.3
5.815
4.303
146
107.6
5.748
4.236
150
95
147.7
98.4
5.815
3.874
145.7
96.4
5.736
3.795
150
80
147.7
83.6
5.815
3.291
145.3
81.2
5.720
3.197
160
132
157.6
135.3
6.205
5.327
156.3
134
6.154
5.276
160
122
157.6
125.4
6.205
4.937
156
123.8
6.142
4.874
160
112
157.6
115.5
6.205
4.547
155.8
113.7
6.134
4.476
160
90
157.6
94.0
6.205
3.701
155.2
91.4
6.110
3.598
170
140
167.4
143.5
6.591
5.650
166
142.1
6.535
5.594
170
130
167.4
133.6
6.591
5.260
165.8
132
6.528
5.197
170
128
167.4
131.6
6.591
5.181
165.7
130
6.524
5.118
170
118
167.4
121.7
6.591
4.791
165.5
119.8
6.516
4.717
170
106
167.4
109.8
6.591
4.323
165.2
107.6
6.504
4.236
170
100
167.4
103.9
6.591
4.091
165
101.5
6.496
3.996
180
150
177.3
153.6
6.980
6.047
176
152.3
6.929
5.996
180
140
177.3
143.7
6.980
5.657
175.7
142.1
6.917
5.594
180
125
177.3
128.9
6.980
5.075
175.3
126.9
6.902
4.996
180
100
177.3
104.1
6.980
4.098
174.7
101.5
6.878
3.996
190
160
187.1
163.8
7.366
6.449
185.7
162.4
7.311
6.394
190
150
187.1
153.9
7.366
6.059
185.5
152.3
7.303
5.996
190
132
187.1
136
7.366
5.354
185.1
134
7.287
5.276
200
170
197.0
173.9
7.756
6.846
195.6
172.6
7.701
6.795
200
160
197.0
164
7.756
6.457
195.4
162.4
7.693
6.394
200
150
197.0
154.1
7.756
6.067
195.2
152.3
7.685
5.996
200
140
197.0
144.2
7.756
5.677
194.9
142.1
7.673
5.594
212
170
208.8
174.2
8.220
6.858
207.2
172.6
8.157
6.795
212
150
208.8
154.4
8.220
6.079
206.6
152.3
8.133
5.997
212
130
208.8
134.6
8.220
5.299
206.2
132
8.118
5.197
224
180
220.6
184.4
8.685
7.260
218.9
182.7
8.618
7.193
224
140
220.6
144.8
8.685
5.701
217.9
142.1
8.579
5.594
236
190
232.4
194.6
9.150
7.661
230.7
192.9
9.083
7.594
236
150
232.4
155.0
9.150
6.102
229.7
152.3
9.043
5.996
250
200
246.2
204.9
9.693
8.067
244.3
203.0
9.618
7.992
275
200
268.9
205.4
10.587
8.087
266.5
203.0
10.492
7.992



View latest price & ready sizes of 2205 Duplex Forged Bar, pump shaft & hexagonal bar Ex Shenzhen
2205 Duplex Hex Bar Sizes

Duplex Hexagon Bars sizes

Size (mm)
Weight (kg/m)
Size (mm)
Weight (kg/m)
Size (mm)
Weight (kg/m)
7 x 7
0.337
19 x 19
2.479
38 x 38
9.916
8 x 8
0.44
20 x 20
2.747
40 x 40
10.988
9 x 9
0.556
21 x 21
3.029
42 x 42
12.114
10 x 10
0.687
22 x 22
3.324
45 x 45
13.906
11 x 11
0.831
24 x 24
3.956
48 x 48
15.822
12 x 12
0.989
25 x 25
4.292
50 x 50
17.168
13 x 13
1.161
26 x 26
4.642
53 x 53
19.29
14 x 14
1.346
28 x 28
5.384
55 x 55
20.774
15 x 15
1.545
30 x 30
6.181
60 x 60
24.723
16 x 16
1.758
32 x 32
7.032
65 x 65
29.015
17 x 17
1.985
34 x 34
7.939
70 x 70
33.65
18 x 18
2.225
36 x 36
8.9
75 x 75
38.629
ASTM A479 grade 2205 Square Bar Sizes
Size (mm)
Weight per metre (Kg)
Size (mm)
Weight per metre (Kg)
12 x 12
1.14
30×30
7.11
16 x 16
2.02
40 x 40
12.60
20 x 20
3.16
50 x 50
19.80
25 x 25
4.94
Chemical Formula Of Duplex 2205 Round Bar
Grade UNS No C % Cr % Ni % P % Si % S % Mo % N % Mn %
31803 S31803 < 0.03 21.0-23.0 4.5-6.5 1.03 max 1 max 0.02 max 2.5-3.5 0.08-0.2 < 2.0
2205 S32205 < 0.03 22.0-23.0 4.5-6.5 0.03 max 1 max 0.02 max 3.0-3.5 0.14-0.20 < 2.0
Mechanical Behaviour Of Duplex 2205 Hex Bar
Grade YS (MPa) UTS (MPa) % Elongation Hardness(BHN)
31803 450 min. 620 min. 25 min. 293 max.
2205 450 min. 655 min. 25 min. 293 max.



Duplex Stainless Steel Round Bar Material Equivalent Grades
STANDARD WERKSTOFF NR. UNS
Duplex 2205 1.4462 S31803 / S32205



ASTM A479 Duplex Rod Physical Properties
Density (Kg / M3) Modulus of Elasticity (GPa) Poisson’s Ratio Thermal Conductivity (W/moC) Thermal Capacity (I/KgoC) Electrical Resistivity
7800 200 0.3 15 500 0.80



ASTM A276 Type 2205 Duplex Rod Application
  • Instrumentation tubes
  • Pipe fittings
  • Press rolls
  • Diaphragm seals
  • Fans
  • Fasteners
  • Heat exchangers
  • Augers
  • Cargo tanks
  • Couplings
  • Hubs



buy ASME SA479 grade 2205 Polished Bar and Spigots for drilling, military, and other applications
