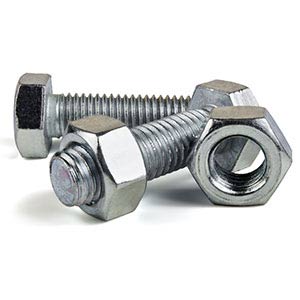

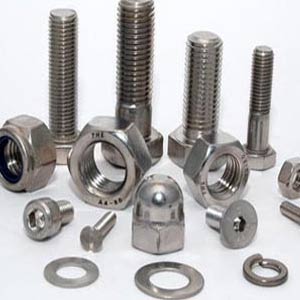

Alloy 20 Fasteners

offer high quality Alloy 20 Stainless Steel Bolts, Nuts, Studs at Lowest price in China

carries a complete line of UNS N08020 Threaded Rod , Hex Bolts and Washers suppliers in mumbai, China

The primary reason for the development of carpenter 20 was for resistance to acidic solutions. In particular, austenitic stainless steels have a troubled history with acids like sulfuric acid, as they easily corrode these alloys. Unlike grade 304, or even stainless steel 316, Alloy 20 Stainless Steel Bolts exhibit superior resilience against sulfuric acid across several concentrations.

The higher contents of nickel and chromium aid in the corrosion resistance properties of the alloy. Along with these base elements, manufacturers of the WERKSTOFF NR. 2.4660 Studs include substantial amounts of copper and molybdenum which also improves its resistance to both pitting and chlorine solutions. These two properties are at an elevated level when the UNS N08020 Threaded Rod is compared to grade 304 stainless steel. Yet, in comparison to grade 316, carpenter 20 has been known to demonstrate properties to a similar degree.

In addition to excellent mechanical properties and fabricability, the Carpenter 20 Nuts are subject to minimal carbide precipitation during operations like welding, due to a lowered content of carbon and inclusion of niobium, as a stabilizing element in its alloy. Regarded as a superalloy by manufacturers and suppliers, the Alloy 20 Fasteners has excellent resistance to general corrosion and crevice corrosion, especially in environments that may contain chemicals like chlorides and sulfuric acid, phosphoric acid, and nitric acid.







---

Fasteners Material Specification	ASTM / ASME SB 472, UNS 8020 Bolts
Standard	DIN, UNI, ISO, JIS, GB, IS, BS, ASME, ANSI, ASTM and all International Standards
Fasteners/ Bolts Size	M2, M2.5, M3, M4, M5, M6, M8, M10, M12, M14, M16, M20, M24, M30, M36 to M160
Length	3 mm to 200 mm
Bolts, Studs Threads:	METRIC, BSW, BSF, UNC, UNF or as required
Fasteners Standard:	ANSI – American National Standards Institute   ANSI B 18.2.4 2M ANSI B 28.2.4 1M Stud Bolt length are defined in ASME B16.5 standard Hex nuts are defined in ASME B18.2.2 ASME B18.5 DIN: DIN 931, DIN 933, DIN 934, DIN 970 UTS – Unified Thread Standard : UNC, UNF, UNEF, UNS, NPT, NPTF ISO – International Organization for Standardization : ISO 4032, ISO 4033, JIS standards
Source of raw materials	Tata Steel, JSPL, RINL, Usha Martin, Dhamm Steel, Mukund Steel etc.
SCOPE OF MANUFACTURE	Hot Forged Fasteners, Nut / Bolt; up to M36 / 1-1/2” Dia, up to 1100mm lg CNC Machined Fasteners, Nut / Bolt; up to M100 / 4” Dia, up to 1500mm lg
Fasteners In Form of:	Hex, Square, Round, Threading as per Gauge Etc.
Head drive:	Phillips, Slotted, Phillips/Slot, Six-Lobe, etc
bolting Test Certificate:	Manufacturer Test Certificate as per EN 10204 / 3.1
Fasteners finishing:	Zinc (yellow, white, blue, black), black oxide, Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Stainless steel: Passivated Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Stainless Steel, Mechanically Applied coating and some special one like DACROMET
Production process	M2-M24: Cold Froging, hot forging M24-M100, machining and CNC for Customized connecting element
bolting materials Surface Coating:	Teflon Coated Fasteners Phosphate Coated Fasteners Zinc Coated Fasteners Ptfe Coated Fasteners Xylon Coated Fasteners Cadmium Coated Fasteners Hot Dipped Galvanizing Coated Fasteners All surface finishes offered including Geomet & PTFE, Galvanised, Zinc, Electroless Nickel, Sherardized, Dacromet
Popular Types of Bolts	Hex Bolts, Flange Bolts, Hex Head Bolts, Lag Bolts, Square Bolts, Eye Bolts, U Bolts, T Bolts, Counter sunk Bolts etc.
Popular Types of Nut	Hex Head Nut, Eye Nut, Dome Nut, Wing Nut, T Nut, Panel Nut, Lock Nut, Coupling Nut, Square Nut, Acorn Nut etc.

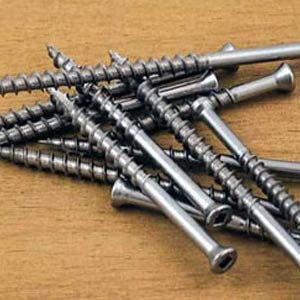

Popular Types of Screw	Hex Head Cap Screws, Socket Set Screws, Anchor Screws, Blind Rivet, Socket Head Screws, Concrete Screws, Shoulder Screws, Panel Screws, Threaded Screws, Machine Screws etc.
Popular Types of Washer	Machine Washers, Flat Washer, Star Washers, Sealing Washer, Lock Washer, Split Washer etc.
Fasteners Packing:	IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request

Incoloy 20 fasteners, Alloy 20 Threaded Rod suppliers in China. ready stock of Alloy 20 metric screws, nuts at best Price in China.

---

Alloy 20 UNS N08020 2.4660 Alloy 20 stud bolt c/w 2 heavy hex nut	US $15.60-$18.00 / Pieces
Cheap alloy 20 hex bolt and nut	US $0.04-$0.60 / Piece
Alloy 20 hex bolt and nut	US $0.01-$0.50 / Piece
Alloy 20 / 2.4660/ N08020 HEX CAP SCREW / BOLT	US $0.10-$100.00 / Piece
Din975 High quality M8 Alloy 20 bolt price per piece	US $0.50-$2.00 / Piece
High quality Alloy 20 price stud bolts with hex nut	US $0.01-$2.00 / Piece
High quality M8 Alloy 20 bolt price per piece	US $0.50-$2.00 / Piece
Alloy 20 UNS N08020 2.4660 Alloy 20 12 Point Flange Bolt	US $3.20-$3.50 / Pieces
China supplier best price Iso 4017 Alloy 20 Hex Bolt And Nut	US $0.05-$1.00 / Piece
Alloy 20 UNS N08020 DIN/EN 2.4660 12 point bolt flange shoulder bolt U bolt eye bolt	US $10.50-$12.00 / Pieces
M8~M72 Alloy 20 alloy steel bolt price per piece	US $0.20-$2.00 / Piece
Alloy 20 cotter pin bolt manufacturer	US $0.10-$5.00 / Piece
Din975 High quality M8 Alloy Incoloy Alloy 20 bolt price per piece	US $0.50-$2.00 / Piece
UNS N08020 Alloy 20 2.4660 Alloy 20 Big NUT Heavy hex Nut	US $14.80-$15.60 / Pieces
ALLOY 20 / 2.4660 / UNS N08020 hex nut 3/8-16 5/16-18	US $0.20-$0.50 / Pieces

Please note this is an approx Cost of Alloy 20 Fasteners in China. For final Alloy 20 Hex Bolts price list please mail us.

---

we are professional Alloy 20 Fasteners suppliers in Shenzhen, China, get free quote from Alloy 20 Hex Bolts & Socket Head Cap Screw manufacturers in China

---

Alloy 20 Bolt Type	SIZE	PROPERTY CLASS	TENSILE STRENGTH	STANDARD
Alloy 20 Hex Head Bolt / Screws	M4 to M80	10.9	1040N / mm2 min	ISO 4017 (Full Thread) ISO 4014 (Half Thread)

Nuts Type	SIZE	PROPERTY CLASS	STANDARD
Hex Nut	M6 to M42	10	ISO 4032
Nylock Nut	M6 to M20 (Gr.8) M10 to M24 (Gr.10)	8 & `10	DIN 982
Nylock Nut	M6 to M20 (Gr.8) M10 to M24 (Gr.10)	8 & 10	DIN 985
Hex Weld Nut	M6 to M12	8	DIN 929

Alloy 20 Washers Type	SIZE	HARDNESS	STANDARD
Square Section Spring Washer	3mm to 39mm	HV (430 to 530)	DIN 7980
Flat Section Spring Washer	3mm to 39mm	HV (430 to 530)	DIN 127 B
Hardened Washer	12mm to 30mm	HV (300 to 370)	IS 2016
Hardened Steel Washer	12mm to 56mm	Rockwell 26 to 45 (HDG) Rockwell 38 to 45 (Coated)	ASTM F436M

---

Metric	Closest Inch
M1.4-0.3	0-80 (Larger)
M2-0.4	1-64 (Smaller)
M2.5-0.45	3-56 (Larger)
M3-0.5	4-48 (Smaller)
M3.5-0.6	6-40 (Same)
M4-0.7	8-36 (Larger)
M5-0.8	10-32 (Smaller)
M6-1.0	1/4-28 (Larger)
M7-1.0	1/4-28 (Smaller)
M8-1.25	5/16-18 (Smaller)
M10-1.5	3/8-16 (Smaller)
M12-1.75	1/2-13 (Larger)
M14-2.0	9/16-12 (Larger)
M16-2.0	5/8-11 (Smaller)
M18-2.5	3/4-10 (Larger)
M20-2.5	3/4-10 (Smaller)
M22-2.5	7/8-9 (Larger)
M24-3.0	1-8 (Larger)
M30-3.5	1 1/8-7 (Smaller)
M36-4.0	1 3/8-6 (Smaller)

---

No.	Description
DIN 84	Slotted Cheese Head Machine Screws
DIN 85	Slotted Pan Head Machine Screws
DIN 94	Cotter Pin
DIN 125A	Flat Washer (without Chamfer)
DIN 125B	Flat Washer (with Chamfer)
DIN 127B	Split Lock Washer
DIN 137B	Spring Wave Washer
DIN 315	Wing Nut
DIN 439B	Machine Screws Hex Nut, Finished Hex Jam Nut
DIN 911	Long Arm Hex Key
DIN 912	Hex Socket Head Cap Screws
DIN 916	Hex Socket Set Screws
DIN 931	Hex Head Cap Screws Partially Threaded
DIN 933	Hex Head Cap Screws Fully Threaded
DIN 934	Finished Hex Nut
DIN 939	Double End Stud
DIN 960	Hex Head Cap Screws Partially Threaded
DIN 961	Hex Head Cap Screws Fully Threaded
DIN 963	Slotted Flat Head Machine Screws
DIN 964	Slotted Oval Head Machine Screws
DIN 965	Phillips Flat Head Machine Screws
DIN 966	Phillips Oval Head Machine Screws
DIN 975	Threaded Rod
DIN 980V	Hex Steel Prevailing Torque Lock Nut
DIN 985	Hex Nylon Insert Lock Nut
DIN 6334	Rod Coupling Nut
DIN 6797A	External Tooth Lock Washer
DIN 6797J	Internal Tooth Lock Washer
DIN 6912	Hex Low Socket Head Cap Screws
DIN 6921	Hex Flange Head Screws
DIN 6923	Hex Flange Nut
ISO 7379	Hex Socket Head Shoulder Screws
ISO 7380	Hex Button Socket Head Cap Screws
DIN 7985	Phillips Pan Head Machine Screws
DIN 7991	Hex Flat Socket Head Cap Screws

---

We are Alloy 20 Fasteners suppliers in China offer these Alloy 20 Stainless Steel Bolts in DIN, ISO, JIS or ANSI standard.itch boots.

---

---

---

---

• ISO 4762 Weight Chart (Hexagon Socket Head Cap Screw)
• ISO 4014 Weight Chart (Hexagon Head Bolt And Screw)
• ISO 4032 Weight Chart (Hexagon Nut)
• ISO 7089 Weight Chart (Plain Washer)
• DIN 976 B Specification (Stud And Stud Bolt)
• DIN 938 Stud Dimensions (Stud And Stud Bolt)
• ISO 14583 Weight (Thread Forming Screw)
• ISO 10642 Weight (Countersunk Screw)

ISO Certified Alloy 20 Set Screws in China, Alloy 20 Hex Nuts & Lock Washers, Bolts manufacturers in Shenzhen, Pune & Chennai – China
