ASTM A479 Rod and SS Bars Stock in All Sizes and Thickness

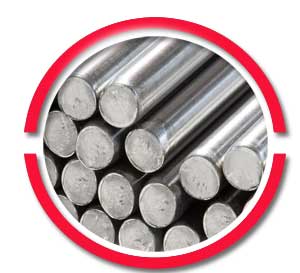

ASTM A479 Rod

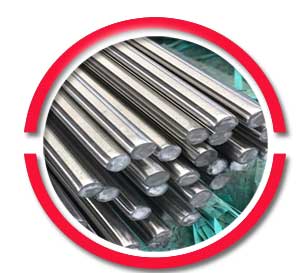

Stainless Steel Round Bar

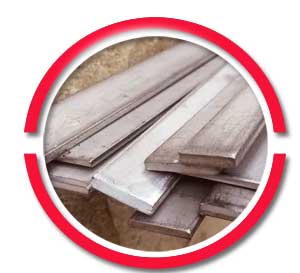

SS Flat Bar

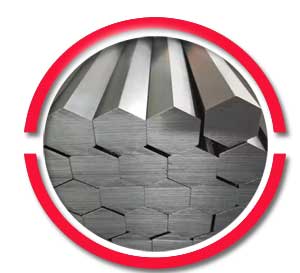

ASTM A276 Stainless Steel Hex Bar

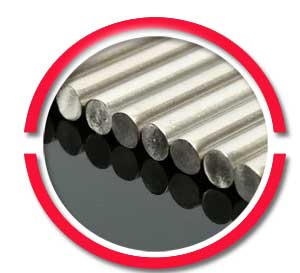

SS Bright Bar

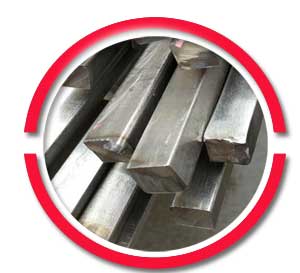

Stainless Steel Square Bar
Stainless Steel flat Bar and Half Rounds stock from 4mm – 300mm
Specifications ASTM A479, as well as ASTM A276, covers both hot finished and cold finished bars, produced in various shapes. Though according to stainless steel round bar manufacturer in China, specification ASTM A276 explicitly defers products intended to be reforged and free machining grades. Both the specifications aid the stainless steel rod manufacturers in China by guiding them with several aspects. These aspects or parameters include the type of alloy, size of the Stainless Steel Round rod, finish. Yet as compared to specification ASTM A276, the specification for ASTM A479 standard provides more clarification with regards to additional parameters including the testing requirements for the ASTM A479 Rod, inspection, certification along with the packaging requirements.
The delivery conditions for both the specifications vary as well. For e.g – ASTM A276 Round Bar could be furnished in any one of the following condition i.e. condition A – annealed, condition S – light cold work and lastly, condition B – heavy cold worked. On the other hand, the ASTM A479 Stainless Steel Threaded Bar has two strain hardened levels. Both the Strain hardened level 1 and level 2 furnished Stainless Steel Half Rounds would be similar but not identical to the ASTM A276 condition S and condition B. The ASTM A479 Stainless Steel Rounds would expect a grain size evaluation, in particular for all austenitic grades. However in instances when API grades are used to produce the Stainless Steel Flat Bar, manufacturers are not required to evaluate the grain size.
Table of Content
- Comparing Standards Specification Of Stainless Steel Round Bar
- Most Famous Types Of Stainless Steel Round Bar
- ASTM A479 Rod Price
- Stainless Steel Flat Bar Size table
- ASTM A276 Stainless Steel Hex Bar Standard Sizes
- ASME SA 479 SS Square Bar Size Table
- SS Round Bar Size Chart
- Size chart of Stainless Steel Hollow Bar
- Specified Minimum Yield Strength Of stainless steel round bar
- Chemical Equation Of SS Bar
- Equivalent Specification Of ASTM A276 SS Rod
| Dimensions | DIN, EN, ASTM, JIS, ASME, BS, AISI |
|---|---|
| SS Standard | ASTM A276 Round bars, ASME SA276 Round bars / ASTM A479 Round bars ASME SA479 Round bars |
| Material Grade |
|
| size | Diameter: 3-~800mm |
| SS Hex barsFinish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| SUS Flat bars size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| ASTM A276 Type Hollow bars Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| SUS Rectangular bars Section | 3.0 to 12.0mm thickness |
| SS Angle bars size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Channel bars | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| SS Threaded bars Billet Size | 1/2 to 495mm Diameter |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| SUS T-bars Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
| ASTM A276 Type Hollow bars | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Rolled Flat barsCondition | Hardened & tempered, annealed |
| SS Rod Processing | bars cutting to 650mm |
| ASTM A276 Type Cold Rolled bars Technique | Cold Drawn, Hot Rolled, Forged Round bars,Cold Rolled, Rod |
| Rounds bars Form | Square, Rings, Round Rod, Threaded, Hex (A/F), Profiles, Half Round bars, Ingot, Billet, I/H bars, Forging, Triangle, Hollow, Rectangle, Rod, Round, Channel bars, T-bars, Flat bars, Precision Ground bars, Blocks etc. |
| Our conforms to NACE MR0175/ISO 15156 | |
Manufacturer & supplier of ASME SA 276 Round rod, Square Bar & Hot rolled bar in China
ASTM A276 type SS Rod Surface finish
|
CD
|
Cold drawn
|
P
|
Polished
|
|
BD
|
Bright drawn
|
SRE
|
Slit rolled edge
|
|
CG
|
Centreless ground
|
HF
|
Hot finished
|
|
CF
|
Cold finished
|
HRAP
|
Hot rolled annealed and pickled
|
|
P&T
|
Peeled and turned
|
RT
|
Rough turned/peeled
|
|
ST
|
Smooth turned
|
PR
|
Peeled and reeled
|
SS Hex Bar Condition
|
H&T
|
Hardened and tempered.
|
|
ANN
|
Annealed
|
|
PH
|
Precipitation hardened.
|
Stainless Steel Square Bars
Stainless Steel Flat Bars
SS Rectangular Bars
Stainless Steel Rod
Stainless Steel Round Bars
ASTM A276 SS Half-Round Bars
ASTM A479 SS T-Bars
SS Rounds
SS Hollow Bars
ASTM A479 SS ReBars
Stainless Steel Threaded Bars
ASTM A479 SS Hexagonal Bars
Stainless Steel Hex Bars
ASTM A479 SS Triangle Bars
ASTM A276 SS Precision Ground Stock
ASTM A479 SS Precision Ground Bars
Stainless Steel Rod/ Bar |
Price List |
|---|---|
1/2 In Dia x 6 Ft L |
$12.45 / each |
1 3/8 In Dia x 3 Ft L |
$86.75 / each |
5/8 In Dia x 6 Ft L |
$12.45 / each |
3/8 In Dia x 6 Ft L |
$7.00 / each |
1 In Dia x 3 Ft L |
$46.70 / each |
1 In Dia x 1 Ft L |
$17.50 / each |
*Approx price, please contact for final price.
SS flat bar sizes in mm |
SS Flat Bar Size (inch) |
SS Flat Bar Thickness (mm) |
SS Flat Bar Thickness (in Inches) |
|---|---|---|---|
22 |
7/8 |
17 & 18 |
2/3 – 5/7 |
25 |
1 |
5 to 20 |
3/16 – 4/5 |
30 |
1-3/16 |
5 to 20 |
3/16 – 4/5 |
32 |
1-1/4 |
6 to 20 |
1/4 – 4/5 |
35 |
1-3/8 |
5 to 20 |
3/16 – 3/16 |
40 |
1-4/7 |
5 to 25 |
3/16 – 1 |
45 |
1-7/9 |
5 to 25 |
3/16 – 1 |
47 |
1-6/7 |
17,25 & 32 |
2/3, 1 & 1-1/4 |
50 |
2 |
5 to 32 |
3/16 – 1-1/4 |
55 |
2-1/16 |
5 to 25 |
3/16 – 1 |
57 |
2-1/4 |
32 |
1-1/4 |
60 |
2-3/8 |
5 to 35 |
3/16 – 1-3/8 |
63 |
2-1/2 |
10 to 30 |
3/8 – 1-3/16 |
65 |
2-5/9 |
10 to 30 & 35 |
3/8 – 1-3/16, & 1-3/8 |
70 |
2-3/4 |
6 to 25 & 40 |
1/4 – 1, & 1-4/7 |
75 |
3 |
8 to 25 |
5/16 – 1 |
80 |
3-1/8 |
8 to 20 |
5/16 – 4/5 |
90 |
3-1/2 |
8 to 20 |
5/16- 4/5 |
100 |
4 |
8, 10, 12 |
5/16, 3/8, 1/2 |
|
SS hex bar Size in Inches
|
SS hex bar Wt per Ft
|
SS hex bar Wt per 12′
|
|---|---|---|
|
3/16″
|
0.104
|
1.248
|
|
1/4″
|
0.180
|
2.160
|
|
5/16″
|
0.290
|
3.480
|
|
3/8″
|
0.420
|
4.920
|
|
7/16″
|
0.560
|
6.72
|
|
1/2″
|
0.740
|
8.880
|
|
9/16″
|
0.930
|
11.16
|
|
5/8″
|
1.150
|
13.80
|
|
11/16″
|
1.390
|
16.68
|
|
3/4″
|
1.660
|
19.92
|
|
13/16″
|
1.950
|
23.40
|
|
7/8″
|
2.300
|
27.60
|
|
15/16″
|
2.600
|
31.20
|
|
1″
|
2.90
|
34.80
|
|
1-1/16″
|
3.30
|
39.60
|
|
1-1/8″
|
3.700
|
44.40
|
|
1-1/4″
|
4.600
|
55.20
|
|
1-5/16″
|
5.100
|
61.20
|
|
1-3/8″
|
5.600
|
67.20
|
|
1-7/16″
|
6.100
|
73.20
|
|
1-1/2″
|
6.600
|
79.20
|
|
1-5/8″
|
7.800
|
93.60
|
|
1-3/4″
|
9.030
|
108.36
|
|
1-7/8″
|
10.400
|
124.80
|
|
2″
|
11.80
|
141.60
|
|
2-1/4″
|
14.920
|
179.04
|
|
2-3/8″
|
16.920
|
203.04
|
|
2-1/2″
|
18.42
|
221.04
|
|
3″
|
26.53
|
318.36
|
|
SS 420 Square bar – metric sizes and weights
|
|||
|---|---|---|---|
|
Square bar Size
|
KG’s per Metre
|
Standard Length (metres)
|
Colour Code
|
|
10 x 10
|
0.81
|
6.0
|
Yellow
|
|
12 x 12
|
1.16
|
6.0
|
Pink
|
|
16 x 16
|
2.06
|
6.0
|
Grey
|
|
20 x 20
|
3.22
|
6.0
|
Green
|
|
25 x 25
|
5.03
|
6.0
|
Purple
|
|
32 x 32
|
8.24
|
6.0
|
Orange
|
|
40 x 40
|
12.8
|
6.0
|
Yellow
|
|
50 x 50
|
20.12
|
6.0
|
Green
|
|
Type
|
SIZES (mm)
|
SIZES (Inches)
|
ISO Tolerance
|
|---|---|---|---|
|
Cold Drawn and Polish
|
3.00 – 75.00
|
1/8″ – 3.00″
|
h8-h9-h10-h11
|
|
Cold Drawn and Ground
|
10.00 – 75.00
|
5/6″ – 2.50″
|
h8-h9-h10-h11
|
|
Peeled and Polished
|
40.00 – 150.00
|
1.50″ – 6.00″
|
h11, h11-DIN 1013
|
|
Peeled and Ground
|
20.00 – 50.00
|
3/4″ – 2.00″
|
h9-h10-h11
|
Cut to size on request (tolerance +2/-0 mm). 420 Stainless Steel Bars Standard lengths of 2000 mm up to 6000 mm.
|
5.0
|
45.0
|
|
6.0
|
50.0
|
|
7.0
|
55.0
|
|
8.0
|
60.0
|
|
9.0
|
65.0
|
|
10.0
|
70.0
|
|
12.0
|
75.0
|
|
16.0
|
80.0
|
|
20.0
|
90.0
|
|
25.0
|
100.0
|
|
30.0
|
130.0
|
|
35.0
|
160.0
|
|
40.0
|
200.0
|
| Size mm | kg/m | Size mm | kg/m |
| 20 x 20 x 2.0 | 1.12 | 20 x 20 x 2.5 | 1.35 |
| 25 x 25 x 1.5 | 1.06 | 25 x 25 x 2.0 | 1.43 |
| 25 X 25 X 2.5 | 1.74 | 25 X 25 X 3.0 | 2.04 |
| 30 X 30 X 2.0 | 1.68 | 30 X 30 X 2.5 | 2.14 |
| 30 X 30 X 3.0 | 2.51 | 40 x 40 x 1.5 | 1.81 |
| 40 x 40 x 2.0 | 2.31 | 40 x 40 x 2.5 | 2.92 |
| 40 x 40 x 3.0 | 3.45 | 40 x 40 x 4.0 | 4.46 |
| 40 x 40 x 5.0 | 5.40 | 50 x 50 x 1.5 | 2.28 |
| 50 x 50 x 2.0 | 2.93 | 50 x 50 x 2.5 | 3.71 |
| 50 x 50 x 3.0 | 4.39 | 50 x 50 x 4.0 | 5.72 |
| 50 x 50 x 5.0 | 6.97 | 60 x 60 x 3.0 | 5.34 |
| 60 x 60 x 4.0 | 6.97 | 60 x 60 x 5.0 | 8.54 |
| 60 x 60 x 6.0 | 9.45 | 70 x 70 x 3.0 | 6.28 |
| 70 x 70 x 3.6 | 7.46 | 70 x 70 x 5.0 | 10.11 |
| 70 x 70 x 6.3 | 12.50 | 70 x 70 x 8 | 15.30 |
| 75 x 75 x 3.0 | 7.07 | 80 x 80 x 3.0 | 7.22 |
| 80 x 80 x 3.6 | 8.59 | 80 x 80 x 5.0 | 11.70 |
| 80 x 80 x 6.0 | 13.90 | 90 x 90 x 3.0 | 8.01 |
| 90 x 90 x 3.6 | 9.72 | 90 x 90 x 5.0 | 13.30 |
| 90 x 90 x 6.0 | 15.76 | 90 x 90 x 8.0 | 20.40 |
| 100 x 100 x 3.0 | 8.96 | 100 x 100 x 4.0 | 12.00 |
| 100 x 100 x 5.0 | 14.80 | 100 x 100 x 5.0 | 14.80 |
| 100 x 100 x 6.0 | 16.19 | 100 x 100 x 8.0 | 22.90 |
| 100 x 100 x 10 | 27.90 | 120 x 120 x 5 | 18.00 |
| 120 x 120 x 6.0 | 21.30 | 120 X 120 X 6.3 | 22.30 |
| 120 x 120 x 8.0 | 27.90 | 120 x 120 x 10 | 34.20 |
| 120 X 120 X 12 | 35.8 | 120 X 120 X 12.5 | 41.60 |
| 140 X 140 X 5.0 | 21.10 | 140 X 140 X 6.3 | 26.30 |
| 140 X 140 X 8 | 32.90 | 140 X 140 X 10 | 40.40 |
| 140 X 140 X 12.5 | 49.50 | 150 X 150 X 5.0 | 22.70 |
| 150 X 150 X 6.3 | 28.30 | 150 X 150 X 8.0 | 35.40 |
| 150 X 150 X 10 | 43.60 | 150 X 150 X 12.5 | 53.40 |
| 150 X 150 X 16 | 66.40 | 150 X 150 X 16 | 66.40 |
| 180 X 180 X 5 | 27.40 | 180 X 180 X 6.3 | 34.20 |
| 180 X 180 X 8 | 43.00 | 180 X 180 X 10 | 53.00 |
| 180 X 180 X 12.5 | 65.20 | 180 X 180 X 16 | 81.40 |
| 200 X 200 X 5 | 30.50 | 200 X 200 X 6 | 35.8 |
| 200 x 200 x 6.3 | 38.2 | 200 x 200 x 8 | 48.00 |
| 200 x 200 x 10 | 59.30 | 200 x 200 x 12.5 | 73.00 |
| 200 x 200 x 16 | 91.50 | 250 x 250 x 6.3 | 48.10 |
| 250 x 250 x 8 | 60.50 | 250 x 250 x 10 | 75.00 |
| 250 x 250 x 12.5 | 92.60 | 250 x 250 x 16 | 117.00 |
| 300 x 300 x 6.3 | 57.90 | 300 x 300 x 8 | 73.10 |
| 300 x 300 x 10 | 57.90 | 300 x 300 x 8 | 90.70 |
| 300 x 300 x 12.5 | 112.00 | 300 x 300 x 16 | 142.00 |
| 350 x 350 x 8 | 85.70 | 350 x 350 x 10 | 106.00 |
| 350 x 350 x 12.5 | 132.00 | 350 x 350 x 16 | 167.00 |
| 400 x 400 x 10 | 122.00 | 400 x 400 x 12 | 141.00 |
| 400 x 400 x 12.5mm | 152.00 | 400 x 400 x 16 | 192 |
Call for small piece of ASME SA 479 Hollow Bar and cold drawn bar to test before buying
Stainless Steel Round Bar Ready Stock
|
|
Grade |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
Density |
MeltingPoint |
SS 304 Round Bars |
Psi – 75000 , MPa – 515 |
Psi – 30000 , MPa – 205 |
40% |
8.0 g/cm3 |
1400 °C (2550 °F) |
SS 202 Round Bars |
515 MPa |
275 MPa |
40 % |
8.0 g/cm3 |
1454 °C (2650 °F) |
SS 303 Round Bars |
Psi – 85,000 |
Psi – 45,000 |
50 % |
55% |
Rb 180 |
SS 304L Round Bars |
Psi – 75000 , MPa – 515 |
Psi – 30000 , MPa – 205 |
40% |
8.0 g/cm3 |
1400 °C (2550 °F) |
SS 316 Round Bars |
Psi – 75000 , MPa – 515 |
Psi – 30000 , MPa – 205 |
35 % |
8.0 g/cm3 |
1454 °C (2650 °F) |
SS 316L Round Bars |
485 Min |
170 Min. |
40 % |
8.0 g/cm3 |
1400 °C (2550 °F) |
View latest price & ready sizes of Stainless Steel Black Bar, Forged Bar Ex Shenzhen
| ASTM Grade | C | Mn | Si | S | P | Cr | Ni | Mo | Other |
| 304 | 0.08 max | 2.00 max | 0.75 max | 0.030 max | 0.045 max | 18.0-20.0 | 8.0 11.0 | – | – |
| 316 | 0.08 max | 2.00 max | 0.75 max | 0.030 max | 0.045 max | 16.0-18.0 | 10.0 14.0 | 2.0 3.0 | – |
| 317L | 0.035 max | 2.00 max | 0.75 max | 0.030 max | 0.045 max | 18.0-20.0 | 11.0 14.0 | 3.0 4.0 | – |
| 310 S | 0.08 max | 2.00 max | 1.5 max | 0.030 max | 0.045 max | 24.0-26.0 | 19.0 22.0 | 3.0 4.0 | – |
| 347 H | 0.04 0.10 | 2.00 max | 0.75 max | 0.030 max | 0.045 max | 17.0- 19.0 | 9.0 13.0 | – | 10C(Cb+Ta)<1.10% |
| 321 | 0.08 | 2.00 max | 0.75 max | 0.030 max | 0.045 max | 17.0-20.0 | 9.0 12.0 | – | 5C 0.70% |
UNS |
AISI |
Werkstoff |
Outokumpu |
ASTM |
|---|---|---|---|---|
S31254 |
904L |
1.4547 |
254SMO |
A276 |
N08904 |
1.4539 |
6Mo (Moly) |
A479 |
|
EN10272 |
B677 |
|||
F44 |
Physical Properties of ASTM A276 Round Bar
| Tensile Psi (Mpa) | Yield Psi (Mpa) | Elongation Strip / Round | Hardn. | Reduction in Area (%) |
| 75000 (515) | 30000(205) | 30 | – | 40 |
| 75000 (515) | 30000 (250) | 30 | – | 40 |
| 75000 (515) | 30000 (250) | 30 | – | 40 |
| 75000 (515) | 30000 (250) | 30 | – | 40 |
| 75000 (515) | 30000 (250) | 30 | – | 40 |
| 75000 (515) | 30000 (250) | 30 | – | 40 |
