Keep bulk stock of teflon coated fasteners, PTFE Coated Bolts and Nuts, Stud Bolts and screws Suppliers
China’s Largest PTFE Coated B7 Studs, Nut Bolt Manufacturer, PTFE Coated Threaded Rod Exporter in China
Polytetrafluoroethylene(PTFE) is a tetrafluoroethylene synthetic fluoropolymer with various applications. It is a fluorocarbon element as it is a large molecular compound made up entirely of carbon and fluorine. It is hydrophobic: no water or water-containers react with PTFE, because of the high electronegativity of fluorine, fluorocarbons which posses London dispersion forces. It has one of the lowest friction coefficients of all solids and is used in pans and other cookwares as a non-stick coating. It shows vey less reactivity, partially due to the strength of C-F bonds and is therefore mostly used for storage of reactive and corrosive chemicals in containers and pipes.
Buy From ptfe xylan coated fasteners, PTFE Coated Machine Screw and Washer Stockist at Factory price
The 2H-nuts are commonly used by operations and maintenance teams and contractual partners in various chemical plants, refineries and offshore platforms for commercial purposes. For flanging pipes with valves, B-7 studies are quite successful. The chemical tolerance of the coating is excellent for a safe environment due to its easy functionality on / off. Some raising applications include irrigation, maritime and HVAC roofs.
PTFE Coated Nut

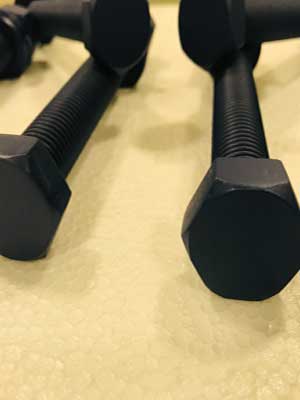

PTFE Coated Bolts
PTFE Coated Nut/Washer
PTFE Coated SS 316 Nut Bolt Washer
Standards |
Designation |
|---|---|
| Manufacturing Process | Insert tapping, Heat Treatment, Wire Drawing, Cold Heading, Packing, Surface Plating, Inspection |
| Requirements of Thread | Class 2A (Fastenal will inspect and accept parts with a 1A no-go gauge), ASME B1.1, UNC & UNF, |
| Coatings | PTFE |
| Delivery time | Regular product is about 7-15 days, custom product will according to special requirement |
| Head | Hex flange, Flat, T-head, Hex, Square, Round & Triangular etc |
Dimensions |
ASME B18.3, B18.2.1 |
Melt Origin |
East Europe/South America/Korea/Japan |
| Neck type | Hex, Square, Triangular, Oval & Knurled etc |
Origin of Product |
China |
Configuration of Threads |
B1.13M 6h Metric Coarse Threads and ASME B1.1 2A/3A Inch Unified Threads |
| Payment Terms | T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping |
Extra Certifications |
Merkblatt AD 2000 W2 Certified, PED 97/23/EC Certified, |
| Coatings | Galvanized, Teflon, Black Oxide, Cadmium, Others Upon Request, Xylan, Zinc |
Extra Requirements |
Free from Radioactive Contamination & Mercury |
Certification |
As per ASME & ASTM Codes Dual Certified |
Extra Requirements |
NACE MR0175 /MR0103 / ISO 15156 Compliance |
| Samples | Yes |
BOLT DIAMETER |
Torque chart FT-LBS |
||
30% Initial Torque |
70% Torque |
100% Final Torque |
|
1/2 |
16 |
36 |
52 |
9/16 |
23 |
53 |
75 |
5/8 |
31 |
73 |
104 |
3/4 |
55 |
129 |
184 |
7/8 |
71 |
166 |
237 |
1 |
107 |
249 |
356 |
1.1/8 |
127 |
297 |
424 |
1.1/4 |
179 |
417 |
596 |
1.3/8 |
186 |
435 |
622 |
1.1/2 |
246 |
574 |
821 |
1.9/16 |
168 |
392 |
560 |
1.5/8 |
191 |
445 |
636 |
1.3/4 |
240 |
561 |
801 |
1.7/8 |
298 |
696 |
994 |
2 |
366 |
853 |
1219 |
2.1/4 |
529 |
1234 |
1762 |
2.1/2 |
733 |
1709 |
2442 |
2.3/4 |
986 |
2300 |
3285 |
3 |
1289 |
3008 |
4297 |
buy from PTFE Coated Bolts suppliers, leading teflon nuts and bolts stockist, view Teflon Coated Bolts Price
PTFE boulder/bolts is made of extremely corrosion resistant, high temperature inert polytetrafluoroethylene. The PTFE bolt is inert for most chemical conditions, e.g. organic materials, acids, bases, mixed harmful byproducts and hydrdofluoric acid. PTFE screws are primarily sustainable and are not leached or tainted by foodstuffs or pharmaceuticals. Some of the most common items for PTFE non-stick coatings is PTFE Coated Nuts due to their excellent release characteristics.
ready stock of Teflon Coated B7 Stud Bolts in China, PTFE Coated Heavy Hex Bolts and Hex Nuts Stockist
PTFE coated nut is resistant to the average temperature at about 500 ° F. In order to optimize adhesive life, all PTFE connectors were coated with a Flurokote formulation with superior features. With operating pressure of up to 100,000 psi, the tensile strength of this PTFE cover is up to 4,000 psi. In contrast with galvanized fasteners with hot dips the lack of oxide assures that the frozen nuts are safely and quickly removed by using Lightning Bolt.
