The ISO specifies the characteristics of ISO 4762 Hexagon Socket Head Cap Screws with coarse pitch thread which ranges from M1.6 up to and including M64 as well as product grade A. Usually the ISO 4762 Screw Material is produced from carbon steel, stainless steel or alloy steel.

ISO 4762 Hexagon Socket Head Cap Screws, hexagon socket screw iso 4762 manufacturers in China

Check ISO 4762 Specification and standard, buy iso 4762 full thread, hexagon nut iso 4762 at factory price

ISO 4762 Hexagon Socket Head Cap Screws

hexagon nut iso 4762

ISO 4762 Screw

View ISO 4762 Screw Dimensions as well as See weight of ISO 4762 Screw Material

The weight of the screw could be calculated with the help of a socket head cap screw weight calculator. Or you could view the ISO 4762 Weight Chart attached here. DIN 912 / EN ISO 4762 specified hexagon socket head cap screws are ideal to be used as highly stressed fastenings, especially the designs which are difficult to access. hexagon socket screw iso 4762 is screwed in with the help of a spanner. The raised head of these screws permits the socket head iso 4762 full thread to be tightened or adjusted.

The tightening or adjustment of an ISO 4762 Specification socket head screw could be done through the rough a hole present on the top of its head with the help of a well suited key. In this instance, the key used to fasten the iso 4762 standard socket head screw is referred to as an Allen key or a hex key. An Allen key is used because it is not possible to use a spanner due to space constraints. You can find the iso 4762 socket head cap screw dimensions given in the sheet attached here.

Dimensions Standard of ISO 4762 Screw

DIN 912
ISO 4762
ANSI B18.3.1M

A2 / A4 Stainless Socket Cap Screws

S015 – 912-A2
S016 – 912-A4

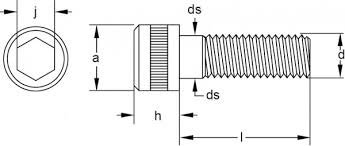

ISO 4762 Hexagon Socket Head Cap Screws Dimensions

Diameter d1	M2		M2.5		M3		M4		M5		M6		M8
t min.	1		1.1		1.3		2		2.5		3		4
s	1.5		2		2.5		3		4		5		6
k max.	2		2.5		3		4		5		6		8
d2	3.8		4.5		5.5		7		8.5		10		13
Length (mm)	A2	A4	A2	A4	A2	A4	A2	A4	A2	A4	A2	A4	A2	A4
Length (mm)	S015	S016	S015	S016	S015	S016	S015	S016	S015	S016	S015	S016	S015	S016
3	100
4	100		100		100
5	100		100		100
6	100		100		100	100	100	100	100		100
8	100		100		100	100	100	100	100	100	100
10	100		100		100	100	100	100	100	100	100	100	100
12	100		100		100	100	100	100	100	100	100	100	100	100
14						100	100		100		100
16	100		100		100	100	100	100	100	100	100	100	100	100
18							100		100		100
20					100	100	100	100	100	100	100	100	100	100
25					100	100	100	100	100	100	100	100	100	100
30					100	100	100	100	100	100	100	100	100	100
35					100	100	100	100	100	100	100	100	100	100
40					100		100	100	100	100	100	100	100	100
45					100	100	100		100	100	100	100	100	100
50							100	100	100	100	100	100	100	100
55							100		100	100	100	100	100	100
60							100	100	100	100	100	100	100	100
65											100		100
70								100	100		100	100	100	100
75											100
80									100		100	100	100	100
85											100
90									100		100	100	100	100
100									100		100	100	100	100
110											100		100
120											100		100	100
130											100
140											100		100
160													100
Order Number -> 912-A2 M2.5×4 = S015-2.5-0004 \| 912-A4 M8x120 = S016-008-0120
