Zeron 100 Round Bar and rod

Super Duplex Stainless Steel UNS S32760 F55 Flat & Hex Bar manufacturer in China

We help you to save your cost by providing exact size of S32760 Zeron 100 Square Bar

Zeron 100 Round Bar

UNS S32760 F55 Flat Bar

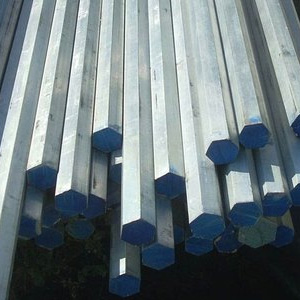

Super Duplex Zeron 100 Hex Bar

Check weight, size chart and Price list of Super Duplex Zeron 100 Forged Bar Ex Shenzhen

Zeron 100 is a highly alloyed metal that belongs to the category of super duplex stainless steel. The idea behind using a Zeron 100 Super Duplex Stainless Steel Cold rolled bar is to find an alloy that was capable of sustaining itself in environments that contain aggressive media. Like most duplex alloys, the microstructure of Zeron 100 Super Duplex Cold Drawn Bar is of a dual nature and contains both ferrite and austenite.

The dual microstructure in aggregation with the high alloying content of the metal gives the Zeron 100 Grade Round Bar several attractive properties. Properties such as high mechanical strength, superior toughness as well as excellent resistance to corrosion are just to name a few. An interesting property of the Zeron 100 F55 Round Bar perhaps is its resistance to corrosion across a comprehensive list of acids, including both organic and inorganic acids. Exposure of the UNS S32760 Zeron 100 F55 Bright Bar to a temperature exceeding 572° F is not recommended as an elevation in temperature causes a substantial decrease in its toughness properties.

The higher contents of copper and tungsten are what grants the Zeron 100 Alloy Hot rolled bar excellent resistance to corrosion, particularly when these components are immersed in many non-oxidizing and mineral acids such as either hydrochloric acid or sulfuric acid. Zeron 100 Round Bar exhibits igh resistance to pitting and, it has a PREN value of more than 40.

ASTM Specifications Of Zeron 100 Round Bar

Specification	ASTM A182, ASTM A276, ASTM A479
Standard	EN, DIN, JIS, BS, AISI, API, ASTM, ASME Round Bars
size	Diameter: 3mm – 450mm DIA
Length	3 to 6 meter, Custom Cut Lengths
Hex Bar size	2mm~100mm
Flat bar size	Thickness: 2mm~100mm
Flat bar size	Width: 10mm~500mm
Square bar size	4mm4mm~100mm100mm
Angle bar size	3mm* 20mm* 20mm~12mm* 100mm* 100mm
Rectangles Size	33mm x 30mm to 295mm x 1066mm
Finish	Bright Polished, Black, Polish, Rough Turned, Grinding, Centreless Ground, NO.4 Finish, Matt Finish & BA Finish
Condition	Annealed round bar, Cold Drawnd Pulished Cold Drawn Centreless Ground & Polished, Sheared & Edged, Rolled Flat
Tolerance	H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements
Technique	Cold Rolled, Hot Rolled,Forged Round Bar, Cold Drawn, Rod
Billet Size	1/2″ to 495mm Diameter
Manufacturing Process	Straightness upto 0.5mm/ mtr to 1mm /mtr. 240,400,600 Grit Belt Pol Peeled Bars: Dia. Ø15 mm -120 mm. Peeled, Straightened, Centreless Ground & Polished. Cold Drawn Bright Bar: Dia. 2.5 mm to 14 mm. Annealed, Pickled, Cold Drawn, Centreless Ground & Polished. Surface finish 0.5 µmm to 1.5µmm max>
Quality & Inspection	All required Mechanical and metallurgical tests are carried out at our works. We issue EN10204/3.1 Certificate as per ADW0 Each Bar is tested for size tolerance,Ovality,length and Roughness. Free from any internal defects Each lot is tested and ensured that material is free from Radio active contamination. Container is fumigated before stuffing. All wooden box /blockes are also fumigated. Bundles are made of 500/1000kgs each packed in HDPE sheets.
Features	Durable Chemical resistance High strength Corrosion resistance Dimensional accuracy
Surface	Hot Rolled Pickled or Sand Blasting Finished Bright Rough machined (RM) Peel turned and burnished (PTB) Peel turned (PT) Hairline Polished Cold Drawn
Form	Rod, Round, Channel Bar, T-Bar, Flat Bar, Precision Ground Bar, Blocks, Square, Rings, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bar, Ingot, Billet, I/H Bar, Forging etc.
Heat Treatment	Solution Annealing, Soft Annealing, Hardening & Tempering & Normalizing, Oil & Water Quenching,
Tolerances	according to EN 10278 – ISO 286-2
Certificates	EN 10204 / 3.1
Our round bar conforms to NACE MR0175/ISO 15156

Composition Standard Of Super Duplex Zeron 100 Round Bar

Element	Zeron 100
Cr	24.0-26.0
Ni	6.0-8.0
Mo	3.0-4.0
C	0.030 Max
W	0.5-1.0
Cu	0.50-1.0
N	0.2-0.3
Mn	1.00 Max
Si	1.0 Max
P	0.03 Max
S	0.01 Max
Fe	Balance

Equivalent Grade Chart Of S32760 Zeron 100 Bright Bar

STANDARD	WERKSTOFF NR.	UNS
Zeron 100	1.4501	S32760

Zeron 100 Bar Mechanical Properties Analysis

Element	Zeron 100
Tensile Strength, ksi	109
.2% Yield Strength, ksi	80
% Elongation in 50mm)	25
Hardness Max.	28 HRC

See Basic Types Of Zeron 100 Round Bar And Rod

Zeron 100 Square Bar

Zeron 100 Flat Bar

UNS S32760 Rectangular Bar

Zeron 100 Rod

Zeron 100 Round Bar

DIN 1.4501 Half-Round Bar

S32760 Zeron 100 T-Bar

UNS S32760 Rounds

UNS S32760 Hollow Bar

S32760 Zeron 100 Rebar

Zeron 100 Threaded Bar

S32760 Zeron 100 Hexagonal Bar

Zeron 100 Hex Bar

S32760 Zeron 100 Triangle Bar

DIN 1.4501 Precision Ground Stock

S32760 Zeron 100 Precision Ground Bar

Zeron 100 Stainless Steel Square Bar Sizes

Size (mm)	Weight per metre (Kg)	Size (mm)	Weight per metre (Kg)
12 x 12	1.14	30×30	7.11
16 x 16	2.02	40 x 40	12.60
20 x 20	3.16	50 x 50	19.80
25 x 25	4.94

Duplex Zeron 100 Hex Bar Sizes

Size (mm)	Weight (kg/m)	Size (mm)	Weight (kg/m)	Size (mm)	Weight (kg/m)
7 x 7	0.337	19 x 19	2.479	38 x 38	9.916
8 x 8	0.44	20 x 20	2.747	40 x 40	10.988
9 x 9	0.556	21 x 21	3.029	42 x 42	12.114
10 x 10	0.687	22 x 22	3.324	45 x 45	13.906
11 x 11	0.831	24 x 24	3.956	48 x 48	15.822
12 x 12	0.989	25 x 25	4.292	50 x 50	17.168
13 x 13	1.161	26 x 26	4.642	53 x 53	19.29
14 x 14	1.346	28 x 28	5.384	55 x 55	20.774
15 x 15	1.545	30 x 30	6.181	60 x 60	24.723
16 x 16	1.758	32 x 32	7.032	65 x 65	29.015
17 x 17	1.985	34 x 34	7.939	70 x 70	33.65
18 x 18	2.225	36 x 36	8.9	75 x 75	38.629

Zeron 100 F55 Round Bar Sizes

Zeron 100 Round Bar Size Dimensions
Metric		US Bar		ASTM/ Canadian		Japanese
Bar Size	Diam. (mm)	Bar Size	Diam. (Inch)	Bar Size	Diam. (mm2)	Bar Size	Diam. (mm)
5	5	#2	0.250	10M	100	6	6
5.5	5.5	#3	0.375	15M	200	10	10
6	6	#4	0.500	20M	300	13	13
7	7	#5	0.625	25M	500	16	16
8	8	#6	0.750	30M	700	19	19
9	9	#7	0.875	35M	1000	22	22
10	10	#8	1.000	45M	1500	25	25
11	11	#9	1.125	55M	2500	29	29
12	12	#10	1.250			32	32
14	14	#11	1.375			35	35
16	16	#12	1.500			38	38
18	18	#13	1.625			41	41
20	20	#14	1.750			44	44
22	22	#15	1.875			48	48
25	25	#16	2.000			51	51
28	28	#18	2.250			57	57
32	32
36	36
40	40
44	44
50	50

Zeron 100 Steel Flat Bar Size

Zeron 100 Flat Bar sizes in mm	Zeron 100 Flat Bar Size (inch)	Zeron 100 Flat Bar Thickness (mm)	Zeron 100 Flat Bar Thickness (in Inches)
22	7/8	17 & 18	2/3 – 5/7
25	1	5 to 20	3/16 – 4/5
30	1-3/16	5 to 20	3/16 – 4/5
32	1-1/4	6 to 20	1/4 – 4/5
35	1-3/8	5 to 20	3/16 – 3/16
40	1-4/7	5 to 25	3/16 – 1
45	1-7/9	5 to 25	3/16 – 1
47	1-6/7	17,25 & 32	2/3, 1 & 1-1/4
50	2	5 to 32	3/16 – 1-1/4
55	2-1/16	5 to 25	3/16 – 1
57	2-1/4	32	1-1/4
60	2-3/8	5 to 35	3/16 – 1-3/8
63	2-1/2	10 to 30	3/8 – 1-3/16
65	2-5/9	10 to 30 & 35	3/8 – 1-3/16, & 1-3/8
70	2-3/4	6 to 25 & 40	1/4 – 1, & 1-4/7
75	3	8 to 25	5/16 – 1
80	3-1/8	8 to 20	5/16 – 4/5
90	3-1/2	8 to 20	5/16- 4/5
100	4	8, 10, 12	5/16, 3/8, 1/2

Price list of Zeron 100 Rod

super duplex steel zeron 100 round bars
US $3.5-4.7 / Kilogram
Super Duplex Steel Zeron 100 Round Bars
US $1000-7500 / Ton
Zeron 100 Round Bars
US $1000-7500 / Ton
Super Duplex Zeron 100 Round bars
US $1000-7500 / Ton
Super Duplex Zeron 100 Hex bars
US $0.8-4 / Kilogram
Super Duplex Zeron 100 Square bars
US $295.0-300.0 / Metric Tons

Buy your sizes from our Zeron 100 F55 Bright Bars, pump shaft, cold / hot rolled black bar

Zeron 100 Round bar standards

Grade	EN 10088-3	EN 10272	AD2000- W2/W10	ASTM A 479	ASME SA 479	NACE MR 0175
Zeron 100 Round Bars	20-450 mm	20-160 mm	–	20-450 mm	20-450 mm	Independent of size

Type	SIZES (mm)	SIZES (Inches)	ISO Tolerance
Cold Drawn and Polished Zeron 100 Bar	3.00 – 75.00	1/8″ – 3.00″	h8-h9-h10-h11
Zeron 100 Cold Drawn and Ground Bar	10.00 – 75.00	5/6″ – 2.50″	h8-h9-h10-h11
Zeron 100 Peeled and Polished Round Bar	40.00 – 150.00	1.50″ – 6.00″	h11, h11-DIN 1013
Zeron 100 Peeled and Ground Bar	20.00 – 50.00	3/4″ – 2.00″	h9-h10-h11

DIN 1.4501 Bar in cut to sizes, Supplier of Zeron 100 Super Duplex Round Bar as per International standard

Zeron 100 Hollow Bar Sizes

Size		Chucked true to OD				Chucked true to ID
OD, mm	ID, mm	Max. OD, mm	Min. ID, mm	Max. OD, in.	Min. ID, in.	Max. OD, mm	Min. ID, mm	Max. OD, in.	Min. ID, in.
32	20	31	21.9	1.220	0.862	30	21	1.185	0.827
32	16	31	18	1.220	0.709	30	17	1.181	0.669
36	25	35	26.9	1.378	1.059	34.1	26	1.343	1.024
36	20	35	22	1.378	0.866	34	21	1.339	0.827
36	16	35	18.1	1.378	0.713	33.9	17	1.335	0.669
40	28	39	29.9	1.535	1.177	38.1	29	1.500	1.142
40	25	39	27	1.535	1.063	38	26	1.496	1.024
40	20	39	22.1	1.535	0.870	37.9	21	1.492	0.827
45	32	44	33.9	1.732	1.335	43.1	33	1.697	1.299
45	28	44	30	1.732	1.181	43	29	1.693	1.142
45	20	44	22.2	1.732	0.874	42.8	21	1.685	0.827
50	36	49	38	1.929	1.496	48	37	1.890	1.457
50	32	49	34.1	1.929	1.343	47.9	33	1.886	1.299
50	25	49	27.2	1.929	1.071	47.8	26	1.882	1.024
56	40	55	42	2.165	1.654	54	41	2.126	1.614
56	36	55	38.1	2.165	1.500	53.9	37	2.122	1.457
56	28	55	30.3	2.165	1.193	53.7	29	2.114	1.142
63	50	62	51.9	2.441	2.043	61.1	51	2.406	2.008
63	45	62	47	2.441	1.850	61	46	2.402	1.811
63	40	62	42.2	2.441	1.661	60.8	41	2.394	1.614
63	36	62	38.3	2.441	1.508	60.7	37	2.390	1.457
63	32	62	34.4	2.441	1.354	60.6	33	2.386	1.299
71	56	69.9	58	2.752	2.283	68.9	57	2.713	2.244
71	45	69.9	47.3	2.752	1.862	68.6	46	2.701	1.811
71	40	69.9	42.4	2.752	1.669	68.5	41	2.697	1.614
71	36	69.9	38.5	2.752	1.516	68.4	37	2.693	1.457
75	60	73.8	62	2.906	2.441	72.8	61	2.866	2.402
75	50	73.8	52.2	2.906	2.055	72.6	51	2.858	2.008
75	40	73.8	42.5	2.906	1.673	72.3	41	2.846	1.614
80	63	78.8	65	3.102	2.559	77.8	64	3.063	2.520
80	50	78.8	52.4	3.102	2.053	77.4	51	3.047	2.008
80	45	78.8	47.5	3.102	1.870	77.3	46	3.043	1.811
80	40	78.8	42.6	3.102	1.677	77.2	41	3.039	1.614
85	67	83.7	69.1	3.295	2.720	82.6	68	3.252	2.677
85	55	83.7	57.4	3.295	2.260	82.3	56.0	3.240	2.205
85	45	83.7	47.6	3.295	1.874	82.1	46.0	3.232	1.811
90	71	88.6	73.1	3.488	2.878	87.6	72.1	3.449	2.839
90	63	88.6	65.3	3.488	2.571	87.3	64.0	3.437	2.520
90	56	88.6	58.5	3.488	2.303	87.1	57.0	3.429	2.244
90	50	88.6	52.6	3.488	2.071	87.0	51.0	3.425	2.008
95	75	93.5	77.3	3.681	3.041	92.4	76.2	3.641	2.997
95	67	93.5	69.3	3.681	2.728	92.2	68.0	3.630	2.677
95	50	93.5	52.7	3.681	2.075	91.8	51.0	3.614	2.008
100	80	98.5	82.3	3.878	3.240	97.4	81.2	3.835	3.197
100	71	98.5	73.4	3.878	2.890	97.2	72.1	3.827	2.839
100	63	98.5	65.5	3.878	2.579	97.0	64.0	3.819	2.520
100	56	98.5	58.7	3.878	2.311	96.8	57.0	3.811	2.244
106	80	104.4	82.5	4.110	3.248	103.1	81.2	4.059	3.197
106	71	104.4	73.5	4.110	2.894	103.0	72.1	4.055	2.839
106	63	104.4	65.7	4.110	2.587	102.7	64.0	4.043	2.520
106	56	104.4	58.9	4.110	2.319	102.5	57.0	4.035	2.244
112	90	110.3	92.5	4.343	3.642	109.2	91.4	4.299	3.598
112	80	110.3	82.6	4.343	3.252	108.9	81.2	4.287	3.197
112	71	110.3	73.7	4.343	2.902	108.7	72.1	4.280	2.839
112	63	110.3	65.8	4.343	2.591	108.5	64.0	4.272	2.520
118	90	116.2	92.7	4.575	3.650	114.9	91.4	4.524	3.598
118	80	116.2	82.8	4.575	3.260	114.6	81.2	4.512	3.197
118	71	116.2	73.8	4.575	2.906	114.5	72.1	4.508	2.839
118	63	116.2	66.0	4.575	2.598	114.2	64.0	4.496	2.520
125	100	123.1	102.7	4.846	4.043	121.9	101.5	4.799	3.996
125	90	123.1	92.8	4.846	3.654	121.7	91.4	4.791	3.598
125	80	123.1	82.9	4.846	3.264	121.4	81.2	4.780	3.197
125	71	123.1	74.0	4.846	2.913	121.3	72.1	4.772	2.839
132	106	130.0	108.8	5.118	4.283	128.8	107.6	5.071	4.236
132	90	130.0	93.0	5.118	3.661	128.4	91.4	5.055	3.598
132	80	130.0	83.1	5.118	3.272	128.1	81.2	5.043	3.197
132	71	130.0	74.2	5.118	2.921	121.2	72.1	5.035	2.839
140	112	137.9	115	5.429	4.528	136.6	113.7	5.378	4.476
140	100	137.9	103.1	5.429	4.059	136.3	101.5	5.366	3.996
140	90	137.9	93.2	5.429	3.669	136.1	91.4	5.358	3.598
140	80	137.9	83.3	5.429	3.280	135.8	81.2	5.346	3.197
150	125	147.7	128.1	5.815	5.043	146.5	126.9	5.768	4.996
150	106	147.7	109.3	5.815	4.303	146	107.6	5.748	4.236
150	95	147.7	98.4	5.815	3.874	145.7	96.4	5.736	3.795
150	80	147.7	83.6	5.815	3.291	145.3	81.2	5.720	3.197
160	132	157.6	135.3	6.205	5.327	156.3	134	6.154	5.276
160	122	157.6	125.4	6.205	4.937	156	123.8	6.142	4.874
160	112	157.6	115.5	6.205	4.547	155.8	113.7	6.134	4.476
160	90	157.6	94.0	6.205	3.701	155.2	91.4	6.110	3.598
170	140	167.4	143.5	6.591	5.650	166	142.1	6.535	5.594
170	130	167.4	133.6	6.591	5.260	165.8	132	6.528	5.197
170	128	167.4	131.6	6.591	5.181	165.7	130	6.524	5.118
170	118	167.4	121.7	6.591	4.791	165.5	119.8	6.516	4.717
170	106	167.4	109.8	6.591	4.323	165.2	107.6	6.504	4.236
170	100	167.4	103.9	6.591	4.091	165	101.5	6.496	3.996
180	150	177.3	153.6	6.980	6.047	176	152.3	6.929	5.996
180	140	177.3	143.7	6.980	5.657	175.7	142.1	6.917	5.594
180	125	177.3	128.9	6.980	5.075	175.3	126.9	6.902	4.996
180	100	177.3	104.1	6.980	4.098	174.7	101.5	6.878	3.996
190	160	187.1	163.8	7.366	6.449	185.7	162.4	7.311	6.394
190	150	187.1	153.9	7.366	6.059	185.5	152.3	7.303	5.996
190	132	187.1	136	7.366	5.354	185.1	134	7.287	5.276
200	170	197.0	173.9	7.756	6.846	195.6	172.6	7.701	6.795
200	160	197.0	164	7.756	6.457	195.4	162.4	7.693	6.394
200	150	197.0	154.1	7.756	6.067	195.2	152.3	7.685	5.996
200	140	197.0	144.2	7.756	5.677	194.9	142.1	7.673	5.594
212	170	208.8	174.2	8.220	6.858	207.2	172.6	8.157	6.795
212	150	208.8	154.4	8.220	6.079	206.6	152.3	8.133	5.997
212	130	208.8	134.6	8.220	5.299	206.2	132	8.118	5.197
224	180	220.6	184.4	8.685	7.260	218.9	182.7	8.618	7.193
224	140	220.6	144.8	8.685	5.701	217.9	142.1	8.579	5.594
236	190	232.4	194.6	9.150	7.661	230.7	192.9	9.083	7.594
236	150	232.4	155.0	9.150	6.102	229.7	152.3	9.043	5.996
250	200	246.2	204.9	9.693	8.067	244.3	203.0	9.618	7.992
275	200	268.9	205.4	10.587	8.087	266.5	203.0	10.492	7.992
