Keep bulk stock of low Alloy Steel Bolts and Nuts, Studs at best price in China.
China’s Largest b7 and grade 12.9 alloy steel fasteners, shoulder screw and wheels steel nuts suppliers in mumbai, China

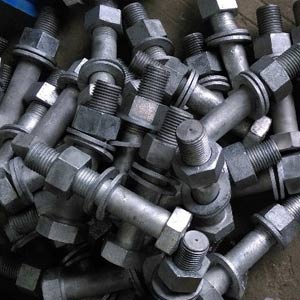

Alloy Steel Fasteners

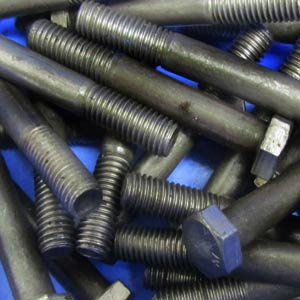

Low Alloy Steel Bolts

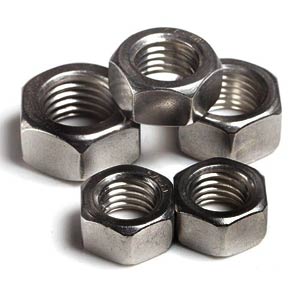

alloy steel nuts
Table of Content
The primary reason that has businesses choose using alloy steel over carbon steel grades is that their properties are noticeably higher. Unlike carbon steels, which provide the user with minimum to no corrosion resistance properties, Alloy Steel Fasteners Manufacturers In China recommend using steels belonging to this category, simply because their properties are better. Though in comparison the cost of using Alloy Steel Bolts for these applications makes the overall cost a little higher, the improvement of the properties makes it worth it.
Along with being tough, the Alloy Steel Stud Bolts generally display good behaviour when exposed to both low as well as high temperature settings. They have a higher tolerance to oxidation. Some grades of Alloy Steel Nuts, depending on their chemistry, have very high tensile strength, some of which are even better than conventional stainless steel grades. Not only is the Alloy Steel Washers hard, but they also have better durability and are able to take high pressure loads, without the fear of failure.
Unlike carbon steels that are hard and brittle, these fasteners have some form of ductility, which is important, especially if they are under duress. A small amount of ductility enables the Alloy Steel Screws to expand to such a degree that it is able to cater to the application, without breaking.
4130 Grade U Bolts

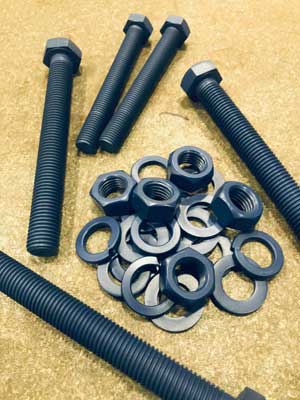

4130 PTFE Coated Nut Bolt Washer

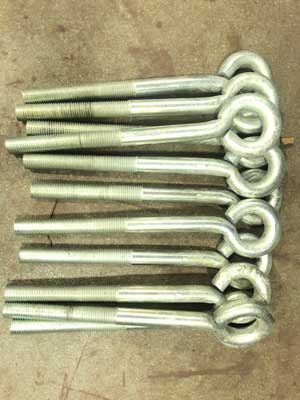

4140 Grade Hdg Eye Bolt

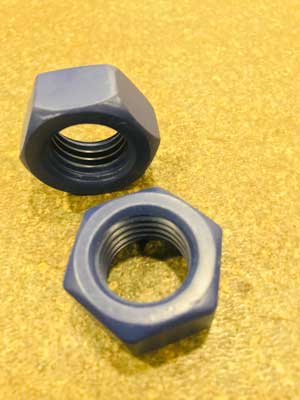

4140 Grade PTFE Coated Nut

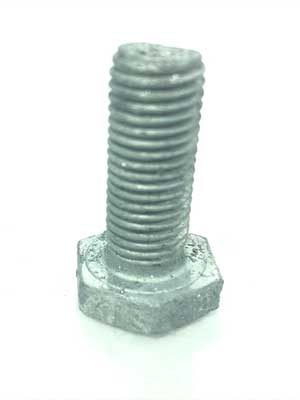

4140 Hot Dip Galvanized Bolt

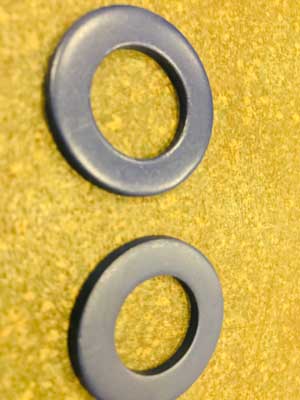

4140 PTFE Coated Washer

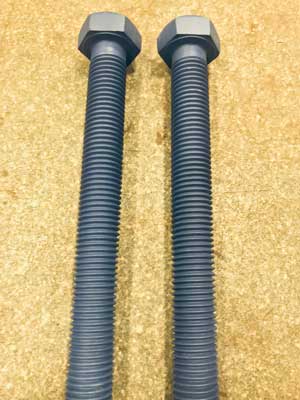

4140 Xylan Coated Bolts
| Fasteners Material Specification | ASTM A193 / ASME SA 193, ASTM A194/ ASME SA 194 |
|---|---|
| Standard | JIS, BS, IS, ASME, ANSI, ISO, GB, ASTM, DIN, UNI |
| Fasteners/ Bolts Size | M3, M16, M30, M36, M6, M12, M24, M10, M2.5, M20, M5, M2, M14, M4, M8, to M160 |
| Length | 3 to 200 mm |
| Bolts, Studs Threads: | UNC, METRIC, BSW, UNF, BSF, or as required |
| Fasteners Standard: | ANSI – American National Standards Institute
UTS – Unified Thread Standard : UNC, UNF, UNEF, UNS, NPT, NPTF DIN: DIN 934, DIN 933, DIN 931, DIN 970 ISO : ISO 4033, ISO 4032, JIS standards |
| Source of raw materials | Mukund Steel, JSPL, RINL, Dhamm Steel,Tata Steel, Usha Martinetc. |
| Fasteners In Form of: | Square, Hex, Threading, Round Etc. |
| Head drive: | Slotted, Phillips, Six-Lobeetc |
| Production process | hot forging M24 to M100, machining and CNC , M2 to M24: Cold Froging, |
| bolting materials Coating: |
All surface finishes offered including Galvanised, Zinc, Sherardized, PTFE & Geomet , Electroless Nickel, Dacromet |
| bolting Test Certificate: | EN 10204 / 3.1 |
| Fasteners Packing: | IN BULK: pallet, canton, carton / Small Boxs / pallet, or custom |
leading astm a194 grade b7 nuts, astm a193 gr b7m Hex Head Screw suppliers in China. We stock full range of ASTM A194 Grade 6 Fasteners, astm a563 grade a nut at best Price in China.
- Alloy Steel Hex bolt: Price US$ 900.00-US$ 2,000.00 / Ton
- DIN912 socket head cap screws alloy steel: Price US$ 0.05-US$ 0.20 / Piece
- Alloy Steel stud bolt: Price US$ 800.00-US$ 900.00 / Ton
- Alloy Steel Threaded Rod : Price US $0.01 / Piece
Please note this is an approx Cost of Alloy Steel fasteners China. For final ASTM A194 Alloy Steel fasteners, price list please mail us.
Alloy Steel Nuts & Washers
Alloy Steel Rings
Alloy Steel Springs
Alloy Steel Hex Head Bolts
Alloy Steel Nuts and Bolts
Alloy Steel Bolts and Nuts
Alloy Steel Exhaust Bolts
Alloy Steel Hex Bolts
Alloy Steel Anchor Bolt
Alloy Steel Square U Bolts
Alloy Steel Carriage Bolts
Alloy Steel Countersunk Bolts
Alloy Steel Stud Bolts
Alloy Steel M10 Bolts
Alloy Steel U Bolts
Alloy Steel Lag Bolts
Alloy Steel Threaded Rod
Alloy Steel Threaded Inserts
Alloy Steel Threaded Stud
Alloy Steel Double End Threaded Rod
Alloy Steel Flat Head Screws
Alloy Steel Machine Screws
Alloy Steel Self Tapping Screws
Alloy Steel Self Drilling Screw
Alloy Steel Nord Lock Washers
Alloy Steel Hex Nuts
Alloy Steel Barrel Nuts
Alloy Steel Wheel Nuts
Alloy Steel Washers
Alloy Steel Flat Washers
Alloy Steel Belleville Washers
Alloy Steel Spring Washers
Alloy Steel Dowel Pins
Alloy Steel Spring Pin
Alloy Steel Studs
Alloy Steel Exhaust Studs
Alloy Steel Socket Head Cap Screws
Alloy Steel Set Screws
Alloy Steel Cap Screws
Alloy Steel Hex Cap Screws
Any Quantity Of alloy steel fasteners sds suppliers in Shenzhen, China, Find Amazing Deals from alloy steel shoulder bolts, socket nut, 9310 alloy steel bolt, wheels steel bolts manufacturers in China
|
Alloy Steel Screws Type
|
GRADE
|
SIZE
|
ASTM
|
ASME
|
ISO
|
|---|---|---|---|---|---|
|
Socket Low Head Cap Screws
|
10.9
|
M4 to M20
|
|
|
|
|
Socket Head Cap Screws
|
12.9
|
M1.6 to M64
|
A574M
|
B18.3.1 M
|
4762
|
|
Countersunk Socket Head Screws
|
012.9
|
M3 to M20
|
F835M
|
B18.3.5M
|
10642
|
|
Cone Point Socket Set Screws
|
45H
|
M3 to M12
|
F912M
|
B18.3.6M
|
4027
|
|
Taper Pressure Plug
|
–
|
M8 to M22
|
|
|
|
|
Socket Head Shoulder Screws
|
012.9
|
M6 to M24
|
|
B18.3.3M
|
|
|
Flange Button Head Socket Screws
|
012.9
|
M3 to M10
|
F835M
|
|
|
|
Button Head Socket Screws
|
012.9
|
M3 to M12
|
F835M
|
B18.3.4M
|
7380
|
|
Knurled Point Socket Set Screws
|
45H
|
M3 to M20
|
F912M
|
B18.3.6M
|
4029
|
|
Dog Point Socket Set Screws
|
45H
|
M3 to M20
|
F912M
|
B18.3.6M
|
4028
|
|
Flat Point Socket Set Screws
|
45H
|
M6 to M12
|
F912M
|
B18.3.6M
|
4026
|
|
Plain Point Socket Set Screws
|
45H
|
M3 to M20
|
F912M
|
B18.3.6M
|
4029
|
|
Alloy Steel Bolt Type
|
STANDARD
|
PROPERTY CLASS
|
SIZE
|
TENSILE STRENGTH
|
|---|---|---|---|---|
|
Alloy Steel Hex Head Bolt / Screws
|
ISO 4017 (Full Thread)
ISO 4014 (Half Thread) |
10.9
|
M4 to M80
|
1040N / mm2 min
|
|
Alloy Steel Nuts Type
|
SIZE
|
PROPERTY CLASS
|
STANDARD
|
|---|---|---|---|
|
Nylock Nut
|
M6 to M20 (Gr.8)
M10 to M24 (Gr.10) |
8 & 10
|
DIN 985
|
|
Hex Nut
|
M6 to M42
|
10
|
ISO 4032
|
|
Nylock Nut
|
M6 to M20 (Gr.8)
M10 to M24 (Gr.10) |
8 & `10
|
DIN 982
|
|
Hex Weld Nut
|
M6 to M12
|
8
|
DIN 929
|
|
Alloy Steel Washers Type
|
HARDNESS
|
SIZE
|
STANDARD
|
|---|---|---|---|
|
Hardened Steel Washer
|
Rockwell 26 to 45 (HDG)
Rockwell 38 to 45 (Coated) |
12mm to 56mm
|
ASTM F436M
|
|
Flat Section Spring Washer
|
HV (430 to 530)
|
3mm to 39mm
|
DIN 127 B
|
|
Hardened Washer
|
HV (300 to 370)
|
12mm to 30mm
|
IS 2016
|
|
Square Section Spring Washer
|
HV (430 to 530)
|
3mm to 39mm
|
DIN 7980
|
Below table compares various metric sizes to the closest inch equivalent
|
Metric
|
Closest Inch
|
|---|---|
|
M2-0.4
|
1-64 (Smaller)
|
|
M1.4-0.3
|
0-80 (Larger)
|
|
M3-0.5
|
4-48 (Smaller)
|
|
M2.5-0.45
|
3-56 (Larger)
|
|
M36-4.0
|
1 3/8-6 (Smaller)
|
|
M4-0.7
|
8-36 (Larger)
|
|
M3.5-0.6
|
6-40 (Same)
|
|
M5-0.8
|
10-32 (Smaller)
|
|
M7-1.0
|
1/4-28 (Smaller)
|
|
M6-1.0
|
1/4-28 (Larger)
|
|
M8-1.25
|
5/16-18 (Smaller)
|
|
M12-1.75
|
1/2-13 (Larger)
|
|
M10-1.5
|
3/8-16 (Smaller)
|
|
M14-2.0
|
9/16-12 (Larger)
|
|
M18-2.5
|
3/4-10 (Larger)
|
|
M16-2.0
|
5/8-11 (Smaller)
|
|
M20-2.5
|
3/4-10 (Smaller)
|
|
M24-3.0
|
1-8 (Larger)
|
|
M22-2.5
|
7/8-9 (Larger)
|
|
M30-3.5
|
1 1/8-7 (Smaller)
|
DIN and ISO designations
|
No.
|
Description
|
|---|---|
|
DIN 85
|
Slotted Pan Head Machine Screws
|
|
DIN 84
|
Slotted Cheese Head Machine Screws
|
|
DIN 125A
|
Flat Washer (without Chamfer)
|
|
DIN 94
|
Cotter Pin
|
|
DIN 125B
|
Flat Washer (with Chamfer)
|
|
DIN 137B
|
Spring Wave Washer
|
|
DIN 127B
|
Split Lock Washer
|
|
DIN 439B
|
Machine Screws Hex Nut, Finished Hex Jam Nut
|
|
DIN 315
|
Wing Nut
|
|
DIN 911
|
Long Arm Hex Key
|
|
DIN 916
|
Hex Socket Set Screws
|
|
DIN 912
|
Hex Socket Head Cap Screws
|
|
DIN 931
|
Hex Head Cap Screws Partially Threaded
|
|
DIN 934
|
Finished Hex Nut
|
|
DIN 933
|
Hex Head Cap Screws Fully Threaded
|
|
DIN 939
|
Double End Stud
|
|
DIN 961
|
Hex Head Cap Screws Fully Threaded
|
|
DIN 960
|
Hex Head Cap Screws Partially Threaded
|
|
DIN 963
|
Slotted Flat Head Machine Screws
|
|
DIN 965
|
Phillips Flat Head Machine Screws
|
|
DIN 964
|
Slotted Oval Head Machine Screws
|
|
DIN 966
|
Phillips Oval Head Machine Screws
|
|
DIN 980V
|
Hex Steel Prevailing Torque Lock Nut
|
|
DIN 975
|
Threaded Rod
|
|
DIN 985
|
Hex Nylon Insert Lock Nut
|
|
DIN 6797A
|
External Tooth Lock Washer
|
|
DIN 6334
|
Rod Coupling Nut
|
|
DIN 7991
|
Hex Flat Socket Head Cap Screws
|
|
DIN 6797J
|
Internal Tooth Lock Washer
|
|
DIN 6921
|
Hex Flange Head Screws
|
|
DIN 6912
|
Hex Low Socket Head Cap Screws
|
|
DIN 6923
|
Hex Flange Nut
|
|
ISO 7380
|
Hex Button Socket Head Cap Screws
|
|
ISO 7379
|
Hex Socket Head Shoulder Screws
|
|
DIN 7985
|
Phillips Pan Head Machine Screws
|
ANSI or ASME Standards (inch series)
| ASME B18.8.2 | Taper Pins, Dowel Pins, Straight Pins, Grooved Pins and Spring Pins | ASME B18.1.2 | Large Rivets |
|---|---|---|---|
| ASME B18.8.1 | Cotter Pins and Clevis Pins | ASME B18.1.1 | Small Solid Rivets |
| ASME B18.22.1 | Plain Washers | ASME B18.6.4 | Thread Forming and Thread Cutting Tapping Screws and Metallic Drive Screws |
| ASME B18.11 | Miniature Screws | ASME B18.2.6 | Fasteners for use in Structural Applications |
| ASME B18.9 | Plow Bolts | ASME B18.2.1 | Hex and Square Bolts and Screws |
| ASME B18.15 | Forged Eyebolts | ASME B18.5 | Round Head Bolts |
| ASME B18.10 | Track Bolts and Nuts | ASME B18.2.2 | Square and Hex Nuts |
| ASME B18.13 | Washer Assemblies (Sems) and Screws | ASME B18.3 | Socket Cap, Shoulder and Set Screws |
| ASME B18.17 | Wing Nuts,Thumb Screws and Wing Screws | ASME B18.6.2 | Square Head Set Screws, Slotted Head Cap Screws, and Slotted Headless Set Screws |
| ASME B18.21.1 | Lock Washers | ASME B18.6.3 | Machine Nut and Screws |
| ASME B18.23.1 | Beveled Washers | ASME B18.7 | General Purpose Semi- Tubular Rivets, Full Tubular Rivets, Rivet Caps and Split Rivets |
We are Alloy Steel Fasteners suppliers in China offer these Alloy Steel Hex Bolts in DIN, ISO, JIS or ANSI standard.
| Standard / Material grade | Mn | V | C | S | P | Si | Mo | Cr | Al |
|---|---|---|---|---|---|---|---|---|---|
| ASTM A1193 B7M (Cr to Mo AISI 4142,4140,4145 ) | 0.65 to 1.10 | – | 0.37 to 0.49 | 0.04 Max | 0.035 Max | 0.15 to 0.35 | 0.15 to 0.25 | 0.75 to 1.20 | – |
| ASTM A193 B7 (Cr to Mo AISI 4142,4140,4145 ) | 0.65 to 1.10 | – | 0.37 to 0.49 | 0.04 Max | 0.035 Max | 0.15 to 0.35 | 0.15 to 0.25 | 0.75 to 1.20 | – |
| ASTM A193 B5 (5% Cr AISI 501) | 1.00 max | – | 0.10 max | 0.030 Max | 0.040 max | 1.00 Max | 0.40 to 0.65 | 0.40 to 6.00 | – |
| ASTM A193 B16 (Cr to Mo to V ) | 0.45 to 0.70 | 0.25 to 0.35 | 0.36 to 0.47 | 0.04 Max | 0.035 Max | 0.15 to 0.35 | 0.50 to 0.65 | 0.80 to 1.15 | 0.015Max |
| ASTM A 320 L7M | 0.75 to 1.00 | – | 0.38 to 0.48 | 0.04 Max | 0.035 Max | 0.15 to 0.35 | 0.15 to 0.25 | 0.80 to 1.10 | – |
| ASTM A320 to L7 (Cr to Mo AISI 4142,4140,4145 ) | 0.75 to 1.00 | – | 0.38 to 0.48 | 0.04 Max | 0.035 Max | 0.15 to 0.35 | 0.15 to 0.25 | 0.80 to 1.10 | – |
| ASTM A194 Gr.2HM | 1.00 Max | – | 0.40 Min | 0.050 Max | 0.040 Max | 0.40 Max | – | – | – |
| ASTM A194 Gr.2H | 1.00 Max | – | 0.40 Min | 0.050 Max | 0.040 Max | 0.40 Max | – | – | – |
| ASTM A194 Gr.4 | 0.70 to 0.90 | – | 0.40 to 0.50 | 0.04 Max | 0.035 Max | 0.15 – 0.35 | – | 0.20 – 0.30 | – |
ASTM A193 Alloy Steel Fasteners Mechanical Properties(Bolt -Grade Identification Markings)
|
Size
|
Grade
|
Tensile ksi, min
|
RA % min
|
Yield, ksi, min
|
Elong, %, min
|
|---|---|---|---|---|---|
|
All
|
B8 Class 1
|
75
|
50
|
30
|
30
|
|
Up to 2-1/2
|
B7
|
125
|
50
|
105
|
16
|
|
2-5/8 – 4
|
115
|
50
|
95
|
16
|
|
|
4-1/8 – 7
|
100
|
50
|
75
|
18
|
|
|
Up to 3/4
|
B8 Class 2
|
125
|
35
|
100
|
12
|
|
7/8 – 1
|
115
|
35
|
80
|
15
|
|
|
1-1/8 – 1-1/4
|
105
|
35
|
65
|
20
|
|
|
1-3/8 – 1-1/2
|
100
|
45
|
50
|
28
|
|
|
All
|
B8M Class 1
|
75
|
50
|
30
|
30
|
|
Up to 3/4
|
B8M Class 2
|
110
|
45
|
95
|
15
|
|
7/8 – 1
|
100
|
45
|
80
|
20
|
|
|
1-1/8 – 1-1/4
|
95
|
45
|
65
|
25
|
|
|
1-3/8 – 1-1/2
|
90
|
45
|
50
|
30
|
ASTM A194 Alloy Steel Fasteners Mechanical Properties(Bolt -Grade Identification Markings)
|
Material
|
Specification
|
Nominal Size, In.
|
Hardness Rockwell
|
See Note
|
ksi, Proof Load Stress
|
Tempering Temp. °F
|
|
|---|---|---|---|---|---|---|---|
|
Max
|
Min
|
||||||
|
Medium Alloy Steel, Quenched and Tempered
|
ASTM A194 Grade 2H
|
1/4 to 4
|
C38
|
C24
|
1,2
|
175
|
850
|
|
ASTM A194 Grade 2HM
|
1/4 to 4
|
237
|
159
|
1,2,3
|
150
|
1150
|
|
|
ASTM A194 Grade 4
|
1/4 to 4
|
C38
|
C24
|
1,2
|
175
|
1100
|
|
|
ASTM A194 Grade 7
|
1/4 to 4
|
C38
|
C24
|
1,2
|
175
|
1100
|
|
|
ASTM A194 Grade 7M
|
1/4 to 4
|
237
|
159
|
1,2,3
|
150
|
1150
|
|
|
Stainless AISI 304
|
ASTM A194 Grade 8
|
1/4 to 4
|
300
|
126
|
4
|
80
|
–
|
|
Medium Alloy Steel
|
ASTM A194 Grade 2
|
1/4 to 4
|
352
|
159
|
1,2,3
|
150
|
0
|
|
Stainless AISI 316
|
ASTM A194 Grade 8M
|
1/4 to 4
|
300
|
126
|
4
|
80
|
–
|
Grades Covered Under Astm A194
|
2H
|
Quenched & tempered Alloy steel heavy hex nuts
|
|---|---|
|
2
|
Alloy steel heavy hex nuts
|
|
2HM
|
Quenched & tempered Alloy steel heavy hex nuts
|
|
7
|
Quenched & tempered alloy steel heavy hex nuts
|
|
4
|
Quenched & tempered Alloy-molybdenum heavy hex nuts
|
|
8
|
Stainless AISI 304 heavy hex nuts
|
|
7M
|
Quenched & tempered alloy steel heavy hex nuts
|
|
8M
|
Stainless AISI 316 heavy hex nuts
|
|
Properties
|
Imperial
|
Metric
|
|---|---|---|
|
Melting point
|
2580°F
|
1416°C
|
|
Density
|
0.284 lb/in³
|
7.85 g/cm3
|
Recommended Nuts,Bolts & Washer
|
Nuts
|
Bolt Grade
|
Washers
|
|---|---|---|
|
A194 Grade 8
|
B8 Class 1
|
SS304
|
|
A194 Grade 2H
|
B7
|
F436
|
|
A194 Grade 8
|
B8 Class 2
|
SS304
|
|
A194 Grade 8M
|
B8M Class 1
|
SS316
|
|
A194 Grade 8M
|
B8M Class 2
|
SS316
|
-
- ISO 4762 Weight Chart (Hexagon Socket Head Cap Screw)
- ISO 4014 Weight Chart (Hexagon Head Bolt And Screw)
- DIN 938 Stud Dimensions (Stud And Stud Bolt)
- ISO 4762 Weight Chart (Hexagon Socket Head Cap Screw)
- ISO 7089 Weight Chart (Plain Washer)
- ISO 4032 Weight Chart (Hexagon Nut)
- ISO 10642 Weight (Countersunk Screw)
- ISO 14583 Weight (Thread Forming Screw)
