Stainless Steel 316 Round Bar

ASTM A276/ A479 Type 316 Rod & Hex Bar manufacturers in China



Don’t spend for extra size of UNS S31600 AISI 316 Flat bar, we supply custom sizes DIN 1.4401 Bright and Square Bar & shaft for pumps

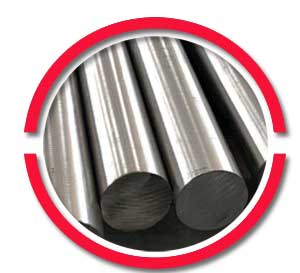

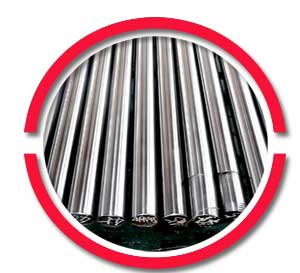

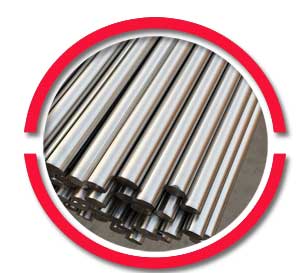

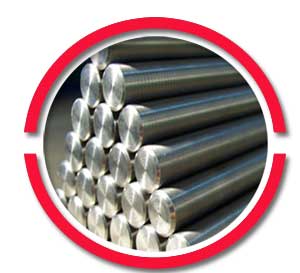

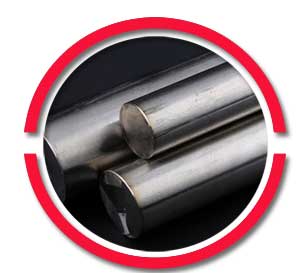

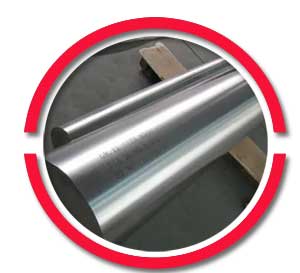

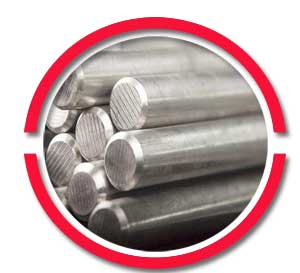

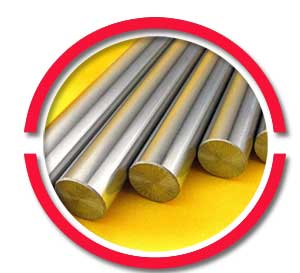

Stainless Steel 316 Round Bar is made up of an austenitic stainless steel type that has chromium, nickel and molybdenum in the composition. The SS 316 Rod is the second most used of the stainless steel bars next to the 304 grade of bars. There are different specifications to the round bars such as the ASTM A276 type 316 Bright Round bars which are intended for high temperature applications.

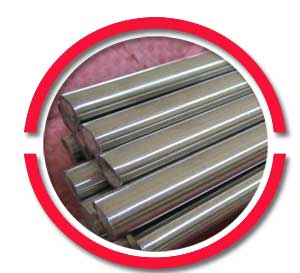

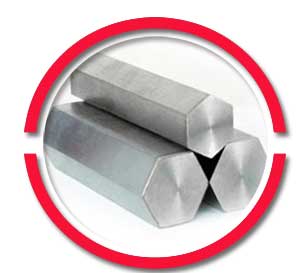

The different finishes such as bright, polished and black bars are useful in different applications. The UNS S31600 AISI 316 Black Bar is raw and can be used in low oxidizing, low corrosive areas. The coated, bright and polished bars have less corrosion risk. The 316 material is particularly resistant to chloride ion corrosion. So the ASTM A479 Stainless Steel 316 Hex Bar and other types are mostly used in marine and sea water structural applications.

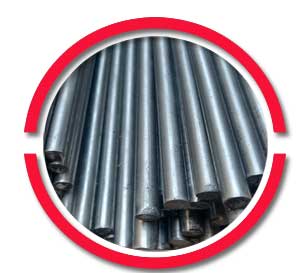

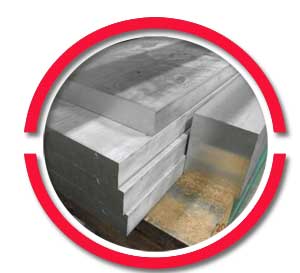

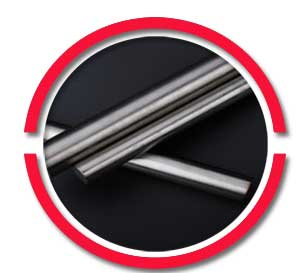

The bars are also used in construction industries. There are other uses of the Stainless Steel 316 Square Bar in oil and gas, petroleum, general corrosive, transportation and other applications. The bar ranges in size and dimensions according to the different standards. The 316 Stainless Steel Flat Bar is made up of carbon, manganese, silicon, phosphorus, sulfur, chromium, nickel, nitrogen and molybdenum. The minimum yield strength of the material is 205MPa and the minimum tensile strength is 515MPa. The SS 316 Cold Drawn Round Bar has 35% elongation rate and has very high melting point of 1454 degrees Celsius. Please contact us for the complete price list and different types such as the ASTM A276 SS 316 Threaded Bar.



---



---

*Approx price, please contact for final price.



---



Check standard specification & price list of SS 316 Forged Bar and threaded bar Ex Shenzhen



---

• Customer service provided at High Temperature Fasteners Inc. is of the highest standard.
• Material used in round bar production is of high quality.
• Equipment is updated and regularly maintained.
• You will get exactly what you need and when you need it.
• Cost effective and high quality Stainless Steel 316 Round Bar is supplied.



---



---



---



---

Diameter – Smooth Turned

(These are H10 tolerances, which are ‘all minus’ tolerances )

Diameter (mm)	Tolerance (mm)
18 to 30	+0 / -0.084
31 to 50	+0 / -0.100
51 to 79	+0 / -0.120



Diameter – Rough Turned

(These are ‘all plus’ tolerances)

Diameter (mm)	Tolerance (mm)
75 to 150	-0 / +1.5
151 to 225	-0 / +2.0
226 to 410	-0 / +3.0



Diameter – Bright Drawn

These are H9 Tolerances
H9 Tolerances are ‘all minus’ tolerances:

+0mm / – Figure in table

Diameter (mm)	Tolerance (mm)
6 to 10	+0 / -0.036
11 to 18	+0 / -0.043
19 to 30	+0 / -0.052

Tolerance In Mm For Given Tolerance Number

Diameter (mm)	6	7	8	9	10	11	12	13
>1 to 3 inc.	0.007	0.009	0.014	0.025	0.040	0.060	0.090	0.140
>3 to 6 inc.	0.008	0.012	0.018	0.030	0.048	0.075	0.120	0.180
>6 to 10 inc.	0.009	0.015	0.022	0.036	0.058	0.090	0.150	0.220
>10 to 18 inc.	0.011	0.018	0.027	0.043	0.070	0.110	0.180	0.270
>18 to 30 inc.	0.013	0.021	0.033	0.052	0.084	0.130	0.210	0.330
>30 to 50 inc.	0.016	0.025	0.039	0.062	0.100	0.160	0.250	0.390
>50 to 80 inc.	0.019	–	0.046	0.074	0.120	0.190	0.300	0.460
>80 to 120 inc.	0.022	–	–	0.087	0.140	0.220	0.350	0.540
>120 to 180 inc.	0.025	–	–	0.100	0.160	0.250	0.400	0.630
>180 to 250 inc.	–	–	–	0.115	0.185	0.290	0.460	0.720
>250 to 315 inc.	–	–	–	–	–	0.320	0.520	0.810
>315 to 400 inc.	–	–	–	–	–	0.360	0.570	0.890
>400 to 500 inc.	–	–	–	–	–	0.400	0.630	0.970
> 500	–	–	–	–	–	0.440	0.700	1.100



Tolerances on cross sections

Nominal dimension	Tolerance class to ISO 286-2
	h6	h7	h8	h9	h10	h11	h12
over 1 up to 3	0.006	0.010	0.014	0.025	0.040	0.060	0.100
over 3 up to 6	0.008	0.012	0.018	0.030	0.048	0.075	0.120
over 6 up to 10	0.009	0.015	0.022	0.036	0.058	0.090	0.150
over 10 up to 18	0.011	0.018	0.027	0.043	0.070	0.110	0.180
over 18 up to 30	0.013	0.021	0.033	0.052	0.084	0.130	0.210
over 30 up to 50	0.016	0.025	0.039	0.062	0.100	0.160	0.250
over 50 up to 80	0.019	0.030	0.046	0.074	0.120	0.190	0.300
over 80 up to 120	0.022	0.035	0.054	0.087	0.140	0.220	0.350
over 120 up to 180	0.025	0.040	0.063	0.100	0.160	0.250	0.400
over 180 up to 200	0.029	0.046	0.072	0.115	0.185	0.290	0.460



Tolerances on length

Type of length	Length	Limit deviation	To be stated on order
Manufacturing length	3000 to 9000	+/- 500	Length
Stock length	3000 or 6000	0, +200	eg 6000
Cut to length	Up to 9000	To specifications with +/- 5 minimum	Length and tolerance



Tolerances on straightness

Product form	Nominal dimension	Deviation
Rounds	–	1.0
Squares and hexagons	up to 75	1.0
	over 75	1.5
Flats	width below 120	1.5 on width / 2.0 on thickness
	width at or over 120 and w/t below 10:1	2.0 on width / 2.5 on thickness
	width at and over 120 and w/t at or over 10:1	2.5 on width / 3.0 on thickness



---

---





---

Cut to size on request (tolerance +2/-0 mm). 316 Stainless Steel Bars Standard lengths of 2000 mm up to 6000 mm.

---

---



SUS 316 hot rolled and Cold Finished Bars stock with Black, Bright Polished, Rough Turned, NO.4, Matt and BA Finishat factory price



---



buy Custom Cut Lengths of ASME SA479 grade 316 Hexagonal Bar conforms to NACE MR0175/ISO 15156



---



---
