Inconel 600 Bolts & Fasteners manufacturer

Nickel Alloy 600 Fasteners and forging Suppliers

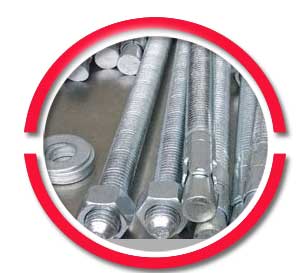

Inconel Fasteners
Inconel Fasteners

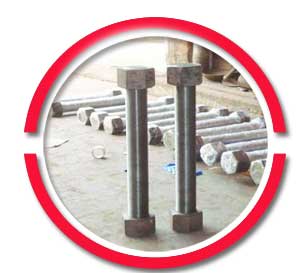

Inconel 600 Bolts
Inconel 600 Bolts

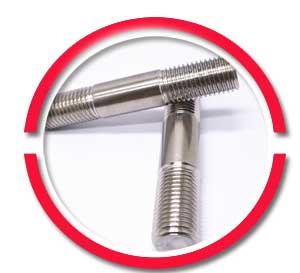

Nickel Alloy 600 Stud Bolts
Nickel Alloy 600 Stud Bolts

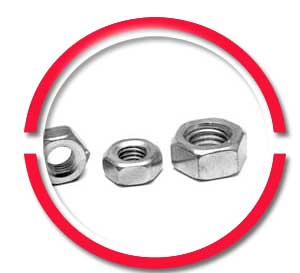

UNS N06600 Nuts
UNS N06600 Nuts

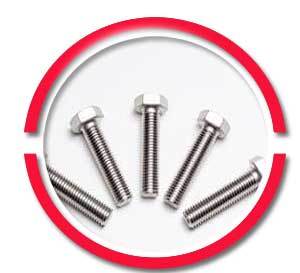

DIN 2.4816 Hex Bolts
DIN 2.4816 Hex Bolts

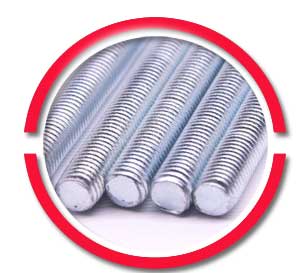

ASME SB166 Alloy 600 Threaded Rod
ASME SB166 Alloy 600 Threaded Rod



Inconel nut bolt manufacturer, buy Metric & Imperial ASTM B166 UNS N06600 Stud Bolts and Threaded Rod/ Bar



Table of Content



Inconel 600 Bolts Nuts are made up of a material with carbon, manganese, silicon, 6% iron, sulfur, 14% chromium, copper and 72% nickel in the composition. So it is essentially a nickel chromium alloy. High Temperature Fasteners is a leading Inconel Fasteners manufacturer and we produce the fasteners in different types, shapes and sizes. The material has higher mechanical properties with 340MPa minimum yield strength and 655MPa minimum tensile strength.

The Inconel 600 Bolts and Nuts belong to ASTM B166 specification. There are different standards covering the different dimensions of the fasteners. The length of the Nickel Alloy 600 Screws range from 3mm to 200mm. Screws are used in applications where the use of bolts and nuts are not possible. There are different types of screws as well. There are UNS N06600 Stud Bolt types which range in thickness from 3/6 inches to 2 inches or M3 through M56.

The fasteners could be prone to stress corrosion cracking in concentrated and hot caustic alkalis. But the Inconel 600 Hex Bolt can withstand steam, air, carbon dioxide and the mixtures of these ingredients. The material is resistant against salt water, exhaust gases and organic acids. The fasteners such as the Inconel 600 Threaded Rod can be hardened by cold working and these are used in some of the high performance applications. Please contact us to know more about the different types of fasteners such as the Inconel Socket Head Cap Screws and other types along with prices.



Inconel Allen Cap Screw/
Inconel Allen Cap Screw

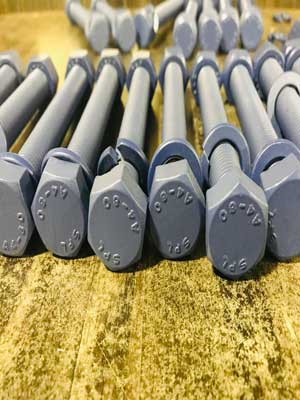

Inconel Bolts PTFE Coated
Inconel Bolts PTFE Coated

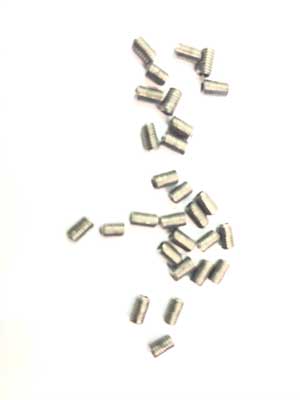

Inconel Grub Screw
Inconel Grub Screw

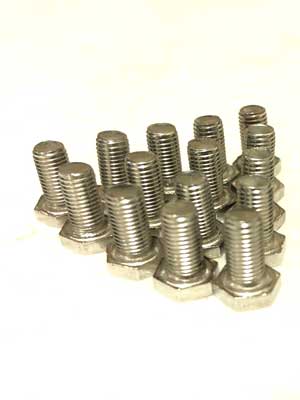

Inconel Hex Bolt
Inconel Hex Bolt

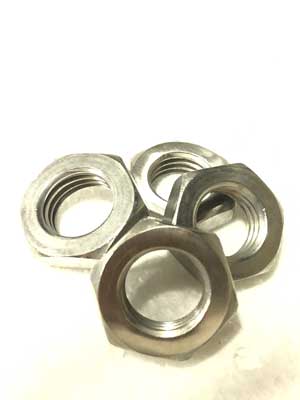

Inconel Locknut/
Inconel Locknut

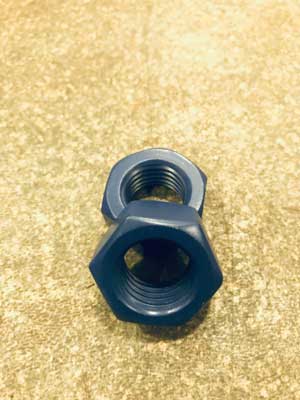

Inconel PTFE Coated Nut
Inconel PTFE Coated Nut
Inconel Stud
Inconel Stud

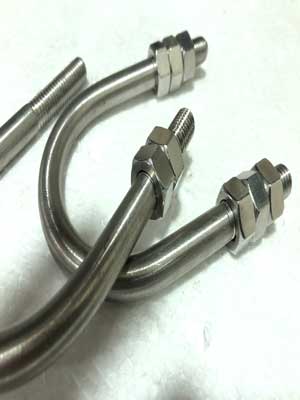

Inconel U Bolt
Inconel U Bolt




Size Standard And Specification Of Inconel Fasteners
 Material Specification ASTM B 166 ASME SB 166, UNS 6600 Bolts
Inconel 600 Bolts, Studs Threads: METRIC, BSW, BSF, UNC, UNF or as required
Alloy 600 Fasteners Standard: ANSI – American National Standards Institute
  • ANSI B 18.2.4 2M
  • ANSI B 28.2.4 1M
  • Alloy C276 Stud Bolt length are defined in ASME B16.5 standard
  • Alloy C276 Hex nuts are defined in ASME B18.2.2
  • ASME B18.5

DIN: DIN 931, DIN 933, DIN 934, DIN 970

UTS – Unified Thread Standard : UNC, UNF, UNEF, UNS, NPT, NPTF

ISO – International Organization for Standardization : ISO 4032, ISO 4033, JIS standards
Source of raw materials Tata Steel, JSPL, RINL, Usha Martin, Dhamm Steel, Mukund Steel etc.
Scope Of Manufacture
  • Hot Forged , Nut / Bolt; up to M36 / 1-1/2” Dia, up to 1100mm lg
  • CNC Machined , Nut / Bolt; up to M100 / 4” Dia, up to 1500mm lg
Inconel 600 bolting materials Surface Coating:
  • Teflon Coated Hastelloy Fasteners
  • Phosphate Coated Hastelloy Fasteners
  • Zinc Coated Hastelloy Fasteners
  • Ptfe Coated
  • Xylon Coated Hastelloy Fasteners
  • Cadmium Coated Hastelloy Fasteners
  • Hot Dipped Galvanizing Coated Hastelloy Fasteners

All surface finishes offered, including Galvanised, Zinc, Electroless Nickel, Sherardized,Geomet & PTFE, Dacromet
In Form of: Hex, Square, Round, Threading as per Gauge Etc.
Head drive: Phillips, Slotted, Phillips/Slot, Six-Lobe, etc
Standard DIN, UNI, ISO, JIS, GB, IS, BS, ASME, ANSI, ASTM and all International Standards
/ Bolts Size M2, M2.5, M3, M4, M5, M6, M8, M10, M12, M14, M16, M20, M24, M30, M36 to M160
Length 3 mm to 200 mm
Inconel 600 bolting Test Certificate: Manufacturer Test Certificate as per EN 10204 / 3.1
Popular Types of Alloy 600 Bolts Inconel 600 Hex Bolts, Flange Bolts, Hex Head Bolts, Lag Bolts, Square Bolts, Eye Bolts, U Bolts, T Bolts, Counter sunk Bolts etc.
Types of Alloy 600 Nut Inconel 600 Hex Head Nut, Eye Nut, Dome Nut, Wing Nut, T Nut, Panel Nut, Lock Nut, Coupling Nut, Square Nut, Acorn Nut etc.
Types of Alloy 600 Screw Inconel 600 Hex Head Cap Screws, Socket Set Screws, Anchor Screws, Blind Rivet, Socket Head Screws, Concrete Screws, Shoulder Screws, Panel Screws, Threaded Screws, Machine Screws etc.
Widely used Alloy 600 Washer Inconel 600 Machine Washers, Flat Washer, Star Washers, Sealing Washer, Lock Washer, Split Washer etc.
finishing: Zinc (yellow, white, blue, black), black oxide,
Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Stainless steel: Passivated
Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Stainless Steel, Mechanically Applied coating and some special one like DACROMET
Production process M2-M24: Cold Froging, hot forging M24-M100, machining and CNC for Customized connecting element
Packing: IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request



Inconel 600 Fasteners Application

Inconel 600 Fasteners Application

Our Inconel 600 Fasteners Are Installed In LNG projects



Price of Inconel 600 Bolts and Nuts
Inconel Alloy 600 Fasteners Price List
Price Per Pcs.
Inconel Alloy 600 Hex Bolt price
USD $6.00
Inconel Alloy 600 Screws price
USD $3.50
Inconel 600 Machine bolt price
USD $5.30
Inconel 600 Socket Head Cap Screw price
USD $3.25
Inconel Alloy UNS N06600 Nuts price
USD $1.35
Inconel Alloy 600 Allen bolt price
USD $5.15



Available Types Of Nickel Alloy 600 Fasteners
Inconel 600 Dowel Pins
Inconel 600 Dowel Pins
Alloy 600 Spring Pin
Alloy 600 Spring Pin
Inconel 600 Studs
Inconel 600 Studs
Inconel 600 Exhaust Studs
Inconel 600 Exhaust Studs
Inconel 600 Anchor Bolt
Inconel 600 Anchor Bolt
Inconel Alloy 600 Square U Bolts
Inconel Alloy 600 Square U Bolts
Alloy 600 Carriage Bolts
Alloy 600 Carriage Bolts
Alloy 600 Countersunk Bolts
Alloy 600 Countersunk Bolts
Inconel 600 Threaded Rod
Inconel 600 Threaded Rod
Alloy 600 Threaded Inserts
Alloy 600 Threaded Inserts
Inconel 600 Threaded Stud
Inconel 600 Threaded Stud
Double End Threaded Rod
Double End Threaded Rod
Inconel 600 Stud Bolts
Inconel 600 Stud Bolts
Inconel 600 M10 Bolts
Inconel 600 M10 Bolts
Alloy 600 U Bolts
Alloy 600 U Bolts
Inconel 600 Lag Bolts
Inconel 600 Lag Bolts
Inconel Alloy 600 Flat Head Screws
Inconel Alloy 600 Flat Head Screws
Alloy 600 Machine Screws
Alloy 600 Machine Screws
Inconel 600 Self Tapping Screws
Inconel 600 Self Tapping Screws
Alloy 600 Self Drilling Screw
Alloy 600 Self Drilling Screw
Inconel 600 Washers
Inconel 600 Washers
Inconel 600 Flat Washers
Inconel 600 Flat Washers
Alloy 600 Belleville Washers
Alloy 600 Belleville Washers
Alloy 600 Spring Washers
Alloy 600 Spring Washers
Inconel 600 Nuts and Washers
Inconel 600 Nuts & Washers
Alloy 600 Rings
Alloy 600 Rings
Inconel 600 Springs
Inconel 600 Springs
Alloy 600 Hex Head Bolts
Alloy 600 Hex Head Bolts
Alloy 600 Nord Lock Washers
Alloy 600 Nord Lock Washers
Inconel 600 Hex Nuts
Inconel 600 Hex Nuts
Alloy 600 Barrel Nuts
Alloy 600 Barrel Nuts
Alloy 600 Wheel Nuts
Alloy 600 Wheel Nuts
Inconel 600 Nuts and Bolts
Inconel 600 Nuts and Bolts
Inconel Alloy 600 Bolts and Nuts
Inconel Alloy 600 Bolts and Nuts
Inconel 600 Exhaust Bolts
Inconel 600 Exhaust Bolts
Inconel 600 Hex Bolts
Inconel 600 Hex Bolts
Inconel 600 Socket Head Cap Screws
Inconel 600 Socket Head Cap Screws
Alloy 600 Set Screws
Alloy 600 Set Screws
Inconel 600 Cap Screws
Inconel 600 Cap Screws
Inconel 600 Hex Cap Screws
Inconel 600 Hex Cap Screws



Inconel 600 Nut Weight Chart
Size Finished Hex Heavy Hex Finished Jam Heavy Hex Jam Square Heavy Square
1/2″ Nut 3.75 6.54 2.62 4.00 5.78 7.87
5/8″ Nut 7.33 11.9 4.93 6.96 10.8 14.3
3/4″ Nut 11.9 19.3 7.70 11.0 15.4 23.5
7/8″ Nut 19.0 29.7 12.0 16.7 24.5 36.2
1″ Nut 28.3 42.5 17.6 23.5 36.3 51.5
11/8″ Nut 40.3 59.2 24.7 32.4 52.5 72.4
11/4″ Nut 54.3 78.6 36.1 45.8 70.6 95.5
13/8″ Nut 73.0 102 47.9 59.3 94.5 125.0
11/2″ Nut 94.3 131 60.9 74.8 122 161
15/8″ Nut   162   91.6
13/4″ Nut 151 204 100 114
17/8″ Nut   241   134
2″ Nut 224 299 140 165
21/4″ Nut   419   227
21/2″ Nut   564   332
23/4″ Nut   738   429
3″ Nut   950   545
31/4″ Nut   1194   651
31/2″ Nut   1526   851
33/4″ Nut   1812   1005
4″ Nut   2180   1200




Inconel 600 Bolts Weight Chart
MM THREADS AS PER IS 1363/67
APPROXIMATE WEIGHT IN KGS FOR 100 NOS
LENGTH DIAMETER
M 5 M 6 M 8 M 10 M 12 M 14 M 16 M 18 M 20 M 22
16 mm 0.448 0.743 1.590 3.211
20 mm 0.598 0.812 1.711 3.411 4.892
25 mm 0.660 0.897 1.871 3.660 5.252 8.170
30 mm 0.737 1.010 2.070 3.912 5.574 9.690 10.707   18.657
35 mm 0.804 1.120 2.271 4.223 5.974 10.000 11.416 16.026 19.608
40 mm 0.881 1.230 2.470 4.533 6.410 10.288 12.107 16.667 20.747
45 mm 0.958 1.340 2.671 4.840 6.859 10.504 12.821 17.241 21.739
50 mm 1.030 1.450 2.870 5.155 7.299 11.261 13.624 17.857 22.727 28.409
55 mm   1.560 3.071 5.464 7.740 11.628 14.409 18.868 23.810 30.120
60 mm   1.670 3.270 5.774 8.183 12.255 15.244 20.000 25.126 32.051
65 mm   1.781 3.472 6.083 8.621 12.626 16.026 21.008 26.455 34.014
70 mm   1.890 3.671 6.394 9.058 12.987 16.835 22.124 27.778 35.461
75 mm   2.000 3.873 6.702 9.506 13.228 17.606 23.256 29.070 39.063
80 mm   2.111 4.072 7.013 10.000 13.889 18.248 24.510 30.303 40.000
90 mm     4.472 7.634 10.917 14.925 19.841 26.042 33.113 41.667
100 mm     4.873 8.251 11.820 16.340 21.459 27.778 35.714 46.296
110 mm       8.881 12.723 17.730 23.041 31.250 38.168 47.170
120 mm       9.506 13.624 18.797 24.631 32.895 40.984 50.000
130 mm       10.101 14.535 20.000 26.316 34.722 43.478 52.632
140 mm       10.707 15.432 20.833 27.933 35.461 46.296 55.556
150 mm       11.312 16.340 22.222 29.412 37.594 48.544 58.824
160 mm       11.905 17.241 24.272 31.056 40.984 50.505 61.728
170 mm       12.500 18.116   32.680   53.191 64.935
180 mm       13.123 19.011 26.882 34.247   55.556 67.568
190 mm       13.736 19.920   35.971   58.140 70.423
200 mm       14.327 20.833 29.586 37.594 49.020 60.976 73.529
220 mm       15.528 22.624   40.650   65.789 79.365
240 mm       16.722 24.510   43.860   71.429 84.746
250 mm       17.301 25.381   45.455   74.627 87.719
260 mm       17.921 26.316   47.170   76.923 90.909
280 mm       19.157 28.090   50.505   81.967 98.039
300 mm       20.325 29.940   53.763   87.719 104.167
320 mm         31.646   56.818   92.593
340 mm         33.557   60.241   98.039
360 mm         35.211   63.291   104.167
380 mm         37.037   66.667   108.696
400 mm         39.063   69.444   113.636



Grade 600 Inconel Stud Bolt Size
 Class 150 Flanges ASME B16.5 (Stud bolt sizes) Length of Stud Bolts
NPS Outside Diameter of Flange The diameter of Bolt Circle The diameter of Bolt Holes Number of Bolts Diameter of Bolts Raised Face
0.06 in		 Ring Joint
1/2 3 1/2 2 3/8 5/8 4 1/2 2 1/4 –
3/4 3 7/8 2 3/4 5/8 4 1/2 2 1/2 –
1 4 1/4 3 1/8 5/8 4 1/2 2 1/2 3
1 1/4 4 5/8 3 1/2 5/8 4 1/2 2 3/4 3 1/4
1 1/2 5 3 7/8 5/8 4 1/2 2 3/4 3 1/4
2 6 4 3/4 3/4 4 5/8 3 1/4 3 3/4
2 1/2 7 5 1/2 3/4 4 5/8 3 1/2 4
3 7 1/2 6 3/4 4 5/8 3 1/2 4
3 1/2 8 1/2 7 3/4 8 5/8 3 1/2 4
4 9 7 1/2 3/4 8 5/8 3 1/2 4
5 10 8 1/2 7/8 8 3/4 3 3/4 4 1/4
6 11 9 1/2 7/8 8 3/4 4 4 1/2
8 13 1/2 11 3/4 7/8 8 3/4 4 1/4 4 3/4
10 16 14 3/4 1 12 7/8 4 1/2 5
12 19 17 1 12 7/8 4 3/4 5 1/4
14 21 18 3/4 1 1/8 12 1 5 1/4 5 3/4
16 23 1/2 21 1/4 1 1/8 16 1 5 1/4 5 3/4
18 25 22 3/4 1 1/4 16 1 1/8 5 3/4 6 1/4
20 27 1/2 25 1 1/4 20 1 1/8 6 1/4 6 3/4
24 32 29 1/2 1 1/4 20 1 1/4 6 3/4 7 1/4
Class 300 Flanges ASME B16.5 Length of Stud Bolts
NPS Outside Diameter of Flange The diameter of Bolt Circle The diameter of Bolt Holes Number of Bolts Diameter of Bolts Raised Face
0.06 in		 Ring Joint
1/2 3 3/4 2 5/8 5/8 4 1/2 2 1/2 3
3/4 4 5/8 3 1/4 3/4 4 5/8 3 3 1/2
1 4 7/8 3 1/2 3/4 4 5/8 3 3 1/2
1 1/4 5 1/4 3 7/8 3/4 4 5/8 3 1/4 3 3/4
1 1/2 6 1/8 4 1/2 7/8 4 3/4 3 1/2 4
2 6 1/2 5 3/4 8 5/8 3 1/2 4
2 1/2 7 1/2 5 7/8 7/8 8 3/4 4 4 1/2
3 8 1/4 6 5/8 7/8 8 3/4 4 1/4 4 3/4
3 1/2 9 7 1/4 7/8 8 3/4 4 1/4 5
4 10 7 7/8 7/8 8 3/4 4 1/2 5
5 11 9 1/4 7/8 8 3/4 4 3/4 5 1/4
6 12 1/2 10 5/8 7/8 12 3/4 4 3/4 5 1/2
8 15 13 1 12 7/8 5 1/2 6
10 17 1/2 15 1/4 1 1/8 16 1 6 1/4 6 3/4
12 20 1/2 17 3/4 1 1/4 16 1 1/8 6 3/4 7 1/4
14 23 20 1/4 1 1/4 20 1 1/8 7 7 1/2
16 25 1/2 22 1/2 1 3/8 20 1 1/4 7 1/2 8
18 28 24 3/4 1 3/8 24 1 1/4 7 3/4 8 1/4
20 30 1/2 27 1 3/8 24 1 1/4 8 8 3/4
24 36 32 1 5/8 24 1 1/2 9 10



Inconel 600 Stud Bolt Torque Chart
Flange
Size
B16.5 Class 150 RF/ Ring Gaskets
B16.5 Class 150 FF/ Full Face Gaskets
Torque / Round (ft-lbs)
Stud Bolts Tighten Sequence
Torque / Round (ft-lbs)
Stud Bolts Tighten Sequence
1st
2nd
Final
Dwg/No.
Bolt Size
1st
2nd
Final
Dwg*/No.
Bolt Size
1/2″
10
20
30
4-bolt
1/2″
20
40
60
4-bolt
1/2″
3/4″
13
27
40
4-bolt
1/2″
20
40
60
4-bolt
1/2″
1″
15
30
50
4-bolt
1/2″
20
40
60
4-bolt
1/2″
1-1/4″
20
40
60
4-bolt
1/2″
20
40
60
4-bolt
1/2″
1-1/2″
20
40
60
4-bolt
1/2″
20
40
60
4-bolt
1/2″
2″
40
80
120
4-bolt
5/8″
40
80
120
4-bolt
5/8″
2-1/2″
40
80
120
4-bolt
5/8″
40
80
120
4-bolt
5/8″
3″
40
80
120
4-bolt
5/8″
40
80
120
4-bolt
5/8″
3-1/2″
40
80
120
8-bolt
5/8″
40
80
120
8-bolt
5/8″
4″
40
80
120
8-bolt
5/8″
40
80
120
8-bolt
5/8″
5″
60
120
200
8-bolt
3/4″
60
120
200
8-bolt
3/4″
6″
60
120
200
8-bolt
3/4″
60
120
200
8-bolt
3/4″
8″
60
120
200
8-bolt
3/4″
60
120
200
8-bolt
3/4″
10″
95
190
320
12-bolt
7/8″
95
190
320
12-bolt
7/8″
12″
95
190
320
12-bolt
7/8″
95
190
320
12-bolt
7/8″
14″
147
294
490
12-bolt
1″
147
294
490
12-bolt
1″
16″
147
294
490
16-bolt
1″
147
294
490
16-bolt
1″
18″
213
426
710
16-bolt
1-1/8″
213
426
710
16-bolt
1-1/8″
20″
213
426
710
20-bolt
1-1/8″
213
426
710
20-bolt
1-1/8″
24″
300
600
1,000
20-bolt
1-1/4″
300
600
1,000
20-bolt
1-1/4″



Check DIN 2.4816 Hex Bolt torque and ASME SB166 Alloy 600 flange bolt, washers price list in China



Flange Size
B16.5 Class 300 RF/ Ring Gaskets
Torque / Round (ft-lbs)
Stud Bolts Tighten Sequence*
1st
2nd
Final
Dwg/No.
Stud Bolts Size
1/2″
10
20
30
4-bolt
1/2″
3/4″
15
30
50
4-bolt
5/8″
1″
21
42
70
4-bolt
5/8″
1-1/4″
30
60
100
4-bolt
5/8″
1-1/2″
45
90
150
4-bolt
3/4″
2″
33
66
110
8-bolt
5/8″
2-1/2″
42
84
140
8-bolt
3/4″
3″
60
120
200
8-bolt
3/4″
3-1/2″
60
120
200
8-bolt
3/4″
4″
60
120
200
8-bolt
3/4″
5″
60
120
200
8-bolt
3/4″
6″
60
120
200
12-bolt
3/4″
8″
95
190
320
12-bolt
7/8″
10″
147
294
490
16-bolt
1″
12″
213
426
710
16-bolt
1-1/8″
14″
195
390
650
20-bolt
1-1/8″
16″
273
546
910
20-bolt
1-1/4″
18″
300
600
1,000
24-bolt
1-1/4″
20″
300
600
1,000
24-bolt
1-1/4″
24″
465
930
1,550
24-bolt
1-1/2″



Inconel 600 Washers Sizes
Sizes A B C Weight (lbs.) Per 100 Pieces
Inside Diameter Outside Diameter Thickness
1/2 9/16 13/8 0.109 4
5/8 11/16 13/4 0.134 8
3/4 13/16 2 0.148 11
7/8 15/16 21/4 0.165 15
1 11/16 21/2 0.165 19
11/8 11/4 23/4 0.165 22
11/4 13/8 3 0.165 26
13/8 11/2 31/4 0.180 33
11/2 15/8 31/2 0.180 38
15/8 13/4 33/4 0.180 43
13/4 17/8 4 0.180 50
17/8 2 41/4 0.180 57
2 21/8 41/2 0.180 63
21/4 23/8 43/4 0.220 83
21/2 25/8 5 0.238 96
23/4 27/8 51/4 0.259 110
3 31/8 51/2 0.284 130



Nickel Alloy 600 Washer Weight Chart

APPROX. WEIGHT IN KGS FOR 100 NOS
SIZE PLAIN PUNCHED WASHER
IS:2016		 HEAVY WASHER
IS:6610		 MACHINED WASHER
IS:2016		 SQUARE     TAPER     WASHERS SPRING WASHER FLAT SECTION IS:3063-72 SPRING WASHER SQUARE SECTION IS:6735-72
DIN : 7980		 Size (Inches) PLAIN PUNCHED WASHER
BS:3410 TABLE 7
MACHINED HIGH  STRENGTH
FRICTION  GRIP
FOR
CHANNELS IS:5372-75		 FOR
I-BEAM IS:5374-75		 TYPE-B
(CHANNELS) IS : 6649-85		 TYPE-C
( I-BEAMS ) IS : 6649-85
M-3               0.01 0.01
M-4               0.02 0.02
M-5 0.04   0.04         0.03 0.03
M-6 0.11   0.11         0.08 0.04 1/4″ 0.21
M-8 0.20   0.21 1.10 1.20     0.16 0.11 5/16″ 0.35
M-10 0.39 1.60 0.40 1.00 1.10     0.25 0.20 3/8″ 0.48
M-12 0.58 1.90 0.62 2.00 2.20 2.00 1.80 0.38 0.23 1/2″ 1.07
M-14 0.82             0.60 0.38
M-16 1.06 2.90 1.13 3.40 3.75 9.00 8.50 0.89 0.59 5/8″ 1.85
M-18 1.27             0.97 0.66
M-20 1.64 4.40 1.72 5.80 6.70 8.50 8.00 1.52 1.23 3/4″ 2.91
M-22 1.75         7.50 7.00 1.65 1.36 7/8″ 4.27
M-24 3.11 6.30 3.30 13.50 16.00 6.50 6.00 2.62 1.81 1″ 6.13
M-27 3.94 8.00 4.23 12.50 15.00 12.00 11.50 2.87 2.06 1.1/8″ 7.69
M-30 5.05 10.10 5.36 16.50 18.70 17.50 16.00 4.43 3.20 1.1/4″ 9.90
M-33 7.10 12.00 7.54 21.00 23.50 23.00 22.50 6.30 3.50
M-36 8.73 14.60 9.20 25.50 29.20 26.50 26.00 6.73 5.25 1.1/2″ 17.24
M-39 12.60 16.70 13.30 28.30 34.50     7.17 5.61
M-42 17.50 20.10 18.30         11.10 8.00
M-45 21.20 22.20 22.00         11.70 8.53
M-48 28.40 26.00 29.40         12.30 9.00 2″ 27.78
M-52 31.90   33.00         18.20
M-56 47.90             19.30
M-60 51.60             20.30
M-64 55.40             21.80
M-68 57.40
M-72 63.40             24.00



View ASME SB160 specification and properties for Socket head Screws (Cap / CSK / Button / Set)



Chemical Compatibility Chart Of DIN 2.4816 Hex Bolt
Element
Content (%)
Nickel, Ni
72.0 min
Silicon, Si
.50 max
Carbon, C
.15 max
Sulphur, S
.015 max
Copper, Cu
.50 max
Iron, Fe
6.0-10.0
Manganese, Mn
1.00 max
Equivalent Grades Table Of ASTM B166 UNS N06600 Fasteners
Alloy
Common Name
Related Specification


British
European
ASTM
UNS
Alloy 600
Inconel 600®
BS 3076 NA 14
2.4816
B166
N06600



Ready Stock of ASTM B160 Inconel Alloy 600 studs threads in BSF, BA, UNC, BSW, UNF



Mechanical Properties Analysis Of ASME SB166 Alloy 600 stud bolts
Density
8.47 g/cm3
Melting Point
1413 °C (2580 °F)
Tensile Strength
Psi – 95,000 , MPa – 655
Yield Strength (0.2%Offset)
Psi – 45,000 , MPa – 310
Elongation
40 %



Inconel 600 Fasteners Weight Chart
