ASTM B637 Inconel 718 Round Bar and Rod

UNS N07718 Hex and Flat Bar manufacturer and exporter in China

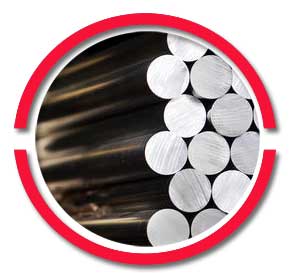

Inconel 718 Round Bar

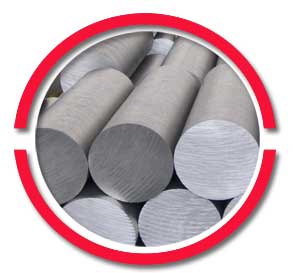

Alloy 718 Rod

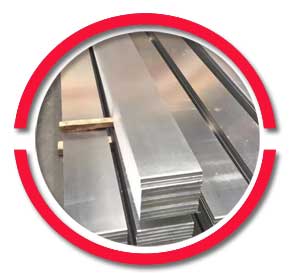

ASTM B637 UNS N07718 Flat Bar

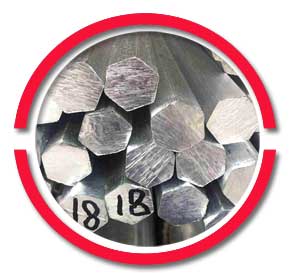

DIN 2.4668 Hex Bar

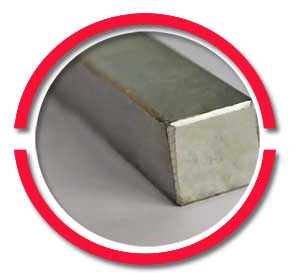

Nickel Alloy 718 Square Bar

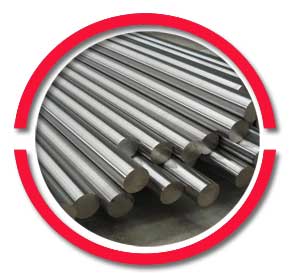

Inconel Alloy 718 Bright Bar

Machining & Cutting Services available for ASME SB 637 DIN 2.4668 Hot Rolled and Cold Rolled Bar

Inconel 718 Round Bar is a nickel chromium alloy bar that has up to 55% nickel in the composition. The content includes 17% chromium, 4.9% niobium, 6.6% iron minimum and aluminum, boron, carbon, cobalt, copper, manganese, phosphorus, lead, sulfur and silicon. The Inconel 718 Flat Bar and other types of bars also have tantalum and titanium for stabilization.

The material has 1375MPa ultimate tensile strength and 1100MPa minimum yield strength. There are different types such as the Inconel 718 Hex Bar, square bar, rod, round bar and flat bar. All these types have specific application purposes and have slightly different mechanical properties. The 2.4668 Alloy 718 Rod is durable, ductile and highly corrosion resistant. It is used in gas turbines, valves in subsurface safety tools, industrial grade fasteners, thrust reverser components and in aircraft engines. High Temperature Fasteners Inc. is a leading manufacturer and hold a large ASTM B637 UNS N07718 Bar Stock to cater any order size from the customers.

The material has good weldability, formability, high oxidation resistance and high durability in elevated temperatures up to 1300F. The UNS N07718 Bright Bar also has great cryogenic performance. This is one of the reasons why the material is used in highly thermally fluctuating applications. Please contact us for more information on the products such as the Inconel 718 Square bar and other types along with the price list.

International Specifications	AMS 5663, AMS 5662, ASTM B637, AMS 5664, AMS 5832, ASME SB637, AMS 5962, AMS 5914, NACE MR-01-75
Grade	ASTM B637 Inconel 718, Nickel Alloy 718, UNS N07718,
Common Trade Names	ATI 718 (™ Allegheny Technologies) Haynes 718 (® Haynes International) Inconel Alloy 718 (® Special Metals)
Hex Bar	2 milimeter to 100 milimeter A/F
Flat bar	2 milimeter to 100 milimeter Thickness
	10 milimeter to 500 milimeter Width
Channel Bar	section; 5 to 6 thick, 80 x 40mm to 150 x 75mm
Round bar	Diameter: 3-~800mm
Square bar	4 to 100mm
Section	3 to 12 mm thick.
Rectangles	33 x 30 to 295 x 1066
Billet	1/2″ to 495 Dia.
Angle bar	3*20*20~12*100*100 mm
Hollow Bar	32mm Outside Diameter x 16mm Inside Diameter to 250mm Outside Diameter x 200mm Inside Diameter
Tolerances	K12, H9, H8, H11, H13K9, K10, K11, H10, H12 or custom
Form	Flat Bar, Hollow, Round, Square, Triangle, Rectangle, I/H Bar, Half Round Bar, Rod, T-Bar, Precision Ground Bar, Hex (A/F), Blocks, Channel Bar, Billet, Threaded, Round Rod, Profiles, Ingot, Rings, Forging etc.
Technique	Hot Rolled, Cold Drawn, Rod, Forged Round Bar, Cold Rolled
Condition	annealed, Hardened & tempered
Surface	Bright, Cold Drawn, Hot Rolled Pickled, Sand Blasting Finished, Polished, Hairline

1/16” up to 20”dia Inconel Alloy 718 Square bar material in Stock, check latest price Ex Shenzhen



Alloy 718 Bar price in india

---

Inconel 718 Bar Price in China	Quantity	Price in USD $
30.0 Dia x 100mm long	1	$118.02
30.0 Dia x 250mm long	1	$217.78
30.0 Dia x 500mm long	1	$386.38
30.0 Dia x 1000mm long	1	$519.85



Check Types Of 2.4668 Alloy 718 Rod

---

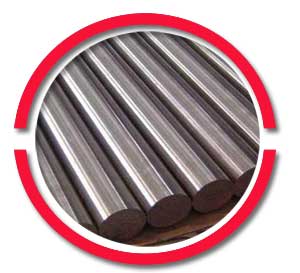

Inconel 718 nickel alloy 25mm steel round bar

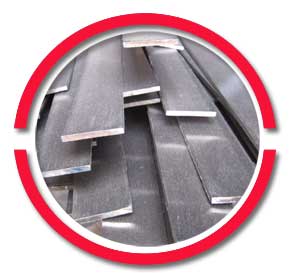

Inconel 718 flat bar 50x40x7 meter

Inconel 718 Bright Round Bars 100 200 300mm

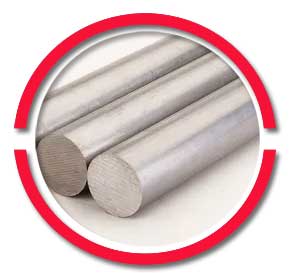

inconel 718 welding rod



Other types of inconel 718 round bar available

---

We can supply inconel 718 round bar in following forms & shapes:

Channel Bars Flat Bars Blocks Round Rings Square T-Bars Precision Ground Bars Hollow Round Rod Rod

Forging Hex (A/F) Billet Rectangle I/H Bars Triangle Half Round Bars Threaded Profiles Ingot Rectangular Bar

ASTM B637 UNS N07718 Bar Stock

---

INCONEL	Dimension (in mm)	Product form
AMS 5662	Dia=3, Weight=18 m/kg	Rod solution treated, Round bar
AMS 5662	Dia=4, Weight=10.15 m/kg	Rod pickled, Round bar, solution treated
AMS 5663	Dia=7.5, Weight=2.9 m/kg	aged & ground, Round bar, Rod annealed, cold drawn
AMS 5663	Dia=3, Weight=18 m/kg	Rod age hardened, Round bar
AMS 5663	Dia=4, Weight=10.15 m/kg	Rod age hardened, Round bar
AMS 5662	Dia=15.88, Weight=1.62 kg/m	Rod solution annealed, Round bar, centerless ground
AMS 5662	Dia=12.7, Weight=1 kg/m	centerless ground, Rod solution annealed, Round bar, hot rolled
AMS 5662L	Dia=16, Weight=1.62 kg/m	Rod hot rolled, Round bar, machined, solution annealed
AMS 5662	Dia=22, Weight=3.18 kg/m	Rod HR, Round bar, centerless ground, solution annealed
AMS 5662	Dia=20, Weight=2.47 kg/m	Rod solution treated, Round bar, centerless ground, machined
AMS 5662	Dia=28.6, Weight=5.4 kg/m	Rod HR, Round bar, ground, solution annealed
AMS 5663	Dia=22, Weight=3.18 kg/m	Rod aged, Round bar, centerless ground, solution treated
AMS 5663	Dia=25.4, Weight=4 kg/m	Rod aged, Round bar
AMS 5662	Dia=30, Weight=5.9 kg/m	Rod solution annealed, Round bar, hot rolled
(53 Ni/18 Cr/5 Nb)	Dia=30, Weight=5.9 kg/m	Rod solution annealed, Round bar, hot rolled
AMS 5663	Dia=30, Weight=5.9 kg/m	Rod age hardened, Round bar
AMS 5662	Dia=38.1, Weight=9.4 kg/m	Rod HR, Round bar, ground, solution annealed
AMS 5663	Dia=35, Weight=8.2 kg/m	Rod age hardened, Round bar
AMS 5663	Dia=41.28, Weight=10.5 kg/m	Rod age hardened, Round bar
AMS 5662	Dia=50.8, Weight=16.6 kg/m	Rod hot rolled, Round bar, machined, solution annealed
AMS 5662	Dia=45, Weight=12.6 kg/m	Rod solution treated, Round bar, centerless ground
AMS 5663	Dia=50.8, Weight=16.6 kg/m	Rod age hardened, Round bar
(53 Ni/19 Cr/5 Nb)	Dia=50.8, Weight=16.6 kg/m	Rod hot rolled, Round bar, machined, solution annealed,
AMS 5662	Dia=63.5, Weight=24.9 kg/m	Rod machining quality, Round bar, solution treated
AMS 5663	Dia=55, Weight=19.5 kg/m	Rod hot finished, Round bar, solution and precipitation treated, machined
AMS 5663	Dia=152.4, Weight=143 kg/m	Rod age hardened, Round bar
(53 Ni/19 Cr/5 Nb)	Dia=152.4, Weight=143 kg/m	age hardened, Rod solution annealed, Round bar, machined
AMS 5662	Dia=101.6, Weight=66.4 kg/m	Rod solution treated, Round bar
AMS 5663	Dia=80, Weight=39.45 kg/m	Rod age hardened, Round bar
AMS 5662	Dia=127, Weight=106 kg/m	Rod hot finished, Round bar, solution treated, rough turned
AMS 5663	Dia=115, Weight=87 kg/m	Rod hot forged, Round bar, aged, solution annealed, peeled
AMS 5663	Dia=70, Weight=30.2 kg/m	Rod hot rolled,Round bar, aged, sol annealed, ground
AMS 5663	Dia=90, Weight=50.75 kg/m	Rod centerless ground, Round bar, aged, solution treated



ASME SB 637 Alloy 718 bar Hot Rolled Bar Industrial Application

---

• Liquid fueled rocket motors and components
• Cryogenic storage tanks
• Gas turbine components
• Down hole shafting and strength bolting
• Jet engines
• Nuclear fuel element spacers
• Fasteners and instrumentation parts
• Hot extrusion tooling



Alloy 718 bar Physical Properties

---

Density and Specific Gravity

	Aged Condition	Annealed Condition
Density	0.297 lb./in3 (8.22 g/cm3)	0.296 lb./in3 (8.19 g/cm3)
Specific Gravity	8.22	8.19

Thermal Conductivity

Temperature Range		Coefficients
°F	°C	Btu/(hr/ft²/in/°F)	W/m·K
32-212	0-100	11.2	6.5



Mechanical Characteristics Of Inconel Alloy 718 Square bar

---

Elongation	Density	Tensile Strength	Melting Point	Yield Strength (0.2%Offset)
45 %	8.2 g/cm3	Psi – 1,35,000 , MPa – 930	1350 °C (2460 °F)	Psi – 75,000 , MPa – 482



Chemical Composition Of Alloy 718 Forged Bar

---

Grade	Cr	Mn	C	Cu	Si	S	Mo	Fe	Ni
Inconel 718	17 – 21	0.35 max	0.08 max	0.30 max	0.35 max	0.15 min	–	–	50 – 55



ASTM B637 Inconel 718 Round Bar Material Equivalent Properties

---

STANDARD	EN	UNS	WERKSTOFF NR.	JIS	GOST	BS	AFNOR
Inconel 718	–	N07718	2.4668	NCF 718	–	–	–





Hardness of UNS N07718 Round Bar

---

Inconel Uns N07718 Mechanical Properties in Solution Annealed and Aged Condition for Oil patch bar

Hardness	0.2% Proof Stress	Elongation	Tensile Strength	Reduction of area
HRC	MPA	%	MPA	%
Min	Min	Min	Min	Min
40	827	17	1034	25



Nickel Alloy 718 bar standards

---

 Rod, Bar, Wire and Forging Stock

• SAE AMS 5662
• ASME SB 637
• ASTM B 637
• SAE AMS 5832
• SAE AMS 5663
• ASME Code Case 1993
• SAE AMS 5664
• AECMA PrEN 2404
• SAE AMS 5914
• AECMA PrEN 2952
• SAE AMS 5962
• ASME Code Case 2206
• AECMA PrEN 3219
• ASME Code Case 2222
• ISO 9723
• AECMA PrEN 2405
• ISO 9724
• AECMA PrEN 2961
• DIN 17752-17754
• AECMA PrEN 3666
• ISO 9725



718 Inconel Round Bar Weights

---

Round Bar
Size	Kgs / Mtr	Kgs / Foot	Size	Kgs / Mtr	Kgs / Foot	Size	Kgs / Mtr	Kgs / Foot
3mm	0.0055	0.0017	20mm	2.0470	0.0753	3″	35.0762	10.0900
1/8″	0.0062	0.0019	22mm	2.0979	0.0908	3 to 1/4″	41.0996	12.0800
5/32″	0.0095	0.0029	7/8″	3.0038	0.0926	3 to 1/2″	48.0772	14.0850
4mm	0.0098	0.0030	24mm	3.0543	1.0080	3 to 3/4″	55.0780	17.0001
3/16″	0.0141	0.0043	25mm	3.0871	1.0180	4″	63.0340	19.0306
5mm	0.0154	0.0047	1″	3.0970	1.0210	4 to 1/4″	72.0249	21.0908
7/32″	0.0190	0.0058	26mm	4.0170	1.0271	4 to 1/2″	80.0340	24.04487
6mm	0.0223	0.0068	27mm	4.0490	1.0368	4 to 3/4″	90.0249	27.0366
1/4″	0.0249	0.0076	1 to 1/8″	5.0033	1.0534	5″	99.0940	30.0461
7mm	0.0298	0.0091	30mm	5.0548	1.0691	5 to 1/2″	121.0000	36.0690
5/16″	0.0387	0.0118	1 to 1/4″	6.0349	1.0924	6″	143.0900	43.0860
8mm	0.0398	0.0120	32mm	6.0314	1.0894	6 to 1/2″	167.0630	51.0093
9mm	0.0498	0.0152	1 to 3/8″	7.0550	2.0303	7″	196.0000	59.0432
3/8″	0.0557	0.0170	35mm	7.0553	2.0390	7 to 1/2″	225.0000	68.0226
10mm	0.0620	0.0189	36mm	7.0999	2.0438	8″	254.055	77.0586
11mm	0.0748	0.0228	38mm	8.0903	2.0792	10″	397.0140	121.0048
7/16″	0.0761	0.0232	1 to 1/2″	8.0951	2.0715
12mm	0.0889	0.0271	40mm	9.0872	3.0009
1/2″	0.0994	0.0303	1 to 5/8″	10.0449	3.0200
13mm	1.0043	0.0318	1 to 3/4″	12.0179	3.0712
14mm	1.0207	0.0368	45mm	12.0555	3.0807
9/16″	1.0256	0.0383	1 to 7/8″	13.0977	4.0260
15mm	1.0391	0.0424	48mm	14.0205	4.0330
5/8″	1.0551	0.0473	50mm	15.0414	4.0698
16mm	1.0578	0.0481	2″	15.0906	4.0848
17mm	1.0791	0.0543	2 to 1/8″	17.0963	5.0475
11/16″	1.0880	0.0573	2 to 1/4″	20.0128	6.0135
18mm	2.0001	0.0610	60mm	22.0205	6.0768
3/4″	2.0237	0.0682	2 to 3/8″	22.0435	6.0838
			2 to 1/2″	24.0856	7.0576
			2 to 5/8″	27.0409	8.0354
			2 to 3/4″	30.0083	9.0169



Type	SIZES (mm)	ISO Tolerance	SIZES (Inches)
Peeled and Polished	40.00 to 150.00	h11-DIN 1013	1.50″ to 6.00″
Cold Drawn and Ground	10.00 to 75.00	h9-h8-h11-h10	5/6″ to 2.50″
Cold Drawn and Polish	3.00 to 75.00	h9-h8-h11-h10	1/8″ to 3.00″
Peeled and Ground	20.00 to 50.00	h10-h9-h11	3/4″ to 2.00″



ASTM B637 UNS N07718 Bar Surface finish

---

RT	Rough turned/peeled	P&T	Peeled and turned
SRE	Slit rolled edge	BD	Bright drawn
P	Polished	CD	Cold drawn
HRAP	Hot rolled annealed and pickled	CF	Cold finished
HF	Hot finished	CG	Centreless ground
PR	Peeled and reeled	ST	Smooth turned



Alloy 718 Hex Bar Condition

---

ANN	Annealed
H&T	Hardened and tempered.
PH	Precipitation hardened.

key properties of Nickel 718 bar

---

• Offers a wide temperature range -423°F(-253°C) – 1300°F(705°C)
• Can be fabricated into even the most complex parts
• Excellent relaxation resistance
• Gamma Prime strengthened
• Available in cold worked, aged, annealed temper and aged
• Excellent oxidation resistance up to 1800°F(980°C)
• Outstanding fatigue, tensile, rupture strength and creep

Buy Alloy 718 Forged Bar in specific size, surface finish and shape like Round / Square / Hex or Flat



UNS N07718 Round Bar Size Chart

---



Size of Alloy 718 round bar
Metric		US Bar		ASTM/ Canadian		Japanese
Diameter(mm)	Bar Size	Diameter (Inch)	Bar Size	Diameter (mm2)	Bar Size	Diam. (mm)	Bar Size
6	6	0.500	#4	300	20M	13	13
5.5	5.5	0.375	#3	200	15M	10	10
8	8	0.750	#6	700	30M	19	19
9	9	0.875	#7	1000	35M	22	22
7	7	0.625	#5	500	25M	16	16
11	11	1.125	#9	2500	55M	29	29
5	5	0.250	#2	100	10M	6	6
10	10	1.000	#8	1500	45M	25	25
14	14	1.375	#11			35	35
32	32
12	12	1.250	#10			32	32
20	20	1.750	#14			44	44
22	22	1.875	#15			48	48
16	16	1.500	#12			38	38
18	18	1.625	#13			41	41
28	28	2.250	#18			57	57
50	50
25	25	2.000	#16			51	51
40	40
36	36
44	44

Hardened & tempered Inconel 718 Round Bar stock are produced as per international standards such as ISO 9723, DIN 17752-17754, AMS 5662
