UNS N05500 Bolts and Nuts manufacturer in China

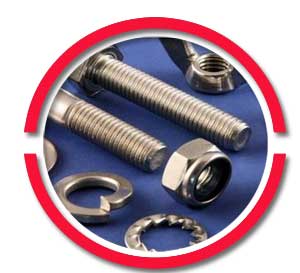

Monel K500 Fasteners

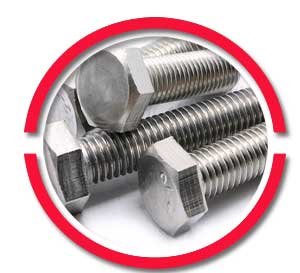

Monel K500 Bolts

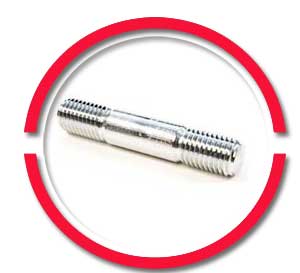

UNS N05500 Stud Bolts

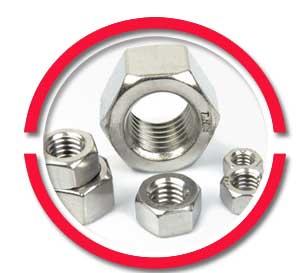

DIN 2.4375 Nuts

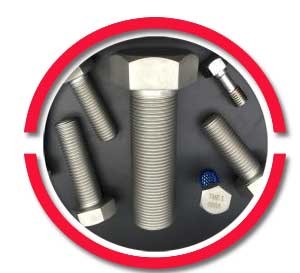

Nickel Alloy K500 Hex Bolt

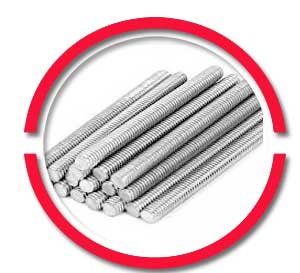

Alloy K500 Threaded Rod
ASTM F467 Nickel Alloy K500 Stud Bolt, threaded rod with fine, coarse, unf, unc, un, bsw or acme threads
Monel K500 Fasteners are nonmagnetic at high and low temperatures. The material has equally corrosion resistant to the Monel 400 grade. High Temperature Fasteners Inc. is a leading manufacturer and supplier of the UNS N05500 Bolts and other fasteners in different sizes, shapes and types. The application of these fasteners are seen in chains, cables, springs, pump and vale components and other high heat, high pressure, high stress environments.
The Nickel Alloy K500 Hex Bolt is made up of 63% nickel, 27% copper, carbon, manganese, iron, sulfur, silicon, aluminum and titanium. The material can be used in sour gas applications. The Monel K500 Stud Bolts retain the corrosion resistance even in high velocity sea water. So these are applied in sea water and marine engineering applications and in ship building applications. The Monel K500 Bolts and Nuts have 790MPa minimum yield strength and 1100MPa minimum tensile strength.
These fasteners can be used in electronic and electric applications as they have appropriate electric conductivity and electric resistance. The different types such as the UNS N05500 Threaded Rod can be used in these specific applications. The products can be precipitation hardened to make them stronger. Please contact us for the complete price list, dimensions and more information on the Monel K500 ASTM F467 Screws and other types of monel K500 fasteners.
Table of Content
- Updated Price list of Monel K500 Bolts and Nuts
- Standard Quality Specification Monel K500 Fasteners
- Most Selling Types Of Nickel Alloy K500 Fasteners
- UNS N05500 Bolts Weight Chart
- ASTM F467 Nickel Alloy K500 Stud Bolt Size
- DIN 2.4375 Washers Weight Chart
- Alloy K500 Nut Weight Chart
- Monel k500 Bolt Coatings
- Material Equivalent Table Of Monel K500 Bolts
- Mechanical Strength Table Of Nickel Alloy K500 Hex Bolt
- Chemical Structure Of DIN 2.4375 Stud Bolts
|
Monel Alloy K500 Fasteners Price List
|
Price Per Pcs.
|
|---|---|
|
Monel Alloy K500 Hex Bolt price
|
USD $6.00
|
|
Monel K500 Machine bolt price
|
USD $5.30
|
|
Monel K500 Socket Head Cap Screw price
|
USD $3.25
|
|
Monel Alloy UNS N05500 Nuts price
|
USD $1.35
|
|
Monel Alloy K500 Screws price
|
USD $3.50
|
|
Monel Alloy K500 Allen bolt price
|
USD $5.15
|

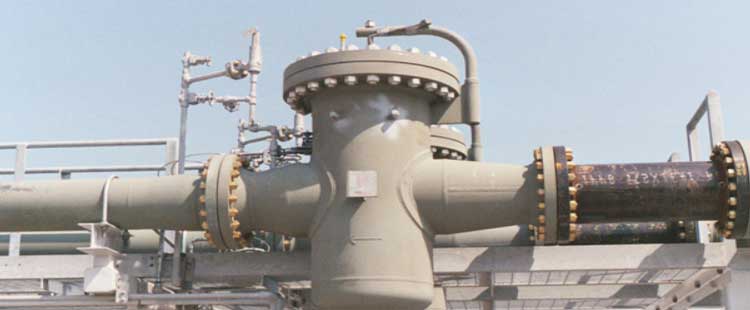

UNS N05500 Fasteners Application
Our UNS N05500 Fasteners Are Installed In High Pressure
| Material Specification | ASTM F 467 ASME SF 467, UNS N05500 Bolts |
|---|---|
| Monel K500 Fasteners ASTM / ANSI | ASTM B865-04 / ASME SB865-04 |
| In Form of: | Hex, Square, Round, Threading as per Gauge Etc. |
| Head drive: | Phillips, Slotted, Phillips/Slot, Six-Lobe, etc |
| Standard | DIN, UNI, ISO, JIS, GB, IS, BS, ASME, ANSI, ASTM and all International Standards |
| / Bolts Size | M2, M2.5, M3, M4, M5, M6, M8, M10, M12, M14, M16, M20, M24, M30, M36 to M160 |
| Length | 3 mm to 200 mm |
| Monel K500 Bolts, Studs Threads: | METRIC, BSW, BSF, UNC, UNF or as required |
| Monel K500 bolting materials Surface Coating: |
All surface finishes offered, including Galvanised, Zinc, Electroless Nickel, Sherardized,Geomet & PTFE, Dacromet |
| Monel K500 bolts ISO/ DIN | ISO 4035 , ISO 4032 , DIN 936 , ISO 7040 , ISO 7040 , DIN 315 , ISO 5448 , ISO 4161 , DIN 1587 , DIN 6923 , DIN 934 , DIN 917 , ISO 7035 , DIN 439 , ISO 8675 , DIN 985 , DIN 935 , DIN 17754 |
| Scope Of Manufacture |
|
| Source of raw materials | Tata Steel, JSPL, RINL, Usha Martin, Dhamm Steel, Mukund Steel etc. |
| Monel K500 bolting Test Certificate: | Manufacturer Test Certificate as per EN 10204 / 3.1 |
| finishing: | Zinc (yellow, white, blue, black), black oxide, Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Stainless steel: Passivated Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Stainless Steel, Mechanically Applied coating and some special one like DACROMET |
| Production process | M2-M24: Cold Froging, hot forging M24-M100, machining and CNC for Customized connecting element |
| Alloy K500 Fasteners Standard: | ANSI – American National Standards Institute
DIN: DIN 931, DIN 933, DIN 934, DIN 970 UTS – Unified Thread Standard : UNC, UNF, UNEF, UNS, NPT, NPTF ISO – International Organization for Standardization : ISO 4032, ISO 4033, JIS standards |
| Packing: | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Popular Types of Alloy K500 Bolts | Monel K500 Hex Bolts, Flange Bolts, Hex Head Bolts, Lag Bolts, Square Bolts, Eye Bolts, U Bolts, T Bolts, Counter sunk Bolts etc. |
| Types of Alloy K500 Nut | Monel K500 Hex Head Nut, Eye Nut, Dome Nut, Wing Nut, T Nut, Panel Nut, Lock Nut, Coupling Nut, Square Nut, Acorn Nut etc. |
| Types of Alloy K500 Screw | Monel K500 Hex Head Cap Screws, Socket Set Screws, Anchor Screws, Blind Rivet, Socket Head Screws, Concrete Screws, Shoulder Screws, Panel Screws, Threaded Screws, Machine Screws etc. |
| Widely used Alloy K500 Washer | Monel K500 Machine Washers, Flat Washer, Star Washers, Sealing Washer, Lock Washer, Split Washer etc. |
Alloy K500 Nord Lock Washers
Monel K500 Hex Nuts
Alloy K500 Barrel Nuts
Alloy K500 Wheel Nuts
Monel K500 Threaded Rod
Alloy K500 Threaded Inserts
Monel K500 Threaded Stud
Double End Threaded Rod
Monel K500 Nuts & Washers
Alloy K500 Rings
Monel K500 Springs
Alloy K500 Hex Head Bolts
Monel K500 Anchor Bolt
Monel Alloy K500 Square U Bolts
Alloy K500 Carriage Bolts
Alloy K500 Countersunk Bolts
Monel K500 Washers
Monel K500 Flat Washers
Alloy K500 Belleville Washers
Alloy K500 Spring Washers
Monel K500 Dowel Pins
Alloy K500 Spring Pin
Monel K500 Studs
Monel K500 Exhaust Studs
Monel Alloy K500 Flat Head Screws
Alloy K500 Machine Screws
Monel K500 Self Tapping Screws
Alloy K500 Self Drilling Screw
Monel K500 Stud Bolts
Monel K500 M10 Bolts
Alloy K500 U Bolts
Monel K500 Lag Bolts
Monel K500 Nuts and Bolts
Monel Alloy K500 Bolts and Nuts
Monel K500 Exhaust Bolts
Monel K500 Hex Bolts
Monel K500 Socket Head Cap Screws
Alloy K500 Set Screws
Monel K500 Cap Screws
Monel K500 Hex Cap Screws
| MM THREADS AS PER IS 1363/67 | ||||||||||
| APPROXIMATE WEIGHT IN KGS FOR 100 NOS | ||||||||||
| LENGTH | DIAMETER | |||||||||
| M 5 | M 6 | M 8 | M 10 | M 12 | M 14 | M 16 | M 18 | M 20 | M 22 | |
| 16 mm | 0.448 | 0.743 | 1.590 | 3.211 | ||||||
| 20 mm | 0.598 | 0.812 | 1.711 | 3.411 | 4.892 | |||||
| 25 mm | 0.660 | 0.897 | 1.871 | 3.660 | 5.252 | 8.170 | ||||
| 30 mm | 0.737 | 1.010 | 2.070 | 3.912 | 5.574 | 9.690 | 10.707 | 18.657 | ||
| 35 mm | 0.804 | 1.120 | 2.271 | 4.223 | 5.974 | 10.000 | 11.416 | 16.026 | 19.608 | |
| 40 mm | 0.881 | 1.230 | 2.470 | 4.533 | 6.410 | 10.288 | 12.107 | 16.667 | 20.747 | |
| 45 mm | 0.958 | 1.340 | 2.671 | 4.840 | 6.859 | 10.504 | 12.821 | 17.241 | 21.739 | |
| 50 mm | 1.030 | 1.450 | 2.870 | 5.155 | 7.299 | 11.261 | 13.624 | 17.857 | 22.727 | 28.409 |
| 55 mm | 1.560 | 3.071 | 5.464 | 7.740 | 11.628 | 14.409 | 18.868 | 23.810 | 30.120 | |
| 60 mm | 1.670 | 3.270 | 5.774 | 8.183 | 12.255 | 15.244 | 20.000 | 25.126 | 32.051 | |
| 65 mm | 1.781 | 3.472 | 6.083 | 8.621 | 12.626 | 16.026 | 21.008 | 26.455 | 34.014 | |
| 70 mm | 1.890 | 3.671 | 6.394 | 9.058 | 12.987 | 16.835 | 22.124 | 27.778 | 35.461 | |
| 75 mm | 2.000 | 3.873 | 6.702 | 9.506 | 13.228 | 17.606 | 23.256 | 29.070 | 39.063 | |
| 80 mm | 2.111 | 4.072 | 7.013 | 10.000 | 13.889 | 18.248 | 24.510 | 30.303 | 40.000 | |
| 90 mm | 4.472 | 7.634 | 10.917 | 14.925 | 19.841 | 26.042 | 33.113 | 41.667 | ||
| 100 mm | 4.873 | 8.251 | 11.820 | 16.340 | 21.459 | 27.778 | 35.714 | 46.296 | ||
| 110 mm | 8.881 | 12.723 | 17.730 | 23.041 | 31.250 | 38.168 | 47.170 | |||
| 120 mm | 9.506 | 13.624 | 18.797 | 24.631 | 32.895 | 40.984 | 50.000 | |||
| 130 mm | 10.101 | 14.535 | 20.000 | 26.316 | 34.722 | 43.478 | 52.632 | |||
| 140 mm | 10.707 | 15.432 | 20.833 | 27.933 | 35.461 | 46.296 | 55.556 | |||
| 150 mm | 11.312 | 16.340 | 22.222 | 29.412 | 37.594 | 48.544 | 58.824 | |||
| 160 mm | 11.905 | 17.241 | 24.272 | 31.056 | 40.984 | 50.505 | 61.728 | |||
| 170 mm | 12.500 | 18.116 | 32.680 | 53.191 | 64.935 | |||||
| 180 mm | 13.123 | 19.011 | 26.882 | 34.247 | 55.556 | 67.568 | ||||
| 190 mm | 13.736 | 19.920 | 35.971 | 58.140 | 70.423 | |||||
| 200 mm | 14.327 | 20.833 | 29.586 | 37.594 | 49.020 | 60.976 | 73.529 | |||
| 220 mm | 15.528 | 22.624 | 40.650 | 65.789 | 79.365 | |||||
| 240 mm | 16.722 | 24.510 | 43.860 | 71.429 | 84.746 | |||||
| 250 mm | 17.301 | 25.381 | 45.455 | 74.627 | 87.719 | |||||
| 260 mm | 17.921 | 26.316 | 47.170 | 76.923 | 90.909 | |||||
| 280 mm | 19.157 | 28.090 | 50.505 | 81.967 | 98.039 | |||||
| 300 mm | 20.325 | 29.940 | 53.763 | 87.719 | 104.167 | |||||
| 320 mm | 31.646 | 56.818 | 92.593 | |||||||
| 340 mm | 33.557 | 60.241 | 98.039 | |||||||
| 360 mm | 35.211 | 63.291 | 104.167 | |||||||
| 380 mm | 37.037 | 66.667 | 108.696 | |||||||
| 400 mm | 39.063 | 69.444 | 113.636 | |||||||
| Class 150 Flanges ASME B16.5 (Stud bolt sizes) | Length of Stud Bolts | |||||||
| NPS | Outside Diameter of Flange | The diameter of Bolt Circle | The diameter of Bolt Holes | Number of Bolts | Diameter of Bolts | Raised Face 0.06 in |
Ring Joint | |
| 1/2 | 3 1/2 | 2 3/8 | 5/8 | 4 | 1/2 | 2 1/4 | – | |
| 3/4 | 3 7/8 | 2 3/4 | 5/8 | 4 | 1/2 | 2 1/2 | – | |
| 1 | 4 1/4 | 3 1/8 | 5/8 | 4 | 1/2 | 2 1/2 | 3 | |
| 1 1/4 | 4 5/8 | 3 1/2 | 5/8 | 4 | 1/2 | 2 3/4 | 3 1/4 | |
| 1 1/2 | 5 | 3 7/8 | 5/8 | 4 | 1/2 | 2 3/4 | 3 1/4 | |
| 2 | 6 | 4 3/4 | 3/4 | 4 | 5/8 | 3 1/4 | 3 3/4 | |
| 2 1/2 | 7 | 5 1/2 | 3/4 | 4 | 5/8 | 3 1/2 | 4 | |
| 3 | 7 1/2 | 6 | 3/4 | 4 | 5/8 | 3 1/2 | 4 | |
| 3 1/2 | 8 1/2 | 7 | 3/4 | 8 | 5/8 | 3 1/2 | 4 | |
| 4 | 9 | 7 1/2 | 3/4 | 8 | 5/8 | 3 1/2 | 4 | |
| 5 | 10 | 8 1/2 | 7/8 | 8 | 3/4 | 3 3/4 | 4 1/4 | |
| 6 | 11 | 9 1/2 | 7/8 | 8 | 3/4 | 4 | 4 1/2 | |
| 8 | 13 1/2 | 11 3/4 | 7/8 | 8 | 3/4 | 4 1/4 | 4 3/4 | |
| 10 | 16 | 14 3/4 | 1 | 12 | 7/8 | 4 1/2 | 5 | |
| 12 | 19 | 17 | 1 | 12 | 7/8 | 4 3/4 | 5 1/4 | |
| 14 | 21 | 18 3/4 | 1 1/8 | 12 | 1 | 5 1/4 | 5 3/4 | |
| 16 | 23 1/2 | 21 1/4 | 1 1/8 | 16 | 1 | 5 1/4 | 5 3/4 | |
| 18 | 25 | 22 3/4 | 1 1/4 | 16 | 1 1/8 | 5 3/4 | 6 1/4 | |
| 20 | 27 1/2 | 25 | 1 1/4 | 20 | 1 1/8 | 6 1/4 | 6 3/4 | |
| 24 | 32 | 29 1/2 | 1 1/4 | 20 | 1 1/4 | 6 3/4 | 7 1/4 | |
| Class 300 Flanges ASME B16.5 | Length of Stud Bolts | |||||||
| NPS | Outside Diameter of Flange | The diameter of Bolt Circle | The diameter of Bolt Holes | Number of Bolts | Diameter of Bolts | Raised Face 0.06 in |
Ring Joint | |
| 1/2 | 3 3/4 | 2 5/8 | 5/8 | 4 | 1/2 | 2 1/2 | 3 | |
| 3/4 | 4 5/8 | 3 1/4 | 3/4 | 4 | 5/8 | 3 | 3 1/2 | |
| 1 | 4 7/8 | 3 1/2 | 3/4 | 4 | 5/8 | 3 | 3 1/2 | |
| 1 1/4 | 5 1/4 | 3 7/8 | 3/4 | 4 | 5/8 | 3 1/4 | 3 3/4 | |
| 1 1/2 | 6 1/8 | 4 1/2 | 7/8 | 4 | 3/4 | 3 1/2 | 4 | |
| 2 | 6 1/2 | 5 | 3/4 | 8 | 5/8 | 3 1/2 | 4 | |
| 2 1/2 | 7 1/2 | 5 7/8 | 7/8 | 8 | 3/4 | 4 | 4 1/2 | |
| 3 | 8 1/4 | 6 5/8 | 7/8 | 8 | 3/4 | 4 1/4 | 4 3/4 | |
| 3 1/2 | 9 | 7 1/4 | 7/8 | 8 | 3/4 | 4 1/4 | 5 | |
| 4 | 10 | 7 7/8 | 7/8 | 8 | 3/4 | 4 1/2 | 5 | |
| 5 | 11 | 9 1/4 | 7/8 | 8 | 3/4 | 4 3/4 | 5 1/4 | |
| 6 | 12 1/2 | 10 5/8 | 7/8 | 12 | 3/4 | 4 3/4 | 5 1/2 | |
| 8 | 15 | 13 | 1 | 12 | 7/8 | 5 1/2 | 6 | |
| 10 | 17 1/2 | 15 1/4 | 1 1/8 | 16 | 1 | 6 1/4 | 6 3/4 | |
| 12 | 20 1/2 | 17 3/4 | 1 1/4 | 16 | 1 1/8 | 6 3/4 | 7 1/4 | |
| 14 | 23 | 20 1/4 | 1 1/4 | 20 | 1 1/8 | 7 | 7 1/2 | |
| 16 | 25 1/2 | 22 1/2 | 1 3/8 | 20 | 1 1/4 | 7 1/2 | 8 | |
| 18 | 28 | 24 3/4 | 1 3/8 | 24 | 1 1/4 | 7 3/4 | 8 1/4 | |
| 20 | 30 1/2 | 27 | 1 3/8 | 24 | 1 1/4 | 8 | 8 3/4 | |
| 24 | 36 | 32 | 1 5/8 | 24 | 1 1/2 | 9 | 10 | |
|
APPROX. WEIGHT IN KGS FOR 100 NOS |
|||||||||||
| SIZE | PLAIN PUNCHED WASHER IS:2016 |
HEAVY WASHER IS:6610 |
MACHINED WASHER IS:2016 |
SQUARE TAPER WASHERS | SPRING WASHER FLAT SECTION IS:3063-72 | SPRING WASHER SQUARE SECTION IS:6735-72 DIN : 7980 |
Size (Inches) | PLAIN PUNCHED WASHER BS:3410 TABLE 7 |
|||
| MACHINED | HIGH STRENGTH FRICTION GRIP |
||||||||||
| FOR CHANNELS IS:5372-75 |
FOR I-BEAM IS:5374-75 |
TYPE-B (CHANNELS) IS : 6649-85 |
TYPE-C ( I-BEAMS ) IS : 6649-85 |
||||||||
| M-3 | 0.01 | 0.01 | |||||||||
| M-4 | 0.02 | 0.02 | |||||||||
| M-5 | 0.04 | 0.04 | 0.03 | 0.03 | |||||||
| M-6 | 0.11 | 0.11 | 0.08 | 0.04 | 1/4″ | 0.21 | |||||
| M-8 | 0.20 | 0.21 | 1.10 | 1.20 | 0.16 | 0.11 | 5/16″ | 0.35 | |||
| M-10 | 0.39 | 1.60 | 0.40 | 1.00 | 1.10 | 0.25 | 0.20 | 3/8″ | 0.48 | ||
| M-12 | 0.58 | 1.90 | 0.62 | 2.00 | 2.20 | 2.00 | 1.80 | 0.38 | 0.23 | 1/2″ | 1.07 |
| M-14 | 0.82 | 0.60 | 0.38 | ||||||||
| M-16 | 1.06 | 2.90 | 1.13 | 3.40 | 3.75 | 9.00 | 8.50 | 0.89 | 0.59 | 5/8″ | 1.85 |
| M-18 | 1.27 | 0.97 | 0.66 | ||||||||
| M-20 | 1.64 | 4.40 | 1.72 | 5.80 | 6.70 | 8.50 | 8.00 | 1.52 | 1.23 | 3/4″ | 2.91 |
| M-22 | 1.75 | 7.50 | 7.00 | 1.65 | 1.36 | 7/8″ | 4.27 | ||||
| M-24 | 3.11 | 6.30 | 3.30 | 13.50 | 16.00 | 6.50 | 6.00 | 2.62 | 1.81 | 1″ | 6.13 |
| M-27 | 3.94 | 8.00 | 4.23 | 12.50 | 15.00 | 12.00 | 11.50 | 2.87 | 2.06 | 1.1/8″ | 7.69 |
| M-30 | 5.05 | 10.10 | 5.36 | 16.50 | 18.70 | 17.50 | 16.00 | 4.43 | 3.20 | 1.1/4″ | 9.90 |
| M-33 | 7.10 | 12.00 | 7.54 | 21.00 | 23.50 | 23.00 | 22.50 | 6.30 | 3.50 | ||
| M-36 | 8.73 | 14.60 | 9.20 | 25.50 | 29.20 | 26.50 | 26.00 | 6.73 | 5.25 | 1.1/2″ | 17.24 |
| M-39 | 12.60 | 16.70 | 13.30 | 28.30 | 34.50 | 7.17 | 5.61 | ||||
| M-42 | 17.50 | 20.10 | 18.30 | 11.10 | 8.00 | ||||||
| M-45 | 21.20 | 22.20 | 22.00 | 11.70 | 8.53 | ||||||
| M-48 | 28.40 | 26.00 | 29.40 | 12.30 | 9.00 | 2″ | 27.78 | ||||
| M-52 | 31.90 | 33.00 | 18.20 | ||||||||
| M-56 | 47.90 | 19.30 | |||||||||
| M-60 | 51.60 | 20.30 | |||||||||
| M-64 | 55.40 | 21.80 | |||||||||
| M-68 | 57.40 | ||||||||||
| M-72 | 63.40 | 24.00 | |||||||||
Check dimensions & size chart of DIN 2.4375 Hex Bolts, forging, studs, U bolt and washers ex Shenzhen
| Size | Finished Hex | Heavy Hex | Finished Jam | Heavy Hex Jam | Square | Heavy Square |
| 1/2″ Nut | 3.75 | 6.54 | 2.62 | 4.00 | 5.78 | 7.87 |
| 5/8″ Nut | 7.33 | 11.9 | 4.93 | 6.96 | 10.8 | 14.3 |
| 3/4″ Nut | 11.9 | 19.3 | 7.70 | 11.0 | 15.4 | 23.5 |
| 7/8″ Nut | 19.0 | 29.7 | 12.0 | 16.7 | 24.5 | 36.2 |
| 1″ Nut | 28.3 | 42.5 | 17.6 | 23.5 | 36.3 | 51.5 |
| 11/8″ Nut | 40.3 | 59.2 | 24.7 | 32.4 | 52.5 | 72.4 |
| 11/4″ Nut | 54.3 | 78.6 | 36.1 | 45.8 | 70.6 | 95.5 |
| 13/8″ Nut | 73.0 | 102 | 47.9 | 59.3 | 94.5 | 125.0 |
| 11/2″ Nut | 94.3 | 131 | 60.9 | 74.8 | 122 | 161 |
| 15/8″ Nut | 162 | 91.6 | ||||
| 13/4″ Nut | 151 | 204 | 100 | 114 | ||
| 17/8″ Nut | 241 | 134 | ||||
| 2″ Nut | 224 | 299 | 140 | 165 | ||
| 21/4″ Nut | 419 | 227 | ||||
| 21/2″ Nut | 564 | 332 | ||||
| 23/4″ Nut | 738 | 429 | ||||
| 3″ Nut | 950 | 545 | ||||
| 31/4″ Nut | 1194 | 651 | ||||
| 31/2″ Nut | 1526 | 851 | ||||
| 33/4″ Nut | 1812 | 1005 | ||||
| 4″ Nut | 2180 | 1200 |
M1.4 to M150 Alloy K500 Hex Screws as per ANSI/ DIN/ ISO/UTS Standard
- Mirror Buffed
- Hot Dipped Galvanizing
- Epoxy Coating
- Electro Polished
- Passivation
- Teflon Coating
- Oxidized
- Zinc Plating
- Chrome Plating
|
Alloy
|
Common Name
|
Related Specification
|
|||
|---|---|---|---|---|---|
|
British
|
European
|
ASTM
|
UNS
|
||
|
Alloy K500
|
Monel K500 ®
|
BS 3076 NA18
|
2.4375
|
B865-04
|
N05500
|
Monel K500 Socket Screws, Fixings, Washers, Rivets in various Threads, Dimensions and Sizes
|
Properties
|
Metric
|
Imperial
|
|
Tensile strength(annealed)
|
517-620 MPa
|
75-90 ksi
|
|
Yield strength
|
172-345 MPa
|
25-50 ksi
|
|
Modulus of elasticity
|
179 GPa
|
26000 ksi
|
|
Poisson’s ratio
|
0.32
|
0.32
|
|
Element
|
Content (%)
|
|
Nickel, Ni
|
63.0-70.0
|
|
Silicon, Si
|
.50 max
|
|
Carbon, C
|
.25 max
|
|
Sulphur, S
|
.01 max
|
|
Copper, Cu
|
–
|
|
Iron, Fe
|
2.0 max
|
|
Manganese, Mn
|
1.5 max
|
