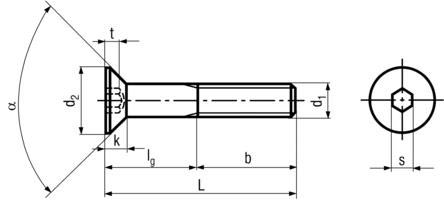

ISO 10642 DIN 7991 Dimensions
Dimensions in mm
|
Thread d
|
M3
|
M4
|
M5
|
M6
|
M8
|
M10
|
M12
|
(M14)
|
M16
|
(M18)
|
M20
|
(M22)
|
M24
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P
|
0.5
|
0.7
|
0.8
|
1
|
1.25
|
1.5
|
1.75
|
2
|
2
|
2.5
|
2.5
|
2.5
|
3
|
|
|
a
|
2°
0 |
90°
|
60°
|
|||||||||||
|
b
|
l?125mm
|
12
|
14
|
16
|
18
|
22
|
26
|
30
|
34
|
38
|
42
|
46
|
50
|
54
|
|
125<l?200mm
|
–
|
–
|
–
|
24
|
28
|
32
|
36
|
40
|
44
|
48
|
52
|
56
|
60
|
|
|
l>200mm
|
–
|
–
|
–
|
–
|
–
|
45
|
49
|
53
|
57
|
61
|
65
|
69
|
73
|
|
|
c
|
approx.
|
0.2
|
0.3
|
0.3
|
0.3
|
0.4
|
0.5
|
0.5
|
0.5
|
0.5
|
0.5
|
0.5
|
1
|
1
|
|
dk
|
nominal=max.
|
6
|
8
|
10
|
12
|
16
|
20
|
24
|
27
|
30
|
33
|
36
|
36
|
39
|
|
|
min.
|
5.7
|
7.64
|
9.64
|
11.57
|
15.57
|
19.48
|
23.48
|
26.48
|
29.48
|
32.38
|
35.38
|
35.38
|
38.38
|
|
da
|
max.
|
3.6
|
4.7
|
5.7
|
6.8
|
9.2
|
11.2
|
13.7
|
15.7
|
17.7
|
20.2
|
22.4
|
24.4
|
26.4
|
|
ds
|
nominal=max.
|
3
|
4
|
5
|
6
|
8
|
10
|
12
|
14
|
16
|
18
|
20
|
22
|
24
|
|
min.
|
2.86
|
3.82
|
4.82
|
5.82
|
7.78
|
9.78
|
11.73
|
13.73
|
15.73
|
17.73
|
19.67
|
21.67
|
23.67
|
|
|
e
|
min.
|
2.3
|
2.87
|
3.44
|
4.58
|
5.72
|
6.86
|
9.15
|
11.43
|
11.43
|
13.72
|
13.72
|
16
|
16
|
|
k
|
max.
|
1.7
|
2.3
|
2.8
|
3.3
|
4.4
|
5.5
|
6.5
|
7
|
7.5
|
8
|
8.5
|
13.1
|
14
|
|
r
|
min.
|
0.1
|
0.2
|
0.2
|
0.3
|
0.5
|
0.5
|
1
|
1
|
1
|
1
|
1
|
1
|
1.6
|
|
s
|
nominal
|
2
|
2.5
|
3
|
4
|
5
|
6
|
8
|
10
|
10
|
12
|
12
|
14
|
14
|
|
min.
|
2.02
|
2.52
|
3.02
|
4.02
|
5.02
|
6.02
|
8.025
|
10.025
|
10.025
|
12.032
|
12.032
|
14.032
|
14.032
|
|
|
max.
|
2.1
|
2.6
|
3.1
|
4.12
|
5.14
|
6.14
|
8.175
|
10.175
|
10.175
|
12.212
|
12.212
|
14.212
|
14.212
|
|
|
t
|
nominal=max.
|
1.2
|
1.8
|
2.3
|
2.5
|
3.5
|
4.4
|
4.6
|
4.8
|
5.3
|
5.5
|
5.9
|
8.8
|
10.3
|
|
min.
|
0.95
|
1.5
|
2.05
|
2.25
|
3.2
|
4.1
|
4.3
|
4.5
|
5
|
5.2
|
5.6
|
8.44
|
9.87
|
|
