Machine and Pan Head Screw DIN 7985 manufacturers in China
View DIN 7985 Screw Dimensions, DIN 7985 & ISO 14583 Screw Specification and Weight
The ISO 14583 is a specification that covers the features of hexalobular socket pan head screws. A Pan head ISO 14583 Screw derives their name because of the appearance of their head. The head of pan screws looks similar to that of an upside-down frying pan, hence, the name. They are in simpler terms a standard head type of non-countersunk screw. The DIN 7985 Screw Dimensions includes details like its wide head, along with its flat bearing surface.
The sides of these screws could be either high vertical, chamfered, or curved. Whereas the upper surface of the DIN 7985 Screw could be either flat or slightly domed with a recessed socket. The socket of these screws is constructed in a manner that it functions as a slot. Therefore the ISO 14583 Specification is well suited for wood and self-tapping screws, whereas the hexagon sockets are another standard feature of machine screws. The large diameter of Pan Head Screw DIN 7985, in aggregation with high edges, produces a larger, much deeper socket. This construction is what facilitates high torque during the assembly of a system. It also minimizes cam-out which, in turn, could damage the Machine Screw DIN 7985.

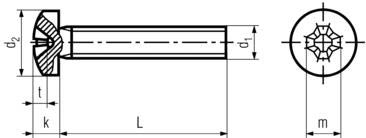

Legend:
d1 – the nominal diameter of the thread
k – head height
d2 – head diameter
t – groove depth
L – length of bolt
A – groove
Dimensions in mm
|
Thread d
|
M2
|
M2,5
|
M3
|
M3,5
|
M4
|
M5
|
M6
|
M8
|
M10
|
||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
P
|
0,4
|
0,45
|
0,5
|
0,6
|
0,7
|
0,8
|
1
|
1,25
|
1,5
|
||
|
a
|
max.
|
0,8
|
0,9
|
1
|
1,2
|
1,4
|
1,6
|
2
|
2,5
|
3
|
|
|
b
|
min.
|
25
|
25
|
25
|
38
|
38
|
38
|
38
|
38
|
38
|
|
|
da
|
max.
|
2,6
|
3,1
|
3,6
|
4,1
|
4,7
|
5,7
|
6,8
|
9,2
|
11,2
|
|
|
dk
|
nom.=max.
|
4
|
4
|
5,6
|
7
|
8
|
9,5
|
12
|
16
|
20
|
|
|
min.
|
3,7
|
4,7
|
5,3
|
6,64
|
7,64
|
9,14
|
11,57
|
15,57
|
19,48
|
||
|
k
|
nom.=max.
|
1,6
|
2,1
|
2,4
|
2,6
|
3,1
|
3,7
|
4,6
|
6
|
7,5
|
|
|
min.
|
1,46
|
1,96
|
2,26
|
2,46
|
2,92
|
3,52
|
4,3
|
5,7
|
7,14
|
||
|
r
|
min.
|
0,1
|
0,1
|
0,1
|
0,1
|
0,2
|
0,2
|
0,25
|
0,4
|
0,4
|
|
|
rf
|
approx.
|
3,2
|
4
|
5
|
6
|
6,5
|
8
|
10
|
13
|
16
|
|
|
x
|
max.
|
1
|
1,1
|
1,25
|
1,5
|
1,75
|
2
|
2,5
|
3,2
|
3,8
|
|
|
Inner hexalobular
|
Size
|
6
|
8
|
10
|
15
|
20
|
25
|
30
|
45
|
50
|
|
|
A
|
ref.
|
1,75
|
2,4
|
2,8
|
3,35
|
3,95
|
4,5
|
5,6
|
7,95
|
8,95
|
|
|
t
|
max.
|
0,77
|
1,04
|
1,27
|
1,33
|
1,66
|
1,91
|
2,42
|
3,18
|
4,02
|
|
|
min.
|
0,63
|
0,91
|
1,01
|
1,07
|
1,27
|
1,52
|
2,02
|
2,79
|
3,62
|
||
|
l
|
Approximate weight of carbon steel screws, in kg 1000
|
||||||||||
|
nom.
|
min.
|
max.
|
|||||||||
|
3
|
2,8
|
3,2
|
0,178
|
0,336
|
|
|
|
|
|
|
|
|
4
|
3,76
|
4,24
|
0,196
|
0,366
|
0,544
|
|
|
|
|
|
|
|
5
|
4,76
|
5,24
|
0,215
|
0,396
|
0,588
|
0,891
|
1,3
|
|
|
|
|
|
6
|
5,76
|
6,24
|
0,233
|
0,426
|
0,632
|
0,951
|
1,38
|
2,32
|
|
|
|
|
8
|
7,71
|
8,29
|
0,27
|
0,486
|
0,72
|
1,07
|
1,53
|
2,57
|
4,37
|
|
|
|
10
|
9,71
|
10,29
|
0,307
|
0,546
|
0,808
|
1,19
|
1,69
|
2,81
|
4,72
|
9,96
|
|
|
12
|
11,65
|
12,35
|
0,344
|
0,606
|
0,896
|
1,31
|
1,84
|
3,06
|
5,07
|
10,6
|
19,8
|
|
14
|
13,65
|
14,35
|
0,381
|
0,666
|
0,984
|
1,43
|
2
|
3,31
|
5,42
|
11,2
|
20,5
|
|
16
|
15,65
|
16,35
|
0,418
|
0,726
|
1,07
|
1,55
|
2,15
|
3,56
|
5,78
|
11,9
|
21,8
|
|
20
|
19,58
|
20,42
|
0,492
|
0,846
|
1,25
|
1,79
|
2,46
|
4,05
|
6,48
|
13,2
|
23,8
|
|
25
|
24,58
|
25,42
|
|
0,996
|
1,47
|
2,09
|
2,85
|
4,67
|
7,36
|
14,8
|
26,3
|
|
30
|
29,58
|
30,42
|
|
|
1,69
|
2,39
|
3,23
|
5,29
|
8,24
|
16,4
|
28,8
|
|
35
|
34,5
|
35,5
|
|
|
|
2,68
|
3,62
|
5,91
|
9,12
|
18
|
31,3
|
|
40
|
39,5
|
40,5
|
|
|
|
|
4,01
|
6,52
|
10
|
19,6
|
33,9
|
|
45
|
44,5
|
45,5
|
|
|
|
|
|
7,14
|
10,9
|
21,2
|
36,4
|
|
50
|
49,5
|
50,5
|
|
|
|
|
|
7,76
|
11,8
|
22,8
|
38,9
|
|
55
|
54,4
|
55,6
|
|
|
|
|
|
|
12,6
|
24,4
|
41,4
|
|
60
|
59,4
|
60,6
|
|
|
|
|
|
|
13,5
|
26
|
43,9
|
We delivers a wide range of ISO 14583 Hexalobular socket (TX) pan head screw, Hexalobular Pan Machine Screws in Shenzhen,China
