buy SAE 1035 Carbon Steel Round Bar directly from the manufacturer in China
The ASTM specified 1035 Round Bar is a low carbon alloyed steel grade. This SAE 1035 Carbon Steel Round Bar is to conform to the chemistry specifications of the ASTM 1035 by the performance of a heat analysis.

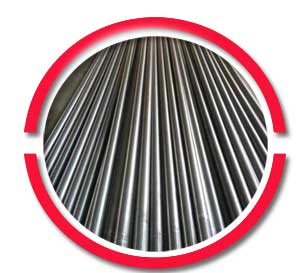

1035 Round Bar

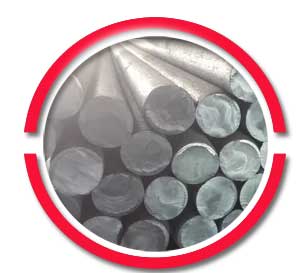

SAE 1035 Carbon Steel Round Bar

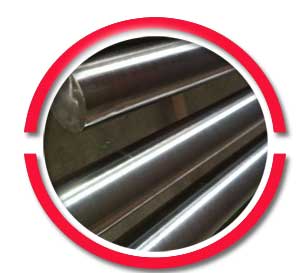

1035 Steel Rod
keep bulk stock of 1035 Cold Drawn Steel Bar, 1035 Carbon Steel Rods at our stockyard
The astm 1035 carbon steel flat bar is to be rolled from properly identified heats of mould cast or from strand cast steel. The identification of the Carbon Steel Grade 1035 bar is to be done with any one of the following processes i.e. a basic oxygen process, electric furnace process, or an open hearth process. Per this specification, steel specimens such as C35 Round bar are required to undergo certain tests. For instance, a deformation test, tensile test, as well as a bend test will be conducted on the ASTM specified c1035 carbon steel round bar.
Furthermore, these steel specimens, in this case, astm 1035 carbon steel round bar have to conform to required values of yield strength, tensile strength, stress, in addition to the elongation values. Lastly, the final product i.e. AISI 1035 steel round bars have to be marked by a tag. Since the 1035 Cold Drawn Steel Bar is a water resisting carbon steel grade, the alloy has the ability to exhibit properties like good wear resistance and hardenability. These properties have been attributed to the increase of small quantity of chromium.
1035 Round Steel Bars Size Range
16mm, 18mm, 20mm, 22mm, 23.5mm, 24mm, 25mm, 26mm, 27mm, 28mm, 30mm, 32mm, 34mm, 35mm, 36mm, 37mm, 38mm, 40mm, 42mm, 45mm, 46.5mm, 47mm, 50mm, 51mm,53mm, 56mm, 60mm, 63mm, 65mm, 70mm, 75mm, 78mm, 80mm, 85mm, 90mm, 95mm, 100mm, 105mm, 110mm, 115mm, 120mm, 125mm, 130mm.
EN Name C35 (1.0501)
EN Number 1.0501
DIN C35, CM35
BS 970 070M36
UNI C35
JIS S35C
one of the biggest c1035 carbon steel round bar, Aisi 1035 Hot Rolled Steel Bar, 1035 steel suppliers
The following table shows mechanical properties of 1035 carbon steel round bar.
|
Properties
|
Metric
|
Imperial
|
|---|---|---|
|
Tensile strength, ultimate
|
585 MPa
|
84800 psi
|
|
Tensile strength, yield
|
370 MPa
|
53700 psi
|
|
Modulus of elasticity
|
190-210 GPa
|
29700-30458 ksi
|
|
Bulk modulus (typical for steel)
|
140 GPa
|
20300 ksi
|
|
Shear modulus (typical for steel)
|
80 GPa
|
11600 ksi
|
|
Poissons ratio
|
0.27-0.30
|
0.27-0.30
|
|
Elongation at break (in 50 mm)
|
30%
|
30%
|
|
Reduction of area
|
53%
|
53%
|
|
Hardness, Brinell
|
183
|
183
|
|
Hardness, Knoop (converted from Brinell hardness)
|
204
|
204
|
|
Hardness, Rockwell B (converted from Brinell hardness)
|
89
|
89
|
|
Hardness, Vickers (converted from Brinell hardness)
|
192
|
192
|
|
Machinability (based on AISI 1212 steel. as 100 machinability)
|
65
|
65
|
The physical properties of 1035 carbon steel round bar are tabulated below.
|
Properties
|
Metric
|
Imperial
|
|---|---|---|
|
Density
|
7.85 g/cm3
|
0.284 lb/in3
|
india’s largest 1035 carbon steel bar, ASTM 1035 carbon steel flat bar exporter
The thermal properties of 1035 carbon steel round bar are given in the following table.
|
Thermal Properties
|
Metric
|
Imperial
|
|---|---|---|
|
Thermal expansion co-efficient (@20°C/68°F)
|
11 µm/m°C
|
6.11 µin/in°F
|
|
Thermal conductivity
|
51.9 W/mK
|
360 BTU in/hr.ft2.°F
|
high quality 1035 steel bar, Carbon Steel Grade 1035 bar suppliers
|
Element
|
Content
|
|---|---|
|
Carbon, C
|
0.310 – 0.380 %
|
|
Iron, Fe
|
98.63 – 99.09 %
|
|
Manganese, Mn
|
0.60 – 0.90 %
|
|
Phosphorous, P
|
0.040 %
|
|
Sulfur, S
|
0.050 %
|
