Steel grade 20mncr5 round bar is a low alloyed engineering metal. These case hardened Carbon Steel 20Mncr5 Bars are intended for use in parts that require core tensile strength ranging between 1000 – 1300 N/mm².
View 20mncr5 bar price, biggest steel bar 20mncr5, 20mncr5 steel forging bar manufacturer in india

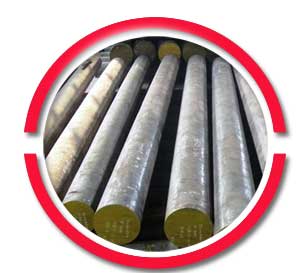

20mncr5 round bar

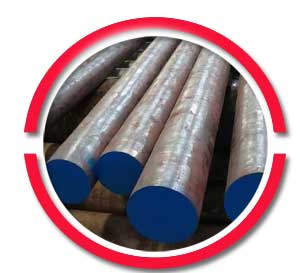

Steel Bar 20mncr5

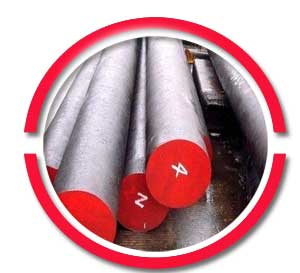

20mncr5 Steel Forging Rod
These 20Mncr5 CS Forged Bars are also used in applications where good wear resistance is considered as a primary requirement. Hence, the Carbon Steel 20Mncr5 Bright Bars are a part of mechanical controlling parts. 20mncr5 steel round bar weight could be customized, depending on the requirements of the buyer or the application.
Apart from a higher tensile strength, the 20Mncr5 DIN 34CrNiMo6 Rods exhibit superior toughness and good hardenability characteristics as well. The resulting performance of the 20Mncr5 Carbon Steel Round Bar after heat treatment will yield better results as compared to alloy 20Cr. Even when used in low temperature applications, the 20mncr5 steel forging bar demonstrates good toughness and better machinability.
However, the performance of Carbon Steel 20Mncr5 Hex Bar for welding operations is low; which is why this alloy is not suited to be used for use in applications that require welding. Generally, these CS 20Mncr5 Cold Finished bars are supplied in a carburizing quenching or quenched condition.
- Standard : ASTM A29
- grade: 20MnCr5
- number: 1.7147
- Classification: Alloy special steel
- Standard: EN 10084: 2008 Case hardening steels. Technical delivery conditions
- Sizes 20MnCr5 Round Bars : diameter 8mm – 3000mm
Check 20mncr5 steel round bar weight, india’s largest 20mncr5+hh, Carbon Steel 20Mncr5 Bars suppliers
Regular size and Tolerance of 1.7147 gearing steel
|
Hot Rolled round bar
|
|||
|
Diameter
(mm) |
Diameter Tolerance
(mm) |
Diameter
(mm) |
Diameter Tolerance
(mm) |
|
≤12.70
|
-0.13 ～0.30
|
>50.80～63.5
|
-0.25～0.76
|
|
12.7～25.40
|
-0.13～0.41
|
>63.50～76.20
|
-0.25～1.02
|
|
>25.4～38.10
|
-0.15～0.51
|
>76.20～101.60
|
-0.30～+1.27
|
|
>38.1～50.80
|
-0.20～0.64
|
>101.60～203.20
|
-0.38～3.81
|
Get 20Mncr5 Carbon Steel Round Bar, Carbon Steel 20Mncr5 Hex Bar, CS 20Mncr5 Cold Finished bar Stock at factory price
|
Soft annealing °C
|
Cooling
|
Hardness HB
|
|---|---|---|
|
750-780
|
Furnace
|
max. 218
|
|
Stress-relief annealing °C
|
Cooling
|
|---|---|
|
550-600
|
Furnace
|
|
1st pre-heating °C
|
2nd and 3rd
|
Hardening °C
|
Quenching
|
Tempering °C
|
Hardness after Teperature HRC
|
|---|---|---|---|---|---|
|
up to approx. 400 in an air-circulating furnace
|
740 and 840
|
780-820
|
810 °C Oil ,Quench
|
at least twice 150-200
|
60 – 62
|
manufacturers of 20Mncr5 DIN 34CrNiMo6 Rods, Carbon Steel 20Mncr5 Bright Bars
|
STEEL DESIGNATION
|
RANGE LIMITS
|
HRC HARDNESS MEASURED FROM THE QUENCHED END OF THE TEST TUBE (MM)
|
|||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SYMBOLIC
|
NUMERIC
|
1,5
|
3
|
5
|
7
|
9
|
11
|
13
|
15
|
20
|
25
|
30
|
35
|
40
|
|
|
20MnCr5+H
|
1,7147+H
|
max
|
49
|
49
|
48
|
46
|
43
|
42
|
41
|
39
|
37
|
35
|
34
|
33
|
32
|
|
20MnCrS5+H
|
1,7149+H
|
min
|
41
|
39
|
36
|
33
|
30
|
28
|
26
|
25
|
23
|
21
|
–
|
–
|
–
|
|
20MnCr5+HH
|
1,7147+HH
|
max
|
49
|
49
|
48
|
46
|
43
|
42
|
41
|
39
|
37
|
35
|
34
|
33
|
32
|
|
20MnCrS5+HH
|
1,7149+HH
|
min
|
44
|
42
|
40
|
37
|
34
|
33
|
31
|
30
|
28
|
26
|
25
|
24
|
23
|
|
20MnCr5+HL
|
1,7147+HL
|
max
|
46
|
46
|
44
|
42
|
39
|
37
|
36
|
34
|
32
|
30
|
29
|
28
|
27
|
|
20MnCrS5+HL
|
1,7149+HL
|
min
|
41
|
39
|
36
|
33
|
30
|
28
|
26
|
25
|
23
|
21
|
–
|
–
|
–
|
| Standard | CS 20Mncr5 |
| UNS | – |
| WERKSTOFF NR. | 20MnCr5 |
| BS | – |
| IS | 20MnCr1 |
| JIS | – |
| EN | – |
| SAE/AISI | – |
Are you looking for 20Mncr5 CS Forged Bars, Carbon Steel 20Mncr5 Bars exporter?
| Grade | C | Ni | Si | S | P | Mn | Cr | Mo |
| 20Mncr5 | .17 – .22 | – | .10 – .35 | .035 | .035 | 1.10 – 1.40 | 1.00 – 1.30 | – |
| Properties | Conditions | ||
|---|---|---|---|
| T (°C) | Treatment | ||
| Density (×1000 kg/m3) | 7.7-8.03 | 25 | |
| Poisson’s Ratio | 0.27-0.30 | 25 | |
| Elastic Modulus (GPa) | 190-210 | 25 | |
| Tensile Strength (Mpa) | 1158 | 25 | oil quenched, fine grained, tempered at 425°C |
| Yield Strength (Mpa) | 1034 | ||
| Elongation (%) | 15 | ||
| Reduction in Area (%) | 53 | ||
| Hardness (HB) | 335 | 25 | oil quenched, fine grained, tempered at 425°C |
|
QUALITY
|
HEAT TREATMENT
|
SURFACE
|
|---|---|---|
|
20MnCr5
|
Soft-annealed
|
rolled
forged turned drawn / peeled h11 |
|
20MnCr5
high machinability |
Annealed
|
rolled
peeled |
|
Thermal Conductivity at °C
|
20
|
350
|
700
|
|
W/(m*K)
|
11.7
|
12.8
|
13.5
|
|
|
- Gears
- Pins
- Shafts
- Camshafts
- Drive wheels
- Clutch plates
