most dedicated ASTM B160 UNS N02201 Rod, Din 2.4068 Hex Bar Suppliers in Shenzhen, China
buy large or small quantity Alloy 201 Flat/Square/ Threaded bar Stock at discounted prices
Nickel 201 is a low carbon, commercially pure wrought alloy grade. Produced under specification ASTM B160, these components may be processed by means of either hot-working, cold-working, or annealing. Along with the chemical composition and mechanical properties, the ASTM B160 UNS N02201 Rod must conform to the values of a tension test, Chemical analysis, and hardness test.
The properties of this alloy are similar to that of nickel 200. However, because the content of carbon is lower in the alloy of Nickel 201 Round Bar, it is not susceptible to embrittlement brought on by inter-granular carbon at elevated temperatures. The higher content of nickel in the alloy makes these components resistant to several chemicals including acids and alkalis, as well as to dry gases at ambient temperature. The significance of nickel in the Nickel Alloy 201 Square bar is also responsible for the material’s resistance to mineral acids. However, this is a property that is dependent on aspects such as the temperature, aeration, and concentration of the solution.
The corrosion resistance properties of a Din 2.4068 Hex Bar is far better when the acid has been de-aerated. Its corrosion resistance properties, ensure sustenance of this alloy in several corrosive compounds. For instance, the Alloy 201 Flat bar may be used in the manufacture and handling of chemicals such as sodium hydroxide, Analine hydrochloride, as well as in the chlorination of aliphatic hydrocarbons including chemicals like methane, benzene, and ethane.

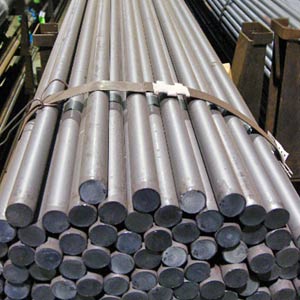

Nickel 201 Round Bar

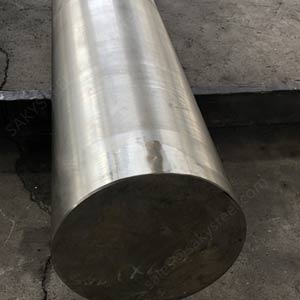

ASTM B160 UNS N02201 Rod

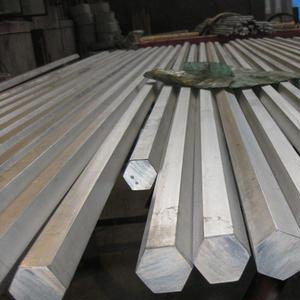

Din 2.4068 Hex Bar
Table of Content
Nickel 201 Rod manufacturer in China, The right Place of supply of UNS N02201 Nickel Bar in China at Best Price. We provide FREE sample.
|
10 (A/F) x 1000mm Length
|
1
|
$100.12
|
|
10 (A/F) x 1000mm Length
|
3
|
$255.52
|
|
10 (A/F) x 1000mm Length
|
5
|
$366.11
|
|
10 (A/F) x 2000mm Length
|
1
|
$181.65
|
|
10 (A/F) x 2000mm Length
|
3
|
$424.12
|
Please note this is an approx UNS N02201 Nickel Bar Price in China. For final Nickel 201 Rod price list please Make an inquiry.
|
Alloy
|
Material-No.
|
DN-Trade Name
|
ASTM Specification
|
UNS-No.
|
DIN Specification
|
|---|---|---|---|---|---|
|
Nickel 201
|
2.4068
|
NR-Nickel 99
|
ASTM B160
|
N02201
|
DIN 17740
|
Nickel 201 Round Bar Condition
|
ANN
|
Annealed
|
|
H&T
|
Hardened and tempered.
|
|
PH
|
Precipitation hardened.
|
| Grade | Nickel 201 |
|---|---|
| Specification | UNS N02201, ASME SB160/ASTM B160 |
| Round bar size | Dia: 3mm~800mm |
| Hollow Bar | 32 OD x 16 ID to 250 OD x 200 ID |
| Square bar size | 4mm to 100mm |
| Hex Bar size | 2mm to 100mm A/F |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Billet Size | 1/2″ to 495mm Diameter |
| Channel Bar | 80 x 40 to 150 x 75mm section; 5 to 6mm thickness |
| Flat bar size | Thickness: 2mm to 100mm |
| Width: 10mm to 500mm | |
| Hollow Bar | 32mm Outside Diameter x 16mm Inside Diameter to 250mm Outside Diameter x 200mm Inside Diameter) |
| Angle bar size | 3*20*20~12*100*100 |
| Form | Rings, Hollow, Flat Bar, Rectangle, Triangle, Square,Rod, Half Round Bar, T-Bar, Hex (A/F), Precision Ground Bar, Round, Channel Bar, Blocks, Round Rod, Threaded, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| Tolerance | H8, K12, H10, H11, K10, H9, K11, K9, H12, H13, or custom |
| Technique | Forged Round Bar, Rod, Hot Rolled, Cold Drawn, Cold Rolled, |
| Condition | annealed, Hardened and tempered |
| Surface | Polished, Cold Drawn, Hot Rolled Pickled, Sand Blasting Finished, Bright, Hairline |
Alloy 201 Bar Surface finish
|
RT
|
Rough turned/peeled
|
P&T
|
Peeled and turned
|
|
SRE
|
Slit rolled edge
|
BD
|
Bright drawn
|
|
P
|
Polished
|
CD
|
Cold drawn
|
|
HRAP
|
Hot rolled annealed and pickled
|
CF
|
Cold finished
|
|
HF
|
Hot finished
|
CG
|
Centreless ground
|
|
PR
|
Peeled and reeled
|
ST
|
Smooth turned
|
UNS N02201 Nickel Hollow Bar
Alloy 201 Rebar
Nickel 201 Threaded Bar
Alloy 201 Hexagonal Bar
Nickel 201 Round Bar
Nickel Alloy 201 Half-Round Bar
Alloy 201 T-Bar
UNS N02201 Nickel Rounds
Nickel 201 Square Bar
Nickel 201 Flat Bar
UNS N02201 Nickel Rectangular Bar
Nickel 201 Rod
Nickel 201 Hex Bar
Alloy 201 Triangle Bar
Nickel Alloy 201 Precision Ground Stock
Alloy 201 Precision Ground Bar
|
Type
|
SIZES (Inches)
|
ISO Tolerance
|
SIZES (mm)
|
|---|---|---|---|
|
Peeled and Polished
|
1.50″ to 6.00″
|
h11-DIN 1013
|
40.00 to 150.00
|
|
Cold Drawn and Ground
|
5/6″ to 2.50″
|
h9-h8-h11-h10
|
10.00 to 75.00
|
|
Cold Drawn and Polish
|
1/8″ to 3.00″
|
h9-h8-h11-h10
|
3.00 to 75.00
|
|
Peeled and Ground
|
3/4″ to 2.00″
|
h10-h9-h11
|
20.00 to 50.00
|
Cut to size on request (tolerance +2/-0 mm).
|
50.0
|
6.0
|
|
45.0
|
5.0
|
|
60.0
|
8.0
|
|
55.0
|
7.0
|
|
70.0
|
10.0
|
|
65.0
|
9.0
|
|
75.0
|
12.0
|
|
90.0
|
20.0
|
|
80.0
|
16.0
|
|
100.0
|
25.0
|
|
160.0
|
35.0
|
|
130.0
|
30.0
|
|
200.0
|
40.0
|
- SW 19 Nickel 201 Hex Rod
- SW 17 Nickel 201 Hex Rod
- SW 13 Nickel 201 Hex Rod
- SW 27 Nickel 201 Hex Rod
- SW 24 Nickel 201 Hex Rod
|
Product form
|
Dimension
|
|---|---|
|
Rod, Round bar, annealed, cold drawn
|
Weight=0.7 kg/m, Dia=10.0 mm
|
|
Rod, Round bar, rough turned, hot finished, annealed
|
Weight=162 kg/m, Dia=152.4 mm,
|
|
Rod, Round bar, annealed, cold drawn
|
Weight=0.23 kg/m, Dia=6.0 mm
|
|
Rod, Round bar, annealed, hot finished, peeled
|
Weight=17.8 kg/m, Dia=50.0 mm
|
|
Rod, Round bar, cold drawn h9
|
Weight=1.1 kg/m, Dia=12.0 mm,
|
|
Rod, Round bar, annealed, hot finished, peeled
|
Weight=70.8 kg/m, Dia=100.0 mm
|
|
Rod, Round bar, peeled, forged
|
Weight=40.0 kg/m, Dia=75.0 mm,
|
|
Rod, Round bar, annealed, forged, machined
|
Weight=226 kg/m, Dia=180.0 mm
|
High Temperature Fasteners Inc. is China’s largest stockist and supplier of Nickel 201 Round Bar with an extensive inventory for commercial and industrial applications.
|
Grade
|
Fe
|
Si
|
C
|
S
|
Ni
|
Mn
|
Mg
|
Cu
|
Ti
|
|---|---|---|---|---|---|---|---|---|---|
|
Nickel 201
|
0.4 max
|
0.2 max
|
0.02 max
|
0.01 max
|
99.0 min
|
0.35 max
|
0.15 max
|
0.25 max
|
0.1 max
|
|
Density
|
Elongation
|
Tensile Strength
|
Melting Point
|
Yield Strength (0.2%Offset)
|
|---|---|---|---|---|
|
8.9 g/cm3
|
45 %
|
Psi – 67000 , MPa – 462
|
1446 °C (2635 °F)
|
Psi – 21500 , MPa – 148
|
|
STANDARD
|
UNS
|
WERKSTOFF NR.
|
AFNOR
|
GOST
|
BS
|
JIS
|
EN
|
|---|---|---|---|---|---|---|---|
|
Nickel 201
|
N02201
|
2.4068
|
–
|
НП-2
|
NA 12
|
NW 2201
|
NLC-Ni 99
|
