A D2 Steel Rod is an air hardened, tooling steel grade. The high carbon, high chromium containing Tool Steel D2 Round Bar exhibits high wear and abrasion resistance properties. The d2 tool steel tig rod is a heat treatable alloy. AISI O1 (DIN-1.2510) Round Rods has a hardness value which falls in the range between 55 HRC – 62 HRC.
Manufacturer of Tool Steel D2 Round Bar, d2 tool steel rod, d2 tool steel welding rod in india

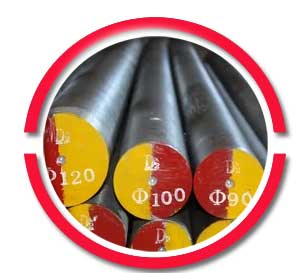

D2 Steel Rod

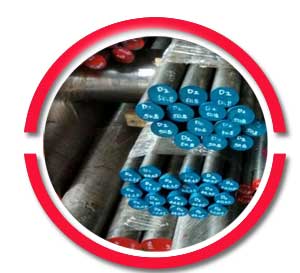

Tool Steel D2 Round Bar

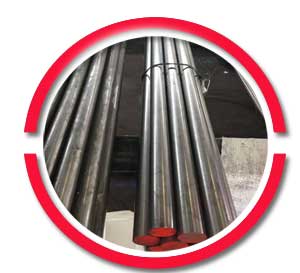

D2 Tool Steel Welding Rod
More importantly, the AISI 01 Die Steel Square Rods will retain their hardness properties up to an elevated temperature setting of 425 °C. The air hardened (IS-T90Mn6WCr2) Round Rods typically contains an unusually high content of chromium that ranges between 10% and 13%. This higher content of chromium in its alloy is what makes the d2 tool steel rod a very durable and high end product. The chromium-rich alloy carbides in the CS D2 Forged Rods is what grants the alloy its excellent resistance to wear, especially when exposed to sliding contact with other metal or materials that have an abrasive exterior.
The very high chromium content in D2 Steel Round Rods provides the alloy with better resistance to corrosion as compared to most tool steels. Thus enabling the CS Round Rods to be semi-stainless steel grade. Often machined in an annealed condition, the AISI 01 Tool Steel Round Rods demonstrates little distortion on correct hardening. d2 tool steel welding rod could be used for long run tooling applications, particularly in those areas where wear resistance is deemed to be an important characteristic, such as blanking or forming dies as well as thread rolling dies.
- Standard : ISI,ASTM,BS,DIN,GB,JIS,AISI,JIS,DIN,GB
- Material Grade : AISI O1 (DIN-1.2510) (IS-T90Mn6WCr2) Tool Steel Round Bar
- Diameter : : 10 mm ~ 900 mm
- Type : Flats, Round, Square, Forged.
check d2 steel price, Get instant delivery of d2 steel bar, d2 tool steel tig rod, AISI 01 Tool Steel Round Rods in india
Equivalent materials to D2 tool steels are:
- DIN 1.2379
- NI KU
- B.S. BD 2
- ASTM A681
- FED QQ-T-570
- SAE J437
- SAE J438
- UNS T30402
Largest Manufacturer of d2 steel round bar, (IS-T90Mn6WCr2) Round Rods, CS Round Rods, AISI O1 (DIN-1.2510) Round Rods in Shenzhen
|
Soft annealing °C
|
Cooling
|
Hardness HB
|
|---|---|---|
|
840 – 870
|
Furnace
|
max. 250
|
|
Stress-relief annealing °C
|
Cooling
|
|---|---|
|
approx. 660-710
|
Furnace
|
|
Hardening °C
|
Quenching
|
Hardness after quenching HRC
|
|---|---|---|
|
1000-1050
|
Air, oil or saltbath, 500-550 °C
|
63
|
|
Tempering °C after quenching
|
100
|
200
|
300
|
400
|
500
|
525
|
550
|
600
|
|
HRC
|
64
|
61.5
|
58.5
|
58.5
|
59
|
60
|
57
|
50
|
Looking for the best quality and affordable AISI 01 Tool Steel Rods, DIN 1.2510 Rods, D2 Steel Round Rods suppliers?
The physical properties of D2 tool steels are outlined in the following table.
|
Properties
|
Metric
|
Imperial
|
|---|---|---|
|
Density
|
7.7 x 1000 kg/m3
|
0.278 lb/in3
|
|
Melting point
|
1421°C
|
2590°F
|
The following table shows the thermal properties of D2 steels.
|
Properties
|
Conditions
|
||
|---|---|---|---|
|
T (°C)
|
Treatment
|
||
|
Thermal expansion
|
10.4 x 10-6/ºC
|
20-100
|
–
|
|
mechanical Properties
|
Metric
|
Imperial
|
|---|---|---|
|
Hardness, Knoop (converted from Rockwell C hardness)
|
769
|
769
|
|
Hardness, Rockwell C
|
62
|
62
|
|
Hardness, Vickers
|
748
|
748
|
|
Izod impact unnotched
|
77.0 J
|
56.8 ft-lb
|
|
Poisson’s ratio
|
0.27-0.30
|
0.27-0.30
|
|
Elastic modulus
|
190-210 GPa
|
27557-30457 ksi
|
| C % | V % | Cr % | Mn % | W % |
| 0.95% | 0.20% | 0.50% | 1.25% | 0.50% |
