Grade 5 Titanium Round Bar

6al-4v Rod, ASTM B348 UNS R56400 Titanium threaded/ filler rod manufacturer in india

DIN 3.7165 Hexagon/Flat/ Square/Forged Round Bars Supplier in China.

Titanium grade 6al-4v is an alpha-beta alloy. Similar to its other titanium alloys, the high content of titanium in the alloy of DIN 3.7165 Hexagon bar. Hence, these components can exhibit properties like higher strength to weight ratio as well as excellent resistance to corrosion. The 6al-4v Rod is amongst the most extensively used titanium alloys. The application of grade 5 is typical across a range of applications where properties such as low density and excellent corrosion resistance are deemed as important.

The UNS R56400 Titanium Flat bar is predominantly used in the aerospace industry. Because the alloy is biocompatible, grade 5 is an alloy that is well versed with the demands of the medical industry, and in particular the biomechanical ones. Biomechanical applications including implants and prostheses do not form toxic substances when they have been surgically implanted in the body.

Grade 5 Titanium Round Bar has a very low thermal conductivity at ambient temperature. Since the wear resistance properties of this alloy are considered to be poor, manufacturers often suggest the use of surface treatments. Treatments such as nitriding and oxidizing carried out on the ASTM B348 Ti gr 5 Threaded Rod could improve the surface wear properties of the alloy.

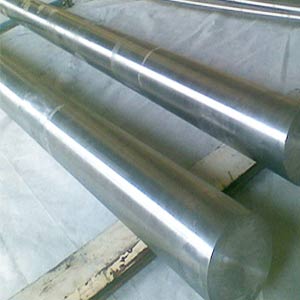

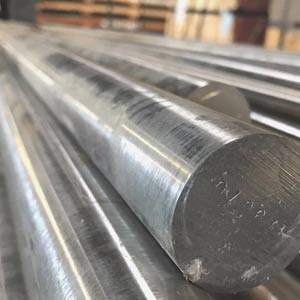

Grade 5 Titanium Round Bar
Grade 5 Titanium Round Bar
ASTM B348 UNS R56400 Rod
ASTM B348 UNS R56400 Rod

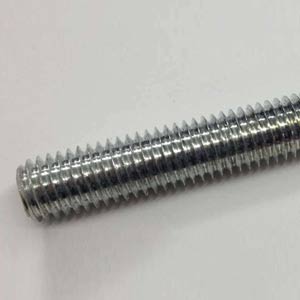

DIN 3.7165 threaded rod

DIN 3.7165 threaded rod



Grade 5 Titanium Round Bar Specification
  • Dimensions : EN, DIN, JIS, ASTM, BS, ASME, AISI
  • Common Trade Names: Grade 5 Titanium, Ti-6al-4v, 6Al-4V Titanium
  • Standard : ASTM B348 / ASME SB348
  • Size : Dia6.0-200mm x Length1000-6000mm
  • Tolerance : H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements
  • Form : Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc.
  • Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
  • Form : Round, Square, Rectangular, Hydraulic Etc
  • Length : Single Random, Double Random & Required Length, Custom Size – 12 Meter lengths

ASTM B348 Titanium Grade 5 Bright Bar, Grade 5 Ti Cold Finished and Hot Rolled Bars Stockholder

Ti-6Al-4V round bar stock:
  • AMS 4928
  • AMS 4967
  • AMS 4965 (in 4” diameter and smaller)
  • AMS 6931 (for parts requiring good weldability and ductility)
  • ASTM B348 GR5
  • MIL-T-9047



Grade 5 Titanium Round Bar Equivalent Grades
STANDARD WERKSTOFF NR. UNS
Titanium Gr5 3.7165 R56400
Grade 5 Titanium Round Bar Chemical Composition
Element Titanium Gr5
C 0.10 max
Ti Bal
N 0.05 max
Fe 0.40 max
H 0.015 max
V 3.5-4.5
Al 5.5-6.75 max
O 0.20 max
Grade 5 Titanium Round Bar Mechanical Properties
Element Titanium Gr5
Density 4.43 g/cm3
Melting Point 1632 °C (2970 °F)
Tensile Strength Psi – 138000 , MPa – 950
Yield Strength (0.2%Offset) Psi – 128000 , MPa – 880
Elongation 14 %
Titanium Alloy Grade 5 Hex/black Bar and Cold Drawn Bars Dealers
Grade 5 Titanium Round Bar Heat Treatment
Heat Treatment of Finished Parts
Condition as supplied by Alloy Wire
Type
Temperature
Time (Hr)
Cooling
°C
°F
Annealed
Stress Relieve
480
900
2
Air
Spring Temper
Stress Relieve
250
480
0.5
Air
Grade 5 Titanium Round Bar Physical Properties
Physical Properties
Metric
English
Density
4.43 g/cc
0.16 lb/in³
Grade 5 Titanium Round Bar Electrical Properties
Electrical Resistivity
0.000178 ohm-cm
0.000178 ohm-cm

Magnetic Permeability
1.00005
1.00005
at 1.6kA/m
Magnetic Susceptibility
3.3e-006
3.3e-006
cgs/g
Grade 5 Titanium Round Bar Thermal Properties
CTE, linear 20°C
8.6 µm/m-°C
4.78 µin/in-°F
20-100ºC
CTE, linear 250°C
9.2 µm/m-°C
5.11 µin/in-°F
Average over the range 20-315ºC
CTE, linear 500°C
9.7 µm/m-°C
5.39 µin/in-°F
Average over the range 20-650ºC
Specific Heat Capacity
0.5263 J/g-°C
0.126 BTU/lb-°F

Thermal Conductivity
6.7 W/m-K
46.5 BTU-in/hr-ft²-°F

Melting Point
1604 – 1660 °C
2920 – 3020 °F

Solidus
1604 °C
2920 °F

Liquidus
1660 °C
3020 °F

Beta Transus
980 °C
1800 °F
Grade 5 Titanium Round Bar Standard Inventory Specifications
  • AMS 4911
  • UNS R56400
  • ASTM F1472 (for surgical implant applications)
  • ASTM B265 GR 5
  • MIL-T-9046 AB-1
  • ABS5125A AIMS03-18-001 (Plate)
  • ABS5125B AIMS03-18-006 (Plate)
  • ABS5125C AIMS03-18-007 (Plate)
  • SAE AMS 4911
Other Available Products Of Titanium ASTM B348 Grade5 Round Bars
    • ASTM B348 Gr5 Titanium Round Bar
    • Titanium Alloy Grade 5 Bright Bars
    • B348 Grade 5 Titanium Forged Round Bars
    • Grade 5 Ti Alloy Hexagon Bars
    • Titanium Alloy UNS R56400 Rods
    • Ti Alloy GR5 Cold Drawn & Polished Square Bars
    • ASTM B348 Grade 5 Titanium Threaded Bars
    • Top Quality B348 Grade 5 Titanium Cold Drawn Bars
    • ASTM B348 GR 5 Cold Rolled Rods
    • ASTM B348 Gr 5 Titanium Polish Bars
    • Titanium Alloy ASTM B348 Grade 5 Spring Steel Bars
    • Titanium Alloy Werkstoff Nr. 3.7165 Square Bars
    • B348 Grade 5 Titanium Alloy Hex Bars
    • Titanium Alloy Grade5 Hollow Bars
    • Titanium ASTM B348 Grade 5 Flat Bars
    • AS ASTM B348 Gr 5 Black Bars
Grade 5 Titanium Round Bar Industry Applications:
  • Medical implants
  • Chemical processing
  • Base plates
  • Aerospace
  • Fasteners
