oldest a193-b7m studs, B7M Threaded Rod manufacturer in China at best price
China’s Largest ASTM a193 b7m bolts, B7M Studs Material suppliers in Shenzhen, China

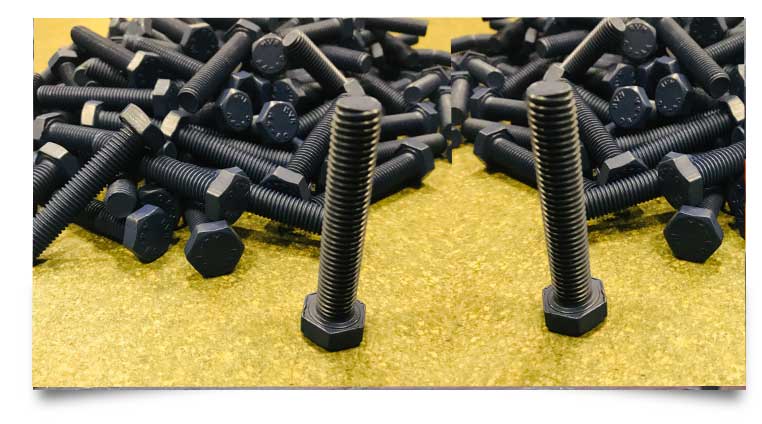

ASTM A193 Grade B7M Bolts are manmade from a chromium-molybdenum steel and are satisfied and hardened to cultivate the desired automatic properties. Grade B7 is the greatest public grade of A193 bolts which are used mostly in manufacturing where as if we talk about A193 b7m studs and ASTM A193 b7m bolts so they are almost fully similar to ASTM A193 Grade B7M Bolts which we have discussed already.
leading alloy steel ASTM a193 gr B7M bolts and stud bolt at best Price in China
Alloy Steel B7M Panel Nut is very tinny nut with a comparatively large hole commonly used to mount negotiated electrical shifts. These are habitually used where light responsibility exactness fasteners are required.

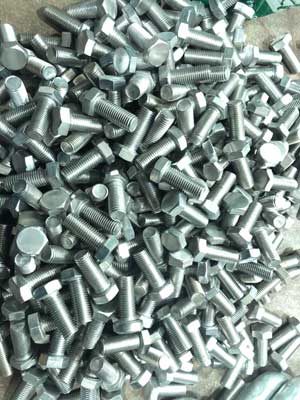

B7m Bolts

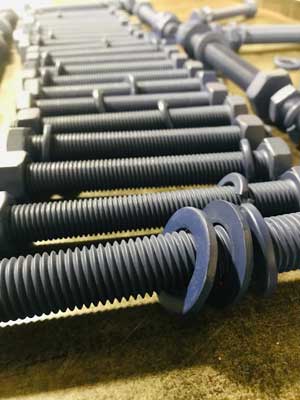

B7m PTFE Coated Bolt Washer

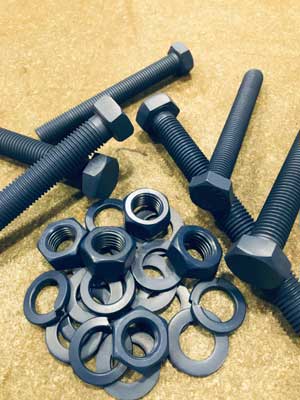

B7m PTFE Coated Nut Bolt Washer
NOMINAL SIZE (D) |
BODY DIA |
HEAD THICKNESS ASTM A193 |
ACRO ASTM A193 THE FLATS |
ACRO ASTM A193 CORNERS |
||||
|---|---|---|---|---|---|---|---|---|
D (MAX) |
D (MIN) |
H (MAX) |
H (MIN) |
F (MAX) |
F (MIN) |
C (MAX) |
C (MIN) |
|
m10 |
10.00 |
9.78 |
6.63 |
6.17 |
17.00 |
15.73 |
18.48 |
17.77 |
m12 |
12.00 |
11.73 |
7.76 |
4.24 |
19.00 |
17.73 |
20.78 |
20.03 |
m14 |
14.00 |
13.73 |
9.09 |
8.51 |
22.00 |
20.67 |
24.25 |
23.35 |
m16 |
16.00 |
15.73 |
10.32 |
9.68 |
24.00 |
23.67 |
27.71 |
26.75 |
m20 |
20.00 |
19.67 |
12.88 |
12.12 |
30.00 |
29.16 |
34.64 |
32.95 |
m24 |
24.00 |
23.67 |
15.44 |
14.56 |
36.00 |
35.00 |
41.57 |
39.55 |
m30 |
30.00 |
29.67 |
19.48 |
17.92 |
46.00 |
45.00 |
53.12 |
50.85 |
m36 |
36.00 |
35.61 |
23.38 |
21.63 |
55.00 |
53.80 |
63.51 |
60.79 |
m42 |
42.00 |
41.38 |
26.97 |
25.03 |
65.00 |
62.90 |
75.06 |
71.71 |
m48 |
48.00 |
47.38 |
31.07 |
28.93 |
75.00 |
72.60 |
86.60 |
82.76 |
m56 |
56.00 |
55.26 |
36.2 |
33.80 |
85.00 |
82.20 |
98.15 |
93.71 |
m64 |
64.00 |
63.26 |
41.32 |
38.68 |
95.00 |
91.80 |
109.70 |
104.65 |
m72 |
72.00 |
71.26 |
46.45 |
43.55 |
105.00 |
101.40 |
121.24 |
115.60 |
m80 |
80.00 |
79.26 |
51.58 |
48.42 |
115.00 |
111.00 |
132.72 |
126.54 |
m90 |
90.00 |
89.13 |
57.74 |
54.26 |
130.00 |
125.50 |
150.11 |
143.07 |
m100 |
90.00 |
99.13 |
63.9 |
60.10 |
145.00 |
140.00 |
167.43 |
159.60 |
buy Any size and any Quantity Of Grade B7M Bolts, Studs Material, SA 193 B7M bolts at discounted price
ASTM A193 Grade B7m Bolts are very similar with ASTM A193 Grade B7 Bolts but there is only one main difference between both of them and that is a standard material arrangement for chromium-molybdenum alloy steel fasteners for use in high stretchy, high temperature and superior determination applications
| B7M | C | Mn | P | S | Si | Cr | Mo |
| 0.37-0.49 | 0.65-1.10 | 0.035 Max | 0.04 Max | 0.15-0.35 | 0.75-1.20 | 0.15-0.25 |
B7M Studs Material and bolts material are manufactured from AISI 4140/4142 low Carbon Alloy Steel Grades shadowed by satisfying & moderating. Our Alloy steel ASTM A193 gr B7M bolts High Temperature Fasteners Inc. manufacture these Bolts with unlimited accuracy & Superiority. These grade bolts are also represented as Grade 7 Bolts, B7 Bolts etc.
Grade |
Size |
Tensile ksi, min |
Yield, ksi, min |
Elong, %, min |
RA % min |
|---|---|---|---|---|---|
B7M |
Up to 2-1/2 |
125 |
105 |
16 |
50 |
2-5/8 – 4 |
115 |
95 |
16 |
50 |
|
4-1/8 – 7 |
100 |
75 |
18 |
50 |
Manufacturer of B7M Alloy Steel Countersunk Bolt, Alloy Steel B7M Wing Nut, B7M Alloy Steel Acorn Nuts, Panel Nut in China
ASTM A193 B7M Metric Bolts are a standard measurement for high ductile alloy steel bolting material for use in high temperature or high intense service and other special determination applications. ASTM A193 B7M Metric Bolts are available in metric sizes from M6 to M180 and majestic sizes from 1/4 to 7 inches, in width. ASTM A193 Grade B7M alloy steel wing nut and acorn nuts are used for high compression or high infection applications, and are very mutual for use with regulators, projections, and pressure containers.
