Keep bulk stock of ASTM F593 Fasteners include Bolts, Stud and Threaded Rod Manufacturer in China at best price
China’s Largest ASME SF 593 Screw and Washer, ASTM F593 18-8 Nuts Suppliers in mumbai, China

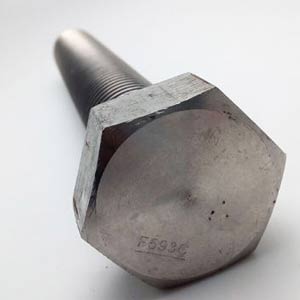

ASTM F593 Bolts

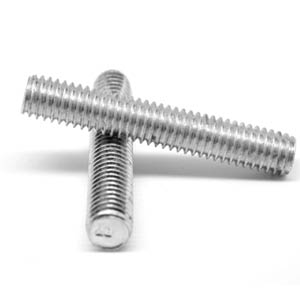

ASTM F593 18-8 Threaded Rod

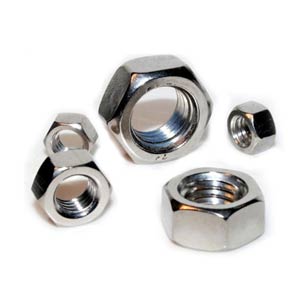

ASME SF 593 Nuts
Table of Content
The ASTM F593 is a specification that covers several types of fasteners including bolts, threaded rods, hex cap screws, as well as studs. The construction of ASTM F593 Fasteners is from different stainless steel grades, per the specification. Designed with the intention of being used for general applications, the ASTM F593 Bolts may offer some corrosion resistance properties, unlike those manufactured from carbon steel grades.
This particular specification covers stainless steel ASTM F593 Stud belonging to classes like martensitic, ferritic, austenitic as well as precipitation hardening. The stainless steel ASTM F593 Threaded Rod is generally supplied in a cold worked condition. However, if required, they may be either hardened and tempered or age-hardened, depending on the requirements of the application. Heat treatment carried out on the ASTM F593 Nuts are usually optional unless requested by the buyer. Similarly, the choice of alloy used in their construction is at the discretion of the producer.
|
Standards
|
Designation
|
|---|---|
| ASTM | F593 |
| Thread Requirements | ASME B1.1, UNC & UNF, Class 2A (Fastenal will inspect and accept parts with a 1A no-go gauge) |
| Manufacturing Process | Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing |
| Delivery time | Regular product is about 7-15 days, custom product will according to special requirement |
| Coatings | Black Oxide, Cadmium, Galvanized, Teflon, Xylan, Zinc, Others Upon Request |
| Head | Hex, Square, Round, Hex flange, Flat, T-head & Triangular etc |
| Neck type | Hex, Square, Triangular, Oval & Knurled etc |
|
Dimensions
|
ASME B18.2.1, B18.3
|
|
Melt Origin
|
East Europe/South America/Korea/Japan
|
|
Product Origin
|
Made in China
|
|
Threads Configuration
|
ASME B1.1 2A/3A Inch Unified Threads and B1.13M 6h Metric Coarse Threads
|
|
Certification
|
Dual Certified As per ASTM & ASME Codes
|
|
Additional Certifications
|
PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified
|
| Coatings | Black Oxide, Cadmium, Galvanized, Teflon, Xylan, Zinc, Others Upon Request |
|
Mandatory Requirements
|
Free from Mercury & Radioactive Contamination
|
|
Additional Requirements
|
NACE MR0103 / MR0175 / ISO 15156 Compliance
|
| Samples | Yes |
| Payment Terms | T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping |
Find here ASTM F593-17 Bolt Dimensions, Specification and Tensile Strength. we are largest ASTM F593 Stainless Steel Bolts, Washer Exporter In China
Related ASTM Specifications
- ASTM A193 / A193M – 16 : Standard Specification for High-Temperature Bolting, with Expansion Coefficients Comparable to Austenitic Stainless Steels
- ASTM A1082 / A1082M – 16 : Standard Specification for High Strength Precipitation Hardening and Duplex Stainless Steel Bolting for Special Purpose Applications
- ASTM F2281 : Standard Specification for Stainless Steel and Nickel Alloy Bolts, Hex Cap Screws, and Studs, for Heat Resistance and High Temperature Applications Designation
- ASTM A1014 / A1014M – 16 : Standard Specification for Precipitation-Hardening Bolting (UNS N07718) for High Temperature Service
- ASTM A962 / A962M – 16a : Standard Specification for Common Requirements for Bolting Intended for Use at Any Temperature from Cryogenic to the Creep Range
- ASTM A638 / A638M : Standard Specification for Precipitation Hardening Iron Base Superalloy Bars, Forgings, and Forging Stock for High-Temperature Service
- Best Price ASTM F593 Lifting lug eye bolt: Price US$ 0.01-US$ 0.50 / Piece
- cheap ASTM F593 bolt Price US$ 0.01 / Pieces
- ASTM F593 embedded bolt: Price US$ 0.10-US$ 1.20 / Piece
- ASTM F593 stainless U bolt, nut and washers: Price:US$ 1.50-US$ 2.00 / Piece
- Stainless steel ASTM F593 oval neck track bolts: Price:US$ 0.10-US$ 2.00 / Piece
- ASTM F593 Fasteners & Hex Head Bolt with hex nuts and spring washer: Price US$ 1.50-US$ 2.00 / Piece
- ASTM F593 L Type Metal Anchor Bolt: Price US$ 0.10-US$ 1.20 / Piece
- ASTM F593 Fasteners: Price US$ 0.15-US$ 0.50 / Pieces
- High Tensile Fastener astm f593b f593a f593c 4.8 Steel Hex Bolt : Price US $0.01-$0.10 / Piece / Piece
Please note this is an approx Cost of ASTM F593 bolts China. For final ASTM F593 stud bolts price list please mail us.
F593 18-8 Hex Head Bolts
ASTM F593 Eye Bolts
ASME SF593 U Bolts
ASTM F593 Square Bolts
F593 18-8 Flange Bolts
ASTM F593 Countersunk Bolts
ASTM F593 Allen Cap Bolt
ASTM F593 Carriage Bolts
ASTM F593 18-8 T Bolts
ASTM F593 Lag Bolts
F593 Heavy Hex Bolts
SF593 Hex Bolts
ASTM F593 Lock Nut
SF593 Heavy Hex Nuts
F593-17 Self Locking Nuts
ASME SF593 Eye Nuts
ASTM F593 18-8 Panel Nuts
SF593-17 Wing Nuts
SS F593 Coupling Nuts
F593 18-8 Nylon Insert Nuts
ASTM F593 T Nuts
F593 18-8 Acorn Nuts
ASTM F593 Wheel Nuts
ASME SF593 Dome Nuts
ASTM F593 Serrated Flange Nuts
ASTM F593 Double Ended Studs
ASTM F593 Threaded Rod
F593 18-8 Stud Bolts
SF593 Tie Bars
ASME SF593 Tie Rods
Any Quantity Of ASTM F593 Bolts suppliers in Shenzhen, China, Find Amazing Deal from ASTM F593 Screw, Stud, Washer manufacturers in China
Below table compares various metric sizes to the closest inch equivalent
|
Metric
|
Closest Inch
|
|---|---|
|
M1.4-0.3
|
0-80 (Larger)
|
|
M2-0.4
|
1-64 (Smaller)
|
|
M2.5-0.45
|
3-56 (Larger)
|
|
M3-0.5
|
4-48 (Smaller)
|
|
M3.5-0.6
|
6-40 (Same)
|
|
M4-0.7
|
8-36 (Larger)
|
|
M5-0.8
|
10-32 (Smaller)
|
|
M6-1.0
|
1/4-28 (Larger)
|
|
M7-1.0
|
1/4-28 (Smaller)
|
|
M8-1.25
|
5/16-18 (Smaller)
|
|
M10-1.5
|
3/8-16 (Smaller)
|
|
M12-1.75
|
1/2-13 (Larger)
|
|
M14-2.0
|
9/16-12 (Larger)
|
|
M16-2.0
|
5/8-11 (Smaller)
|
|
M18-2.5
|
3/4-10 (Larger)
|
|
M20-2.5
|
3/4-10 (Smaller)
|
|
M22-2.5
|
7/8-9 (Larger)
|
|
M24-3.0
|
1-8 (Larger)
|
|
M30-3.5
|
1 1/8-7 (Smaller)
|
|
M36-4.0
|
1 3/8-6 (Smaller)
|
DIN and ISO designations
|
No.
|
Description
|
|---|---|
|
DIN 84
|
Slotted Cheese Head Machine Screws
|
|
DIN 85
|
Slotted Pan Head Machine Screws
|
|
DIN 94
|
Cotter Pin
|
|
DIN 125A
|
Flat Washer (without Chamfer)
|
|
DIN 125B
|
Flat Washer (with Chamfer)
|
|
DIN 127B
|
Split Lock Washer
|
|
DIN 137B
|
Spring Wave Washer
|
|
DIN 315
|
Wing Nut
|
|
DIN 439B
|
Machine Screws Hex Nut, Finished Hex Jam Nut
|
|
DIN 911
|
Long Arm Hex Key
|
|
DIN 912
|
Hex Socket Head Cap Screws
|
|
DIN 916
|
Hex Socket Set Screws
|
|
DIN 931
|
Hex Head Cap Screws Partially Threaded
|
|
DIN 933
|
Hex Head Cap Screws Fully Threaded
|
|
DIN 934
|
Finished Hex Nut
|
|
DIN 939
|
Double End Stud
|
|
DIN 960
|
Hex Head Cap Screws Partially Threaded
|
|
DIN 961
|
Hex Head Cap Screws Fully Threaded
|
|
DIN 963
|
Slotted Flat Head Machine Screws
|
|
DIN 964
|
Slotted Oval Head Machine Screws
|
|
DIN 965
|
Phillips Flat Head Machine Screws
|
|
DIN 966
|
Phillips Oval Head Machine Screws
|
|
DIN 975
|
Threaded Rod
|
|
DIN 980V
|
Hex Steel Prevailing Torque Lock Nut
|
|
DIN 985
|
Hex Nylon Insert Lock Nut
|
|
DIN 6334
|
Rod Coupling Nut
|
|
DIN 6797A
|
External Tooth Lock Washer
|
|
DIN 6797J
|
Internal Tooth Lock Washer
|
|
DIN 6912
|
Hex Low Socket Head Cap Screws
|
|
DIN 6921
|
Hex Flange Head Screws
|
|
DIN 6923
|
Hex Flange Nut
|
|
ISO 7379
|
Hex Socket Head Shoulder Screws
|
|
ISO 7380
|
Hex Button Socket Head Cap Screws
|
|
DIN 7985
|
Phillips Pan Head Machine Screws
|
|
DIN 7991
|
Hex Flat Socket Head Cap Screws
|
ANSI and/or ASME Standards (inch series)
| ASME B18.1.1 | Small Solid Rivets | ASME B18.8.1 | Clevis Pins and Cotter Pins |
|---|---|---|---|
| ASME B18.1.2 | Large Rivets | ASME B18.8.2 | Taper Pins, Dowel Pins, Straight Pins, Grooved Pins and Spring Pins |
| ASME B18.2.1 | Square and Hex Bolts and Screws | ASME B18.9 | Plow Bolts |
| ASME B18.2.2 | Square and Hex Nuts | ASME B18.10 | Track Bolts and Nuts |
| ASME B18.2.6 | Fasteners for use in Structural Applications | ASME B18.11 | Miniature Screws |
| ASME B18.3 | Socket Cap, Shoulder and Set Screws | ASME B18.13 | Screws and Washer Assemblies (Sems) |
| ASME B18.5 | Round Head Bolts | ASME B18.15 | Forged Eyebolts |
| ASME B18.6.2 | Slotted Head Cap Screws, Square Head Set Screws, and Slotted Headless Set Screws | ASME B18.17 | Wing Nuts, Thumb Screws and Wing Screws |
| ASME B18.6.3 | Machine Screws and Machine Screws Nuts | ASME B18.21.1 | Lock Washers |
| ASME B18.6.4 | Thread Forming and Thread Cutting Tapping Screws and Metallic Drive Screws | ASME B18.22.1 | Plain Washers |
| ASME B18.7 | General Purpose Semi- Tubular Rivets, Full Tubular Rivets, Split Rivets and Rivet Caps | ASME B18.23.1 | Beveled Washers |
We are ASTM F593 Stud Bolts suppliers in China offer these ASTM F593 Bolts in DIN, ISO, JIS or ANSI standard.
ASTM F593 Bolts Standard, ASTM F593 18-8 Screws Stockist in Shenzhen
**All measurements in millimeters**
|
NOMINAL SIZE (D)
|
BODY DIAMETER
|
|
HEAD THICKNEASTM F593
|
|
ACROASTM F593 THE FLATS
|
|
ACROASTM F593 CORNERS
|
|
|---|---|---|---|---|---|---|---|---|
|
|
D (MAX)
|
D (MIN)
|
H (MAX)
|
H (MIN)
|
F (MAX)
|
F (MIN)
|
C (MAX)
|
C (MIN)
|
|
m10
|
10.00
|
9.78
|
6.63
|
6.17
|
17.00
|
15.73
|
18.48
|
17.77
|
|
m12
|
12.00
|
11.73
|
7.76
|
4.24
|
19.00
|
17.73
|
20.78
|
20.03
|
|
m14
|
14.00
|
13.73
|
9.09
|
8.51
|
22.00
|
20.67
|
24.25
|
23.35
|
|
m16
|
16.00
|
15.73
|
10.32
|
9.68
|
24.00
|
23.67
|
27.71
|
26.75
|
|
m20
|
20.00
|
19.67
|
12.88
|
12.12
|
30.00
|
29.16
|
34.64
|
32.95
|
|
m24
|
24.00
|
23.67
|
15.44
|
14.56
|
36.00
|
35.00
|
41.57
|
39.55
|
|
m30
|
30.00
|
29.67
|
19.48
|
17.92
|
46.00
|
45.00
|
53.12
|
50.85
|
|
m36
|
36.00
|
35.61
|
23.38
|
21.63
|
55.00
|
53.80
|
63.51
|
60.79
|
|
m42
|
42.00
|
41.38
|
26.97
|
25.03
|
65.00
|
62.90
|
75.06
|
71.71
|
|
m48
|
48.00
|
47.38
|
31.07
|
28.93
|
75.00
|
72.60
|
86.60
|
82.76
|
|
m56
|
56.00
|
55.26
|
36.2
|
33.80
|
85.00
|
82.20
|
98.15
|
93.71
|
|
m64
|
64.00
|
63.26
|
41.32
|
38.68
|
95.00
|
91.80
|
109.70
|
104.65
|
|
m72
|
72.00
|
71.26
|
46.45
|
43.55
|
105.00
|
101.40
|
121.24
|
115.60
|
|
m80
|
80.00
|
79.26
|
51.58
|
48.42
|
115.00
|
111.00
|
132.72
|
126.54
|
|
m90
|
90.00
|
89.13
|
57.74
|
54.26
|
130.00
|
125.50
|
150.11
|
143.07
|
|
m100
|
90.00
|
99.13
|
63.9
|
60.10
|
145.00
|
140.00
|
167.43
|
159.60
|
|
Diameter (D)
|
Body Diameter (D)
|
|
Across the Flats (F)
|
|
Across the Corners ©
|
|
Head Height (H)
|
|
Thread Lengths (T)
|
|
|---|---|---|---|---|---|---|---|---|---|---|
|
|
MAX
|
MIN
|
MAX
|
MIN
|
MAX
|
MIN
|
MAX
|
MIN
|
<6”
|
>6”
|
|
1/2
|
0.515
|
0.482
|
0.875
|
0.85
|
1.01
|
0.969
|
0.364
|
0.302
|
1.25
|
1.5
|
|
5/8
|
0.642
|
0.605
|
1.062
|
1.031
|
1.227
|
1.175
|
0.444
|
0.378
|
1.5
|
1.75
|
|
3/4
|
0.768
|
0.729
|
1.25
|
1.212
|
1.443
|
1.383
|
0.524
|
0.455
|
1.75
|
2
|
|
7/8
|
0.895
|
0.852
|
1.438
|
1.394
|
1.66
|
1.589
|
0.604
|
0.531
|
2
|
2.25
|
|
1
|
1.022
|
0.976
|
1.625
|
1.575
|
1.876
|
1.796
|
0.7
|
0.591
|
2.25
|
2.5
|
|
1 1/8
|
1.149
|
1.098
|
1.812
|
1.756
|
2.093
|
2.002
|
0.78
|
0.658
|
2.5
|
2.75
|
|
1 1/4
|
1.277
|
1.223
|
2
|
1.938
|
2.309
|
2.209
|
0.876
|
0.749
|
2.75
|
3
|
|
1 3/8
|
1.404
|
1.345
|
2.188
|
2.119
|
2.526
|
2.416
|
0.94
|
0.81
|
3
|
3.25
|
|
1 1/2
|
1.531
|
1.47
|
2.375
|
2.3
|
2.742
|
2.622
|
1.036
|
0.902
|
3.25
|
3.5
|
|
1 3/4
|
1.785
|
1.716
|
2.75
|
2.662
|
3.175
|
3.035
|
1.196
|
1.054
|
3.75
|
4
|
|
2
|
2.039
|
1.964
|
3.125
|
3.025
|
3.608
|
3.449
|
1.388
|
1.175
|
4.25
|
4.5
|
|
2 1/4
|
2.305
|
2.214
|
3.5
|
3.388
|
4.041
|
3.862
|
1.548
|
1.327
|
4.75
|
5
|
|
2 1/2
|
2.559
|
2.461
|
3.875
|
3.75
|
4.474
|
4.275
|
1.708
|
1.479
|
5.25
|
5.5
|
|
2 3/4
|
2.827
|
2.711
|
4.25
|
4.112
|
4.907
|
4.688
|
1.869
|
1.632
|
5.75
|
6
|
|
3
|
3.081
|
2.961
|
4.625
|
4.475
|
5.34
|
5.102
|
2.06
|
1.815
|
6.25
|
6.5
|
ASTM F593 Equivalent
|
Alloy Group
|
Alloy Designation
|
Alloy Type
|
|---|---|---|
|
1
|
303, 304, 304L, 305, 384, XM1, 18-9LW, 302HQ, 303Se
|
Austenitic
|
|
2
|
316, 316L
|
Austenitic
|
|
3
|
321, 347
|
Austenitic
|
|
4
|
430, 430F
|
Ferritic
|
|
5
|
410, 416, 416Se
|
Martensitic
|
|
6
|
431
|
Martensitic
|
|
7
|
630 (17-4)
|
Precipitation Hardening
|
|
*The selection of an alloy within each group is at the discretion of the manufacturer unless the purchaser requests a specific alloy.
|
||
|
Element, max except as shown
|
Alloy Group 1, Type 304
|
Alloy Group 2, Type 316
|
|---|---|---|
|
Carbon
|
0.08%
|
0.08%
|
|
Manganese
|
2.00%
|
2.00%
|
|
Phosphorus
|
0.045%
|
0.045%
|
|
Sulfur
|
0.030%
|
0.030%
|
|
Silicon
|
1.00%
|
1.00%
|
|
Chromium
|
18.0 to 20.0%
|
16.0 to 18.0%
|
|
Nickel
|
8.0 to 10.5%
|
10.0 to 14.0%
|
|
Copper
|
1.00%
|
|
|
Molybdenum
|
|
2.00 to 3.00%
|
ASTM F593 Stud Yield Strength
|
Alloy Group
|
Condition
|
Marking
|
Diameter Range
|
Tensile, ksi
|
Yield, ksi min
|
Rockwell Hardness
|
|---|---|---|---|---|---|---|
|
1
|
AF
|
F593A
|
1/4 to 1-1/2
|
65 to 85
|
20
|
B85 max
|
|
A
|
F593B
|
1/4 to 1-1/2
|
75 to 100
|
30
|
B65 to 95
|
|
|
CW1
|
F593C
|
1/4 to 5/8
|
100 to 150
|
65
|
B95 to C32
|
|
|
CW2
|
F593D
|
3/4 to 1-1/2
|
85 to 140
|
45
|
B80 to C32
|
|
|
2
|
AF
|
F593E
|
1/4 to 1-1/2
|
65 to 85
|
20
|
B85 max
|
|
A
|
F593F
|
1/4 to 1-1/2
|
75 to 100
|
30
|
B65 to 95
|
|
|
CW1
|
F593G
|
1/4 to 5/8
|
100 to 150
|
65
|
B95 to C32
|
|
|
CW2
|
F593H
|
3/4 to 1-1/2
|
85 to 140
|
45
|
B80 to C32
|
|
BOLT
DIA |
Torque FT-LBS
|
||
|
30% Initial
Torque |
70%
Torque |
100% Final
Torque |
|
|
1/2
|
16
|
36
|
52
|
|
9/16
|
23
|
53
|
75
|
|
5/8
|
31
|
73
|
104
|
|
3/4
|
55
|
129
|
184
|
|
7/8
|
71
|
166
|
237
|
|
1
|
107
|
249
|
356
|
|
1.1/8
|
127
|
297
|
424
|
|
1.1/4
|
179
|
417
|
596
|
|
1.3/8
|
186
|
435
|
622
|
|
1.1/2
|
246
|
574
|
821
|
|
1.9/16
|
168
|
392
|
560
|
|
1.5/8
|
191
|
445
|
636
|
|
1.3/4
|
240
|
561
|
801
|
|
1.7/8
|
298
|
696
|
994
|
|
2
|
366
|
853
|
1219
|
|
2.1/4
|
529
|
1234
|
1762
|
|
2.1/2
|
733
|
1709
|
2442
|
|
2.3/4
|
986
|
2300
|
3285
|
|
3
|
1289
|
3008
|
4297
|
|
BOLT
DIA |
Torque Nm
|
||
|
30% Initial
Torque |
70%
Torque |
100% Final
Torque |
|
|
1/2
|
22
|
49
|
71
|
|
9/16
|
31
|
72
|
102
|
|
5/8
|
42
|
99
|
141
|
|
3/4
|
75
|
175
|
249
|
|
7/8
|
96
|
225
|
321
|
|
1
|
145
|
338
|
483
|
|
1.1/8
|
172
|
403
|
575
|
|
1.1/4
|
243
|
565
|
808
|
|
1.3/8
|
252
|
590
|
843
|
|
1.1/2
|
334
|
778
|
1113
|
|
1.9/16
|
228
|
531
|
759
|
|
1.5/8
|
259
|
603
|
862
|
|
1.3/4
|
325
|
761
|
1086
|
|
1.7/8
|
404
|
944
|
1348
|
|
2
|
496
|
1157
|
1653
|
|
2.1/4
|
717
|
1673
|
2389
|
|
2.1/2
|
994
|
2317
|
3311
|
|
2.3/4
|
1337
|
3118
|
4454
|
|
3
|
1748
|
4078
|
5826
|
- ISO 4762 Weight Chart (Hexagon Socket Head Cap Screw)
- ISO 4014 Weight Chart (Hexagon Head Bolt And Screw)
- ISO 4032 Weight Chart (Hexagon Nut)
- ISO 7089 Weight Chart (Plain Washer)
- DIN 976 B Specification (Stud And Stud Bolt)
- DIN 938 Stud Dimensions (Stud And Stud Bolt)
- ISO 14583 Weight (Thread Forming Screw)
- ISO 10642 Weight (Countersunk Screw)
