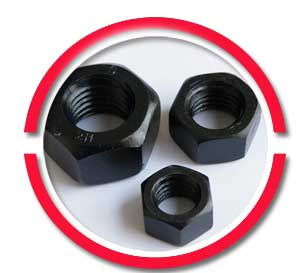

ASTM A194 Grade 2hm Nut

Apart from martensitic and austenitic stainless steel grades, the ASTM A194 is a specification that covers both carbon steel and Alloy Steel 2hm Panel Nut. The ASTM A194 Gr 2hm Hex Head Nuts produced from these alloys are intended to be used for both high pressure or/ and high-temperature applications.

view ASTM a194 grade 2hm mechanical properties, manufacturer of Astm A194 Grade 2HM Heavy Hex Nuts, sa 194 gr 2hm nuts, Alloy Steel 2HM Nuts

ASTM A194 Grade 2hm Nut
ASTM A194 Grade 2hm Nut

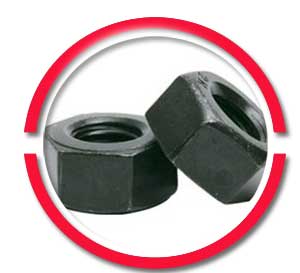

Sa 194 Gr 2hm Heavy Hex Nuts
Sa 194 Gr 2hm Heavy Hex Nuts

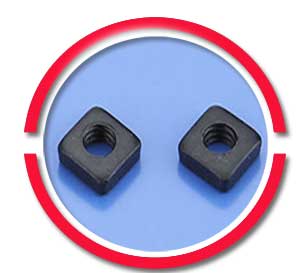

Alloy Steel 2HM Square Nuts
Alloy Steel 2HM Square Nuts



check ASTM a194 grade 2hm nut dimensions, Keep stock of a194 2hm nut, Astm A194 Grade 2HM Hex Nuts and Square Nuts at low prices

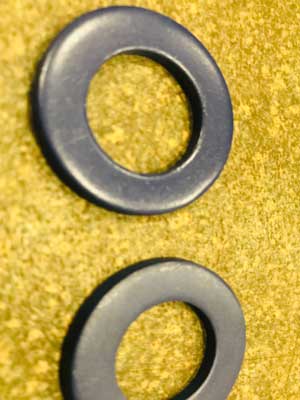

2hm PTFE Coated Washer
2hm PTFE Coated Washer

Apart from administering the ASME SA194 Grade 2hm Eye Nuts with hardness test, proof of load test and cone proof load test, these Astm A194 Grade 2HM Square Nuts are required to conform to the chemistry requirements of the said specification as well.

While both grade 2H and SS A194 Grade 2hm Coupling Nuts have the same chemical composition, it is the testing parameter that varies. The term 2HM in ASTM A194 Grade 2hm Nut indicates that the alloy used to make carbon steel heavy hex nuts has been quenched & tempered, with these fasteners subjected to a 100% hardness test. Whereas grade 2H is indicative of the carbon steel heavy hex nuts being only quenched & tempered. Grade a194 2hm nut is a fastener that requires 100% of nuts to be tested for hardness.

This being said, the tests to be administered to grade Astm A194 Grade 2HM Heavy Hex Nuts must also take 3 additional parameters into consideration during testing i.e. 1.  Protection of the legibility of markings on the Alloy Steel 2HM Nuts, 2. Minimize the exterior changes in the dimensions and lastly 3. Maintenance of the thread fit of the sa 194 gr 2hm nuts. Astm a194 grade 2h nut dimensions metric tend to have a higher proof load requirement.



Dimensions Schedule of ASTM A194 2hm Heavy Hex Nut
Nominal Size or Basic Major Thread Diameter
F
G
H
Width Across Flats
Width Across Corners
Thickness
Basic
Max
Min
Max
Min
Basic
Max
Min
1/4
.2500
1/2
.500
.488
.577
.556
15/64
.250
.218
5/16
.3125
9/16
.562
.546
.650
.622
19/64
.314
.280
3/8
.3750
11/16
.688
.669
.794
.763
23/64
.377
.341
7/16
.4375
3/4
.750
.728
.866
.830
27/64
.441
.403
1/2
.5000
7/8
.875
.850
1.010
.969
31/64
.504
.464
9/16
.5625
15/16
.938
.909
1.083
1.037
35/64
.568
.526
5/8
.6250
1-1/16
1.062
1.031
1.227
1.175
39/64
.631
.587
3/4
.7500
1-1/4
1.250
1.212
1.443
1.382
47/64
.758
.710
7/8
.8750
1-7/16
1.438
1.394
1.660
1.589
55/64
.885
.833
1
1.0000
1-5/8
1.325
1.575
1.876
1.796
63/64
1.012
.956
1-1/8
1.1250
1-13/16
1.812
1.756
2.093
2.002
1-7/64
1.139
1.079
1-1/4
1.2500
2
2.000
1.938
2.309
2.209
1-7/32
1.251
1.187
1-3/8
1.3750
2-3/16
2.188
2.119
2.526
2.416
1-11/32
1.378
1.460
1-1/2
1.5000
2-3/8
2.375
2.300
2.742
2.622
1-15/32
1.505
1.433
1-5/8
1.6250
2-9/16
2.562
2.481
2.959
2.828
1-19/32
1.632
1.556
1-3/4
1.7500
2-3/4
2.750
2.662
3.175
3.035
1-23/32
1.759
1.679
2
2.0000
3-1/8
3.125
3.025
3.608
3.449
1-31/32
2.013
1.925
2-1/4
2.2500
3-1/2
3.500
3.388
4.041
3.862
2-13/64
2.251
2.155
2-1/2
2.5000
3-7/8
3.875
3.750
4.474
4.275
2-29/64
2.505
2.401
2-3/4
2.7500
4-1/4
4.250
4.112
4.907
4.688
2-45/64
2.759
2.647
3
3.0000
4-5/8
4.625
4.475
5.340
5.102
2-61/64
3.013
2.893
3-1/4
3.2500
5
5.000
4.838
5.774
5.515
3-3/16
3.252
3.124
3-1/2
3.5000
5-3/8
5.375
5.200
6.207
5.928
3-7/16
3.506
3.370
3-3/4
3.7500
5-3/4
5.750
5.562
6.640
6.341
3-11/16
3.670
3.616
4
4.0000
6-1/8
6.125
5.925
7.073
6.755
3-15/16
4.014
3.862



Dimension chart of Astm A194 Gr. 2hm Hex Nuts

astm a194 grade 2hm nut dimensions
**All measurements in millimeters**

Nominal Size or Basic Major Thread Diameter
F
G
H
Width
Across Flats
Width
Across Corners
Thickness
Basic
Max
Min
Max
Min
Basic
Max
Min
1/4
.2500
7/16
.438
.428
.505
.488
7/32
.226
.212
5/16
.3125
1/2
.500
.489
.577
.557
17/64
.273
.258
3/8
.3750
9/16
.562
.551
.650
.628
21/64
.337
.479
7/16
.4375
11/16
.688
.675
.794
.768
3/8
.385
.365
1/2
.5000
3/4
.750
.736
.866
.840
7/16
.448
.427
9/16
.5625
7/8
.875
.861
1.010
.982
31/64
.496
.473
5/8
.6250
15/16
.938
.922
1.083
1.051
35/64
.559
.535
3/4
.7500
1-1/8
1.125
1.088
1.299
1.240
41/64
.665
.617
7/8
.8750
1-5/16
1.312
1.269
1.516
1.447
3/4
.776
.724
1
1.0000
1-1/2
1.500
1.450
1.732
1.653
55/64
.887
.831
1-1/8
1.1250
1-11/16
1.688
1.631
1.949
1.859
31/32
.999
.939
1-3/8
1.3750
2-1/16
2.062
1.994
2.382
2.273
1-11/64
1.206
1.138
1-1/2
1.500
2-1/4
2.250
2.175
2.598
2.480
1-9/32
1.ASTM A194 GR. 8
1.245
1-5/8
1.6250
2-7/16
2.438
2.356
2.815
2.686
1-25/64
1.429
1.353
1-3/4
1.7500
2-5/8
2.625
2.538
3.031
2.893
1-1/2
1.540
1.460
2
2.0000
3
3.000
2.900
3.464
3.306
1-23/32
1.763
1.675
2-1/4
2.2500
3-3/8
3.375
3.263
3.897
3.719
1-15/16
1.986
1.890
2-1/2
2.5000
3-3/4
3.750
3.625
4.330
4.133
2-5/32
2.209
2.105
2-3/4
2.7500
4-1/8
4.125
3.988
4.763
4.546
2-3/8
2.431
2.319



China’s Largest 2hm Alloy Steel Coupling Nut, Eye nuts, Dome nuts, 2hm Alloy Steel Shoulder Nuts Suppliers

Price of sa 194 gr 2hm nut
  • ASTM A194 2hm Square weld nut: Price US$ 0.01-US$ 1.00 / Piece
  • Carbon steel Black ASTM A194 2hm heavy hex nut: Price US$ 0.30-US$ 0.50 / Piece
  • A194 2hm finish hex nut: Price US$ 0.40-US$ 0.42 / Piece
  • nut astm a194 2hm: Price US$ 0.45-US$ 0.60 / Piece
  • Grade A194 2hm Square Nut Price US$ 0.15-US$ 25.00 / Piece
  • Heavy Hex Nut, A194 / Sa 194 2hm: Price US$ 1,000.00-US$ 1,600.00 / Ton
  • ASTM Gr 8 A194 2hm Heavy Hex Nut B 18.2.2: Price US$ 0.02-US$ 0.05 / Piece
  • Astm a194 grade 2hm industrial stud bolts and specialty nuts: Price US$ 800.00-US$ 2,000.00 / Ton
  • ASTM A194 heavy hex nut of grade 2hm: Price US $1000-$1600 / Ton
  • ASTM A194 GR.2hm High Strength Inch Size Heavy Hex Nut: Price US $1.00-$2.00 / Piece

Please note this is an approx Cost of Grade 2hm nuts China. For final astm a194 2hm heavy hex nut price list please mail us.



Marking of ASTM A194 Grade 2HM
Grade Type
Hot Forged or Cold Punched Nuts
Nuts Machined from Bar Stock
2HM
2HM
2HMB



standard sizes and schedule specifications of ASTM A194 Grade 2hm Nut
2hm nuts Material Specification ASTM A 194 ASME SA 194
Standard DIN, UNI, ISO, JIS, GB, IS, BS, ASME, ANSI, ASTM and all International Standards
a194 2hm nuts Size M2, M2.5, M3, M4, M5, M6, M8, M10, M12, M14, M16, M20, M24, M30, M36 to M160
Length 3 mm to 200 mm
astm a194 grade 2hm nuts Threads: METRIC, BSW, BSF, UNC, UNF or as required
ASTM A194 Grade 2hmFasteners Standard: ANSI – American National Standards Institute
  • ANSI B 18.2.4 2M
  • ANSI B 28.2.4 1M
  • astm a194 2hm Stud Bolt length are defined in ASME 2hm.5 standard
  • astm a194 2hm Hex nuts are defined in ASME B18.2.2
  • ASME B18.5

DIN: DIN 931, DIN 933, DIN 934, DIN 970

UTS – Unified Thread Standard : UNC, UNF, UNEF, UNS, NPT, NPTF

ISO – International Organization for Standardization : ISO 4032, ISO 4033, JIS standards
Source of raw materials Tata Steel, JSPL, RINL, Usha Martin, Dhamm Steel, Mukund Steel etc.
SCOPE OF MANUFACTURE
  • Hot Forged astm a194 grade 2hm Fasteners, Nut / Bolt; up to M36 / 1-1/2” Dia, up to 1100mm lg
  • CNC Machined astm a194 grade 2hm Fasteners, Nut / Bolt; up to M100 / 4” Dia, up to 1500mm lg
ASTM A194 Grade 2hm Fasteners In Form of: Hex, Square, Round, Threading as per Gauge Etc.
Head drive: Phillips, Slotted, Phillips/Slot, Six-Lobe, etc
2hm bolting Test Certificate: Manufacturer Test Certificate as per EN 10204 / 3.1
ASTM A194 Grade 2hmFasteners finishing: Zinc (yellow, white, blue, black), black oxide,
Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Stainless steel: Passivated
Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Stainless Steel, Mechanically Applied coating and some special one like DACROMET
Production process M2-M24: Cold Froging, hot forging M24-M100, machining and CNC for Customized connecting element
2hm bolting materials Surface Coating:
  • Teflon Coated Fasteners
  • Phosphate Coated Fasteners
  • Zinc Coated Fasteners
  • Ptfe Coated Inconel 2hm Fasteners
  • Xylon Coated Fasteners
  • Cadmium Coated Fasteners
  • Hot Dipped Galvanizing Coated Fasteners

All surface finishes offered including Geomet & PTFE, Galvanised, Zinc, Electroless Nickel, Sherardized, Dacromet
Popular Types of astm a194 2hm Nut astm a194 grade 2hm Hex Head Nut, Eye Nut, Dome Nut, Wing Nut, T Nut, Panel Nut, Lock Nut, Coupling Nut, Square Nut, Acorn Nut etc.
Popular Types of astm a194 2hm Washer astm a194 grade 2hm Machine Washers, Flat Washer, Star Washers, Sealing Washer, Lock Washer, Split Washer etc.
astm a194 grade 2hm Fasteners Packing: IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request



Most Trusted ASTM A194 Gr 2hm Hex Head Nuts and T Nuts, ASME SA194 Grade 2hm Eye Nuts, Alloy Steel 2hm Lock Nut Exporter
Size chart of grade 2hm coupling nuts

Astm A194 2hm Nuts Size Chart

Nut Size
(mm)
Diameter*
(mm)
Height
(mm)
Hex Nut
Jam Nut
Nylock Nut
2
4
1.6
1.2
–
2.5
5
2
1.6
–
3
5.5
2.4
1.8
4
4
7
3.2
2.2
5
5
8
4
2.7
5
6
10
5
3.2
6
7
11
5.5
3.5
–
8
13
6.5
4
8
10
17
8
5
10
12
19
10
6
12
14
22
11
7
14
16
24
13
8
16
18
27
15
9
18.5
20
30
16
10
20
* This is the diameter across the flats. It is also the size of wrench to use.



Alloy Steel Nuts Type
SIZE
PROPERTY CLASS
STANDARD
Hex Nut
M6 to M42
10
ISO 4032
Nylock Nut
M6 to M20 (Gr.8)
M10 to M24 (Gr.10)
8 & `10
DIN 982
Nylock Nut
M6 to M20 (Gr.8)
M10 to M24 (Gr.10)
8 & 10
DIN 985
Hex Weld Nut
M6 to M12
8
DIN 929



Alloy Steel Washers Type
SIZE
HARDNESS
STANDARD
Square Section Spring Washer
3mm to 39mm
HV (430 to 530)
DIN 7980
Flat Section Spring Washer
3mm to 39mm
HV (430 to 530)
DIN 127 B
Hardened Washer
12mm to 30mm
HV (300 to 370)
IS 2016
Hardened Steel Washer
12mm to 56mm
Rockwell 26 to 45 (HDG)
Rockwell 38 to 45 (Coated)
ASTM F436M



Get live Quote now for Alloy Steel 2hm wing Nut and Panel Nut, 2hm Alloy Steel Acorn Nuts, SS A194 Grade 2hm Coupling Nuts
Proof Load (Inch Series) of ASTM A194 Grade 2HM
Nominal Size, inch
Threads per inch
Stress Area inch
Proof Load, lbf
GRADE 2HM
Heavy Hex
Hex
1/4″
20
0.0316
4130
3820
5/16″
18
0.0524
6810
6290
3/8″
16
0.0774
10080
9300
7/16″
14
0.1063
13820
12760
1/2″
13
0.1419
18450
17030
9/16″
12
0.1820
23660
21840
5/8″
11
0.2260
29380
27120
3/4″
10
0.3340
43420
40080
7/8″
9
0.4620
60060
55440
1″
8
0.606
78780
72720
1 1/8″
8
0.7900
102700
94800
1 1/4″
8
1.0000
130000
120000
1 3/8″
8
1.2330
160200
148000
1 1/2″
8
1.492
194000
170040

Mechanical Strength of astm a194 grade 2hm
Grade & Type
Brinell Hardness
Rockwell Hardness
C Scale
B Scale
2HM
159-235
–
84 – 99
Chemical Material Composition of SA194 Grade 2hm Nuts
Grade Material UNS
Number		 C, % Mn, % Ph, % S, % Si, % Cr, % Ni, % Mo, % Ti, % Cb & Ta, % N, % Other Elements, %
2, 2HM, & 2H Carbon   0.40 min 1.000 0.040 0.050 0.400 – – –

List Of Fasteners Weight Chart Types
