Under the ASTM A193 specification, the standard fasteners covered include alloy steel and stainless steel bolts such as ASTM A193 B16 Hex Bolt. Typically the A193 B16 Heavy Hex Bolts produced using this specification are designed with the intention of being used in high temperature or/and high pressure environments. Apart from these conditions, the ASTM A193 gr b16 steel bolts may be used for other special purpose applications as well.
view astm a193 grade b16 equivalent, Keep a bulk stock of ASTM A193 grade b16 stud bolts, ASTM a193 b16 nuts and Threaded Rod

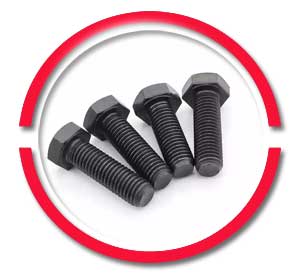

Astm A193 Grade B16 Bolts

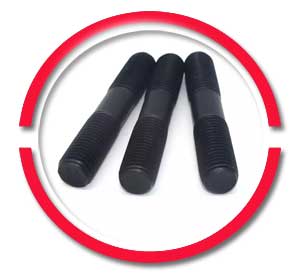

SA193 B16 Stud Bolts

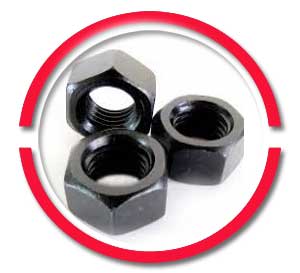

ASTM a193 b16 nuts
check astm a193 b16 chemical composition, China’s Largest ASTM a193 b16 bolts, sa193 b16 Studs, b16 bolts nuts suppliers
 |
|

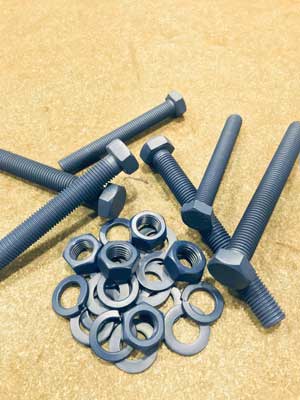

B16 PTFE Coated Nut Bolt Washer
|
The astm a193 b16 chemical composition consists of alloying elements such as chromium, vanadium and molybdenum. The chemistry of alloy steel astm a193 gr b16 material is well suited for high strength industrial applications. Therefore, the stud bolt ASTM A193 gr b16 is commonly used in the construction of power generation turbines in high temperature high pressure applications. The ASTM A193 grade b16 stud bolts are a heat treated alloy with its unique Chromium, Molybdenum and Vanadium containing chemistry. The specification of the ASTM A193 Grade B16 Bolts calls for minimum strength as well as maximum hardness levels. Considered to be most suitable for use at temperatures below 840°F, the ASTM A193 B16 Threaded Rod could be used in those conditions where the fasteners have been exposed to moderately high temperatures.
Although fasteners such as the astm a193 b16 nuts and bolts have similar strength requirements as Grade B7, the content of vanadium in conjunction with higher tempering temperature on the b16 header bolts is what helps the fasteners retain their molecular structure. The sa193 b16 Studs also retain their strength under higher ambient temperatures as compared to Grade B7. Unlike other stainless steel alloy grades within the ASTM specification A193, Grade b16 transmission bolts have no corrosion resistance properties. However, this can be rectified by coated the surface of astm a193 b16 bolts.
Chemical Material Composition of b16 stud bolts
| Alloy Steel B16 | C | Mn | P | S | Si | Ni | Cr |
| 0.15 max | 1.00 max | 0.040 | 0.030 | 1.00 max | – | 11.50-13.50 |
Physical properties of B16 Fasteners
|
Dia
|
Minimum
Temperature ° F (°C) |
Tensile
Strength min, ksi ( MPa) |
Yield
Strength. min, 0.2% offset, Ksi ( MPa) |
Elongation in
4D min % |
Reduction of
Area min % |
Hardness
max |
|---|---|---|---|---|---|---|
|
2 1/2″ and under
|
1200(650)
|
125(860)
|
105(725)
|
18
|
50
|
321HB
or 35 HRC |
|
over
21/2″ to 4″ |
1200(650)
|
110(760)
|
95(655)
|
17
|
45
|
302HB
or 33 HRC |
|
over 4″ to
7″ |
1200(650 )
|
100(690)
|
85(586)
|
16
|
45
|
227HB
or 29 HRC |
Mechanical Properties Chart of a193 gr b16 bolts
|
Grade
|
Size
|
Tensile ksi, min
|
Yield, ksi, min
|
Elong, %, min
|
RA % min
|
|---|---|---|---|---|---|
|
B16
|
Up to 2-1/2
|
125
|
105
|
18
|
50
|
|
2-5/8 – 4
|
110
|
95
|
17
|
45
|
|
|
4-1/8 – 7
|
100
|
85
|
16
|
45
|
buy any quantity Of ASTM A193 B16 Hex Bolt, header bolts and transmission bolts at a discounted price in China
specification and material grade of ASTM A193 Grade B16 Bolts
|
Standards
|
Designation
|
|---|---|
|
ASTM
|
A193 B16: Class 1 Stainless Steel, AISI 304, Carbide Solution Treated.
|
|
Dimensions
|
ASME B18.2.1, B18.3
|
|---|---|
|
Melt Origin
|
East Europe/South America/Korea/Japan
|
|
Product Origin
|
Made in China
|
|
Threads Configuration
|
ASME B1.1 2A/3A Inch Unified Threads and B1.13M 6h Metric Coarse Threads
|
|
Certification
|
Dual Certified As per ASTM & ASME Codes
|
|
Additional Certifications
|
PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified
|
|
Mandatory Requirements
|
Free from Mercury & Radioactive Contamination
|
|
Additional Requirements
|
NACE MR0103/MR0175/ISO 15156 Compliance
|
See astm a193 gr b16 material price, Find Amazing Deals from stud bolt ASTM A193 gr b16, SA193 gr b16 bolts manufacturer
astm a193 gr b16 material price
- astm a193 grade b16 bolts and nuts: Price US$ 0.10-US$ 1.00 / Piece
- Stud bolt astm a193 b16: Price US$ 1.80-US$ 2.30 / Kilogram
- ASTM A193 Grade B16 Stud Bolts: Price US$ 0.15-US$ 3.00 / Piece
- astm a193 grade b16 hex bolts and nuts : Price US$ 0.03-US$ 5.00 / Piece
- Grade A193 B16 Bolt Stud Bolt With Nuts Price US$ 0.15-US$ 25.00 / Piece
- ASTM B16 Grade 4 Nut DIN 975 Stud Bolt: Price US$ 0.01-US$ 5.00 / Piece
- Astm a193 grade b16 industrial stud bolts and specialty nuts: Price US$ 800.00-US$ 2,000.00 / Ton
- ASTM A193 B16 Grade 4.8 Steel Stud Bolt: Price US$ 0.01-US$ 1.00 / Piece
- astm a193 grade b16 bolts and nuts : Price US$ 0.05-US$ 0.28 / Piece
- bolts astm a193 b16: Price US$ 0.45-US$ 0.60 / Piece
Please note this is an approx Cost of Grade B16 bolts China. For final astm a193 B16 stud bolts price list please mail us.
Dimension Table of ASTM A193 B16 Hex Bolt
**All measurements in millimeters**
|
NOMINAL SIZE (D)
|
BODY DIAMETER
|
|
HEAD THICKNEASTM A193
|
|
ACROASTM A193 THE FLATS
|
|
ACROASTM A193 CORNERS
|
|
|---|---|---|---|---|---|---|---|---|
|
|
D (MAX)
|
D (MIN)
|
H (MAX)
|
H (MIN)
|
F (MAX)
|
F (MIN)
|
C (MAX)
|
C (MIN)
|
|
m10
|
10.00
|
9.78
|
6.63
|
6.17
|
17.00
|
15.73
|
18.48
|
17.77
|
|
m12
|
12.00
|
11.73
|
7.76
|
4.24
|
19.00
|
17.73
|
20.78
|
20.03
|
|
m14
|
14.00
|
13.73
|
9.09
|
8.51
|
22.00
|
20.67
|
24.25
|
23.35
|
|
m16
|
16.00
|
15.73
|
10.32
|
9.68
|
24.00
|
23.67
|
27.71
|
26.75
|
|
m20
|
20.00
|
19.67
|
12.88
|
12.12
|
30.00
|
29.16
|
34.64
|
32.95
|
|
m24
|
24.00
|
23.67
|
15.44
|
14.56
|
36.00
|
35.00
|
41.57
|
39.55
|
|
m30
|
30.00
|
29.67
|
19.48
|
17.92
|
46.00
|
45.00
|
53.12
|
50.85
|
|
m36
|
36.00
|
35.61
|
23.38
|
21.63
|
55.00
|
53.80
|
63.51
|
60.79
|
|
m42
|
42.00
|
41.38
|
26.97
|
25.03
|
65.00
|
62.90
|
75.06
|
71.71
|
|
m48
|
48.00
|
47.38
|
31.07
|
28.93
|
75.00
|
72.60
|
86.60
|
82.76
|
|
m56
|
56.00
|
55.26
|
36.2
|
33.80
|
85.00
|
82.20
|
98.15
|
93.71
|
|
m64
|
64.00
|
63.26
|
41.32
|
38.68
|
95.00
|
91.80
|
109.70
|
104.65
|
|
m72
|
72.00
|
71.26
|
46.45
|
43.55
|
105.00
|
101.40
|
121.24
|
115.60
|
|
m80
|
80.00
|
79.26
|
51.58
|
48.42
|
115.00
|
111.00
|
132.72
|
126.54
|
|
m90
|
90.00
|
89.13
|
57.74
|
54.26
|
130.00
|
125.50
|
150.11
|
143.07
|
|
m100
|
90.00
|
99.13
|
63.9
|
60.10
|
145.00
|
140.00
|
167.43
|
159.60
|
Dimensions Chart of ASTM A193 B16 Heavy Hex Bolt
|
Diameter (D)
|
Body Diameter (D)
|
|
Across the Flats (F)
|
|
Across the Corners ©
|
|
Head Height (H)
|
|
Thread Lengths (T)
|
|
|---|---|---|---|---|---|---|---|---|---|---|
|
|
MAX
|
MIN
|
MAX
|
MIN
|
MAX
|
MIN
|
MAX
|
MIN
|
< 6”
|
> 6”
|
|
1/2
|
0.515
|
0.482
|
0.875
|
0.85
|
1.01
|
0.969
|
0.364
|
0.302
|
1.25
|
1.5
|
|
5/8
|
0.642
|
0.605
|
1.062
|
1.031
|
1.227
|
1.175
|
0.444
|
0.378
|
1.5
|
1.75
|
|
3/4
|
0.768
|
0.729
|
1.25
|
1.212
|
1.443
|
1.383
|
0.524
|
0.455
|
1.75
|
2
|
|
7/8
|
0.895
|
0.852
|
1.438
|
1.394
|
1.66
|
1.589
|
0.604
|
0.531
|
2
|
2.25
|
|
1
|
1.022
|
0.976
|
1.625
|
1.575
|
1.876
|
1.796
|
0.7
|
0.591
|
2.25
|
2.5
|
|
1 1/8
|
1.149
|
1.098
|
1.812
|
1.756
|
2.093
|
2.002
|
0.78
|
0.658
|
2.5
|
2.75
|
|
1 1/4
|
1.277
|
1.223
|
2
|
1.938
|
2.309
|
2.209
|
0.876
|
0.749
|
2.75
|
3
|
|
1 3/8
|
1.404
|
1.345
|
2.188
|
2.119
|
2.526
|
2.416
|
0.94
|
0.81
|
3
|
3.25
|
|
1 1/2
|
1.531
|
1.47
|
2.375
|
2.3
|
2.742
|
2.622
|
1.036
|
0.902
|
3.25
|
3.5
|
|
1 3/4
|
1.785
|
1.716
|
2.75
|
2.662
|
3.175
|
3.035
|
1.196
|
1.054
|
3.75
|
4
|
|
2
|
2.039
|
1.964
|
3.125
|
3.025
|
3.608
|
3.449
|
1.388
|
1.175
|
4.25
|
4.5
|
|
2 1/4
|
2.305
|
2.214
|
3.5
|
3.388
|
4.041
|
3.862
|
1.548
|
1.327
|
4.75
|
5
|
|
2 1/2
|
2.559
|
2.461
|
3.875
|
3.75
|
4.474
|
4.275
|
1.708
|
1.479
|
5.25
|
5.5
|
|
2 3/4
|
2.827
|
2.711
|
4.25
|
4.112
|
4.907
|
4.688
|
1.869
|
1.632
|
5.75
|
6
|
|
3
|
3.081
|
2.961
|
4.625
|
4.475
|
5.34
|
5.102
|
2.06
|
1.815
|
6.25
|
6.5
|
Utiization of A193 B16 Fasteners
- Petrochemicals
- Heat Exchangers
- Power Generation
- Pharmaceutical Equipment
- Gas Processing
- Aircraft Exhaust Manifolds
- Spiral Welded tube for burner pipes and flues
- Pharmaceuticals
- Specialty Chemicals
- Off-Shore Oil Drilling Companies
- Sea Water Equipment
All of our ASTM A193 gr b16 steel bolts, A193 B16 Heavy Hex Bolts, SA-193-B16 Bolt are manufactured in customized sizes
Shop From below stud bolt astm a193 gr b16 Stock
|
|
Size chart of a193 gr b16 bolts
|
Alloy Steel Bolt Type
|
SIZE
|
PROPERTY CLASS
|
TENSILE STRENGTH
|
STANDARD
|
|---|---|---|---|---|
|
Alloy Steel a193 grade B16 Hex Head Bolt / Screws
|
M4 to M80
|
10.9
|
1040N / mm2 min
|
ISO 4017 (Full Thread)
ISO 4014 (Half Thread) |
|
Alloy Steel Nuts Type
|
SIZE
|
PROPERTY CLASS
|
STANDARD
|
|---|---|---|---|
|
Alloy Steel a193 grade B16 Hex Nut
|
M6 to M42
|
10
|
ISO 4032
|
|
Alloy Steel a193 grade B16 Nylock Nut
|
M6 to M20 (Gr.8)
M10 to M24 (Gr.10) |
8 & `10
|
DIN 982
|
|
Alloy Steel a193 grade B16 Nylock Nut
|
M6 to M20 (Gr.8)
M10 to M24 (Gr.10) |
8 & 10
|
DIN 985
|
|
Alloy Steel a193 grade B16 Hex Weld Nut
|
M6 to M12
|
8
|
DIN 929
|
|
Alloy Steel Washers Type
|
SIZE
|
HARDNESS
|
STANDARD
|
|---|---|---|---|
|
Square Section Spring Washer, Alloy Steel a193 grade B16
|
3mm to 39mm
|
HV (430 to 530)
|
DIN 7980
|
|
Flat Section Spring Washer, Alloy Steel a193 grade B16
|
3mm to 39mm
|
HV (430 to 530)
|
DIN 127 B
|
|
Hardened Washer, Alloy Steel a193 grade B16
|
12mm to 30mm
|
HV (300 to 370)
|
IS 2016
|
|
Hardened Steel Washer, Alloy Steel a193 grade B16
|
12mm to 56mm
|
Rockwell 26 to 45 (HDG)
Rockwell 38 to 45 (Coated) |
ASTM F436M
|
Most Selling types of Fasteners Weight Chart
- ISO 7089 Weight Chart (Plain Washer)
- ISO 4014 Weight Chart (Hexagon Head Bolt And Screw)
- ISO 4762 Weight Chart (Hexagon Socket Head Cap Screw)
- ISO 14583 Weight (Thread Forming Screw)
- DIN 938 Stud Dimensions (Stud And Stud Bolt)
- DIN 976 B Specification (Stud And Stud Bolt)
- ISO 4032 Weight Chart (Hexagon Nut)
- ISO 10642 Weight (Countersunk Screw)
