ASTM A193 B8M Bolts

The grade B8M or in this case the ASTM A193 B8M Bolts are manufactured from austenitic stainless steel alloy 316. Per the specification, the astm a193 grade b8m threaded rod is designed to withstand not only high temperature, but also high pressure settings.

view ASTM a193 b8m bolt specification, China’s Largest ASTM A193 B8M Nuts, ASTM a193 grade B8M bolts, ASTM a193 b8m class 2 bolts Manufacturer

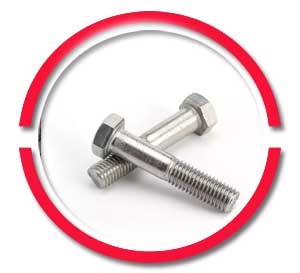

Astm A193 B8m Bolts
Astm A193 B8m Bolts

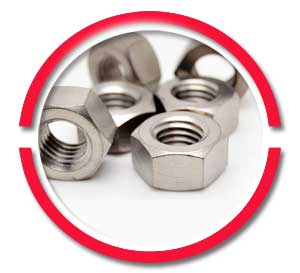

ASTM A193 B8M Nuts
ASTM A193 B8M Nuts

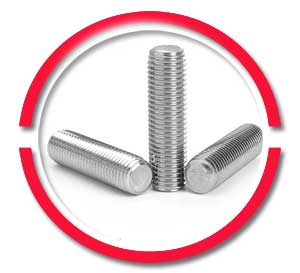

A193 B8m Stud Bolts
A193 B8m Stud Bolts



Which is why A193 B8M Material is used in the manufacture of fasteners like bolts to cater to the needs of industries, where the applications are based in high pressure and/or high temperature conditions. Since the ASTM A193 Gr B8m Studs adhere to the chemistry requirements of the specification, no additional element must be added to the alloy of these steel grades. The tensile property or the B8M Yield Strength along with hardness property requirements have been discussed in the specification.



The specified A193 B8M Heavy Hex Bolts could be categorized into two classes i.e. – Class 1 and Class 2. They are categorised based on the treatment these ASME SA193 B8M Nuts undergo. Hence, ASTM A193 B8m Class 1 are bolts produced from grade 316 stainless steel that have been carbide solution treated. On the other hand, astm a193 b8m class 2 bolts, similar to class 1 have been produced from marine grade 316 stainless steel and have been treated to a carbide solution process. The only difference between class 1 and class 2 is that a class 2 ASTM A193 Gr b8m bolt has also been strain hardened. Click here to view details from the A193 B8M Bolt Torque Chart.

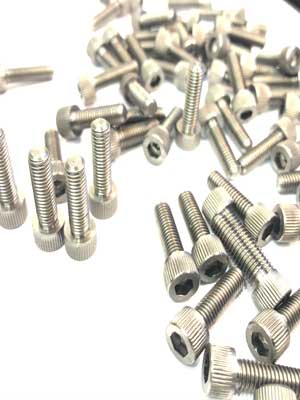

B8m Allen Cap Screw
B8m Allen Cap Screw

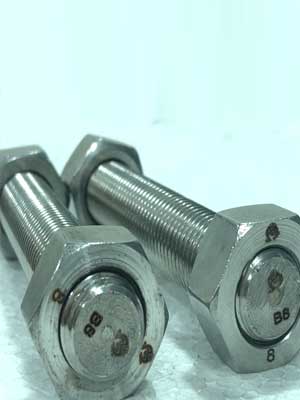

B8m Stud and Double Nut
B8m Stud and Double Nut



specification format of ASTM A193 B8M Bolts
Standards
Designation
ASTM
A193 B8M: Class 1 Stainless Steel, AISI 316
Dimensions
ASME B18.2.1, B18.3
Melt Origin
East Europe/South America/Korea/Japan
Product Origin
Made in China
Threads Configuration
ASME B1.1 2A/3A Inch Unified Threads and B1.13M 6h Metric Coarse Threads
Certification
Dual Certified As per ASTM & ASME Codes
Additional Certifications
PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified
Mandatory Requirements
Free from Mercury & Radioactive Contamination
Additional Requirements
NACE MR0103 / MR0175 / ISO 15156 Compliance

Keep a bulk stock of ASTM a193 grade b8m threaded rod, ASTM A193 Gr B8m Studs, ASTM A193 B8m Class 1, ASTM a193 class 2 grade b8m bolts at lowest price

Size Chart of ASTM A193 B8M Bolt
ASTM A193 B8M Bolt Size Chart

Check A193 B8M Bolt Torque Chart, Are You Looking For ASTM A193 Gr b8m bolt, A193 B8M Stud Bolts, ASTM a193 gr.b8m material suppliers



Dimension Schedule of ASTM A193 B8M Hex Bolt
ASTM A193 B8M Hex Bolt Dimensions

**All measurements in millimeters**

NOMINAL SIZE (D)
BODY DIAMETER

HEAD THICKNEASTM A193

ACROASTM A193 THE FLATS

ACROASTM A193 CORNERS


D (MAX)
D (MIN)
H (MAX)
H (MIN)
F (MAX)
F (MIN)
C (MAX)
C (MIN)
m10
10.00
9.78
6.63
6.17
17.00
15.73
18.48
17.77
m12
12.00
11.73
7.76
4.24
19.00
17.73
20.78
20.03
m14
14.00
13.73
9.09
8.51
22.00
20.67
24.25
23.35
m16
16.00
15.73
10.32
9.68
24.00
23.67
27.71
26.75
m20
20.00
19.67
12.88
12.12
30.00
29.16
34.64
32.95
m24
24.00
23.67
15.44
14.56
36.00
35.00
41.57
39.55
m30
30.00
29.67
19.48
17.92
46.00
45.00
53.12
50.85
m36
36.00
35.61
23.38
21.63
55.00
53.80
63.51
60.79
m42
42.00
41.38
26.97
25.03
65.00
62.90
75.06
71.71
m48
48.00
47.38
31.07
28.93
75.00
72.60
86.60
82.76
m56
56.00
55.26
36.2
33.80
85.00
82.20
98.15
93.71
m64
64.00
63.26
41.32
38.68
95.00
91.80
109.70
104.65
m72
72.00
71.26
46.45
43.55
105.00
101.40
121.24
115.60
m80
80.00
79.26
51.58
48.42
115.00
111.00
132.72
126.54
m90
90.00
89.13
57.74
54.26
130.00
125.50
150.11
143.07
m100
90.00
99.13
63.9
60.10
145.00
140.00
167.43
159.60
Dimensions Standard of ASTM A193 B8M Heavy Hex Bolt
ASTM A193 B8M Heavy Hex Bolt Dimensions
Diameter (D)
Body Diameter (D)

Across the Flats (F)

Across the Corners ©

Head Height (H)

Thread Lengths (T)


MAX
MIN
MAX
MIN
MAX
MIN
MAX
MIN
< 6”
> 6”
1/2
0.515
0.482
0.875
0.85
1.01
0.969
0.364
0.302
1.25
1.5
5/8
0.642
0.605
1.062
1.031
1.227
1.175
0.444
0.378
1.5
1.75
3/4
0.768
0.729
1.25
1.212
1.443
1.383
0.524
0.455
1.75
2
7/8
0.895
0.852
1.438
1.394
1.66
1.589
0.604
0.531
2
2.25
1
1.022
0.976
1.625
1.575
1.876
1.796
0.7
0.591
2.25
2.5
1 1/8
1.149
1.098
1.812
1.756
2.093
2.002
0.78
0.658
2.5
2.75
1 1/4
1.277
1.223
2
1.938
2.309
2.209
0.876
0.749
2.75
3
1 3/8
1.404
1.345
2.188
2.119
2.526
2.416
0.94
0.81
3
3.25
1 1/2
1.531
1.47
2.375
2.3
2.742
2.622
1.036
0.902
3.25
3.5
1 3/4
1.785
1.716
2.75
2.662
3.175
3.035
1.196
1.054
3.75
4
2
2.039
1.964
3.125
3.025
3.608
3.449
1.388
1.175
4.25
4.5
2 1/4
2.305
2.214
3.5
3.388
4.041
3.862
1.548
1.327
4.75
5
2 1/2
2.559
2.461
3.875
3.75
4.474
4.275
1.708
1.479
5.25
5.5
2 3/4
2.827
2.711
4.25
4.112
4.907
4.688
1.869
1.632
5.75
6
3
3.081
2.961
4.625
4.475
5.34
5.102
2.06
1.815
6.25
6.5
See B8M Yield Strength online, fastest delivery for A193 B8M Material, SA193 B8M Studs in China and more than 60 location worldwide
Mechanical Behaviour of ASTM A193 B8M Bolts
Grade
Size
Tensile ksi, min
Yield, ksi, min
Elong, %, min
RA % min
B8M Class 1
All
75
30
30
50
B8M Class 2
Up to 3/4
125
100
12
35
7/8 – 1
115
80
15
35
1-1/8 – 1-1/4
105
65
20
35
1-3/8 – 1-1/2
100
50
28
45
Find astm a193 b8m chemical composition here, compare prices of ASME SA193 B8M Nuts, A193 B8M Heavy Hex Bolts before you buy ASTM A193 B8M Bolts
Chemical Composition Table of SA193 B8M Bolts
Element
B8M (AISI 316)
Carbon
0.08% max
Manganese
2.00% max
Phosphorus, max
0.045%
Sulfur, max
0.030%
Silicon
1.00% max
Chromium
16.0 – 18.0%
Nickel
10.0 – 14.0%
Molybdenum
2.00 – 3.0
Application of A193 B8M Fasteners
  • Petrochemicals
  • Heat Exchangers
  • Power Generation
  • Pharmaceutical Equipment
  • Gas Processing
  • Aircraft Exhaust Manifolds
  • Spiral Welded tube for burner pipes and flues
  • Pharmaceuticals
  • Specialty Chemicals
  • Off-Shore Oil Drilling Companies
  • Sea Water Equipment
Stock of astm a193 B8M stud bolts
  • ASTM A193 B8M Hex Head Bolt
  • ASTM A193 B8M Dome Nut
  • B8M ASTM A193 U Bolt
  • Astm A193 B8M Socket Cap Screw
  • Alloy B8M Steel Square Bolt
  • Grade B8M Double Ended Stud
  • ASTM A193 B8M U Bolt
  • ASTM A193 B8M Square Bolt
  • Astm A193 B8M Head Bolts
  • B8M ASTM A193 Square Bolt
  • B8M Stainless Steel Bolts
  • Alloy B8M Steel Square Nut
  • Alloy B8M Steel U Bolt
  • ASTM A193 B8M Hex Head Nut
  • ASTM A193 B8M U Bolt
  • B8M ASTM A193 Lock Nut
  • ASTM A193 Coupler Nuts
  • Alloy B8M Steel Lock Nut
  • ASTM A193 B8M Lock Nut
  • ASTM A193 B8M wing Nut
  • ASTM A193 B8M Square Bolt
  • Alloy B8M Steel Hex Head Nut
  • ASTM A193 B8M Hex Head Nut
  • ASTM A193 B8M Square Nut
  • B8M ASTM A193 Square Nut
  • ASTM A193 B8M Panel Nut
  • ASTM A193 B8M Lock Nut
  • B8M ASTM A193 Hex Head Bolt
  • Alloy B8M Steel Hex Head Bolt
  • ASTM A193 B8M wing Nut
  • B8M ASTM A193 wing Nut
  • Alloy B8M Steel T Nut
  • Astm A193 B8M Bolts
  • ASTM A193 B8M T Nut
  • B8M spring washer Stockist
  • ASTM A193 B8M Coupling Nut
  • B8M ASTM A193 Coupling Nut
  • ASTM A193 B8M hex cap screw
  • ASTM A193 B8M Grub Screw
  • B8M Step Bolt
  • Grade B8M Carriage Bolt Exporter
  • A193 B8M Hex Nut
  • Alloy B8M Steel Lag Bolt
  • ASTM A193 B8M Lag Bolt
  • ASTM A193 Grade B8M Lock Nut
  • ASTM A193 B8M Counter sunk Bolt
  • B8M ASTM A193 T Bolt
  • ASTM A193 B8M T Bolt
  • Alloy B8M Steel Coupling Nut
  • ASTM A193 ASTM A193 B8M Coupling Nut
  • ASTM A193 B8M Acorn Nut
  • B8M ASTM A193 Acorn Nut
  • Alloy B8M Steel Acorn Nut
  • ASTM A193 B8M Acorn Nut
  • ASTM A193 B8M T Bolt
  • ASTM A193 B8M Hex Bolt
  • B8M ASTM A193 Hex Bolt
  • Astm A193 B8M Square Bolts
  • Alloy B8M Steel Hex Bolt
  • Astm A193 B8M Washers
  • ASTM A193 Double Ended Stud
  • ASTM A193 B8M Hex Bolt
  • ASTM A193 B8M Lag Bolt
  • B8M ASTM A193 Lag Bolt
  • ASTM A193 Grade B8M Flat Washer
  • Stainless Steel B8M Nuts
  • B8M ASTM A193 Counter sunk Bolt
  • Alloy B8M Steel Counter sunk Bolt
  • ASTM A193 B8M Counter sunk Bolt
  • ASTM A193 B8M Eye Nut
  • ASTM A193 B8M Eye Bolt
  • B8M ASTM A193 Eye Bolt
  • Alloy B8M Steel Eye Bolt
  • Grade B8M Punched Washer
  • ASTM A193 B8M Eye Bolt
  • ASTM A193 B8M T Bolt
  • B8M ASTM A193 Eye Nut
  • ASTM A193 Grade B8M Countersunk Slotted Screw
  • Alloy B8M Steel Eye Nut
  • ASTM A193 B8M Eye Nut
  • ASTM A193 B8M T Nut
  • B8M ASTM A193 T Nut
  • Astm A193 B8M Stud Bolt
  • ASTM A193 Grade B8M J Bolt
Weight Chart of B8M Fasteners
