ASTM A194 Grade 2H Nut

The ASTM A194 Grade 2H Nut is designed with the intention of being used for either high pressure or high temperature application or these fasteners could be used for both. Bars from which the astm a194 grade 2h heavy hex nut has been produced is to be hot-wrought

check astm a194 grade 2h heavy hex nut dimensions, manufacturer of sa 194 gr 2h washer, a194 2h material

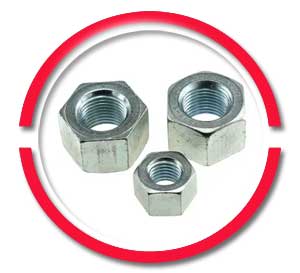

Astm A194 Grade 2h Nuts
Astm A194 Grade 2h Nuts

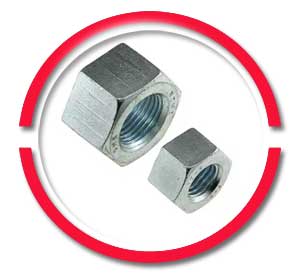

Astm A194 Grade 2h Heavy Hex Nut
Astm A194 Grade 2h Heavy Hex Nut

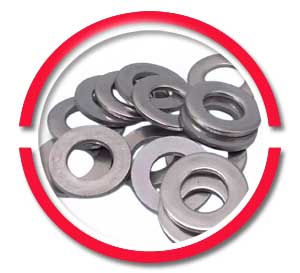

Sa 194 Gr 2h Washer
Sa 194 Gr 2h Washer



view ASTM a194 grade 2h nut dimensions metric, Keep stock of ASTM A194 Grade 2H Hex Nuts, coupling nuts, sa 194 grade 2h nuts

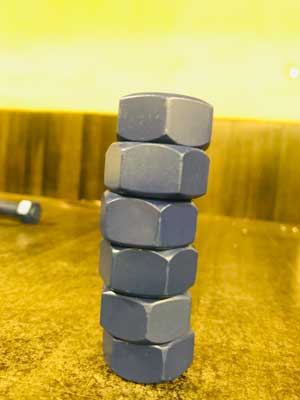

2H Nuts PTFE Coated
2H Nuts PTFE Coated

The a194 2h material, which in this case is a carbon steel alloy could be further processed by centerless grinding process or by a cold drawing process. Per the specification, the alloy of the ASME SA 194 Gr 2H Heavy Hex Nut is required to conform to the chemical composition that has been prescribed. These astm a194 grade 2h yield strength nuts are subjected to various tests such as hardness tests,  cone proof load test and proof of load test.

The tests performed on the carbon steel based ASTM A194 Grade 2H Hex Nuts are to meet the requirements specified in this standard. Usually, the grade mentioned in the ASTM A194 Gr 2H Hex Head Nuts is indicative of the condition it is to be furnished in. In this instance, the carbon steel grade 2h coupling nuts are to be furnished in a quenched and tempered condition. In order to evenly distribute the load of the fastener, the astm a194 grade 2h washer is used in conjunction with a nut or a bolt.







Dimension Standard of Astm A194 Gr. 2H Hex Nuts

astm a194 grade 2h nut dimensions

astm a194 grade 2h nut dimensions
**All measurements in millimeters**

Nominal Size or Basic Major Thread Diameter
F
G
H
Width
Across Flats
Width
Across Corners
Thickness
Basic
Max
Min
Max
Min
Basic
Max
Min
1/4
.2500
7/16
.438
.428
.505
.488
7/32
.226
.212
5/16
.3125
1/2
.500
.489
.577
.557
17/64
.273
.258
3/8
.3750
9/16
.562
.551
.650
.628
21/64
.337
.479
7/16
.4375
11/16
.688
.675
.794
.768
3/8
.385
.365
1/2
.5000
3/4
.750
.736
.866
.840
7/16
.448
.427
9/16
.5625
7/8
.875
.861
1.010
.982
31/64
.496
.473
5/8
.6250
15/16
.938
.922
1.083
1.051
35/64
.559
.535
3/4
.7500
1-1/8
1.125
1.088
1.299
1.240
41/64
.665
.617
7/8
.8750
1-5/16
1.312
1.269
1.516
1.447
3/4
.776
.724
1
1.0000
1-1/2
1.500
1.450
1.732
1.653
55/64
.887
.831
1-1/8
1.1250
1-11/16
1.688
1.631
1.949
1.859
31/32
.999
.939
1-3/8
1.3750
2-1/16
2.062
1.994
2.382
2.273
1-11/64
1.206
1.138
1-1/2
1.500
2-1/4
2.250
2.175
2.598
2.480
1-9/32
1.ASTM A194 GR. 8
1.245
1-5/8
1.6250
2-7/16
2.438
2.356
2.815
2.686
1-25/64
1.429
1.353
1-3/4
1.7500
2-5/8
2.625
2.538
3.031
2.893
1-1/2
1.540
1.460
2
2.0000
3
3.000
2.900
3.464
3.306
1-23/32
1.763
1.675
2-1/4
2.2500
3-3/8
3.375
3.263
3.897
3.719
1-15/16
1.986
1.890
2-1/2
2.5000
3-3/4
3.750
3.625
4.330
4.133
2-5/32
2.209
2.105
2-3/4
2.7500
4-1/8
4.125
3.988
4.763
4.546
2-3/8
2.431
2.319



Dimensions chart of ASTM A194 2H Heavy Hex Nut

ASTM A194 2H Heavy Hex Nut Dimensions

Nominal Size or Basic Major Thread Diameter
F
G
H
Width Across Flats
Width Across Corners
Thickness
Basic
Max
Min
Max
Min
Basic
Max
Min
1/4
.2500
1/2
.500
.488
.577
.556
15/64
.250
.218
5/16
.3125
9/16
.562
.546
.650
.622
19/64
.314
.280
3/8
.3750
11/16
.688
.669
.794
.763
23/64
.377
.341
7/16
.4375
3/4
.750
.728
.866
.830
27/64
.441
.403
1/2
.5000
7/8
.875
.850
1.010
.969
31/64
.504
.464
9/16
.5625
15/16
.938
.909
1.083
1.037
35/64
.568
.526
5/8
.6250
1-1/16
1.062
1.031
1.227
1.175
39/64
.631
.587
3/4
.7500
1-1/4
1.250
1.212
1.443
1.382
47/64
.758
.710
7/8
.8750
1-7/16
1.438
1.394
1.660
1.589
55/64
.885
.833
1
1.0000
1-5/8
1.325
1.575
1.876
1.796
63/64
1.012
.956
1-1/8
1.1250
1-13/16
1.812
1.756
2.093
2.002
1-7/64
1.139
1.079
1-1/4
1.2500
2
2.000
1.938
2.309
2.209
1-7/32
1.251
1.187
1-3/8
1.3750
2-3/16
2.188
2.119
2.526
2.416
1-11/32
1.378
1.460
1-1/2
1.5000
2-3/8
2.375
2.300
2.742
2.622
1-15/32
1.505
1.433
1-5/8
1.6250
2-9/16
2.562
2.481
2.959
2.828
1-19/32
1.632
1.556
1-3/4
1.7500
2-3/4
2.750
2.662
3.175
3.035
1-23/32
1.759
1.679
2
2.0000
3-1/8
3.125
3.025
3.608
3.449
1-31/32
2.013
1.925
2-1/4
2.2500
3-1/2
3.500
3.388
4.041
3.862
2-13/64
2.251
2.155
2-1/2
2.5000
3-7/8
3.875
3.750
4.474
4.275
2-29/64
2.505
2.401
2-3/4
2.7500
4-1/4
4.250
4.112
4.907
4.688
2-45/64
2.759
2.647
3
3.0000
4-5/8
4.625
4.475
5.340
5.102
2-61/64
3.013
2.893
3-1/4
3.2500
5
5.000
4.838
5.774
5.515
3-3/16
3.252
3.124
3-1/2
3.5000
5-3/8
5.375
5.200
6.207
5.928
3-7/16
3.506
3.370
3-3/4
3.7500
5-3/4
5.750
5.562
6.640
6.341
3-11/16
3.670
3.616
4
4.0000
6-1/8
6.125
5.925
7.073
6.755
3-15/16
4.014
3.862



Price List of ASTM A194 Gr 2H Nut
  • Heavy Hex Nut, A194 / Sa 194 2H: Price US$ 1,000.00-US$ 1,600.00 / Ton
  • Carbon steel Black ASTM A194 2H heavy hex nut: Price US$ 0.30-US$ 0.50 / Piece
  • A194 2H finish hex nut: Price US$ 0.40-US$ 0.42 / Piece
  • ASTM Gr 8 A194 2H Heavy Hex Nut B 18.2.2: Price US$ 0.02-US$ 0.05 / Piece
  • Grade A194 2H Square Nut Price US$ 0.15-US$ 25.00 / Piece
  • ASTM A194 GR.2H High Strength Inch Size Heavy Hex Nut: Price US $1.00-$2.00 / Piece
  • Astm a194 grade 2H industrial stud bolts and specialty nuts: Price US$ 800.00-US$ 2,000.00 / Ton
  • ASTM A194 2H Square weld nut: Price US$ 0.01-US$ 1.00 / Piece
  • ASTM A194 heavy hex nut of grade 2H: Price US $1000-$1600 / Ton
  • nut astm a194 2H: Price US$ 0.45-US$ 0.60 / Piece

Please note this is an approx Cost of Grade 2H nuts China. For final astm a194 2H washers price list please mail us.



See astm a194 grade 2h yield strength online, buy ASTM A194 Gr 2H Hex Head Nuts, SA 194 Grade 2H Nuts at low cost



mechanical properties of astm a194 grade 2h
Specification
Material
Nominal Size, In.
Tempering Temp. °F
Proof Load Stress, ksi
Hardness Rockwell
See Note
Min
Max
ASTM A194 Grade 2H
Medium Carbon Steel, Quenched and Tempered
1/4 – 4
1000
175
C24
C38
1,2



Chemical Composition of SA194 Grade 2H Nuts
ASTM
A194 Grade 2H
Percentage
%
C.
0.40%
Mn.
1%
Si.
00.40%
P.
0.04%.
S.
0.050%
Cr.
—
Ni.
—
Mo.
—



Find here ASTM A194 gr 2h nut equivalent here, China’s Largest ASME SA 194 Gr 2H Heavy Hex Nut suppliers



Specification chart of ASTM A194 Grade 2H Nut
Standards
Designation
ASTM
A194 2H: Quenched & Tempered Carbon Steel Heavy Hex Nuts.



Dimensions ASME B18.2.1, B18.3
Melt Origin East Europe/South America/Korea/Japan
Product Origin Made in China
Threads Configuration ASME B1.1 2A/3A Inch Unified Threads and B1.13M 6h Metric Coarse Threads
Certification Dual Certified As per ASTM & ASME Codes
Additional Certifications PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified
Mandatory Requirements Free from Mercury & Radioactive Contamination
Additional Requirements NACE MR0103/MR0175/ISO 15156 Compliance
We are supplying SA 194 Gr 2H Nuts, SA194 Grade 2H Flat Washer to China and more than 60 locations worldwide.

Size table of grade 2h coupling nuts

Astm A194 2h Nuts Size Chart

Nut Size
(mm)
Diameter*
(mm)
Height
(mm)
Hex Nut
Jam Nut
Nylock Nut
2
4
1.6
1.2
–
2.5
5
2
1.6
–
3
5.5
2.4
1.8
4
4
7
3.2
2.2
5
5
8
4
2.7
5
6
10
5
3.2
6
7
11
5.5
3.5
–
8
13
6.5
4
8
10
17
8
5
10
12
19
10
6
12
14
22
11
7
14
16
24
13
8
16
18
27
15
9
18.5
20
30
16
10
20
* This is the diameter across the flats. It is also the size of wrench to use.



Alloy Steel Nuts Type
SIZE
PROPERTY CLASS
STANDARD
Alloy Steel a194 grade 2H Hex Nut
M6 to M42
10
ISO 4032
Alloy Steel a194 grade 2H Nylock Nut
M6 to M20 (Gr.8)
M10 to M24 (Gr.10)
8 & `10
DIN 982
Alloy Steel a194 grade 2H Nylock Nut
M6 to M20 (Gr.8)
M10 to M24 (Gr.10)
8 & 10
DIN 985
Alloy Steel a194 grade 2H Hex Weld Nut
M6 to M12
8
DIN 929



Alloy Steel Washers Type
SIZE
HARDNESS
STANDARD
Square Section Spring Washer, Alloy Steel a194 grade 2H
3mm to 39mm
HV (430 to 530)
DIN 7980
Flat Section Spring Washer, Alloy Steel a194 grade 2H
3mm to 39mm
HV (430 to 530)
DIN 127 B
Hardened Washer, Alloy Steel a194 grade 2H
12mm to 30mm
HV (300 to 370)
IS 2016
Hardened Steel Washer, Alloy Steel a194 grade 2H
12mm to 56mm
Rockwell 26 to 45 (HDG)
Rockwell 38 to 45 (Coated)
ASTM F436M



Bulk Stock of astm a194 grade 2h nut
  • ASTM A194 Gr 2H Nylock Insert Nut
  • Stainless Steel Gr. 2H Wing Nuts
  • SA194 Nuts Exporter
  • ASTM A 194 Hex Nuts
  • Gr. 2H Stainless Steel Washer
  • ASTM A 194 Gr. 2H Lock Nuts
  • ASTM A194 Grade 2H Flange Nuts
  • ASTM A 194 Gr. 2H Heavy Hex Nuts
  • ASTM A 194 Coupling Nut
  • Stainless Steel Gr. 2H T Nuts
  • SS Gr. 2H Lock Nut
  • ISO Approved ASTM A194 Eye Nut
  • ASTM A194 Grade 2H Nuts
  • ASTM A194 Locking Nuts
  • ASTM A 194 Gr. 2H Dome Nut
  • Stainless Steel Gr. 2H Panel Nut
  • ASTM A194 Grade 2H Pannel Nut
  • Gr. 2H Acorn Nut
  • A194 Grade 2H T nut
  • A194 Grade 2H Hex Nut
  • SS Gr. 2H Heavy Hex Nuts
  • Gr. 2H Panel Nuts
  • ASTM A 194 Gr. 2H Nuts
  • ASTM A194 Square Nut
  • ASTM A194 Alloy Steel 2H Coupling Nut
  • Alloy Steel 2H Dome Nut
  • 2H Alloy Steel Dome Nut
  • Alloy 2H Steel Dome Nut
  • ASTM A194 2H Alloy Steel Dome Nut
  • Alloy Steel 2H Acorn Nut
  • 2H Alloy Steel Acorn Nut
  • Alloy 2H Steel Acorn Nut
  • ASTM A194 2H Alloy Steel Acorn Nut
  • ASTM A194 Grade 2H Nuts
  • ASME SA194 Grade 2H Nuts
  • A194 Grade 2H Heavy Hex Nuts
  • ASTM A194 Grade 2H Fasteners
  • SS A194 Hex Nuts
  • SA 194 Gr 2H Nuts
  • A194 Grade 2H Material
  • ASTM A194 Gr 2H Hex Head Nuts
  • A194 Grade 2H Hex Nuts
  • ASME SA194 Grade 2H Eye Nuts
  • Gr 2H Self Locking Nuts
  • ASTM A194 Grade 2H Panel Nuts
  • A194 Grade 2H Acorn Nuts
  • ASTM A194 Gr 2H T Nuts
  • ASTM A194 GR. 2H Square Washers
  • A194 Grade 2H Spring Washers
  • ASME SA194 Grade 2H Spherical Washers
  • Alloy Steel 2H Hex Head Nut
  • 2H Alloy Steel Hex Head Nut
  • Alloy 2H Steel Hex Head Nut
  • ASTM A194 2H Alloy Steel Hex Head Nut
  • Alloy Steel 2H Square Nut
  • 2H Alloy Steel Square Nut
  • Alloy 2H Steel Square Nut
  • ASTM A194 2H Alloy Steel Square Nut
  • Alloy Steel 2H Lock Nut
  • 2H Alloy Steel Lock Nut
  • Alloy 2H Steel Lock Nut
  • ASTM A194 2H Alloy Steel Lock Nut
  • Alloy Steel 2H Eye Nut
  • 2H Alloy Steel Eye Nut
  • Alloy 2H Steel Eye Nut
  • ASTM A194 2H Alloy Steel Eye Nut
  • Alloy Steel 2H wing Nut
  • 2H Alloy Steel wing Nut
  • Alloy 2H Steel wing Nut
  • ASTM A194 2H Alloy Steel wing Nut
  • Alloy Steel 2H T Nut
  • 2H Alloy Steel T Nut
  • Alloy 2H Steel T Nut
  • ASTM A194 2H Alloy Steel T Nut
  • Alloy Steel 2H Panel Nut
  • 2H Alloy Steel Panel Nut
  • Alloy 2H Steel Panel Nut
  • ASTM A194 2H Alloy Steel Panel Nut
  • Alloy Steel 2H Coupling Nut
  • 2H Alloy Steel Coupling Nut
  • Alloy 2H Steel Coupling Nut
  • SA194 Grade 2H Flat Washer
  • A194 Gr 2H Nuts
  • SA194 Grade 2H Stud Nuts
  • A194 Grade 2H Nuts
  • ASTM A194 Nuts
  • A194 Grade 2H Washer
  • A194 Grade 2H Heavy Hex Nuts
  •  A194 Grade 2H Nuts Yield Strength
  • A194 Grade 2H Square Nuts
  • SA194 Grade 2H Heavy Hex Nuts
  • ASTM A194 Gr 2H Lock Nut
  • Gr. 2H Nylon Insert Nuts
  • SA194 Grade 2H Wing Nuts
  • SS A194 Grade 2H Coupling Nuts
  • ASME SA194 Grade 2H Dome Nuts
  • Gr. 2H Serrated Flange Nuts
  • ASTM A194 Gr 2H Lock Washers
  • SA194 Grade 2H Ogee Washers
  • A194 GR. 2H Split Washers
  • Gr. 2H Serrated Flange Nuts
designations of DIN and ISO
No.
Description
DIN 84
Slotted Cheese Head Machine Screws
DIN 85
Slotted Pan Head Machine Screws
DIN 94
Cotter Pin
DIN 125A
Flat Washer (without Chamfer)
DIN 125B
Flat Washer (with Chamfer)
DIN 127B
Split Lock Washer
DIN 137B
Spring Wave Washer
DIN 315
Wing Nut
DIN 439B
Machine Screws Hex Nut, Finished Hex Jam Nut
DIN 911
Long Arm Hex Key
DIN 912
Hex Socket Head Cap Screws
DIN 916
Hex Socket Set Screws
DIN 931
Hex Head Cap Screws Partially Threaded
DIN 933
Hex Head Cap Screws Fully Threaded
DIN 934
Finished Hex Nut
DIN 939
Double End Stud
DIN 960
Hex Head Cap Screws Partially Threaded
DIN 961
Hex Head Cap Screws Fully Threaded
DIN 963
Slotted Flat Head Machine Screws
DIN 964
Slotted Oval Head Machine Screws
DIN 965
Phillips Flat Head Machine Screws
DIN 966
Phillips Oval Head Machine Screws
DIN 975
Threaded Rod
DIN 980V
Hex Steel Prevailing Torque Lock Nut
DIN 985
Hex Nylon Insert Lock Nut
DIN 6334
Rod Coupling Nut
DIN 6797A
External Tooth Lock Washer
DIN 6797J
Internal Tooth Lock Washer
DIN 6912
Hex Low Socket Head Cap Screws
DIN 6921
Hex Flange Head Screws
DIN 6923
Hex Flange Nut
ISO 7379
Hex Socket Head Shoulder Screws
ISO 7380
Hex Button Socket Head Cap Screws
DIN 7985
Phillips Pan Head Machine Screws
DIN 7991
Hex Flat Socket Head Cap Screws



Application of A194 Grade 2H Nuts
  • Sea Water Equipment
  • Off-Shore Oil Drilling Companies
  • Pharmaceuticals
  • Specialty Chemicals
  • Power Generation
  • Aircraft Exhaust Manifolds
  • Pharmaceutical Equipment
  • Heat Exchangers
  • Petrochemicals
  • Spiral Welded tube for burner pipes and flues
  • Gas Processing



Compare metric sizes to the closest inch equivalent
Metric
Closest Inch
M1.4-0.3
0-80 (Larger)
M2-0.4
1-64 (Smaller)
M2.5-0.45
3-56 (Larger)
M3-0.5
4-48 (Smaller)
M3.5-0.6
6-40 (Same)
M4-0.7
8-36 (Larger)
M5-0.8
10-32 (Smaller)
M6-1.0
1/4-28 (Larger)
M7-1.0
1/4-28 (Smaller)
M8-1.25
5/16-18 (Smaller)
M10-1.5
3/8-16 (Smaller)
M12-1.75
1/2-13 (Larger)
M14-2.0
9/16-12 (Larger)
M16-2.0
5/8-11 (Smaller)
M18-2.5
3/4-10 (Larger)
M20-2.5
3/4-10 (Smaller)
M22-2.5
7/8-9 (Larger)
M24-3.0
1-8 (Larger)
M30-3.5
1 1/8-7 (Smaller)
M36-4.0
1 3/8-6 (Smalle



ANSI and ASME Standards (inch series)
ASME B18.1.1 Small Solid Rivets ASME B18.8.1 Clevis Pins and Cotter Pins
ASME B18.1.2 Large Rivets ASME B18.8.2 Taper Pins, Dowel Pins, Straight Pins, Grooved Pins and Spring Pins
ASME B18.2.1 Square and Hex Bolts and Screws ASME B18.9 Plow Bolts
ASME B18.2.2 Square and Hex Nuts ASME B18.10 Track Bolts and Nuts
ASME B18.2.6 Fasteners for use in Structural Applications ASME B18.11 Miniature Screws
ASME B18.3 Socket Cap, Shoulder and Set Screws ASME B18.13 Screws and Washer Assemblies (Sems)
ASME B18.5 Round Head Bolts ASME B18.15 Forged Eyebolts
ASME B18.6.2 Slotted Head Cap Screws, Square Head Set Screws, and Slotted Headless Set Screws ASME B18.17 Wing Nuts, Thumb Screws and Wing Screws
ASME B18.6.3 Machine Screws and Machine Screws Nuts ASME B18.21.1 Lock Washers
ASME B18.6.4 Thread Forming and Thread Cutting Tapping Screws and Metallic Drive Screws ASME B18.22.1 Plain Washers
ASME B18.7 General Purpose Semi- Tubular Rivets, Full Tubular Rivets, Split Rivets and Rivet Caps ASME B18.23.1 Beveled Washers



Most Frequent Types Of Fasteners Weight Chart
