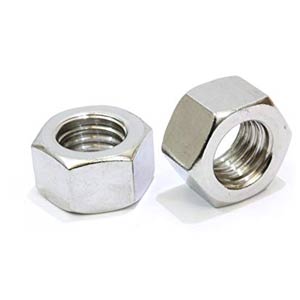

ASTM F594 Heavy Hex Nut

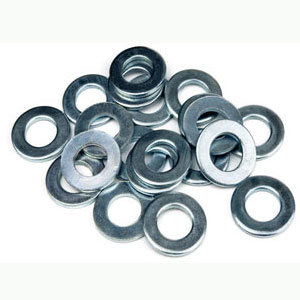

Keep bulk stock of ASME SF594 Washers and Hex Nuts Manufacturer in China at best price

China’s Largest ASTM F594H Lug Nuts Suppliers in mumbai, China

ASTM F594 Heavy Hex Nut falls under the F594 alloy groups. There are seven different groups of material which are used to make the fasteners. High Temperature Fasteners Inc. is a leading manufacturer and supplier of the different types of fasteners from the different material groups. The groups 1-3 are austenitic stainless steel, the group 4 is ferritic and the group 5 and 6 are martensitic.

The group 7 of these alloys is precipitation hardening material 630(17-4). The ASME SF594 Washers and other fasteners are made in different sizes ranging from ¼ inches to 1 ½ inches inclusive. The material should have carbon, manganese, phosphorus, sulfur, silicon, chromium, nickel, copper and molybdenum in the composition. There are different proportions at which these elements should be in different material grades.

The ASTM F594H Lug Nuts are one type of nuts that are used to make sure that the nuts stay in place. The lug nuts are mostly seen on automobile wheels but the applications range widely from engine parts, exterior components and other applications where the external nuts are not be loosened with vibrations. Please feel free to contact us for the different types, material grades, specification, dimensions and standards of the ASTM F594 Nuts and prices.





---

Stainless Steel :
AISI 302, 904L, 316, 316L,317, 317L, 304, 304L, 310, 321, 347, 410, 420 etc.

Duplex & Super Duplex Steel :
ASTM / ASME A815 UNS No. S31803, UNS No. S 31550, UNS No. S 31254, UNS No. S 32205, UNS No. S 32750, and UNS No. S 32760

Carbon Steel :
ASTM A307

Alloy Steel :
ASTM / ASME A/SA 193 / 194 B 6, B 7/ B 7M, B 7, B 7M, B 16, 2HM, 2, 2H, GR 6,

Nickel Alloy :
ASTM / ASME SB 160 / 164 / 425 / 166 / 446 / 574 / 472UNS 4400 (MONEL 400), UNS 6600 (INCONEL 600) / UNS 6601 (INCONEL 601), UNS 8825 (INCONEL 825), UNS 2200 (NICKEL 200) / UNS 2201 (NICKEL 201), UNS 10276 (HASTELLOY C 276), UNS 6625 (INCONEL 625), UNS 8020 (ALLOY 20 / 20 CB 3)

Supplies a full range of ASTM F594H/ F594G /F594D Stainless Steel Nuts at Factory price in China

• ASTM A193 / A193M – 16 : Standard Specification for High-Temperature Bolting, with Expansion Coefficients Comparable to Austenitic Stainless Steels
• ASTM A1082 / A1082M – 16 : Standard Specification for High Strength Precipitation Hardening and Duplex Stainless Steel Bolting for Special Purpose Applications
• ASTM F2281 : Standard Specification for Stainless Steel and Nickel Alloy Bolts, Hex Cap Screws, and Studs, for Heat Resistance and High Temperature Applications Designation
• ASTM A1014 / A1014M – 16 : Standard Specification for Precipitation-Hardening Bolting (UNS N07718) for High Temperature Service
• ASTM A962 / A962M – 16a : Standard Specification for Common Requirements for Bolting Intended for Use at Any Temperature from Cryogenic to the Creep Range
• ASTM A638 / A638M : Standard Specification for Precipitation Hardening Iron Base Superalloy Bars, Forgings, and Forging Stock for High-Temperature Service

---

• ASTM F594 stainless steel 304 316 ss hex nut: Price US$ 0.01-US$ 0.05 / Piece
• ASTM F594 All Size Material Hexagon Thin Nuts Price US$ 0.10-US$ 0.30 / Piece
• Supplier ASTM F594 A2 70 Square Nut DIN 557: Price US$ 0.10-US$ 0.30 / Piece
• ASTM F594 hex nut: Price:US$ 1.50-US$ 2.00 / Piece
• High Quality Left thread ANSI ASTM F594 SS304 18-8 A2-70 UNC Hex NUT: Price:US$ 0.05-US$ 0.10 / Piece
• ASTM F594 Fasteners & lock nut: Price US$ 1.50-US$ 2.00 / Piece
• ASTM F594 hex flange weld nut: Price US$ 0.10-US$ 1.20 / Piece
• ASTM F594 hexagon nut: Price US$ 0.15-US$ 0.50 / Pieces
• High Tensile Fastener astm F594 coupling nut : Price US $0.01-$0.10 / Piece / Piece

Please note this is an approx Cost of ASTM F594 Nuts China. For final ASTM F594 Hex Nuts price list please mail us.

---

Any Quantity Of ASTM F594 Nuts suppliers in Shenzhen, China, Find Amazing Deal from ASME SF594 Barrel and Lock Nut Stockist in Shenzhen

---

Nuts Size (mm)	Diameter* (mm)	Height (mm)
		Hex Nuts	Jam Nuts	Nylock Nuts
2	4	1.6	1.2	–
2.5	5	2	1.6	–
3	5.5	2.4	1.8	4
4	7	3.2	2.2	5
5	8	4	2.7	5
6	10	5	3.2	6
7	11	5.5	3.5	–
8	13	6.5	4	8
10	17	8	5	10
12	19	10	6	12
14	22	11	7	14
16	24	13	8	16
18	27	15	9	18.5
20	30	16	10	20
* This is the diameter across the flats. It is also the size of wrench to use.



---

---

No.	Description
DIN 84	Slotted Cheese Head Machine Screws
DIN 85	Slotted Pan Head Machine Screws
DIN 94	Cotter Pin
DIN 125A	Flat Washer (without Chamfer)
DIN 125B	Flat Washer (with Chamfer)
DIN 127B	Split Lock Washer
DIN 137B	Spring Wave Washer
DIN 315	Wing Nut
DIN 439B	Machine Screws Hex Nut, Finished Hex Jam Nut
DIN 911	Long Arm Hex Key
DIN 912	Hex Socket Head Cap Screws
DIN 916	Hex Socket Set Screws
DIN 931	Hex Head Cap Screws Partially Threaded
DIN 933	Hex Head Cap Screws Fully Threaded
DIN 934	Finished Hex Nut
DIN 939	Double End Stud
DIN 960	Hex Head Cap Screws Partially Threaded
DIN 961	Hex Head Cap Screws Fully Threaded
DIN 963	Slotted Flat Head Machine Screws
DIN 964	Slotted Oval Head Machine Screws
DIN 965	Phillips Flat Head Machine Screws
DIN 966	Phillips Oval Head Machine Screws
DIN 975	Threaded Rod
DIN 980V	Hex Steel Prevailing Torque Lock Nut
DIN 985	Hex Nylon Insert Lock Nut
DIN 6334	Rod Coupling Nut
DIN 6797A	External Tooth Lock Washer
DIN 6797J	Internal Tooth Lock Washer
DIN 6912	Hex Low Socket Head Cap Screws
DIN 6921	Hex Flange Head Screws
DIN 6923	Hex Flange Nut
ISO 7379	Hex Socket Head Shoulder Screws
ISO 7380	Hex Button Socket Head Cap Screws
DIN 7985	Phillips Pan Head Machine Screws
DIN 7991	Hex Flat Socket Head Cap Screws

---

We are ASTM F594 Nuts suppliers in China offer these ASTM F594 Hex Nuts in DIN, ISO, JIS or ANSI standard.

---

---

---

A At manufacturer’s options, determined only when intentionally added.

---

A Minimum values except where shown as maximum or as a range.
B legend of conditions:
AF – Headed and rolled from annealed stock and then reannealed
AH – Solution annealed and age hardened after forming
CW – Headed and rolled from annealed stock thus acquiring a degree of cold work. Sizes 0.75inch and larger may be hot worked and solution annealed.
H – Hardened and tempered at 1050°F (565°C) minimum.
HT – Hardened and tempered at 525°F (274°C) minimum.
SH – Machined from strain hardened stock or cold worked to develop the specific properties.
C The yield and tensile strength values for full size products shall be computed by dividing the yield and maximum tensile load value by the stress area for the product size and thread sizes determined in accordance with Test Methods F606.
D Yield strength is the stress at which an offset of 0.2 & gauge length occurs.

---

A Tensile stress areas are computed using the following formula: AB = 0.7854 [D- (0.9743/n)]2
Where:
AB = Tensile stress area, inch2,
D = Nominal size (basic major diameter), in., and,
n = number of threads per inch.

---

A Unless otherwise specified on the inquiry and order, the choice of an alloy from within a group shall be at the discretion of the fastener manufacturer
B See section 4.2 of F593 for options
C When approved by the purchaser, alloys 303, 303Se, or XM1 may be furnished.
D Sizes 0.75 inch and larger may be hot worked and solutoon annealed.
E When approved by the purchaser, alloy 430F may be furnished.
F When approved by the purchaser, alloys 416 or 416Se may be furnished.

---

A – Machined from annealed or solution annealed stock thus retaining the properties of the original material; or hot formed and solution annealed.
AF – Headed and rolled from annealed stock and then reannealed
AH – Solution annealed and age hardened after forming.
CW – Headed and rolled from annealed stock thus acquiring a degree of cold work. Sizes 0.75inch and larger may be hot worked and solution annealed.
H – Hardened and tempered at 1050°F (565°C) minimum.
HT – Hardened and tempered at 525°F (274°C) minimum.
SH – Machined from strain hardened stock or cold worked to develop the specific properties.

---

• ISO 48C8C2 Weight Chart (Hexagon Socket Head Cap Screw)
• ISO 4014 Weight Chart (Hexagon Head Bolt And Screw)
• ISO 4032 Weight Chart (Hexagon Nut)
• ISO 7089 Weight Chart (Plain Washer)
• DIN 976 B Specification (Stud And Stud Bolt)
• DIN 938 Stud Dimensions (Stud And Stud Bolt)
• ISO 14583 Weight (Thread Forming Screw)
• ISO 10642 Weight (Countersunk Screw)

Buy directly from ASTM F594 Hex Head Nuts, ASME SF594 Dome and Heavy Hex Nuts manufacturers in Shenzhen, Pune & Chennai – China
