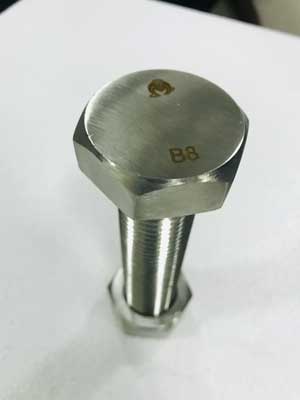

ASTM A193 B8 Class 2 Bolts

ASTM A193 is a specification that covers bolting material, for instance, the A193 B8 Class 2 Heavy Hex Bolts for both alloy steel as well as stainless steel. Typically the specified ASTM A193 B8 Class 2 Fasteners have been designed for use in high temperature or/and high pressure applications.

check astm a193 b8 class 2 torque chart, Keep bulk stock of ASME SA193 Grade B8 Class 2 Bolts, B8 Class 2 Stud

 Hence, the A193 B8 Class 2 Material is well suited to be used for pressure vessels, valves, flanges, fittings and for other special-purpose applications. While there are different grades covered under this specification, these grades are divided into two sub-categories i.e. class 1 and class 2. ASTM A193 B8 Cl1 indicates that the fastener has been carbide solution treated, whereas ASTM A193 Grade B8 Class 2 Bolts indicates that the fasteners are not only carbide solution treated but also strain hardened.

In terms of grades, B8 would mean the alloy belongs to austenitic grade 304. To exemplify, ASTM A193 B8 Class 2 Bolts are bolts made from grade 304 which are furnished in a carbide solution treated and strain hardened condition. Since the A193 B8 Cl2 Strain Hardened Studs fall under the austenitic classes of stainless steel, the specification guides the manufacturer with the elements in the chemistry. Hence, the ASME SA193 Grade B8 Class 2 Bolts needs to conform to the chemistry without the addition of an unknown element.

Moreover, the tensile property and hardness property requirements of the B8 CL2 Torque & Yield Strength have been discussed in this specification. Click here to download the astm a193 b8 class 2 torque chart.

China’s Largest ASTM A193 B8 Cl2, ASTM A193 B8 Cl1, ASTM A193 Grade B8 Class 2 Bolts Manufacturer





---

Standards	Designation
ASTM	A193 B8 Class 2: Class 2 Stainless steel, AISI 304, carbide solution treated, strain hardened



Dimensions	ASME B18.2.1, B18.3
Melt Origin	East Europe/South America/Korea/Japan
Product Origin	Made in China
Threads Configuration	ASME B1.1 2A/3A Inch Unified Threads and B1.13M 6h Metric Coarse Threads
Certification	Dual Certified As per ASTM & ASME Codes
Additional Certifications	PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified
Mandatory Requirements	Free from Mercury & Radioactive Contamination
Additional Requirements	NACE MR0103 / MR0175 / ISO 15156 Compliance



• ASTM A193 / A193M – 16 : Standard Specification for High-Temperature Bolting, with Expansion Coefficients Comparable to Austenitic Stainless Steels
• ASTM A1082 / A1082M – 16 : Standard Specification for High Strength Precipitation Hardening and Duplex Stainless Steel Bolting for Special Purpose Applications
• ASTM F2281 : Standard Specification for Stainless Steel and Nickel Alloy Bolts, Hex Cap Screws, and Studs, for Heat Resistance and High Temperature Applications Designation
• ASTM A1014 / A1014M – 16 : Standard Specification for Precipitation-Hardening Bolting (UNS N07718) for High Temperature Service
• ASTM A962 / A962M – 16a : Standard Specification for Common Requirements for Bolting Intended for Use at Any Temperature from Cryogenic to the Creep Range
• ASTM A638 / A638M : Standard Specification for Precipitation Hardening Iron Base Superalloy Bars, Forgings, and Forging Stock for High-Temperature Service



View B8 CL2 Torque & Yield Strength, Most Trusted ASTM A193 B8 Class 2 Fasteners, A193 B8 Class 2 Stud Bolts Suppliers



Notes:

• Bolting torque to develop 50% Bolt Yield Stress at Nut Factor, K=0.16
• This Table is applicable to Never-Seize paste and Fel-Pro lubricant, K=0.16.
• The above Table is applicable only for ASTM A320 Grade B8, Class 2 and A193 Grade B8, Class 2 Stud Bolts. These are 304 SS material.
• The torque values are approved for spiral wound graphite and PTFE filled gaskets, graphite sheet gaskets GHE and GHR types, ring joint, double jacketed and Camprofile gaskets.
• The Final Torque Value accounts for 10% bolt relaxation.
• The yield strength for strain-hardened bolts varies with diameter. Torque values for bolts greater than 1½ in. diameter are based on 30 ksi yield strength.



we provide the fastest delivery for A193 B8 Cl2 Strain Hardened Studs, A193 B8 Class 2 Material, SA193 B8 Class 2 Studs



---

• ASTM a193 B8 Class 2/B8 Class 2M hex bolt: Price US$ 0.01-US$ 0.10 / Piece
• Standard size a193 B8 Class 2 a194 8 stud bolt and nut: Price US$ 0.01 / Piece
• a193 B8 Class 2 a194 8 stud anti-theft bolt and nut price list: Price US$ 0.971-US$ 1.44 / Kilogram
• Stainless Steel ASTM A193 B8 Class 2 Hex Bolt: Price US$ 0.005-US$ 0.10 / Piece
• ASTM A193 stainless steel SS316 B8 Class 2 B8 Class 2m stud bolt : Price US$ 500.00-US$ 900.00 / Ton
• stainless steel B8 Class 2 B8 Class 2m stud bolt astm a193 Price US$ 0.003-US$ 0.20 / Piece
• A193 B8 Class 2 B8 Class 2M(A) Stainless Steel ANSI Hex Heavy Bolt: Price US$ 0.001-US$ 0.05 / Piece
• ASTM A193 Gr B8 Class 2 / B8 Class 2A Hex Heavy Structural Bolt: Price US$ 0.012-US$ 0.05 / Piece
• stainless steel B8 Class 2 B8 Class 2m long stud bolt astm a193: Price US$ 1.60-US$ 1.63 / Piece
• Astm A193 B8 Class 2 hex bolt class 2 stainless steel : Price US$ 0.002-US$ 1.00 / Piece

Please note this is an approx Cost of B8 Class 2 bolts China. For final ASTM A193 Grade B8 Class 2 Bolts price list please mail us.



---



---



---



buy Any Quantity Of ASME SA193 B8 Class 2 Nuts, A193 B8 Class 2 Heavy Hex Bolts directly from manufacturer



---
