2014-T6 Aluminum Round Bar

2014 aluminum bar, 2014-T6 Aluminum Rectangular Bar and Rod manufacturer in China

The 2014-T6 Aluminum Round Bar is an aluminium based alloy which is often noted for its use in the aerospace industry. Due to its excellent properties, the Aluminium Alloy 2014 (2014 A) T6 Round Bars are used in applications that have requirements for superior mechanical properties such as high tensile strength as well as hardness.

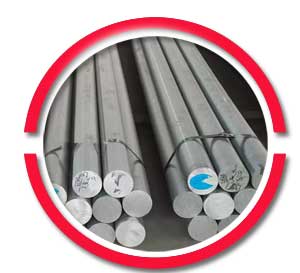

2014-T6 Aluminum Round Bar
2014-T6 Aluminum Round Bar

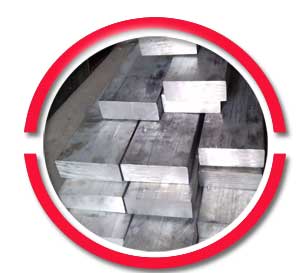

2014 T6 Aluminum Rectangular Bar
2014 T6 Aluminum Rectangular Bar

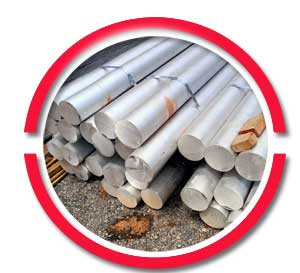

ASTM B211 Aluminium 2014 T6 rod
ASTM B211 Aluminium 2014 T6 rod



View 2014 t6 aluminum properties, ASTM B211 Aluminium 2014 T6 Black Bars, A2014-T6 Bright Bars suppliers

 These 2014A Aluminum T6 Spring Steel Bars can lend themselves to applications which include their use at elevated temperature. Specifically, the  2014-T6 Aluminum Rectangular Bar is well suited to be used in applications involving heavy duty components not only for the aerospace industry, but also for wheels, tanks, and major structural components as well. This being said, the ASME SB 211 AA2014-T651 Threaded Rods are found in heavy duty suspension componentry and in various automotive frames.

While it is easy to machine the DIN 3.1255 / 3.1254 Aluminium 2014 Rods in certain tempers, it is one of the strongest available aluminium alloys. Its strength is a property that has been attributed to the high hardness of the AMS 4121 Aluminium 2014 T6 Hexagon Bars. Although these Aluminium 2014 T6 Flat Bars are rarely used in applications that involve welding due to its difficulty in welding. Most manufacturers recommend avoiding welding the 2014A T651 Welding Rods since this alloy is subject to cracking.

Aside from being the second most popular of the 2000-series aluminium alloys, the components like the AL 2014 T6 Square Bars are commonly extruded and forged. A major drawback about the Aluminium 2014 UNS A92014 Cold Drawn Bars is that it exhibits poor resistance to corrosion for an aluminium based alloy. To deal with this issue, the ASTM B211 Aluminium 2014 T6 Black Bars are often clad with pure aluminium. If an unclad form of  2014 aluminium bar has been exposed to the elements, the material needs to be painted as a measure of protection against corrosion.



2014-T6 Aluminum Round Bar Material Equivalent Grades

STANDARD WERKSTOFF NR. UNS
Alloy No. 10 2.1285 C17500
Alloy No. 3 2.0850 C17510



Composition Standard of 2014-T6 Aluminum Round Bar

Element % Present
Si 0.50 – 0.90
Fe 0.0 – 0.50
Cu 3.90 – 5.00
Zn 0.0 – 0.25
Mn 0.40 – 1.20
Mg 0.20 – 0.80
Ti 0.0 – 0.15
Cr 0.0 – 0.10
Ni 0.0 – 0.10
Ti+Zr 0.0 – 0.20
Al Balance
Others (Total) 0.0 – 0.15
Other (Each) 0.0 – 0.05



Most Reliable AL 2014 T6 Square Bars, DIN 3.1255 / 3.1254 Aluminium 2014 Rods, ASME SB 211 AA2014-T651 Threaded Rods exporter



dimensions standard and specification of 2014-T6 Aluminum Round Bar

  • Dimensions : ASTM, ASME, AMS
  • Specifications : ASTM B211 /ASME SB211 , AMS 4121
  • Alloy : 2014 – T6
  • Size : 1/4” Dia – 16” Dia
  • Form : Square , Round , Hex , Flat, Wire In Black & Bright Finish
  • Length : Random, Fix & Cut Length
  • Finish : Bright, Polish & Black



buy AMS 4121 Aluminium 2014 T6 Hexagon Bars, UNS A92014 Cold Drawn Bars, 2014A Aluminum T6 Spring Steel Bars directly from the manufacturer



Mechanical Behaviour of 2014-T6 Aluminum Round Bar

Material Temper Diameter (mm) Tensile Strength min ((N/mm²) Yield Strength (min) (N/mm²) Elongation on 5.65 V (min)
2014 Bar T4 <20 370 230 11
2014 Bar T4 20-75 390 250 11
2014 Bar T4 75-150 390 250 9
2014 Bar T4 150-200 370 230 8
2014 Bar T6510 20-75 480 435 7
2014 Bar T6510 75-150 465 420 7
2014 Bar T6510 150-200 435 390 7



2014-T6 Aluminum Round Bar Physical Properties

Physical Property Value
Density 2.82 g/cm³
Melting Point 535 °C
Modulus of Elasticity 71 GPa
Electrical Resistivity 0.045 x10^-6 Ω .m
Thermal Conductivity 138 W/m.K
Thermal Expansion 23 x10^-6 /K



Quick inquiry to buy Aluminium 2014 T6 Flat Bars, Aluminium Alloy 2014 (2014 A) T6 Round Bars, 2014A T651 Welding Rods at lowest possible price



Ready Stock to dispatch of 2014-T6 Aluminum Round Bar

  • ASME SB 211 Aluminium 2014 T6 Flat Bar
  • DIN 3.1255 / 3.1254 Aluminium 2014 Square Bar
  • 2014 Aluminum alloy T6 Black Bars
  • Aluminium 2014 T6 Polish Bar
  • 2014A Aluminum T6 Hex Bar
  • Aluminium Alloy 2014 T6 Welding Rods
  • Aluminium 2014 T6 Round Bars
  • UNS A92014 Aluminium 2014 Rods
  • ASTM B 211 Aluminium 2014 T6 Bars
  • Aluminium 2014 T6 Bright Bar
  • Aluminium 2014 T6 Forged Rods
  • Aluminium Alloy 2014 T6 Bright Rod
  • Aluminium 2014 T6 Cold Drawn Bar
  • 2014 Aluminum alloy T6 Round Rod
  • ASTM / ASME B211 Aluminium 2014 T6 Hollow Bar
  • Aluminium 2014 T6 Threaded Rods
  • AMS 4121 AA2014-T651 Forged Round Bars
  • AA2014-T651 Cold Finish Round Bar
  • Aluminium 2014 T6 Hexagonal Rods
  • B211 2014 Aluminium T6 Rectangular Bar



2014-T6 Aluminum Round Bar Thermal Properties

CTE, linear 68°F
23 µm/m-°C
12.8 µin/in-°F
AA; Typical; Average over 68-212°F range.
CTE, linear 250°C
24.4 µm/m-°C
13.6 µin/in-°F
Average over the range 20-300ºC
Specific Heat Capacity
0.88 J/g-°C
0.21 BTU/lb-°F
Estimated from trends in similar Al alloys.
Thermal Conductivity
154 W/m-K
1070 BTU-in/hr-ft²-°F
AA; Typical at 77°F
Melting Point
507 – 638 °C
945 – 1180 °F
AA; Typical range based on typical composition for wrought products 1/4 inch thickness or greater. Eutectic melting is not eliminated by homogenization.
Solidus
507 °C
945 °F
AA; Typical
Liquidus
638 °C
1180 °F
AA; Typical



2014-T6 Aluminum Round Bar Electrical Properties

Electrical Resistivity
4.32e-006 ohm-cm
4.32e-006 ohm-cm
AA; Typical at 68°F



2014-T6 Aluminum Round Bar Processing Properties

Annealing Temperature
413 °C
775 °F

Solution Temperature
502 °C
935 °F

Aging Temperature
160 °C
320 °F
Sheet, plate, wire, rod, bar, shapes, tube; 18 hr at temperature
Aging Temperature
171 °C
340 °F
Forgings; 10 hr at temperature
