Aluminium 6082 t6 round bar is a medium strength alloy that has the ability to offer excellent resistance to corrosion. The 6082-t6 aluminium round bar is an alloy that has the highest tensile strength properties amongst the 6000 series alloys.
view 6082 t6 round bar specification, largest aluminium 6082 t6 round bar, 6082-t6 aluminum round bar manufacturer

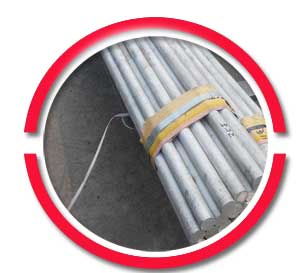

6082-T6 Round Bar

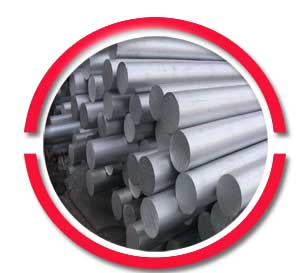

Aluminium 6082 T6 Rods

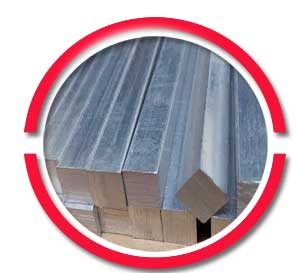

Uns A96082 Square Bar
6082 t6 aluminium bar is referred to as a structural alloy. Hence, these bars are used in structural applications such as construction and bridges. Being a relatively new alloy, the higher strength of grade 6082-T6 Round Bar has seen it substitute grade 6061 in many applications. The addition of large content of manganese in the alloy for ASTM B221 Aluminium 6082 T6 Black Bars is what controls the grain structure. A controlled grain structure results in a stronger alloy.
This being said, it is difficult to manufacture thin walled, complicated extrusion shapes from alloy grade 6082. Moreover, the extruded surface finish of AA6082-T6 Bright Bars is not as smooth in comparison to other similar strength alloy grades in the 6000 series. However, those alloys which have tempers T6 and T651 could be machined well. The AL 6082 T6 Square Bars produces tight coils of swarf when chip breakers are used to machine them.
The chemical composition of each ASME SB 221 AA6082-T651 Threaded Rods has to be determined in accordance with the specified suitable test methods including a chemical test and a spectrochemical test. Tensile properties, elongation, and yield strengths of all UNS A96082 Aluminium T6 Hexagon Bars need to conform to the requirements listed in the ASTM B221 specification.
- Dimensions : ASTM, ASME, AMS
- Specifications : ASTM B221, AMS 4156, AMS QQ-A-200/9
- Alloy : 6082 – T6
- Size : 1/4” Dia – 16” Dia
- Form : Square , Round , Hex , Flat, Wire In Black & Bright Finish
- Length : Random, Fix & Cut Length
- Finish : Bright, Polish & Black
held wide stock of 6082-t6 bar, 6082 t6 flat bar and square bar, DIN 3.2315 Aluminium 6082 Rods, UNS A96082 Aluminium T6 Hexagon Bars
|
|
check 6082 t6 round bar dimensions, the Biggest supplier of al 6082 t6, EN AW-6082 Aluminium Alloy T6 Round Bars, 6082 t6 welding round bar
| STANDARD | WERKSTOFF NR. | UNS | EN |
| Aluminium 6082 T6 | 3.2315 | A96082 | AW-6082 |
| Element | % Present |
| Al | Balance |
| Si | 0.70 – 1.30 |
| Mg | 0.60 – 1.20 |
| Mn | 0.40 – 1.00 |
| Fe | 0.0 – 0.50 |
| Zn | 0.0 – 0.20 |
| Ti | 0.0 – 0.10 |
| Cu | 0.0 – 0.10 |
| Cr | 0.0 – 0.25 |
| Others (Total) | 0.0 – 0.15 |
| Other (Each) | 0.0 – 0.05 |
See 6082 t6 round bar sizes, Most reliable 6082A Aluminum T6 Spring Steel Bar Suppliers
| Physical Property | Value |
| Density | 2.70 g/cm³ |
| Melting Point | 555 °C |
| Thermal Expansion | 24 x10^-6 /K |
| Modulus of Elasticity | 70 GPa |
| Thermal Conductivity | 180 W/m.K |
| Electrical Resistivity | 46% IACS |
| Element | Aluminium 6082 T6 |
| Proof Stress | 290 Typical MPa |
| Tensile Strength | 340 Typical MPa |
| Hardness Vickers | 95 Typical HV |
| Elongation A | 6 Min % |
