ASTM B408 UNS No 8811 Rod, Inconel 800HT Hex and Flat bar suppliers in Shenzhen, China
Buy DIN 1.4859 Square Bar, Alloy 800ht Threaded bar at factory price in China

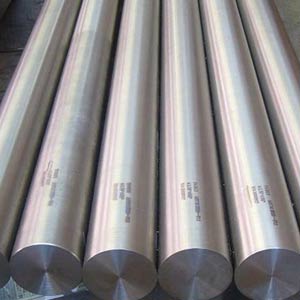

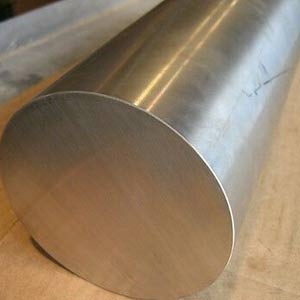

Incoloy 800HT Round bar
Inconel 800HT Rod

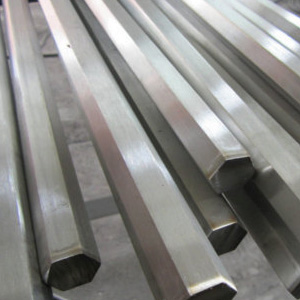

ASTM B408 UNS No 8811 Hex bar
Table of Content
Incoloy is an alloy that belongs to a class of high performing Inconel metals. Since they are high-performance alloys, the properties of an Incoloy 800HT Round Bar will range between good to excellent. Usually, the preference of Incoloy alloys are in those applications which require stable, yet excellent performance in high temperature settings. This being said, the reason behind the alloys good performance in a heated environment is because of the chemical composition of the ASTM B408 UNS No 8811 hex bar.
Its chemistry boosts the creep resistance to a much higher level as compared to Incoloy 800. Compared to both Incoloy 800 H and alloy 800, the contents of aluminium and titanium in the Alloy 800ht Square Bar is marginally higher, thus improving its behaviour in heated environments. Chromium forms a passivated oxide layer on the surface of the 1.4859 flat Bar, effectively reducing the chances of decay by oxidation. nickel, on the other hand, improves the resistance of Inconel 800HT Round Bar against reductive compounds and halogen containing solutions.
Nickel also aids in better tolerance at elevated temperatures. Properties that supplement the chemistry of Alloy 800HT Round Bar include higher resistance to pitting, resistance to general corrosion, better mechanical and yield strength as well. The demand for Incoloy 800HT Rod is seen in industries that deal with the processing of hydrocarbons including the oil and gas and petrochemical industry.
| Grade | Incoloy 800HT – UNS N08811 |
|---|---|
| Specification | ASTM B408 UNS N08811, AMS 5766 |
| Round bar size | Diameter: 3-~800HTmm |
| Hex Bar size | 2-100mm A/F |
| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Square bar size | 4 to 100mm |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Section | 3.0 to 12.0mm thickness |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Billet Size | 1/2″ to 495mm Diameter |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Round Bar Standard Dimensions | Diameter / Height: |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Condition | Hardened & tempered, annealed |
| Technique | Incoloy 800HT Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Processing | Bar cutting to 650mm |
| Form | Incoloy 800HT Welding Rod,Channel Bar, Forging, Precision Ground Bar, Flat Bar, Round, Rod, T-Bar, Square, Blocks, Round Rod, Rings, Hollow, Threaded, Half Round Bar, Profiles, Triangle, Rectangle, Hex (A/F), Billet, Ingot, I/H Bar etc. |
| Our stockyad location for fast delivery across China | Shivamogga, Agra, Ahmedabad, Shenzhen, Dhanbad, Thiruvananthapuram, Bengaluru, Tiruchirappalli, Pune, Noida, Tirunelveli, Bhubaneswar, Chennai, Coimbatore, Pimpri-Chinchwad, Hyderabad, Navi Shenzhen |
| Our Incoloy 800HT Round bar conforms to NACE MR0175/ISO 15156 | |
Alloy 800HT Bar Condition
|
H&T
|
Hardened and tempered.
|
|
ANN
|
Annealed
|
|
PH
|
Precipitation hardened.
|
incoloy 800HT Round Bar Surface finish
|
CD
|
Cold drawn
|
P
|
Polished
|
|
BD
|
Bright drawn
|
SRE
|
Slit rolled edge
|
|
CG
|
Centreless ground
|
HF
|
Hot finished
|
|
CF
|
Cold finished
|
HRAP
|
Hot rolled annealed and pickled
|
|
P&T
|
Peeled and turned
|
RT
|
Rough turned/peeled
|
|
ST
|
Smooth turned
|
PR
|
Peeled and reeled
|
|
Alloy 800HT Bar Price in China
|
Quantity
|
Price
|
|---|---|---|
|
45.0mm Dia x 250mm long
|
1
|
$295.05
|
|
45.0mm Dia x 250mm long
|
2
|
$533.90
|
|
45.0mm Dia x 250mm long
|
3
|
$747.46
|
|
45.0mm Dia x 500mm long
|
1
|
$480.51
|
|
45.0mm Dia x 500mm long
|
2
|
$880.94
|
|
45.0mm Dia x 500mm long
|
3
|
$1,226.57
|
|
45.0mm Dia x 1000mm long
|
1
|
$774.16
|
|
45.0mm Dia x 1000mm long
|
2
|
$1,413.43
|
|
45.0mm Dia x 2000mm long
|
1
|
$1,306.65
|
|
45.0mm Dia x 2000mm long
|
2
|
$2,371.64
|
Please note this is an approx Alloy 800HT Round Bar Price in China. For final Incoloy 800HT Round Bar price list please Make an inquiry.
UNS N08811 Incoloy Hollow Bar
Alloy 800HT Rebar
Incoloy 800HT Threaded Bar
Alloy 800HT Hexagonal Bar
Incoloy 800HT Round Bar
Incoloy Alloy 800HT Half-Round Bar
Alloy 800HT T-Bar
UNS N08811 Incoloy Rounds
Incoloy 800HT Square Bar
Incoloy 800HT Flat Bar
UNS N08811 Incoloy Rectangular Bar
Incoloy 800HT Rod
Incoloy 800HT Hex Bar
Alloy 800HT Triangle Bar
Incoloy Alloy 800HT Precision Ground Stock
Alloy 800HT Precision Ground Bar
we are dedicated Incoloy 800HT Round Bar suppliers offer various shapes such as Square Bar, Round Bar, Flat Bar, Hexagonal Bar, Hollow Bar & Channels
|
Type
|
SIZES (mm)
|
SIZES (Inches)
|
ISO Tolerance
|
|---|---|---|---|
|
Cold Drawn and Polish
|
3.00 – 75.00
|
1/8″ – 3.00″
|
h8-h9-h10-h11
|
|
Cold Drawn and Ground
|
10.00 – 75.00
|
5/6″ – 2.50″
|
h8-h9-h10-h11
|
|
Peeled and Polished
|
40.00 – 150.00
|
1.50″ – 6.00″
|
h11, h11-DIN 1013
|
|
Peeled and Ground
|
20.00 – 50.00
|
3/4″ – 2.00″
|
h9-h10-h11
|
Cut to size on request (tolerance +2/-0 mm). Standard lengths of Incoloy 800HT Bars 2000 mm up to 6000 mm available
|
5.0
|
45.0
|
|
6.0
|
50.0
|
|
7.0
|
55.0
|
|
8.0
|
60.0
|
|
9.0
|
65.0
|
|
10.0
|
70.0
|
|
12.0
|
75.0
|
|
16.0
|
80.0
|
|
20.0
|
90.0
|
|
25.0
|
100.0
|
|
30.0
|
130.0
|
|
35.0
|
160.0
|
|
40.0
|
200.0
|
- SW 13 Incoloy 800HT Hex Rod
- SW 17 Incoloy 800HT Hex Rod
- SW 19 Incoloy 800HT Hex Rod
- SW 24 Incoloy 800HT Hex Rod
- SW 27 Incoloy 800HT Hex Rod
High Temperature Fasteners Inc. is China’s largest stockist and supplier of Incoloy 800HT Round Bar with an huge selection for commercial and industrial applications.
|
Grade
|
Ni
|
Cr
|
Fe
|
Si
|
Ti
|
Cu
|
Mn
|
C
|
S
|
Al
|
|---|---|---|---|---|---|---|---|---|---|---|
|
Incoloy 800HT
|
30.0 – 35.0
|
19.0 – 23.0
|
39.5 min
|
1.0 max
|
0.25-0.60
|
0.75 max
|
1.5 max
|
0.06-0.1
|
0.015 max
|
0.85-1.20
|
|
Density
|
Melting Point
|
Tensile Strength
|
Yield Strength (0.2%Offset)
|
Elongation
|
|---|---|---|---|---|
|
7.94 g/cm3
|
1385 °C (2525 °F)
|
Psi – 75,000 , MPa – 520
|
Psi – 30,000 , MPa – 205
|
30 %
|
|
STANDARD
|
WERKSTOFF NR.
|
UNS
|
GOST
|
AFNOR
|
JIS
|
BS
|
EN
|
OR
|
|---|---|---|---|---|---|---|---|---|
|
Incoloy 800HT
|
1.4859 / 1.4876
|
N08811
|
ЭИ670
|
–
|
NCF 800HT
|
NA 15(HT)
|
X8NiCrAlTi32-21
|
XH32T
|
