ASTM B511 UNS N08330 Rod, 330 Stainless Steel Hex Bar suppliers
Buy Ra330 Flat Bar/ Square bar, Alloy 330 Stainless Steel Threaded Bar Stock at factory price in China
Incoloy 330 Round Bar is made up of an austenitic alloy that has good strength and corrosion resistance. High Temperature Fasteners Inc. is a leading manufacturer and supplier of the different types of ASTM B511 UNS N08330 Rod products in various dimensions and scales. The specification is ASTM B511 and the sizes range from 14mm to 300mm. the diameter of the bars range from 0.1mm to 100mm with lengths ranging up to 6000mm.
There are custom cut to length sizes available as well. The shapes can vary as round, rectangular and 330 Stainless Steel Hex Bar types. All these types could be finished with bright, polish and black finish types. The material has 34% nickel, 17% chromium, silicon, molybdenum, copper, manganese, carbon, sulfur and phosphorus in the composition.
The tolerance level ranges for the Ra330 Flat Bar from H8 to H13 and K9 to K12. The material has 1413 degrees Celsius melting point, 655MPa minimum tensile strength and 310MPa minimum yield strength. The elongation of the Alloy 330 Stainless Steel Square Bar and other bars is 40%. The material is often used in retots, muffles, baskets and in fixturing. Please feel free to contact us for more information on the different types of bars and pricing.

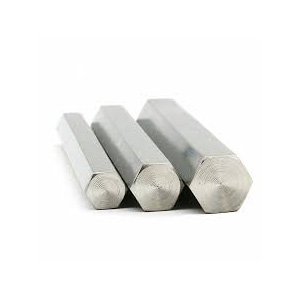

330 Stainless Steel Hex Bar

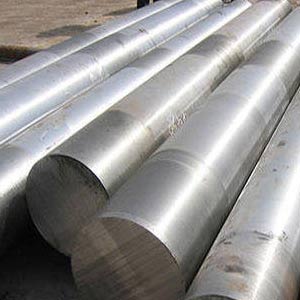

incoloy 330 round bar

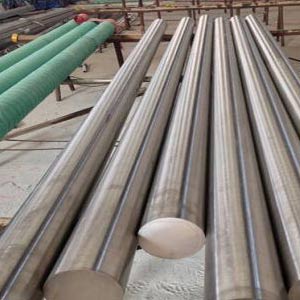

ASTM B511 UNS N08330 Rod
Table of Content
The right Place of supply of Ra330 Alloy Bar in China at Best Price. 330 Stainless Steel Rod manufacturer in China, We provide FREE Alloy UNS N08330 Bar sample.
- AMS 5716
- ASTM B511 (UNS N08330)
- ASME B511 (UNS N08330)
| Grade | Incoloy 330 – UNS N08330 |
|---|---|
| Specification | ASTM B511 UNS N08330, AMS 5716, ASTM B511, ASME SB511 |
| Round bar size | Diameter: 3-~330mm |
| Hex Bar size | 2-100mm A/F |
| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Square bar size | 4 to 100mm |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Section | 3.0 to 12.0mm thickness |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Billet Size | 1/2″ to 495mm Diameter |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Round Bar Standard Dimensions | Diameter / Height: |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Condition | Hardened & tempered, annealed |
| Technique | Incoloy 330 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Processing | Bar cutting to 650mm |
| Form | Incoloy 330 Rod,Channel Bar, Forging, Precision Ground Bar, Flat Bar, Round, Rod, T-Bar, Square, Blocks, Round Rod, Rings, Hollow, Threaded, Half Round Bar, Profiles, Triangle, Rectangle, Hex (A/F), Billet, Ingot, I/H Bar etc. |
| Our stockyad location for fast delivery across China | Shivamogga, Agra, Ahmedabad, Shenzhen, Dhanbad, Thiruvananthapuram, Bengaluru, Tiruchirappalli, Pune, Noida, Tirunelveli, Bhubaneswar, Chennai, Coimbatore, Pimpri-Chinchwad, Hyderabad, Navi Shenzhen |
| Our Incoloy 330 Round bar conforms to NACE MR0175/ISO 15156 | |
Alloy 330 Bar Condition
|
H&T
|
Hardened and tempered.
|
|
ANN
|
Annealed
|
|
PH
|
Precipitation hardened.
|
incoloy 330 Round Bar Surface finish
|
CD
|
Cold drawn
|
P
|
Polished
|
|
BD
|
Bright drawn
|
SRE
|
Slit rolled edge
|
|
CG
|
Centreless ground
|
HF
|
Hot finished
|
|
CF
|
Cold finished
|
HRAP
|
Hot rolled annealed and pickled
|
|
P&T
|
Peeled and turned
|
RT
|
Rough turned/peeled
|
|
ST
|
Smooth turned
|
PR
|
Peeled and reeled
|
|
330 Stainless Steel Round Bar Price in China
|
Quantity
|
Price List
|
|---|---|---|
|
10 (A/F) x 1000mm Length
|
1
|
$101.16
|
|
10 (A/F) x 1000mm Length
|
3
|
$256.52
|
|
10 (A/F) x 1000mm Length
|
5
|
$365.11
|
|
10 (A/F) x 2000mm Length
|
1
|
$180.65
|
|
10 (A/F) x 2000mm Length
|
3
|
$425.12
|
|
10.0 dia x 500mm long
|
1
|
£65.00
|
|
10.0 dia x 500mm long
|
2
|
£96.00
|
|
10.0 dia x 500mm long
|
3
|
£124.00
|
|
10.0 dia x 500mm long
|
4
|
£153.00
|
|
10.0 dia x 500mm long
|
5
|
£176.00
|
|
10.0 dia x 1000mm long
|
1
|
£81.00
|
|
10.0 dia x 1000mm long
|
2
|
£127.00
|
|
10.0 dia x 1000mm long
|
5
|
£265.00
|
|
10.0 dia x 2000mm long
|
1
|
£121.00
|
|
10.0 dia x 2000mm long
|
2
|
£201.00
|
Please note this is an approx 330 Stainless Steel Welding Rod Price in China. For final 330 Stainless Steel Round Bar price list please Make an inquiry.
UNS N08330 Stainless Steel Hollow Bar
Alloy 330 Rebar
Stainless Steel 330 Threaded Bar
Alloy 330 Hexagonal Bar
Stainless Steel 330 Round Bar
Stainless Steel Alloy 330 Half-Round Bar
Alloy 330 T-Bar
UNS N08330 Stainless Steel Rounds
Stainless Steel 330 Square Bar
Stainless Steel 330 Flat Bar
UNS N08330 Stainless Steel Rectangular Bar
Stainless Steel 330 Rod
Stainless Steel 330 Hex Bar
Alloy 330 Triangle Bar
Stainless Steel Alloy 330 Precision Ground Stock
Alloy 330 Precision Ground Bar
we are dedicated 330 Stainless Steel Round Bar suppliers offer various shapes such as Square Bar, Round Bar, Flat Bar, Hexagonal Bar, Hollow Bar & Channels
|
Type
|
SIZES (mm)
|
SIZES (Inches)
|
ISO Tolerance
|
|---|---|---|---|
|
Cold Drawn and Polish
|
3.00 – 75.00
|
1/8″ – 3.00″
|
h8-h9-h10-h11
|
|
Cold Drawn and Ground
|
10.00 – 75.00
|
5/6″ – 2.50″
|
h8-h9-h10-h11
|
|
Peeled and Polished
|
40.00 – 150.00
|
1.50″ – 6.00″
|
h11, h11-DIN 1013
|
|
Peeled and Ground
|
20.00 – 50.00
|
3/4″ – 2.00″
|
h9-h10-h11
|
Cut to size on request (tolerance +2/-0 mm). Standard lengths of 330 Stainless Steel Bars 2000 mm up to 6000 mm available
|
5.0
|
45.0
|
|
6.0
|
50.0
|
|
7.0
|
55.0
|
|
8.0
|
60.0
|
|
9.0
|
65.0
|
|
10.0
|
70.0
|
|
12.0
|
75.0
|
|
16.0
|
80.0
|
|
20.0
|
90.0
|
|
25.0
|
100.0
|
|
30.0
|
130.0
|
|
35.0
|
160.0
|
|
40.0
|
200.0
|
- SW 13 330 Stainless Steel Hex Rod
- SW 17 330 Stainless Steel Hex Rod
- SW 19 330 Stainless Steel Hex Rod
- SW 24 330 Stainless Steel Hex Rod
- SW 27 330 Stainless Steel Hex Rod
High Temperature Fasteners Inc. is China’s largest stockist and supplier of ASME SB 511 Incoloy 330 Rods with an huge selection for commercial and industrial applications.
|
Element
|
Average Nominal %
|
|---|---|
|
Chromium
|
18.00 – 22.00
|
|
Nickel
|
34.00 37.00
|
|
Carbon
|
0.08 Max
|
|
Silicon
|
1.00 – 1.50
|
|
Manganese
|
2.00 Max
|
|
Phosphorus
|
0.03 Max
|
|
Sulfur
|
0.03 Max
|
|
Copper
|
1.00 Max
|
|
Iron
|
Balance
|
|
Tensile Strength – ksi (min.)
|
0.2% Offset Yield Strength – ksi (min.)
|
Elongation in 2 inches – % (min.)
|
Hardness – Rockwell B
|
|---|---|---|---|
|
70
|
30
|
30
|
90
|
|
Density
(lb. / cu. in.) |
Specific Gravity
|
Specific Heat
(Btu/lb Deg F – [32-212 Deg F]) |
Magnetic Permeability
|
Modulus of Elasticity Tension
|
|---|---|---|---|---|
|
0.289
|
7.99
|
0.11
|
1.02
|
28.5
|
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| Incoloy 330 | 1.4886 | N08330 |
