1030 Steel Round Bar, bright bar and Carbon Steel Rods manufacturer
1030 candy bar, AISI/SAE 1030 bars Suppliers

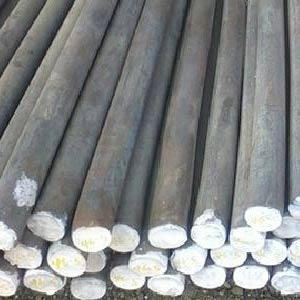

1030 Round Bar

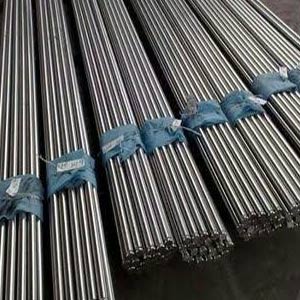

AISI 1030 steel bar

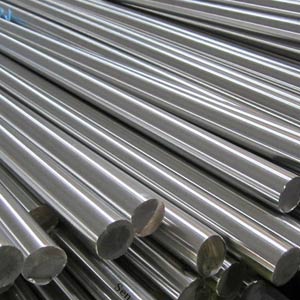

SAE 1030 bright bar
Grade 1030 is a carbon steel alloy. Like most carbon steels, the main alloyants of these steels are carbon and iron. Though there are two alloyants that dominate the alloy, the AISI/SAE 1030 Steel Round Bars may contain trace elements like copper, aluminium, molybdenum, chromium along with nickel. Being high carbon steel grade, these 1030 Carbon Steel Rods are known to exhibit moderate tensile strength and hardness properties in an as-rolled condition.
To improve certain properties, these alloys are often given some form of treatments. The 1030 Candy Bar could be hardened and strengthened when the manufacturer cold works it. It would be fair to state that the 1030 Bright Bar also demonstrates properties like good machinability, good ductility and good weldability. Although it can be welded using all conventional methods, the 1030 Round Bar must be subjected to a pre and post heat treatment to optimise welding. Post the performance of annealing treatment, producers are required to carry out a Stress relief annealing on the 1030 Steel Bar.
|
Colour Code
|
Stocked Sizes
|
||
|
White (Bar End)
|
Metric
|
8 mm – 140 mm Dia
|
|
|
Imperial
|
3/16″ – 7″ Dia
|
||
|
Related Specifications
|
|
|
Australia
|
AS 1443 – 1994 M1030
|
|
Germany
|
W.Nr 1.0528 C30
W.Nr 1.1178 CK30 |
|
Great Britain
|
BS970 – Part 3 – 1991 080M30
BS970 – 1955 EN5, 6, 6a |
|
Japan
|
JIS G 4051 S30C
|
|
USA
|
AISI C1030
ASTM A29/A29M – 91 1030 SAE 1030 UNS G 10300 |
|
Element
|
Content
|
|---|---|
|
Carbon, C
|
0.270 – 0.340 %
|
|
Iron, Fe
|
98.63 – 99.09 %
|
|
Manganese, Mn
|
0.60 – 0.90 %
|
|
Phosphorous, P
|
0.040 %
|
|
Sulfur, S
|
0.050 %
|
|
Cold Drawn Size mm
|
|
up to 16mm
|
17 – 38mm
|
39 – 63mm
|
Turned & Polished, & Precision Ground (all sizes)
|
|||||||||||||
|
Tensile Strength Mpa
|
Min
|
560
|
540
|
520
|
500
|
|||||||||||||
|
Max
|
850
|
740
|
710
|
630
|
||||||||||||||
|
Yield Strength Mpa
|
Min
|
440
|
430
|
410
|
250
|
|||||||||||||
|
Max
|
670
|
600
|
570
|
350
|
||||||||||||||
|
Elongation in 50mm %
|
Min
|
10
|
11
|
12
|
20
|
|||||||||||||
|
Hardness HB
|
Min
|
170
|
160
|
155
|
150
|
|||||||||||||
|
Max
|
245
|
215
|
210
|
185
|
||||||||||||||
|
Typical Mechanical Properties – Hardened by Water Quench at 850 oC – 880 oC and Tempered Between 540oC – 680 oC
|
||||||||||||||||||
|
Cold Drawn Size mm
|
|
up to 16mm
|
17 – 40mm
|
41 – 63mm
|
||||||||||||||
|
Tensile Strength Mpa
|
Min
|
620
|
580
|
520
|
||||||||||||||
|
Max
|
760
|
730
|
650
|
|||||||||||||||
|
Yield Strength Mpa
|
Min
|
420
|
365
|
300
|
||||||||||||||
|
Elongation in 50mm %
|
Min
|
13
|
16
|
17
|
||||||||||||||
|
Hardness HB
|
Min
|
185
|
175
|
150
|
||||||||||||||
|
Max
|
225
|
215
|
195
|
|||||||||||||||
|
Property
|
AISI 1030 Data
|
|
Density, lb/in3
|
0.284
|
|
Modulus of Elasticity, psi
|
29 x 106
|
|
Coefficient of Thermal Expansion, 68-212˚F, /˚F
|
6.5 x 10-6
|
|
Thermal Conductivity, Btu/ft hr ˚F
|
30.0
|
|
Specific Heat, Btu/lb ˚F
|
0.116
|
|
Electrical Resistivity, Microohm-in
|
6.54
|
|
Properties
|
Conditions
|
||
|
T (°C)
|
Treatment
|
||
|
Thermal Expansion (10-6/ºC)
|
11.7
|
15-75
|
|
Our Size Range Of 1030 Round Steel Bars:
16mm, 18mm, 20mm, 22mm, 23.5mm, 24mm, 25mm, 26mm, 27mm, 28mm, 30mm, 32mm, 34mm, 35mm, 36mm, 37mm, 38mm, 40mm, 42mm, 45mm, 46.5mm, 47mm, 50mm, 51mm,53mm, 56mm, 60mm, 63mm, 65mm, 70mm, 75mm, 78mm, 80mm, 85mm, 90mm, 95mm, 100mm, 105mm, 110mm, 115mm, 120mm, 125mm, 130mm.
Equivalent grades of 1030 round bars:
EN Name C30 (1.0501)
EN Number 1.0501
DIN C30, CM30
BS 970 070M36
UNI C30
JIS S30C
