C18150 Copper Chromium Zirconium Rod Manufacturers.
UNS C18150 Copper Chromium Zirconium Casting Suppliers
Copper and its alloys often deliver good performance at elevated temperatures, especially those applications which demand high electrical and thermal conductivity. The free movement of electrons within the C18150 Round Bar permits the transference of heat and the passage of current, which is why the conducting properties of this alloy are good. The chemistry for Alloy C18150 consists of the addition of 1% chromium along with 0.15% zirconium to copper. The creep resistance of this alloy sees a noticeable elevation due to the addition of these two elements.
Often, during operations such as spot welding of galvanized products or coated materials, electrodes tend to stick. By adding trace amounts of zirconium in the C18150 Copper Chromium Zirconium Rod, not only reduces sticking but also makes spot welding easier. In comparison to alloy C18200, copper chromium zirconium grade C 18150, yields a much better spot welding result, and hence, it is preferred by manufacturers as well.
Another area where this alloy excels is in environments that undergo high-stress conditions and applications that involve the use of high temperatures. Despite such stressful conditions, the UNS C18150 Copper Chromium Zirconium Casting demonstrates high strength and good wear resistance properties at elevated temperatures. A heat treatable alloy, C18000 Copper Chromium Nickel Rod finds use in applications where properties such as very good mechanical strength in addition to moderate electrical and thermal electrical conductivity are desired.

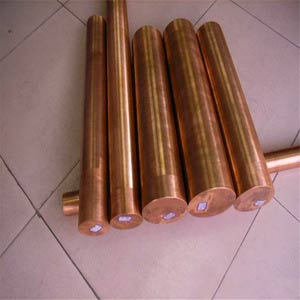

C18150 round bar

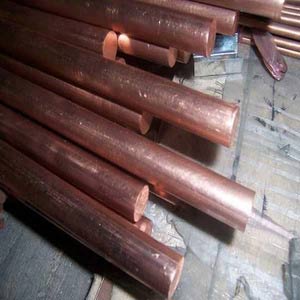

C18150 copper rod

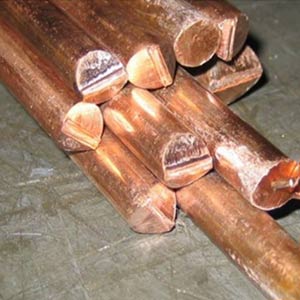

C18150 copper chromium zirconium rod
|
Specification
|
ASTM C18150, UNS C18150
|
|
Standard & Material
|
CW106C, EN 12163 EN 12420 EN 1652, ASTM C18150, CC 102, CA 184
|
|
HOLLOW RODS
|
Min Bore Size 20 mm and Max OD 100 mm
|
|
ROUND RODS
|
8mm To 100 mm
|
|
HEX
|
10mm To 60mm
|
|
SQUARE
|
10mm To 60mm
|
|
FLAT
|
10mm Min Thickness and max Width 120mm
|
|
BILLETS
|
Up to 200 mm
|
|
INGOTS
|
As per Specification
|
UNS C18000 Copper Chromium Nickel rod, C18000 Copper Chromium Nickel rod, Copper Nickel Silicon rod Suppliers.
| Mechanical specification | |||||
|
EN 12163
CW106C |
Round bar
|
Ts
N/mm² |
Ys
N/mm² |
A
% |
|
|
Temper 5470
|
∅ 6 to 25 mm
|
≥ 470
|
(380)
|
> 8
|
|
|
Temper 5440
|
∅ 26 to 50 mm
|
≥ 440
|
(350)
|
> 10
|
|
|
Temper R220
|
∅ 51 to 250 mm
|
≥ 200
|
(60)
|
> 30
|
|
|
Hexagonal bar
|
|
|
|
||
|
Temper R440
|
12 to 36
|
≥ 440
|
(350)
|
> 10
|
|
|
Square bar
|
|
|
|
||
|
Temper R420
|
10×10 to 50×50
|
≥ 420
|
(330)
|
> 12
|
|
|
DIN 17666 – 2.1580
|
Sheet
|
|
|
|
|
|
Temper F37
|
Ep. 10 to 120 mm
|
≥ 370
|
> 270
|
> 12
|
|
| Chemical composition | ||||||
| Cu | Cr | Zr | Fe | Si | Other | |
| EN 12163 – CW106C | Remainder | 0.5/1.2 | 0.03/0.3 | < 0.08 | < 0.1 | < 0.2 |
| DIN 17666 – 2.1580 | Remainder | 0.3/1.2 | 0.03/0.3 | < 0.2 | ||
-
- Mold Cavities for Bold Molds
- Cores, Core and Ejector Pins for Injection Molds
- Plunger Tips for Metal Die Casting Machines
- Heat Sink Inserts in Steel Plastic Molds
- Hot runner Systems for Injection Molds
- Welding Dies for Wire and Flash
- Blow Pins
- Pinch Offs
- Mold Cavities for Bold Molds
- Blow Pins
- Resistance Welding Tips, Wheels and Fixtures
- Stud Welding Collets and Tips
- Sprue Bushing
- Cavities for Injection Molds
- Pinch Offs
|
|
