The alloy for en1a round bar is a low carbon-manganese steel grade. This free cutting steel is also available with a modified en1a leaded chemical composition as grade EN1A Pb. The modified alloy is known to have enhanced machinability properties.
view en1a material price, Get en1a leaded round bar, en1A engineering steel rod at lower prices

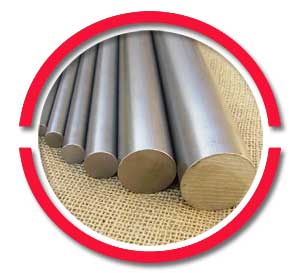

En1a Round Bar

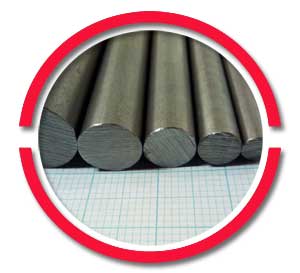

En1a Leaded Round Bar

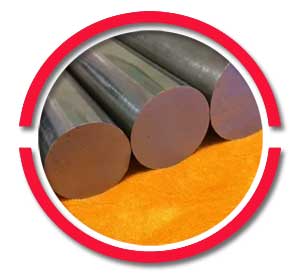

En1a Engineering Steel Rod
most trusted en1a leaded manufacturers, carbon steel en 1a bright bar suppliers
The good en1a mechanical properties of these components like the en1a leaded round bar are why they are used for hydraulic settings. In fact, the en1a leaded manufacturers recommend using these components, particularly for those applications which involve intricate drilling as well as machining operations. Generally, this grade of en1a rod is well suited for machining operations that use both automatic and CNC machines.
Also referred to as 230M07, the en1a bright bar could be case hardened in order to produce components. Case hardened en1a hexagon bar has enhanced wear resistance properties. These properties of the en1a steel flat bar are useful for the production of components which require a superior finished surface with a high rate of manufacture.
In comparison to regular mild steel grades, the carbon steel en 1a bright bar provides tighter sectional tolerances, in addition to the increased straightness, as well as a much cleaner surface. Usually, the en1a hexagon bar is supplied an untreated and cold drawn or centreless turned condition. The main benefit of an en1a square bar is that the alloy steel could be brought closer to the finished machine size. Thus providing a reduction in the cost of machining. Another advantage of bright en1a steel bar is a marked increase in the tensile strength in comparison to a hot rolled bar of the produced under the same condition.
size chart of en1a round bar
En1A Rounds Hot Rolled
|
Size (mm dia)
|
60
|
65
|
70
|
75
|
80
|
85
|
90
|
95
|
100
|
105
|
110
|
115
|
120
|
125
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
130
|
135
|
140
|
145
|
150
|
155
|
160
|
165
|
170
|
180
|
190
|
200
|
210
|
220
|
En1A Mild Steel Rounds Bright Drawn / Turned Stock
|
Size (ins. dia)
|
3/32
|
1/8
|
5/32
|
3/16
|
7/32
|
1/4
|
9/32
|
5/16
|
11/32
|
3/8
|
7/16
|
1/2
|
17/32
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9/16
|
5/8
|
11/16
|
3/4
|
13/16
|
7/8
|
15/16
|
1
|
1 1/16
|
1 1/8
|
1 3/16
|
1 1/4
|
1 5/16
|
|
|
1 3/8
|
1 7/16
|
1 1/2
|
1 5/8
|
1 11/16
|
1 3/4
|
1 7/8
|
2
|
2 1/8
|
2 1/4
|
2 3/8
|
2 1/2
|
2 5/8
|
|
|
2 3/4
|
2 7/8
|
3
|
3 1/8
|
3 1/4
|
3 3/8
|
3 1/2
|
3 5/8
|
3 3/4
|
3 7/8
|
4
|
4 1/4
|
4 1/2
|
|
|
4 3/4
|
5
|
5 1/4
|
5 1/2
|
5 3/4
|
6
|
6 1/4
|
6 1/2
|
6 3/4
|
7
|
7 1/4
|
7 1/2
|
8
|
|
|
Size (mm dia)
|
2
|
2.5
|
3
|
4
|
5
|
6
|
6.5
|
7
|
8
|
9
|
10
|
11
|
12
|
|
13
|
14
|
15
|
16
|
17
|
18
|
19
|
20
|
22
|
24
|
25
|
26
|
28
|
|
|
30
|
32
|
35
|
36
|
38
|
40
|
42
|
45
|
46
|
48
|
50
|
52
|
55
|
|
|
56
|
58
|
60
|
65
|
70
|
75
|
80
|
85
|
90
|
100
|
105
|
110
|
120
|
|
|
125
|
130
|
140
|
150
|
|
|
|
|
|
|
|
|
|
En1A Rounds Precision Ground Stock
|
Size
(ins. dia) |
1/4
|
3/8
|
1/2
|
5/8
|
3/4
|
7/8
|
1
|
1 1/4
|
1 3/8
|
1 1/2
|
1 3/4
|
2
|
2 1/4
|
2 1/2
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3
|
Tolerances: up to 1″ dia +/- 0.00025″
|
|||||||||||||
|
|
||||||||||||||
|
Size
(mm dia) |
4
|
6
|
8
|
10
|
12
|
15
|
16
|
20
|
25
|
30
|
35
|
40
|
50
|
|
|
Tolerances:
4mm to 30mm dia. +0mm/-0.0127mm 35mm to 50mm dia. +0mm/-0.0254mm |
||||||||||||||
En1A Hexagons Bright Drawn
|
Size (ins. A/F)
|
0.193
|
0.248
|
0.312
|
0.324
|
0.375
|
0.437
|
0.445
|
0.500
|
0.525
|
0.562
|
0.600
|
0.625
|
0.687
|
0.710
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0.750
|
0.812
|
0.820
|
0.875
|
0.920
|
0.937
|
1.000
|
1.010
|
1.062
|
1.100
|
1.125
|
1.200
|
1.250
|
1.300
|
|
|
1.312
|
1.480
|
1.500
|
1.625
|
1.670
|
1.860
|
2.050
|
2.220
|
2.410
|
2.580
|
2.760
|
3.150
|
3.550
|
|
|
|
Size (mm A/F)
|
5
|
6
|
7
|
8
|
10
|
11
|
12
|
13
|
14
|
15
|
16
|
17
|
18
|
19
|
|
20
|
22
|
24
|
25
|
26
|
27
|
30
|
32
|
35
|
36
|
41
|
46
|
50
|
55
|
|
|
60
|
65
|
70
|
75
|
|
|
|
|
|
|
|
|
|
|
En1A Squares Bright Drawn
|
Size (ins. sq)
|
3/16
|
1/4
|
5/16
|
3/8
|
7/16
|
1/2
|
9/16
|
5/8
|
3/4
|
7/8
|
1
|
1 1/8
|
1 1/4
|
1 3/8
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1 1/2
|
1 3/4
|
2
|
2 1/4
|
2 3/4
|
3
|
3 1/4
|
3 1/2
|
4
|
|
|
|
|
|
|
|
Size (mm sq)
|
5
|
6
|
7
|
8
|
10
|
12
|
14
|
15
|
16
|
18
|
20
|
22
|
25
|
30
|
|
32
|
40
|
45
|
50
|
60
|
|
|
|
|
|
|
|
specification format of en1a round bar
| Grade | en1a |
|---|---|
| Specification | BS970: 1955 EN1A, BS970/PD970: 1970 onwards 230M07. |
| Round bar size | Diameter: 3-~800mm |
| Hex Bar size | 2-100mm A/F |
| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Square bar size | 4 to 100mm |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Section | 3.0 to 12.0mm thickness |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Billet Size | 1/2″ to 495mm Diameter |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Finish | Cold (bright) drawn, centreless ground,smooth turned, peeled, slit rolled edge, hot rolled, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Condition | Hardened & tempered, annealed |
| Technique | en1a Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Processing | Bar cutting to 650mm |
| Form | en1a Welding Rod, Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| Our en1a round bar conforms to NACE MR0175/ISO 15156 | |
Click here for the en1a material price.
view en1a material price
| en1a round bar price in india |
Price Per Unit (INR)
|
|---|---|
| 42CrMo4 forged alloy Steel Round Bars |
US$ 1.50-US$ 5.00 / Kilogram
|
| EN1A free cutting round bars |
US$ 700.00-US$ 900.00 / Ton
|
| en1a lead half round bar |
US$ 1,000.00-US$ 5,000.00 / Metric Ton
|
| EN1A free cutting steel cold rolled bars |
US$ 1,000.00-US$ 2,500.00 / Ton
|
| dia 8mm 15mm 35mm 55mm 100mm en1a bright bar |
US$ 2,000.00-US$ 7,999.00 / Ton
|
| Round steel 20mncr5 forged bar |
US$ 650.00-US$ 800.00 / Metric Ton
|
| EN1A black round steel bars |
US$ 500.00-US$ 700.00 / Ton
|
| En1a,Y15 free-cutting steel bar |
US$ 700.00-US$ 1,200.00 / Metric Ton
|
| Leaded EN1A precision and bright round bar |
US$ 1,000.00-US$ 3,000.00 / Ton
|
| Gr2 en1a titanium bright bar astm b348 |
US$ 15.00-US$ 79.00 / Kilogram
|
Surface finish of en1a leaded round bar
|
CD
|
Cold drawn
|
P
|
Polished
|
|
BD
|
Bright drawn
|
SRE
|
Slit rolled edge
|
|
CG
|
Centreless ground
|
HF
|
Hot finished
|
|
CF
|
Cold finished
|
HRAP
|
Hot rolled annealed and pickled
|
|
P&T
|
Peeled and turned
|
RT
|
Rough turned/peeled
|
|
ST
|
Smooth turned
|
PR
|
Peeled and reeled
|
Condition of en1a rod
|
H&T
|
Hardened and tempered.
|
|
ANN
|
Annealed
|
|
PH
|
Precipitation hardened.
|
Ready Stock of carbon steel en 1a bar
|
|
Equivalent of en1a leaded round bar
| EN1A Equivalents | |
|---|---|
|
BS970: 1955
|
EN1A
|
|
BS970/PD970:
1970 onwards |
230M07
|
|
European
|
9SMn28, BS En 11SMn30
|
|
Werkstoff No.
|
1.0715
|
|
US SAE (AISI)
|
1213, 1215
|
|
BS 970 1991
|
BS 970 1955 EN
|
AISI/SAE
|
Werkstoff
|
|
220M07
|
EN1A
|
1113
|
1.0711
|
|
230M07
|
EN1A
|
1213
|
1.0715
|
Check en1a mechanical properties, Get a Live Quote Now for en1A Mild Steel hexagon bar, en1a steel flat bar
Mechanical Analysis of en1a leaded round bar
|
230M07 (EN1A) – mechanical properties in cold drawn condition
|
||
|---|---|---|
|
Max Stress
|
370-480 n/mm2 Min
|
dependent on ruling section
|
|
Yield Stress
|
240-400 n/mm2 Min
|
dependent on ruling section
|
|
0.2% Proof Stress
|
225-360 n/mm2 Min
|
dependent on ruling section
|
|
Elongation
|
6-10% Min
|
dependent on ruling section
|
The right Place of supply of carbon steel en1a square bar, en1a steel bar in China at Best Price
Metric Flats of En1A Mild Steel
|
10 mm
|
3, 5 mm
|
|
12 mm
|
3, 5, 6 mm
|
|
13 mm
|
3 mm
|
|
16 mm
|
3 mm
|
|
20 mm
|
3, 5, 6, 8, 10, 12
|
|
25 mm
|
3, 5, 6, 8, 10, 12, 16, 20
|
|
30 mm
|
3, 5, 6, 8, 10, 12, 16, 20, 25
|
|
40 mm
|
3, 5, 6, 8, 10, 12, 16, 20, 25, 30
|
|
50 mm
|
3, 5, 6, 8, 10, 12, 16, 20, 25, 30
|
|
60 mm
|
3, 6, 8, 10, 12, 16, 20, 25, 30
|
|
70 mm
|
3, 5, 6, 8, 10, 12, 16, 20, 25
|
|
80 mm
|
5, 6, 8, 10, 12, 16, 20, 25
|
|
90 mm
|
6, 10, 12, 16
|
|
100 mm
|
3, 5, 6, 8, 10, 12, 16, 20, 25, 30, 40, 50
|
|
125 mm
|
10, 25, 50
|
|
150 mm
|
6, 10, 12, 16, 20, 25, 30, 40, 50
|
|
200 mm
|
10, 12, 20, 25, 30, 50
|
See en1a leaded chemical composition, Make an inquiry to know more about en1a hexagon bar sizes and price list
Chemical Compatibility Chart of en1a leaded round bar
|
230M07 (EN1A) Specification
Chemical composition |
|
|---|---|
|
Carbon
|
0.15% max
|
|
Silicon
|
0.40% max
|
|
Manganese
|
0.90-1.30%
|
|
Sulphur
|
0.25-0.35%
|
|
Phosphorus
|
0.070 Max
|
|
Chromium
|
–
|
|
Molybdenum
|
–
|
|
Nickel
|
–
|
|
Lead
|
0.15-0.35% (Where specified)
|
Imperial Flats of En1A
|
3/8
|
1/8
|
|
3/4
|
1/2
|
|
1
|
1/4, 3/8, 1/2, 5/8, 3/4
|
|
1 1/4
|
3/8, 1/2, 3/4, 7/8, 1
|
|
1 1/2
|
1/4, 3/8, 1/2, 5/8, 3/4, 1, 1 1/4
|
|
1 3/4
|
1, 1 1/4
|
|
2
|
1/4, 3/8, 1/2, 5/8, 3/4, 1, 1 1/4
|
|
2 1/2
|
3/8, 1/2, 1, 1 1/2, 1 3/4
|
|
3
|
3/8, 1/2, 3/4, 1, 11/2, 2
|
|
4
|
3/8, 1/2, 3/4, 1, 1 1/2, 2, 2 1/2, 3
|
|
5
|
1/2, 3/4, 1, 1 1/4, 1 1/2, 2, 3
|
|
6
|
1/4, 3/8, 1/2, 5/8, 1, 1 1/4, 1 1/2, 2
|
|
8
|
1/2, 3/4, 1, 1 1/4, 1 1/2
|
|
10
|
1/2, 3/4, 1
|
|
12
|
1/2. 1
|
