En9 round bar is also known by its trade name 070M55. The carbon content in the alloy of an en9 bright bar ranges between 0.5 – 0.6%, thus making this grade a medium carbon steel alloy. The tensile strength of the en9 steel rod could be developed between 500 Mpa – 800 Mpa.
Check en9 material price in China, Get en9 bright bar, en9 steel rod at lower prices

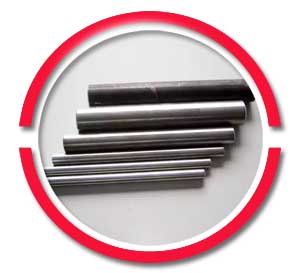

En9 Round Bar

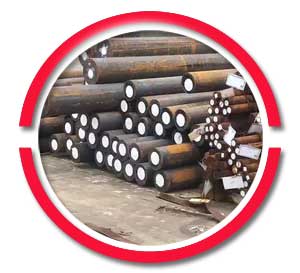

En9 Steel Rod

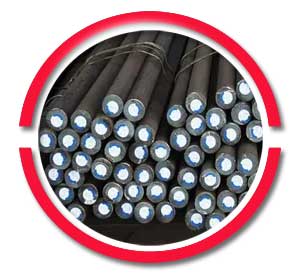

En9 Alloy Steel Bright bar
Commonly, the en9 rod is supplied in an as rolled condition. Since the alloy could be hardened by either a flame or an induction process, the surface hardness value obtained is high. Which means the hardness value of en9 black bar ranges between 180 HB to 230 HB. For a carbon steel alloy, the en9 square bar is a grade that exhibits excellent wear resistance properties. In comparison to some stainless steel grades, the en 9 material rate is lower due to low alloying cost. Click here to view the en9 material price in China.
In a normalised condition carbon steel grade, en9 bar is well suited for use in engineering applications. Generally, the applications where the en9 hex bar is used requires characteristics such as a higher tensile strength in addition to superior wear resistance. Typical applications for the en9 flat bar include its use in the production of shafts, woodworking, axes, knives, crankshafts, screws, bushes, sprockets, springs, cams, cylinders, sickles, drills as well as small gears, machine tools, keys and hammers. Welding rod for en9 can be produced either in full lengths or they can be cut to meet the requirements of the buyer.
| en9 round bar price in india |
Price Per Unit (INR)
|
|---|---|
| en9 forgged round bar 20mm |
US$ 580.00-US$ 790.00 / Ton
|
| steel round bar en9 |
US$ 400.00-US$ 900.00 / Metric Ton
|
| ansi 25mm 316 stainless steel en9 round bar |
US$ 2,000.00-US$ 3,500.00 / Ton
|
| en9 price round steel bar |
US$ 1,200.00-US$ 3,000.00 / Ton
|
| dia 8mm 15mm 35mm 55mm 100mm en9 bright bar |
US$ 2,000.00-US$ 7,999.00 / Ton
|
| YSW en9 carbon steel round bar |
US $650.00-$800.00 / Ton
|
| en9 black round steel bars |
US$ 500.00-US$ 700.00 / Ton
|
| en9 steel round bar |
US $690.00-$1500 / Ton
|
| Mild Steel Hot Rolled Low Carbon Round Bar en9 |
US $995.00-$1000 / Ton
|
| Cast Iron Alloy Steel Round Bar en9 |
US $540.00-$750.00 / Ton
|
Please note this is an approx en9 material price in China. For final en9 flat bar price list please Make an inquiry.
View en9 round bar chemical composition, most trusted en9 rod, square bar, hex bar, flat bar manufacturer in india
| Grade | Cr | C | Ni | Si | S | Mn | P | Mo |
| EN – 9 | – | .50 – .60 | – | .05 – .35 | .040 MAX | .50 – .80 | .040 MAX | – |
| Standard | CS EN-9 |
| UNS | – |
| WERKSTOFF NR. | CK55 |
| BS | 070M55 |
| IS | C55 |
| JIS | – |
| EN | EN9 |
| SAE/AISI | 1055 |
See en9 round bar sizes and en 9 material rate, Get a Live Quote Now for welding rod for en9
EN9 Rounds Bright Drawn/Turned
| Size (ins) | 1/2 | 9/16 | 5/8 | 3/4 | 7/8 | 1 | 1 1/8 | 1 1/4 | 1 3/8 | 1 1/2 | 1 3/4 | 1 7/8 | 2 | 2 1/8 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 3 | 3 |
| Size (mm) | 32 | 40 | 45 | 50 | 55 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 | 110 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 120 | 125 | 130 | 140 | 150 | 160 | 180 | 190 | 200 | 220 | 280 |
find here en9 round bar weight, one of the biggest en9 black bar, en9 steel round bar suppliers
|
Heat Treatment
|
Condition Tons/SQ.inch
|
Tensile Stress RE MPA
|
RP0.2 MPA
|
A min on 5.65so
|
Impac
|
|
Hardness HB
|
Limited Ruling Section mm
|
|
|
|
|
|
|
IZODFT.L.b
|
KCV Joules
|
|
|
|
Normalise
|
45
|
700
|
–
|
12
|
–
|
–
|
201-255
|
63
|
|
|
39
|
600
|
–
|
13
|
–
|
–
|
170/223
|
250
|
|
R
|
45/55
|
700/850
|
385
|
14
|
–
|
–
|
201/277
|
100
|
|
S
|
50/60
|
775/925
|
450
|
14
|
–
|
–
|
223/277
|
63
|
|
T
|
55/65
|
850/1000
|
555
|
12
|
–
|
–
|
248/302
|
19
|
See en9 round bar hardness chart here, Get Free en9 round bar weight calculator online
|
|
