A2-70 Threaded Rod, 304 and 316 stainless steel threaded rod Manufacturers in China

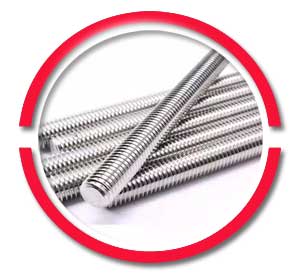

Stainless Steel Threaded Rod

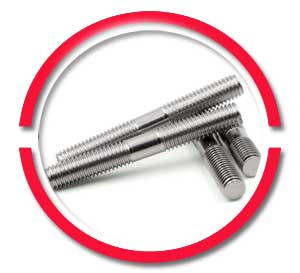

SS 304 Threaded Rod

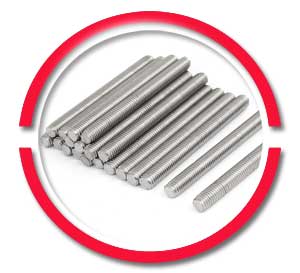

316 stainless steel threaded rod
ss threaded rod manufacturers, supplies a full range of 18-8 Stainless Steel Threaded Rod
Regularly referred to as a stud by ss threaded rod manufacturers, a threaded rod is essentially a rod shaped fastener that could be produced with a varying length. Manufactured from different alloy grades, the stainless steel threaded rod has threads that are of a helical structure.
With an appearance that is similar to a screw, the threading on a SS 304 Threaded Rod extends around and along the rod. This threading is what causes rotational movements in the 18-8 Stainless Steel Threaded Rod during its use. A 316 stainless steel threaded rod combines both linear as well as rotational movement, which works together in the creation of stronger resistance to pressure.
The direction of the rotation caused by a 304 Stainless Steel Threaded Rod will depend on the threads i.e. if it is a right-hand thread, left-hand thread, or in some cases both.
Designed with the intention of being able to withstand very high levels of pressure and tension, the A2 Stainless Steel Threaded Rod is a common fixing for support systems. Hence, often a Grade B8 18-8 Stainless Steel Threaded Rod could be used for various applications.Threading on a A2-70 Threaded Rod is what permits other fixings or fasteners such as bolts and nuts to easily get screwed or fastened to it.
The A2-70 Threaded Rod effectively works as a pin for applications which require fastening or connecting two materials together. To stabilise structures, Type 304 Stainless Steel Threaded Rod is inserted in materials like concrete, wood or metal to create a temporary or permanent steady base during construction.
|
Size Range
|
.250″ up to and including 15.00″ Diameter
|
||
|---|---|---|---|
|
Stock Lengths
|
3 foot
6 foot 12 foot |
||
|
Special Order
|
Custom lengths up to 50 Ft. Full Thread, Double End and Single End Parts
|
||
|
Materials
|
|
||
|
Thread Profiles
|
|
||
|
Class Fit
|
|
||
|
Thread Direction
|
Right Hand
Left Hand |
||
|
Thread Start
|
Single
Multiple |
Are You Looking For A2 Stainless Steel Threaded Rod, A2-70 Threaded Rod, Grade B8 18-8 Stainless Steel Threaded Rod at lowest price
|
Size
|
Pack Size
|
Price
|
|---|---|---|
|
M 2 x 1m
|
1
|
£2.37 ex. VAT
|
|
M 2 x 1m Pack 5
|
5
|
£10.42 ex. VAT
|
|
M3 x 1m
|
1
|
£0.95 ex. VAT
|
|
M3 x 1m Pack 5
|
5
|
£3.83 ex. VAT
|
|
M4 x 1m
|
1
|
£1.05 ex. VAT
|
|
M4 x 1m Pack 5
|
5
|
£4.58 ex. VAT
|
|
M5 x 1m
|
1
|
£0.92 ex. VAT
|
|
M5 x 1m Pack 5
|
5
|
£3.83 ex. VAT
|
|
M6 x 1m
|
1
|
£0.97 ex. VAT
|
|
M6 x 1m Pack 5
|
5
|
£4.17 ex. VAT
|
|
M8 x 1m
|
1
|
£1.34 ex. VAT
|
|
M8 x 1m Pack 5
|
5
|
£6.17 ex. VAT
|
|
M10 x 1m
|
1
|
£2.25 ex. VAT
|
|
M10 x 1m Pack 5
|
5
|
£10.00 ex. VAT
|
|
M12 x 1m
|
1
|
£3.55 ex. VAT
|
|
M12 x 1m Pack 5
|
5
|
£16.67 ex. VAT
|
|
M16 x 1m
|
1
|
£5.90 ex. VAT
|
|
M16 x 1m Pack 5
|
5
|
£26.67 ex. VAT
|
|
M20 x 1m
|
1
|
£8.80 ex. VAT
|
|
M20 x 1m Pack 5
|
5
|
£38.75 ex. VAT
|
|
M24 x 1m
|
1
|
£13.50 ex. VAT
|
|
M30 x 1m
|
1
|
£21.08 ex. VAT
|
|
M33 x 1m
|
1
|
£30.40 ex. VAT
|
|
M36 x 1m
|
1
|
£37.45 ex. VAT
|
|
M42 x 1m
|
1
|
£52.07 ex. VAT
|
|
M45 x 1m
|
1
|
£82.87 ex. VAT
|
|
M48 x 1m
|
1
|
£102.17 ex. VAT
|
|
Stainless Steel Threaded Rod
|
Price in £
|
Package
|
|---|---|---|
|
M2 X 1000
|
£378.00
|
2
|
|
M2.5 X 1000
|
£363.00
|
2
|
|
M3 X 1000
|
£178.00
|
4
|
|
M4 X 1000
|
£182.00
|
3
|
|
M5 X 1000
|
£168.00
|
2
|
|
M6 X 1000
|
£213.00
|
2
|
|
M8 X 1000
|
£323.00
|
1
|
|
M10 X 1000
|
£508.00
|
1
|
|
M12 X 1000
|
£750.00
|
1
|
|
M14 X 1000
|
£1003.00
|
1
|
|
M16 X 1000
|
£1375.00
|
1
|
|
M18 X 1000
|
£1760.00
|
1
|
|
M20 X 1000
|
£2150.00
|
1
|
|
M22 X 1000
|
£2710.00
|
1
|
We are supplying Type 18 8 Stainless Steel Threaded Stud, 304 Stainless Steel Metric Threaded Rod to more than 60 locations worldwide
| Dimensions | DIN 975, DIN976 A2-70 Threaded Rod and Nut, Washer |
|---|---|
| Material | A2-70 Stainless Steel |
| Mechanical Properties | DIN 267, Part 11 |
| Threads | 6g |
| Finish | Per ASTM A380 |
| Material Test Reports | The MTR must have documented lot traceability, dimensional results, full chemical test results and full mechanical test results to the specification(s) above |
| Diameter | M2 M3 (M3.5) M4 M5 M6 M8 M10 M12 (M14) M16 (M18) M20 (M22) M24 (M27) M30 M36 M42 (M45) M48 |
| Standard | GB, DIN, ISO, ANSI/ASTM, BS, BSW, JIS etc |
|
Strength Class
|
Min. UTS N/mm²
|
Min. Yield N/mm²
|
Elongation at Failure
|
|---|---|---|---|
|
Class 50
|
500
|
210
|
0.6D
|
|
Class 70
|
700
|
450
|
0.4D
|
|
Class 80
|
800
|
600
|
0.3D
|
- Stainless Steel Threaded Weld Studs ISO 13918
- Stainless Steel Double End Studs DIN 939
- Stainless Steel Double End Threaded Studs DIN 938
- Stainless Steel Left Hand Threaded Rod DIN 976-1
|
Thread
|
Weight per metre
|
Strength
|
|||
|---|---|---|---|---|---|
|
Class 70
|
Class 80
|
||||
|
0.2% proof
|
UTS
|
0.2% proof
|
UTS
|
||
|
Kg/m
|
kN
|
kN
|
kN
|
kN
|
|
|
M12
|
0.72
|
41.0
|
64.0
|
54.0
|
73.0
|
|
M16
|
1.31
|
70.7
|
109.9
|
94.2
|
125.6
|
|
M20
|
2.05
|
110.3
|
171.5
|
147.0
|
196.0
|
|
M24
|
2.96
|
158.9
|
247.1
|
211.8
|
282.4
|
|
M27
|
3.83
|
206.6
|
321.3
|
275.4
|
367.2
|
|
M30
|
4.70
|
252.6
|
392.7
|
336.6
|
448.8
|
|
M33
|
5.78
|
312.3
|
485.8
|
416.4
|
555.2
|
|
M36
|
6.84
|
367.7
|
571.9
|
490.2
|
653.6
|
|
M39
|
8.14
|
439.2
|
683.2
|
585.6
|
780.8
|
|
M42
|
9.38
|
504.5
|
784.7
|
672.6
|
896.6
|
|
M45
|
10.90
|
587.7
|
914.2
|
783.6
|
1044.8
|
|
M48
|
12.32
|
662.9
|
1031.1
|
883.8
|
1178.4
|
|
M52
|
14.65
|
791.1
|
1230.6
|
1054.8
|
1406.4
|
|
Diameter (d)
|
Pitch
|
L
|
|---|---|---|
|
M3
|
0.50
|
1000
|
|
M4
|
0.70
|
1000
|
|
M5
|
0.80
|
1000
|
|
M6
|
1.00
|
1000
|
|
M7
|
1.00
|
1000
|
|
M8
|
1.25
|
1000
|
|
M10
|
1.50
|
1000
|
|
M12
|
1.75
|
1000
|
|
M14
|
2.00
|
1000
|
|
M16
|
2.00
|
1000
|
|
M18
|
2.50
|
1000
|
|
M20
|
2.50
|
1000
|
|
M22
|
2.50
|
1000
|
|
M24
|
3.00
|
1000
|
- Unique corrosive resistant product
- M10 to M52 to BS3643 in 6 metre lengths
- Superior ductility for seismic activity
- Large stocks
- Full strength nuts, couplers, accessories available
- High strength thread rolled stainless steel bars
Our wide inventory for SS Threaded Rod including M16 and m12 , ss 316 threaded rod, large diameter threaded rod
|
Chemicals
|
Type 304
|
Type 316
|
|---|---|---|
|
Carbon
|
0.08% max
|
0.08% max
|
|
Manganese
|
2.00 % max
|
2.00% max
|
|
Phosphorus
|
0.045% max
|
0.045% max
|
|
Sulfur
|
0.030% max
|
0.030% max
|
|
Silicon
|
1.00% max
|
1.00% max
|
|
Chromium
|
18.00-20.00%
|
16.00-18.00
|
|
Nickel
|
8.00-10.50%
|
10.00-14.00
|
|
Molybdenum
|
|
2.00-3.00%
|
