buy from SS 304 Screw, A2-70 Stainless Steel Screws, A2-50 and A2-80 Screw, A2 Stainless Steel Screws manufacturer in india
A2-70 Stainless Steel Screws often implies that the alloy is produced from austenitic grade 304. Another trade name for these called 304 Stainless Steel Sheet Metal Screws is 18/8 since the alloy of these fasteners contains approx 18% Chromium and 8 % nickel.

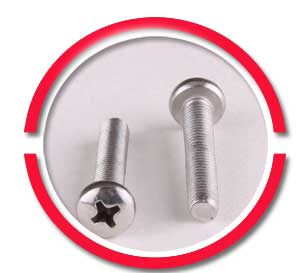

304 Stainless Steel Screws

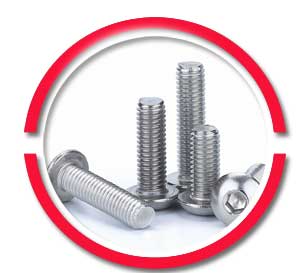

A2-70 Stainless Steel Screws

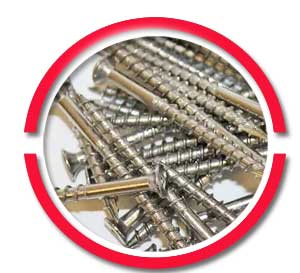

Type 304 Stainless Steel Deck Screws
view 304 stainless steel screw properties, largest Type 304 Stainless Steel Deck Screws, Wood Screws and Tek Screws suppliers
Ergo the good resistance to corrosion. Fasteners falling in the category of A2, such as 304 Stainless Steel Screws tend to exhibit strong resistance to abrasion, along with good resistance to oxidation. Moreover, because these A2 Stainless Steel Screws have a low level of distortion, they are noted for being reliable. With a high hardness level in addition to consistent dimensional stability, these austenitic grade A2 Stainless Steel Chipboard Screws demonstrates good resistance to wear & tear.
In order to improve the corrosion resistance properties of 304 Series Ultra Coated Stainless Steel Screws are coated with either Self-Colour, Bright Zinc Plated (BZP) or target have been mechanically coated with special finishes like Dacromet. The 304 Grade Stainless Steel Screws could also be Hot Dip Galvanised (HDG), wherein these fasteners are coated with a thicker layer of zinc, than regular electroplating. Thus increasing its effectiveness against corrosion. The A2-50 Screw marking refers to its tensile strength or its property classes, which in this case is 500 N/mm2 belonging to a soft class. Similarly, an A2-80 Screw belongs to a high tensile class which has a tensile strength of about 800 N/mm2.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| 304 | 0.08 max | 2.0 max | 0.75 max | 0.045 | 0.030 | 18.0-20.0 | – | 8.0-10.5 | 0.10 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness Rockwell B (HR B) max | Hardness Brinell (HB) max |
| 304 | 515 | 205 | 40 | 92 | 201 |
| AISI Grade Equivalent | JIS Equivalent | Stainless Steel Notation | EN/DIN Numerical Equivalent | UNS designation |
EN/DIN Symbolical Equivalent |
| AISI 304 | SUS304 | SS 304 | EN 1.4301 | UNS S30400 | X4CrNi18-10 |
most reliable A2 Stainless Steel Coach Screws and Chipboard Screws, 304 Stainless Steel Self Tapping Screw and Self Drilling Screw exporter
A2 Stainless Steel Chipboard Screws Price
|
Size
|
Pack Size
|
Price
|
|---|---|---|
|
4 x 25
|
100
|
£1.77 ex. VAT
|
|
4 x 30
|
100
|
£1.80 ex. VAT
|
|
4 x 35
|
100
|
£2.06 ex. VAT
|
|
4 x 40
|
100
|
£2.32 ex. VAT
|
|
4 x 45
|
100
|
£2.88 ex. VAT
|
|
4 x 50
|
100
|
£3.08 ex. VAT
|
|
4 x 60
|
100
|
£3.56 ex. VAT
|
|
4 x 70
|
100
|
£4.40 ex. VAT
|
|
5 x 30
|
100
|
£2.68 ex. VAT
|
|
5 x 40
|
100
|
£4.21 ex. VAT
|
|
5 x 50
|
100
|
£4.78 ex. VAT
|
|
5 x 60
|
100
|
£5.68 ex. VAT
|
|
5 x 70
|
100
|
£6.15 ex. VAT
|
|
5 x 80
|
100
|
£6.98 ex. VAT
|
|
5 x 90
|
100
|
£8.52 ex. VAT
|
|
5 x 100
|
100
|
£8.70 ex. VAT
|
|
5 x 110
|
100
|
£8.83 ex. VAT
|
|
5 x 120
|
100
|
£11.55 ex. VAT
|
|
6 x 30
|
100
|
£4.06 ex. VAT
|
|
6 x 40
|
100
|
£5.30 ex. VAT
|
|
6 x 50
|
100
|
£5.88 ex. VAT
|
|
6 x 60
|
100
|
£6.65 ex. VAT
|
|
6 x 70
|
100
|
£7.96 ex. VAT
|
Please note this is an approx Cost of Type 304 Stainless Steel Screws Price List in China. For final 304 Stainless Steel Self-Drilling Screws price list please mail us.
- ASTM A193/ ASME SA193 for SS Screws
| Grade | 304 Stainless Steel Screws SS 304 Screws 18-8 Stainless Steel Screws A2 Stainless Steel Screws Type 304 Stainless Steel Screws ISO 14583 A2-70 |
|---|---|
| A2 Stainless Steel Screws Class | A2 70 Screws A2-80 Screws A2-50 Screws |
| British standards | BS EN ISO 3506 |
| 304 Stainless Steel Screws Size |
304 Stainless Steel Screws M2, M3, (M3.5), M4, M5, M6, M8, M10, M12, (M14), M16, (M18), M20, (M22), M24, (M27), M30, M33, M36, M42, (M45), M48 to M160 and Custom Sizes |
| Length | 3 mm to 200 mm (Custom Length available) |
| 304 Stainless Steel Screws, Studs Threads: | METRIC, BSW, BSF, UNC, UNF or as required |
| Standard: | DIN, ISO, JIS, GB, IS, BS, ASTM and all International Standards ANSI – American National Standards Institute
|
| DIN Standard | B.S. DIN 933, DIN 931, DIN 934, DIN 912, DIN 603, DIN 6923, DIN 970, DIN 7981, DIN 7982, DIN916, DIN 913, DIN 7985 |
| UTS – Unified Thread Standard | UNC, UNF, UNEF, UNS, NPT, NPTF |
| Dimensions | ASME B18.6.3 **Exception: screws 6 inches and shorter are fully threaded. |
| ISO – International Organization for Standardization | ISO 4032, ISO 4033, ISO 4017, ISO7380 JIS standards |
| Tolerance | +/-0.01mm to +/-0.05mm |
| Head drive: | Phillips, Slotted, Phillips/Slot, Six-Lobe, etc |
| Finishing: | Zinc (yellow, white, blue, black), black oxide, Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Stainless steel: Passivated Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Stainless Steel, Mechanically Applied coating and some special one like DACROMET |
| Finish | Per ASTM A380/A380M |
| Production process | Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing |
| Origin and service-region: | European Origin of 304 Stainless Steel Screws are Western European. However projects with eastern origin are possible on request. |
| 304 Stainless Steel Screwing materials Surface Coating: |
All surface finishes can be supplied, including Zinc, Galvanised, Sherardized, Electroless Nickel, Dacromet, Geomet & PTFE. |
| Surface treatment |
|
| Top Manufacturers | SPAX® Screws, GKW, Unbrako, Kundan, APL, Sundaram Precision, Infasco, EBY Fastener Etc. |
| 304 Stainless Steel Screws Packing: | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Why choose us? |
|
| MOQ | 5 pieces |
| Test Certificate: |
|
| Free Samples | Yes |
| Delivery time | Regular product is about 7-15 days, custom product will according to special requirement |
| Payment Terms | T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping |
| Uses & application | Railway, Wind tower, Nuclear power, Automotive industry, Construction, Electronic industry |
held wide stock of SS 304 Grade Screws, SS 304 Csk Screw and Socket Head Cap Screws at factory price
|
|
