Check ASTM A193 UNS S31000 Fasteners Sizes, Dimensions and Price per kg ex Shenzhen, China

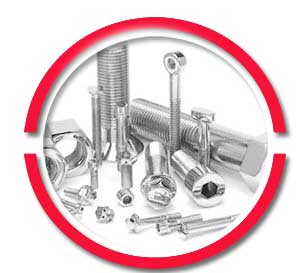

Stainless Steel 310 Fasteners

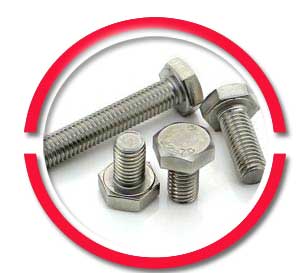

SS 310 Hex Bolts

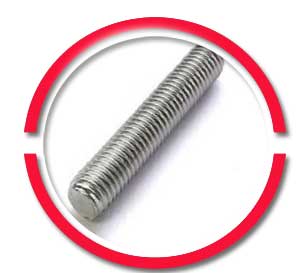

UNS S31000 Stud Bolts

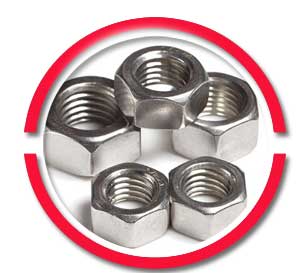

310 Stainless Steel Nuts

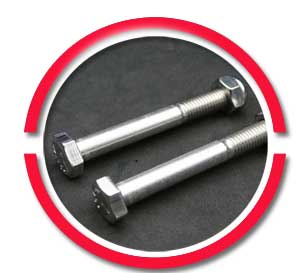

DIN 1.4841 Bolts

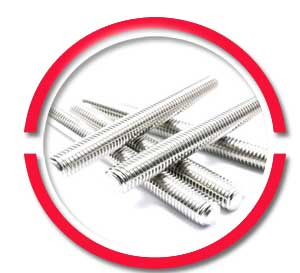

310 SS Threaded Rod
Supplier of SS 1.4841 Threaded Rod according to ASTM A193/ASME SA 193 also British and European standards
Table of Content
- Grade Standard And Specification Of Stainless Steel 310 Fasteners
- Size Chart of SS 310 Nuts
- 310 Stainless Steel Bolts Dimensions
- Size Chart of SUS310 Stainless Steel Washer
- 310 Stainless Steel Screws Sizes
- Dimensions of Stainless Steel 310 Hex Nuts
- Common Types Of Fasteners Weight Chart
- Various Types of ASTM A193 Stainless Steel 310 Fasteners
- 310 SS Fasteners Material Testing
- SS 1.4841 Fasteners Test Certificates
- Chemical Composition Chart Of SS 310 nut bolt
- Mechanical Characteristics of type 310 stainless steel fasteners
- UNS S31000 Fasteners Equivalent Material Grade
- 310 Stainless Steel Bolts Electrical Properties
Stainless Steel 310 Fasteners are used in high corrosive and high pressure, temperature environments. The material is an austenitic stainless steel with 25% chromium and 20% nickel. High Temperature Fasteners is a manufacturer and supplier of the 310 Stainless Steel bolts in different dimensions, standards and types. There are different types such as stud bolts, screws, nuts, hex bolts and so on. Each of these types is useful in specific operations.
The SS 310 Hex Bolt is used for the torque strength and for the easiness of driving with tools. The specifications covered for this grade are ASTM A193 and SA 194. These are specifications for high pressure, high temperature applications. The stainless steel 310 Nuts and Bolts come in 3mm to 200mm in length. The length of the threaded fasteners can vary depending on the category. The threads can be all the way from top to bottom or cover parts of the length. The ASTM A193 Stainless Steel 310 Stud Bolt is a special type that it is attached with a stud for extra connection strength. The different types have different dimensions.
The nominal sizes are classified as M10, M12, M14 through M100. The SS 310 Threaded Rod has thicknesses varying from 6.63mm to 63mm in the A193 specification. The material has carbon, manganese, silicon, phosphorus, sulfur and chromium and nickel. The minimum yield strength of fasteners is 205MPa and the minimum tensile strength is 515MPa. The 310 SS Screw does not need the nuts for fastening and it has up to 217HBW Brinell hardness. The material has good thermal conductivity and electrical resistance as well. Please contact us for more information on different types such as the SS UNS S31000 Socket Set Screw and the prices.

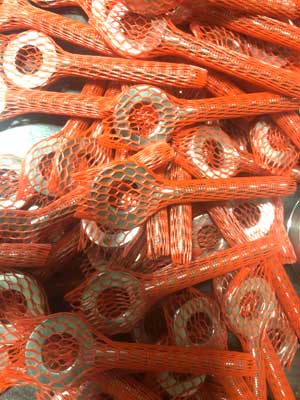

SS 310 Eye Bolts

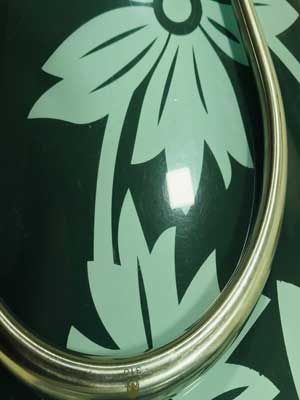

SS 310 High Quality U Bolts

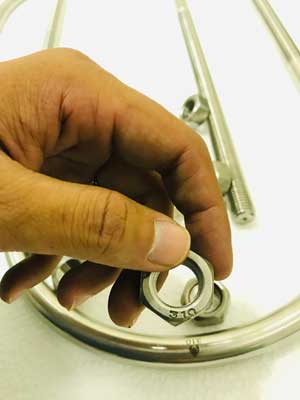

SS 310 Nuts

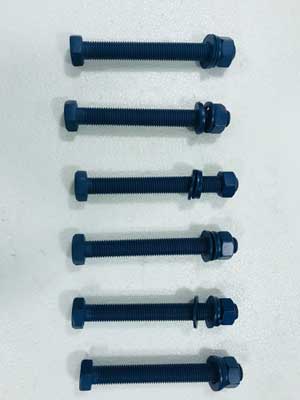

SS 310 Grade PTFE Fasteners
Dont Trust On 310 Stainless Steel Fasteners Until They Are Not Buy From PED Approved Manufacturer
UNS S31000 fasteners Property Class
- For Bolts & Screws: A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H
- For Nuts: A2-70, A2-80, A4-70, A4-80, F594C, F594D, F594G, F594H, A2-035, A4-040
- For SHCS: F837B, F837C, F837E, F837
- For Threaded Rods: A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H, B8, B8M CL1 & CL2
| Material Specification | ASTM A194, ASME SA193, UNS S31000 Bolts |
|---|---|
| SS 304l Fasteners Standard: | ANSI – American National Standards Institute
DIN: DIN 931, DIN 933, DIN 934, DIN 970 UTS – Unified Thread Standard : UNC, UNF, UNEF, UNS, NPT, NPTF ISO – International Organization for Standardization : ISO 4032, ISO 4033, JIS standards |
| Standard | DIN, UNI, ISO, JIS, GB, IS, BS, ASME, ANSI, ASTM and all International Standards |
| Bolts Size | M2, M2.5, M3, M4, M5, M6, M8, M10, M12, M14, M16, M20, M24, M30, M36 to M160 |
| Length | 3 mm to 200 mm |
| Bolts, Studs Threads: | METRIC, BSW, BSF, UNC, UNF or as required |
| In Form of | Hex, Square, Round, Threading as per Gauge Etc. |
| Head drive | Phillips, Slotted, Phillips/Slot, Six-Lobe, etc |
| Test Certificate: | Manufacturer Test Certificate as per EN 10204 / 3.1 |
| Source of raw materials | Tata Steel, JSPL, RINL, Usha Martin, Dhamm Steel, Mukund Steel etc. |
| Scope Of Manufacture |
|
| Surface Coating |
All surface finishes offered including Geomet & PTFE, Galvanised, Zinc, Electroless Nickel, Sherardized, Dacromet |
| Packing | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface finishing | Zinc (yellow, white, blue, black), black oxide, Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Stainless steel: Passivated Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Stainless Steel, Mechanically Applied coating and some special one like DACROMET |
| Production process | M2-M24: Cold Froging, hot forging M24-M100, machining and CNC for Customized connecting element |
| Stainless Steel 310 Fasteners Type | Studs, Socket Screw, Hex Set Screw, Cap Screw, Machine Screw, Pan Head Screw, Allen Cap screw, Socket Head Cap Screw, Wing Screw, Spring Washers, Washers, Studs, Marine Anchors, Anchors, Hexagon Nut, Nut, Hex Coupling Nut, Hex Nut, Square Nut, Hex Domed Cap Nuts, Hex Head Bolts, Stud Bolts, Socket Hexagon Head Screw,U- Bolts, Anchor Bolt, Mushroom Head Square Neck Bolts, J Bolts, Wing Screw, T-Head Bolts, Foundation Bolts, Eye Bolt,Structural Bolts, Bolts, Nuts, Sockets |

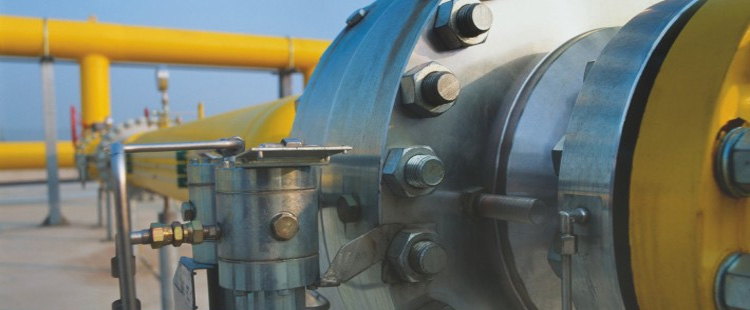

Application of SS 310 Bolts
Our Stainless Steel 310 Bolt Are Installed In Gas Processsing
|
Nut Size
(mm) |
Diameter*
(mm) |
Height
(mm) |
||
|---|---|---|---|---|
|
Hex Nut
|
Jam Nut
|
Nylock Nut
|
||
|
2
|
4
|
1.6
|
1.2
|
–
|
|
2.5
|
5
|
2
|
1.6
|
–
|
|
3
|
5.5
|
2.4
|
1.8
|
4
|
|
4
|
7
|
3.2
|
2.2
|
5
|
|
5
|
8
|
4
|
2.7
|
5
|
|
6
|
10
|
5
|
3.2
|
6
|
|
7
|
11
|
5.5
|
3.5
|
–
|
|
8
|
13
|
6.5
|
4
|
8
|
|
10
|
17
|
8
|
5
|
10
|
|
12
|
19
|
10
|
6
|
12
|
|
14
|
22
|
11
|
7
|
14
|
|
16
|
24
|
13
|
8
|
16
|
|
18
|
27
|
15
|
9
|
18.5
|
|
20
|
30
|
16
|
10
|
20
|
|
* This is the diameter across the flats. It is also the size of wrench to use.
|
||||
Stainless Steel 310 Anchor Bolt
Stainless Steel SS 310 Square U Bolts
SS 310 Carriage Bolts
SS 310 Countersunk Bolts
Stainless Steel 310 Nuts and Bolts
Stainless Steel SS 310 Bolts and Nuts
Stainless Steel 310 Exhaust Bolts
Stainless Steel 310 Hex Bolts
Stainless Steel 310 Nuts & Washers
SS 310 Rings
Stainless Steel 310 Springs
SS 310 Hex Head Bolts
Stainless Steel 310 Dowel Pins
SS 310 Spring Pin
Stainless Steel 310 Studs
Stainless Steel 310 Exhaust Studs
Stainless Steel 310 Threaded Rod
SS 310 Threaded Inserts
Stainless Steel 310 Threaded Stud
Double End Threaded Rod
Stainless Steel 310 Stud Bolts
Stainless Steel 310 M10 Bolts
SS 310 U Bolts
Stainless Steel 310 Lag Bolts
SS 310 Nord Lock Washers
Stainless Steel 310 Hex Nuts
SS 310 Barrel Nuts
SS 310 Wheel Nuts
Stainless Steel 310 Socket Head Cap Screws
SS 310 Set Screws
Stainless Steel 310 Cap Screws
Stainless Steel 310 Hex Cap Screws
Stainless Steel 310 Washers
Stainless Steel 310 Flat Washers
SS 310 Belleville Washers
SS 310 Spring Washers
Stainless Steel SS 310 Flat Head Screws
SS 310 Machine Screws
Stainless Steel 310 Self Tapping Screws
SS 310 Self Drilling Screw
**All measurements in millimeters**
|
NOMINAL SIZE (D)
|
BODY DIAMETER
|
|
HEAD THICKNEASTM A193
|
|
ACROASTM A193 THE FLATS
|
|
ACROASTM A193 CORNERS
|
|
|---|---|---|---|---|---|---|---|---|
|
|
D (MAX)
|
D (MIN)
|
H (MAX)
|
H (MIN)
|
F (MAX)
|
F (MIN)
|
C (MAX)
|
C (MIN)
|
|
m10
|
10.00
|
9.78
|
6.63
|
6.17
|
17.00
|
15.73
|
18.48
|
17.77
|
|
m12
|
12.00
|
11.73
|
7.76
|
4.24
|
19.00
|
17.73
|
20.78
|
20.03
|
|
m14
|
14.00
|
13.73
|
9.09
|
8.51
|
22.00
|
20.67
|
24.25
|
23.35
|
|
m16
|
16.00
|
15.73
|
10.32
|
9.68
|
24.00
|
23.67
|
27.71
|
26.75
|
|
m20
|
20.00
|
19.67
|
12.88
|
12.12
|
30.00
|
29.16
|
34.64
|
32.95
|
|
m24
|
24.00
|
23.67
|
15.44
|
14.56
|
36.00
|
35.00
|
41.57
|
39.55
|
|
m30
|
30.00
|
29.67
|
19.48
|
17.92
|
46.00
|
45.00
|
53.12
|
50.85
|
|
m36
|
36.00
|
35.61
|
23.38
|
21.63
|
55.00
|
53.80
|
63.51
|
60.79
|
|
m42
|
42.00
|
41.38
|
26.97
|
25.03
|
65.00
|
62.90
|
75.06
|
71.71
|
|
m48
|
48.00
|
47.38
|
31.07
|
28.93
|
75.00
|
72.60
|
86.60
|
82.76
|
|
m56
|
56.00
|
55.26
|
36.2
|
33.80
|
85.00
|
82.20
|
98.15
|
93.71
|
|
m64
|
64.00
|
63.26
|
41.32
|
38.68
|
95.00
|
91.80
|
109.70
|
104.65
|
|
m72
|
72.00
|
71.26
|
46.45
|
43.55
|
105.00
|
101.40
|
121.24
|
115.60
|
|
m80
|
80.00
|
79.26
|
51.58
|
48.42
|
115.00
|
111.00
|
132.72
|
126.54
|
|
m90
|
90.00
|
89.13
|
57.74
|
54.26
|
130.00
|
125.50
|
150.11
|
143.07
|
|
m100
|
90.00
|
99.13
|
63.9
|
60.10
|
145.00
|
140.00
|
167.43
|
159.60
|
View updated price list of Austenitic SS 310 Socket Set Screw, Hex Head Bolt and 310 SS Coupling/Dome/Square Nut
|
Size
|
USS
|
SAE
|
||||
|---|---|---|---|---|---|---|
|
Inside Diameter
(A) |
Outside Diameter
(B) |
Thickness
(C) |
Inside Diameter
(A) |
Outside Diameter
(B) |
Thickness
(C) |
|
|
#2
|
–
|
–
|
–
|
3/32″
|
1/4″
|
0.020″
|
|
#4
|
–
|
–
|
–
|
1/8″
|
5/16″
|
0.032″
|
|
#6
|
–
|
–
|
–
|
5/32″
|
3/8″
|
0.049″
|
|
#8
|
–
|
–
|
–
|
3/16″
|
7/16″
|
0.049″
|
Dimensions table of 310 Stainless Steel Flat Washer
|
Bolt Size
|
USS
|
SAE
|
||||
|
OD (in.)
|
ID (in.)
|
Thickness
|
OD (in.)
|
ID (in.)
|
Thickness
|
|
|
1/8 (#6)
|
–
|
–
|
–
|
0.375
|
0.156
|
.036/.065
|
|
5/32 (#8)
|
–
|
–
|
–
|
0.438
|
0.188
|
.036/.065
|
|
3/16 (#10)
|
0.560
|
0.250
|
.036/.065
|
0.500
|
0.220
|
.036/.065
|
|
7/32 (#12)
|
–
|
–
|
–
|
0.562
|
0.250
|
.051/.080
|
|
1/4 (#14)
|
0.734
|
0.312
|
.051/.080
|
0.625
|
0.281
|
.051/.080
|
|
5/16
|
0.875
|
0.375
|
.064/.104
|
0.688
|
0.344
|
.051/.080
|
|
3/8
|
1.000
|
0.438
|
.064/.104
|
0.812
|
0.406
|
.051/.080
|
|
7/16
|
1.250
|
0.500
|
.064/.104
|
0.922
|
0.469
|
.051/.080
|
|
1/2
|
1.375
|
0.562
|
.086/.132
|
1.062
|
0.531
|
.074/.121
|
|
9/16
|
1.469
|
0.625
|
.086/.132
|
1.156
|
0.594
|
.074/.121
|
|
5/8
|
1.750
|
0.688
|
.108/.160
|
1.312
|
0.656
|
.074/.121
|
|
3/4
|
2.000
|
0.812
|
.122/.177
|
1.469
|
0.812
|
.108/.160
|
|
7/8
|
2.250
|
0.938
|
.136/.192
|
1.750
|
0.938
|
.108/.160
|
|
1
|
2.500
|
1.062
|
.136/.192
|
2.000
|
1.062
|
.108/.160
|
|
1 1/8
|
2.750
|
1.250
|
.136/.192
|
2.250
|
1.250
|
.108/.160
|
|
1 1/4
|
3.000
|
1.375
|
.136/.192
|
2.500
|
1.375
|
.136/.192
|
|
1 3/8
|
3.250
|
1.500
|
.153/.213
|
2.750
|
1.500
|
.136/.213
|
|
1 1/2
|
3.500
|
1.625
|
.153/.213
|
3.000
|
1.625
|
.153/.213
|
|
1 5/8
|
3.750
|
1.750
|
.153/.213
|
–
|
–
|
–
|
|
1 3/4
|
4.000
|
1.875
|
.153/.213
|
–
|
–
|
–
|
|
1 7/8
|
4.250
|
2.000
|
.153/.213
|
–
|
–
|
–
|
|
2
|
4.500
|
2.125
|
.153/.213
|
–
|
–
|
–
|
|
2 1/4
|
4.750
|
2.375
|
.320/.248
|
–
|
–
|
–
|
|
2 1/2
|
5.000
|
2.625
|
.210/.280
|
–
|
–
|
–
|
|
2 3/4
|
5.250
|
2.875
|
.228/.410S
|
–
|
–
|
–
|
|
3
|
5.500
|
3.125
|
.249/.327
|
–
|
–
|
–
|
**All measurements in millimeters**
|
Nominal Size or Basic Major Thread Diameter
|
F
|
G
|
H
|
||||||
|
Width
Across Flats |
Width
Across Corners |
Thickness
|
|||||||
|
Basic
|
Max
|
Min
|
Max
|
Min
|
Basic
|
Max
|
Min
|
||
|
1/4
|
.2500
|
7/16
|
.438
|
.428
|
.505
|
.488
|
7/32
|
.226
|
.212
|
|
5/16
|
.3125
|
1/2
|
.500
|
.489
|
.577
|
.557
|
17/64
|
.273
|
.258
|
|
3/8
|
.3750
|
9/16
|
.562
|
.551
|
.650
|
.628
|
21/64
|
.337
|
.479
|
|
7/16
|
.4375
|
11/16
|
.688
|
.675
|
.794
|
.768
|
3/8
|
.385
|
.365
|
|
1/2
|
.5000
|
3/4
|
.750
|
.736
|
.866
|
.840
|
7/16
|
.448
|
.427
|
|
9/16
|
.5625
|
7/8
|
.875
|
.861
|
1.010
|
.982
|
31/64
|
.496
|
.473
|
|
5/8
|
.6250
|
15/16
|
.938
|
.922
|
1.083
|
1.051
|
35/64
|
.559
|
.535
|
|
3/4
|
.7500
|
1-1/8
|
1.125
|
1.088
|
1.299
|
1.240
|
41/64
|
.665
|
.617
|
|
7/8
|
.8750
|
1-5/16
|
1.312
|
1.269
|
1.516
|
1.447
|
3/4
|
.776
|
.724
|
|
1
|
1.0000
|
1-1/2
|
1.500
|
1.450
|
1.732
|
1.653
|
55/64
|
.887
|
.831
|
|
1-1/8
|
1.1250
|
1-11/16
|
1.688
|
1.631
|
1.949
|
1.859
|
31/32
|
.999
|
.939
|
|
1-3/8
|
1.3750
|
2-1/16
|
2.062
|
1.994
|
2.382
|
2.273
|
1-11/64
|
1.206
|
1.138
|
|
1-1/2
|
1.500
|
2-1/4
|
2.250
|
2.175
|
2.598
|
2.480
|
1-9/32
|
1.ASTM A194 GR. 8
|
1.245
|
|
1-5/8
|
1.6250
|
2-7/16
|
2.438
|
2.356
|
2.815
|
2.686
|
1-25/64
|
1.429
|
1.353
|
|
1-3/4
|
1.7500
|
2-5/8
|
2.625
|
2.538
|
3.031
|
2.893
|
1-1/2
|
1.540
|
1.460
|
|
2
|
2.0000
|
3
|
3.000
|
2.900
|
3.464
|
3.306
|
1-23/32
|
1.763
|
1.675
|
|
2-1/4
|
2.2500
|
3-3/8
|
3.375
|
3.263
|
3.897
|
3.719
|
1-15/16
|
1.986
|
1.890
|
|
2-1/2
|
2.5000
|
3-3/4
|
3.750
|
3.625
|
4.330
|
4.133
|
2-5/32
|
2.209
|
2.105
|
|
2-3/4
|
2.7500
|
4-1/8
|
4.125
|
3.988
|
4.763
|
4.546
|
2-3/8
|
2.431
|
2.319
|
Stainless Steel UNS S31000 Socket Head Cap Screw Dimensions chart
|
Nominal
|
Thread.
|
Hex Socket Size
|
Body diameter and Head height
|
Head Dia
|
Soc. length
|
||
|
Size
|
Pitch
|
|
Max
|
Min
|
Max
|
Min
|
|
|
|
|
J
|
D /H
|
A
|
K
|
||
|
M3
|
0.5
|
2.50
|
3.00
|
2.86
|
5.50
|
5.20
|
1.3
|
|
M4
|
0.70
|
3.00
|
4.00
|
3.82
|
7.00
|
6.64
|
2.00
|
|
M5
|
0.8
|
4.00
|
5.00
|
4.82
|
8.50
|
8.14
|
2.70
|
|
M6
|
1.0
|
5.00
|
6.00
|
5.82
|
10.00
|
9.64
|
3.30
|
|
M8
|
1.25
|
6.00
|
8.00
|
7.78
|
13.00
|
12.57
|
4.3
|
|
M10
|
1.5
|
8.00
|
10.00
|
9.78
|
16.00
|
15.57
|
5.50
|
|
M12
|
1.75
|
10.00
|
12.00
|
11.73
|
18.00
|
17.57
|
6.60
|
|
M16
|
2.0
|
14.00
|
16.00
|
15.73
|
24.00
|
23.48
|
8.80
|
|
M20
|
2.5
|
17.00
|
20.00
|
19.67
|
30.00
|
29.48
|
10.70
|
|
M24
|
3.0
|
19.00
|
24.00
|
23.67
|
36.00
|
35.38
|
12.90
|
- ISO 7089 Weight Chart (Plain Washer)
- ISO 4014 Weight Chart (Hexagon Head Bolt And Screw)
- ISO 4762 Weight Chart (Hexagon Socket Head Cap Screw)
- ISO 14583 Weight (Thread Forming Screw)
- DIN 938 Stud Dimensions (Stud And Stud Bolt)
- DIN 976 B Specification (Stud And Stud Bolt)
- ISO 4032 Weight Chart (Hexagon Nut)
- ISO 10642 Weight (Countersunk Screw)
All Sizes available in Stainless Steel 310S Bolt, Spacers and Acorn/Shoulder Nuts with Test Certificates
- Mechanical Testing Such as Tensile of Area
- Hardness Test
- Chemical Analysis – Spectro Analysis
- Positive Material Identification – PMI Testing
- Flattening Test
- Micro and MacroTest
- Pitting Resistance Test
- Flaring Test
- Intergranular Corrosion (IGC) Test
We provide SS 1.4841 Fasteners with Following Test Certificates
- EN 10204/3.1B
- Raw Materials Certificate
- 100% Radiography Test Report
- Third Party Inspection Report, etc
Get complete information of 310 Stainless Steel Lock/wing Nut and Lag/T/Counter sunk Bolt, Refer weight chart of Steel 310 Forged rings
|
Element
|
Content (%)
|
|---|---|
|
Iron, Fe
|
Balance
|
|
Chromium, Cr
|
18-20
|
|
Nickel, Ni
|
11-15
|
|
Molybdenum, Mo
|
3-4
|
|
Manganese, Mn
|
2
|
|
Silicon, Si
|
1
|
|
Phosphorous, P
|
0.045
|
|
Carbon, C
|
0.03
|
|
Sulfur, S
|
0.03
|
|
Properties
|
Metric
|
Imperial
|
|---|---|---|
|
Tensile strength
|
595 MPa
|
86300 psi
|
|
Yield strength
|
260 MPa
|
37700 psi
|
|
Modulus of elasticity
|
200 GPa
|
29000 ksi
|
|
Poisson’s ratio
|
0.27-0.30
|
0.27-0.30
|
|
Elongation at break (in 50 mm)
|
55%
|
55%
|
|
Hardness, Rockwell B
|
85
|
85
|
310 Stainless Steel bolts Physical Properties
|
Grade |
Density (kg/m3) |
Elastic Modulus (GPa) |
Mean Coefficient of Thermal Expansion (μm/m/°C) |
Thermal Conductivity(W/m.K) |
Specific Heat 0-100°C (J/kg.K) |
Electrical Resistivity (nΩ.m) |
|||
|
0-100°C |
0-315°C |
0-538°C |
at 100°C |
at 500°C |
|||||
|
310/S |
7750 |
200 |
15.9 |
16.2 |
17.0 |
14.2 |
18.7 |
500 |
720 |
|
AISI Grade Equivalent
|
ASTM
|
JIS Equivalent
|
Stainless Steel Notation
|
EN/DIN Numerical Equivalent
|
UNS
designation |
EN/DIN Symbolical Equivalent
|
|
AISI 310
|
A479
|
SUS310
|
SS 310
|
EN 1.4841
|
UNS S31000
|
X15CrNiSi25-20
|
|
AISI 310S
|
|
SUS310 S
|
SS 310S
|
EN 1.4845
|
UNS S31008
|
X8CrNi25-21
|
| Electrical Resistivity | 7.8e-005 ohm-cm | 7.8e-005 ohm-cm | at 20°C |
| Magnetic Permeability | 1.02 | 1.02 | at 200H |
type 310 stainless steel fasteners Thermal Properties
| CTE, linear 20°C | 15.9 µm/m-°C | 8.83 µin/in-°F | 20°C-100°C |
| CTE, linear 500°C | 17.1 µm/m-°C | 9.5 µin/in-°F | 20°C-500°C |
| CTE, linear 1000°C | 18.9 µm/m-°C | 10.5 µin/in-°F | 20°C-1000°C |
| Heat Capacity | 0.502 J/g-°C | 0.12 BTU/lb-°F | 0°C-100°C |
| Thermal Conductivity | 13.8 W/m-K | 95.8 BTU-in/hr-ft²-°F | 20°C-100°C |
| Thermal Conductivity at Elevated Temperature | 18.7 W/m-K | 130 BTU-in/hr-ft²-°F | 20°C-500°C |
