stainless steel hex bolt manufacturer

Check stainless steel hex bolt dimensions, SS Heavy Hex Bolts m6 x 25mm, 316 and 304 SS Hexagon Bolts Manufacturer

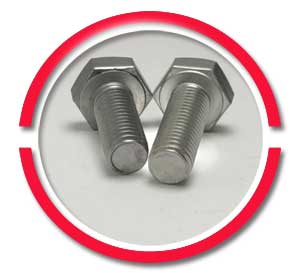

Stainless Steel Hex Bolt
Stainless Steel Hex Bolt

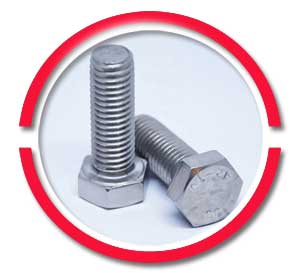

SS Heavy Hex Bolts
SS Heavy Hex Bolts

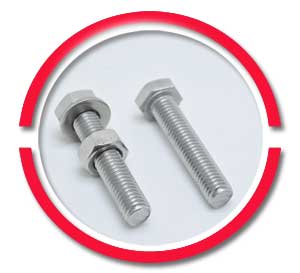

316 SS Hexagon Bolts
316 SS Hexagon Bolts



Biggest Suppliers of stainless steel Hex Head Bolts and Nuts, High Tensile and M6 Hex Bolts at factory price

SS 304 Hex bolts or hex cap screws, are large bolts which have a six-sided head. The head of these bolts resembles a hexagon. Hence, they are termed as hex bolts by stainless steel hex bolt manufacturer.

Typically, Stainless Steel Hex Bolts and Nuts are used to fasten materials such as wood, or metal. However, depending on the kind of application it is to be used for, different alloy grades are used in the manufacturer of these Stainless Steel Hex Head Shoulder Bolts. For instance, if properties like high resistance to creep and heat resistance are prime features required by any application, the alloy used will be grade 310. Austenitic grade 310 SS Hex Bolts have been developed for use in elevated temperature since the alloy has the ability to resist oxidation up to a temperature of 2010 F under mildly cyclic conditions. On the other hand, industrial sectors such as Pharma and the food industry have a need for non-toxic, corrosion resistant alloy which is grade 316.

Therefore 316 SS Hex Bolts form an integral part of the aforementioned industries. In industries, where the application cost is already very high, using 304 Stainless Steel Hex Bolts will help in cutting the cost of the entire operation. Although grade 304 Black Stainless Steel Hex Bolts are moderately resistant to corrosion, these fasteners are often coated with either black paint or an anti-rust oil. Furthermore, Stainless Steel High Tensile Hex Bolts could be treated to a hot dip galvanization, where the alloy is coated with a thick layer of zinc. A zinc coating applied on the Stainless Steel Flanged Hex Bolts through galvanization is much more effective as compared to a regular electroplating process.



Stainless Steel Hex Bolts Head Types

Hex Bolts Head Types



Price List of Stainless Steel Hex Bolts
1/4-20×3/4
$2.75
1/4-20×1
$3.05
1/4-20×1-1/4
$3.20
1/4-20×1-1/2
$4.10
1/4-20×1-3/4
$4.20
1/4-20×2
$4.25
1/4-20×2-1/4
$3.88
1/4-20×2-1/2
$4.58
1/4-20×2-3/4
$4.53
1/4-20×3
$4.07
1/4-20×3-1/4
$4.14
1/4-20×3-1/2
$4.22
1/4-20×3-3/4
$5.00
1/4-20×4
$4.57
1/4-20×4-1/4
$4.41
1/4-20×4-1/2
$4.46
5/16-18x.560
$2.90
5/16-18×3/4
$3.08
5/16-18x.812
$2.90
5/16-18x.875
$2.94
5/16-18x.990
$2.99
5/16-18×1
$3.33
5/16-18×1-1/4
$3.50
5/16-18×1-1/2
$4.85

Please note this is an approx Cost of stainless steel Hex Bolts in China. For final stainless steel flanged hex bolts price list please mail us.



View stainless steel hex bolt specifications, Keep Stock of stainless steel hex bolt a2-70, Metric Hex Bolts and Flanged Hex Bolts

material specification chart of stainless steel hex bolt
  • ASTM A193/ ASME SA193 for SS Hex Bolts
Grade
18-8 Stainless Steel, 4.8, 8.8, A2, A4, A2-70; A4-70; A4-80 Hex Bolts
British standards BS6105 (old: BSENISO 3506) which covers Part 1 bolts, screw and Us, part 2 nuts and part 4 tapping screws.
Stainless Steel Hex Bolts Size
  • Cold Froging : M2-M24
  • Hot forging M24-M100, 1-1/2” Dia, up to 1100mm lg
  • Machining and CNC for Customized connecting element: up to M100 / 4” Dia, up to 1500mm lg

Stainless Steel Hex Bolts M2, M3, (M3.5), M4, M5, M6, M8, M10, M12, (M14), M16, (M18), M20, (M22), M24, (M27), M30, M33, M36, M42, (M45), M48 to M160 and Custom Sizes
Length 3 mm to 200 mm
Stainless Steel Bolts, Studs Threads: METRIC, BSW, BSF, UNC, UNF or as required
Standard: DIN, ISO, JIS, GB, IS, BS, ASTM and all International Standards
ANSI – American National Standards Institute
  • ANSI B 18.2.4 2M
  • ANSI B 28.2.4 1M
  • Hex Boltslength are defined in ASME B16.5 standard
  • Hex nuts are defined in ASME B18.2.2
  • ASME B18.5
  • GB/T5782, GB/T5783, GB5783
DIN Standard B.S. DIN 933, DIN 931, DIN 934, DIN 912, DIN 603, DIN 6923, DIN 970, DIN 7981, DIN 7982, DIN916, DIN 913, DIN 7985
UTS – Unified Thread Standard UNC, UNF, UNEF, UNS, NPT, NPTF
Dimensions ASME B18.6.3 **Exception: screws 6 inches and shorter are fully threaded.
ISO – International Organization for Standardization ISO 4032, ISO 4033, ISO 4017, ISO7380 JIS standards
Tolerance +/-0.01mm to +/-0.05mm
Head drive: Phillips, Slotted, Phillips/Slot, Six-Lobe, etc
Finishing: Zinc (yellow, white, blue, black), black oxide,
Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Stainless steel: Passivated
Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Stainless Steel, Mechanically Applied coating and some special one like DACROMET
Finish Per ASTM A380/A380M
Production process Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing
Origin and service-region: European
Origin of Stainless Steel Hex Bolts are Western European. However projects with eastern origin are possible on request.
Stainless Steel bolting materials Surface Coating:
  • Hot Dipped Galvanizing Hex Bolts
  • Phosphate Hex Bolts
  • Teflon Hex Bolts
  • Ptfe Coated Hex Bolts
  • Xylon Hex Bolts
  • Zinc Phosphate Hex Bolts
  • Manganese Phosphate
  • Zinc Electro Plating (Hexavalent or Trivalent Chrome)
  • ZAC (Zinc Alluminium Flake Coating)
  • Cadmium Hex Bolts

All surface finishes can be supplied, including Zinc, Galvanised, Sherardized, Electroless Nickel, Dacromet, Geomet & PTFE.
Surface treatment
  • Passivation
  • Polish
  • Anodizing
  • Sand blasting
  • Black oxide coating
  • Heat-disposing
  • Rust preventive oil
  • Hot dip galvanized Hex Bolts
  • Electroplating (color, blue, white, black zinc, Ni, Cr, tin, copper, silver)
Top Manufacturers SPAX® Screws, GKW, Unbrako, Kundan, APL, Sundaram Precision, Infasco, EBY Fastener Etc.
Stainless Steel Hex Bolts Packing: IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request
Why choose us?
  • Best Price in China and compare to China
  • Professional technical team
  • High precision threads
  • Strong production line
  • High Temperature Fasteners Inc. will be your reliable partner
MOQ 5 pieces
Test Certificate:
  • Manufacturer Test Certificate as per EN 10204 / 3.1,
  • Tensile testing to ISO 898-1
  • Nut proof load testing to ISO 898-2
  • Suitability for preloading to EN 14399-2
  • Suitability test for calibrated preload to EN 14399-10
  • Charpy Impact testing in accordance with ISO 148-1
  • Hardness testing to ISO 6508-1
  • Tri-Roll Thread Comparators
  • Calibrated gauges and tools
Free Samples Yes
Delivery time Regular product is about 7-15 days, custom product will according to special requirement
Payment Terms T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping
Other available material
  • Stainless Steel Hex Bolts: SUS201, SUS304, SUS316, SUS410
  • Brass Hex Bolts: C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200CuZn37), C28000(CuZn40)
  • Bronze Hex Bolts: C51000, C52100, C54400 etc
  • Aluminum Hex Bolts: Al6061, Al6063 etc
  • Aluminum Alloy Hex Bolts: Al6061, Al6063 etc
  • Titanium and Titanium Alloy Hex Bolts: TAD, TA1-TA8, TB2, TC1-TC10
  • Alloy steel Hex Bolts: SCM435, C10B21, C10B33
Uses & application Wind tower, Nuclear power, Railway, Automotive industry, Construction, Electronic industry



supplies a full range of 310 and 304 Stainless Steel Hex Bolts, Stainless Steel Hex Tap Bolts and Hex Head Shoulder Bolts
Basic Types Of Fasteners Weight Chart



See stainless steel hex bolt sizes, buy Black Stainless Steel Hex Bolts From directly From the manufacturer
Dimensions Chart of Stainless Steel Heavy Hex Bolt
Stainless Steel Heavy Hex Bolt Dimensions
Bolt Size A (max) B C (min) D E F
Thread Length
for Bolt Length
max min 6″ and
shorter		 over 6″
1/2″ 0.515 7/8 0.969 11/32 0.03 0.01 1.250 1.500
5/8″ 0.642 1-1/16 1.175 27/64 0.06 0.02 1.500 1.750
3/4″ 0.768 1-1/4 1.383 1/2 0.06 0.02 1.750 2.000
7/8″ 0.895 1-7/16 1.589 37/64 0.06 0.02 2.000 2.250
1″ 1.022 1-5/8 1.796 43/64 0.09 0.03 2.250 2.500
1-1/8″ 1.149 1-13/16 2.002 3/4 0.09 0.03 2.500 2.750
1-1/4″ 1.277 2 2.209 27/32 0.09 0.03 2.750 3.000
1-3/8″ 1.404 2-3/16 2.416 29/32 0.09 0.03 3.000 3.250
1-1/2″ 1.531 2-3/8 2.622 1 0.09 0.03 3.250 3.500
1-3/4″ 1.785 2-3/4 3.035 1-5/32 0.12 0.04 3.750 4.000
2″ 2.039 3-1/8 3.449 1-11/32 0.12 0.04 4.250 4.500
2-1/4″ 2.305 3-1/2 3.862 1-1/2 0.19 0.06 4.750 5.000
2-1/2″ 2.559 3-7/8 4.275 1-21/32 0.19 0.06 5.250 5.500
2-3/4″ 2.827 4-1/4 4.688 1-13/16 0.19 0.06 5.750 6.000
3″ 3.081 4-5/8 5.102 2 0.19 0.06 6.250 6.500

Notes:

Body Diameter – There may be a reasonable swell or fin under the head or die seam on the body not to exceed the basic bolt diameter by the following:

  • 0.030″ for sizes up to 1/2″
  • 0.050″ for sizes 5/8″ and 3/4″
  • 0.060″ for sizes over 3/4″ to 1-1/4″
  • 0.090″ for sizes over 1-1/4″ to 2″
  • 0.120″ for sizes over 2″ to 3″

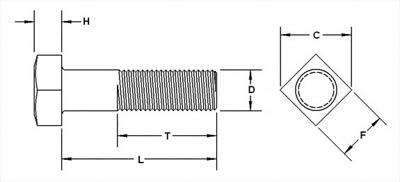

Dimensions Schedule of Stainless Steel Square Bolt
Stainless Steel Square Bolt Dimensions
Bolt Size A (max) B C (min) D E F
Thread Length
for Bolt Length
max min 6″ and
shorter		 over 6″
1/4″ 0.260 3/8 0.498 11/64 0.03 0.01 0.750 1.000
5/16″ 0.324 1/2 0.665 13/64 0.03 0.01 0.875 1.125
3/8″ 0.388 9/16 0.747 1/4 0.03 0.01 1.000 1.250
7/16″ 0.452 5/8 0.828 19/64 0.03 0.01 1.125 1.375
1/2″ 0.515 3/4 0.995 21/64 0.03 0.01 1.250 1.500
5/8″ 0.642 15/16 1.244 27/64 0.06 0.02 1.500 1.750
3/4″ 0.768 1-1/8 1.494 1/2 0.06 0.02 1.750 2.000
7/8″ 0.895 1-5/16 1.742 19/32 0.06 0.02 2.000 2.250
1″ 1.022 1-1/2 1.991 21/32 0.09 0.03 2.250 2.500
1-1/8″ 1.149 1-11/16 2.239 3/4 0.09 0.03 2.500 2.750
1-1/4″ 1.277 1-7/8 2.489 27/32 0.09 0.03 2.750 3.000
1-3/8″ 1.404 2-1/16 2.738 29/32 0.09 0.03 3.000 3.250
1-1/2″ 1.531 2-1/4 2.986 1 0.09 0.03 3.250 3.500



Dimensions Standard of Stainless Steel Hex Bolts

Stainless Steel Hex Bolts Dimensions

olt Size A (max) B C (min) D E F
Thread Length
for Bolt Length
max min 6″ and
shorter		 over 6″
1/4″ 0.260 7/16 0.484 11/64 0.03 0.01 0.750 1.000
5/16″ 0.324 1/2 0.552 7/32 0.03 0.01 0.875 1.125
3/8″ 0.388 9/16 0.620 1/4 0.03 0.01 1.000 1.250
7/16″ 0.452 5/8 0.687 19/64 0.03 0.01 1.125 1.375
1/2″ 0.515 3/4 0.826 11/32 0.03 0.01 1.250 1.500
5/8″ 0.642 15/16 1.033 27/64 0.06 0.02 1.500 1.750
3/4″ 0.768 1-1/8 1.240 1/2 0.06 0.02 1.750 2.000
7/8″ 0.895 1-5/16 1.447 37/64 0.06 0.02 2.000 2.250
1″ 1.022 1-1/2 1.653 43/64 0.09 0.03 2.250 2.500
1-1/8″ 1.149 1-11/16 1.859 3/4 0.09 0.03 2.500 2.750
1-1/4″ 1.277 1-7/8 2.066 27/32 0.09 0.03 2.750 3.000
1-3/8″ 1.404 2-1/16 2.273 29/32 0.09 0.03 3.000 3.250
1-1/2″ 1.531 2-1/4 2.480 1 0.09 0.03 3.250 3.500
1-3/4″ 1.785 2-5/8 2.893 1-5/32 0.12 0.04 3.750 4.000
2″ 2.039 3 3.306 1-11/32 0.12 0.04 4.250 4.500
2-1/4″ 2.305 3-3/8 3.719 1-1/2 0.19 0.06 4.750 5.000
2-1/2″ 2.559 3-3/4 4.133 1-21/32 0.19 0.06 5.250 5.500
2-3/4″ 2.837 4-1/8 4.546 1-13/16 0.19 0.06 5.750 6.000
3″ 3.081 4-1/2 4.959 2 0.19 0.06 6.250 6.500
3-1/4″ 3.335 4-7/8 5.372 2-3/16 0.19 0.06 6.750 7.000
3-1/2″ 3.589 5-1/4 5.786 2-5/16 0.19 0.06 7.250 7.500
3-3/4″ 3.858 5-5/8 6.198 2-1/2 0.19 0.06 7.750 8.000
4″ 4.111 6 6.612 2-11/16 0.19 0.06 8.250 8.500

Notes:

Body Diameter – There may be a reasonable swell or fin under the head or die seam on the body not to exceed the basic bolt diameter by the following:

  • 0.030″ for sizes up to 1/2″
  • 0.050″ for sizes 5/8″ and 3/4″
  • 0.060″ for sizes over 3/4″ to 1-1/4″
  • 0.090″ for sizes over 1-1/4″ to 2″
  • 0.120″ for sizes over 2″ to 3″
  • 0.190″ for sizes over 3″

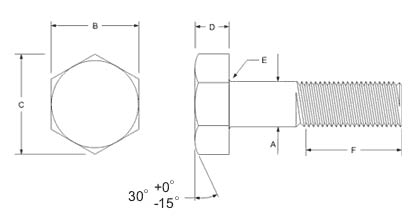

Dimensions table of Stainless Steel Heavy Hex Structural Bolt
Stainless Steel Heavy Hex Structural Bolt Dimensions
Bolt Size A B C D E
Radius of Fillet		 F
Thread Length		 G
Transitional
Thread Length		 Runout of
Bearing Surface
FIM
max min min max min max
1/2″ 0.515 0.482 7/8 0.969 5/16 0.031 0.009 1.00 0.19 0.016
5/8″ 0.642 0.605 1-1/16 1.175 25/64 0.062 0.021 1.25 0.22 0.019
3/4″ 0.768 0.729 1-1/4 1.383 15/32 0.062 0.021 1.38 0.25 0.022
7/8″ 0.895 0.852 1-7/16 1.589 35/64 0.062 0.031 1.50 0.28 0.025
1″ 1.022 0.976 1-5/8 1.796 39/64 0.093 0.062 1.75 0.31 0.028
1-1/8″ 1.149 1.098 1-13/16 2.002 11/16 0.093 0.062 2.00 0.34 0.032
1-1/4″ 1.277 1.223 2 2.209 25/32 0.093 0.062 2.00 0.38 0.035
1-3/8″ 1.404 1.345 2-3/16 2.416 27/32 0.093 0.062 2.25 0.44 0.038
1-1/2″ 1.531 1.470 2-3/8 2.622 15/16 0.093 0.062 2.25 0.44 0.041

Notes:

Body Diameter – There may be a reasonable swell or fin under the head or die seam on the body not to exceed the basic bolt diameter by the following:

  • 0.030″ for sizes up to 1/2″
  • 0.050″ for sizes 5/8″ and 3/4″
  • 0.060″ for sizes over 3/4″ to 1-1/4″
  • 0.090″ for sizes over 1-1/4″
