Stainless Steel Shoulder Lag Screw Eye Bolt has an unthreaded, long, cylindrical shoulder that permits the rotation of attached parts. Hence parts such as gears, moving parts of engines, pulleys and mechanical assemblies, as well as rolling wheels could be moved with the help of the stationary stainless steel shoulder screw.
high quality 316 Stainless Steel Shoulder Bolts, stainless steel shoulder eye bolts manufacturer in india

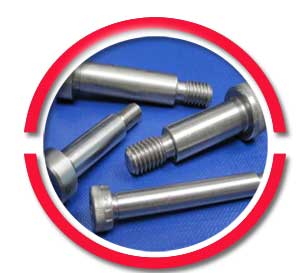

Stainless Steel Shoulder Bolts

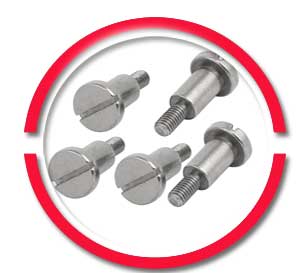

316 Stainless Steel Shoulder Bolts

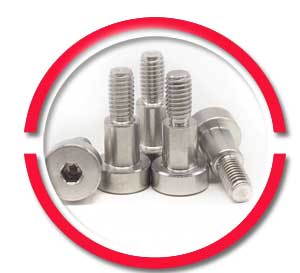

stainless steel shoulder eye bolts

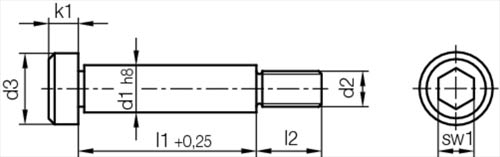

check stainless steel shoulder bolts dimensions, buy stainless steel hex head shoulder bolts and Shoulder Bolts Metric at lowest price
These Stainless Steel Shoulder Bolts Metric are also used to attach stripper plates. The socket head of the stainless steel socket head shoulder bolts is what enables high torque fastening even with limitations in its clearance. Generally, these stainless steel shoulder eye bolts could be used when the application of a load is to be at an angle. One has to note in mind that the rated capacity of these stainless steel shoulder bolts has been drastically reduced when a load occurs at any angle.
When a shoulder pattern-lifting eye or what is referred to as a stainless steel hex head shoulder bolts is properly seated in the receiving hole, the shoulder part of these bolts bears against the seat. Hence, the shoulder part in these bolts is what reduces the bending stress on the shank. On the other hand, fasteners such as the ISO 7379 Socket Hexagon Shoulder Bolt are typically used in applications that require decent tensile strength as their primary characteristic. This hexagon 316 Stainless Steel Shoulder Bolts are used in the designing of not only shearing components but also machines whose components have requirements such as space including the ability to swing, oscillate or pivot.
|
Shoulder Diameter
(A) |
Thread
(C) |
Thread Length
(D) |
Head Diameter
(E) |
Head Height
(F) |
Allen Wrench Size
|
|---|---|---|---|---|---|
|
1/8″
|
#4-40
|
3/32″
|
1/4″
|
1/8″
|
5/64″
|
|
3/16″
|
#8-32
|
3/16″
|
5/16″
|
5/32″
|
3/32″
|
|
1/4″
|
#10-24
|
3/8″
|
3/8″
|
3/16″
|
1/8″
|
|
5/16″
|
1/4″-20
|
7/16″
|
7/16″
|
7/32″
|
5/32″
|
|
3/8″
|
5/16″-18
|
1/2″
|
9/16″
|
1/4″
|
3/16″
|
|
1/2″
|
3/8″-16
|
5/8″
|
3/4″
|
5/16″
|
1/4″
|
|
5/8″
|
1/2″-13
|
3/4″
|
7/8″
|
3/8″
|
5/16″
|
|
3/4″
|
5/8″-11
|
7/8″
|
1″
|
1/2″
|
3/8″
|
|
1″
|
3/4″-10
|
1″
|
1-5/16″
|
5/8″
|
1/2″
|
|
1-1/4″
|
7/8″-9
|
1-1/8″
|
1-3/4″
|
3/4″
|
5/8″
|
view SS shoulder bolts price in China, specialist stainless steel socket head shoulder bolts, ISO 7379 Socket Hexagon Shoulder Bolt suppliers
|
Quantity
|
Price in INR
|
Special offer
|
|---|---|---|
|
1 Piece
|
₹ 435.52 / each.
|
NA
|
|
10 units
|
₹ 407.66 each
|
6% Discount
|
|
20 units
|
₹ 383.52 each
|
12% Discount
|
|
40 units
|
₹ 362.16 each
|
17% Discount
|
|
80 units
|
₹ 342.66 each
|
21% Discount
|
|
160 units
|
₹ 325.94 each
|
25% Discount
|
Please note this is an approx Cost of stainless steel Shoulder Bolts in China. For final 316 stainless steel shoulder bolts price list please mail us.
See stainless steel shoulder bolts specifications, China’s largest stainless steel shoulder screw distributors
- ASTM A193/ ASME SA193 for SS Shoulder Bolts
| Grade |
18-8 Stainless Steel, 4.8, 8.8, A2, A4, A2-70; A4-70; A4-80 Shoulder Bolts
|
|---|---|
| British standards | BS6105 (old: BSENISO 3506) which covers Part 1 bolts, screw and Us, part 2 nuts and part 4 tapping screws. |
| Stainless Steel Shoulder Bolts Size |
Stainless Steel Shoulder Bolts M2, M3, (M3.5), M4, M5, M6, M8, M10, M12, (M14), M16, (M18), M20, (M22), M24, (M27), M30, M33, M36, M42, (M45), M48 to M160 and Custom Sizes |
| Length | 3 mm to 200 mm |
| Stainless Steel Bolts, Studs Threads: | METRIC, BSW, BSF, UNC, UNF or as required |
| Standard: | DIN, ISO, JIS, GB, IS, BS, ASTM and all International Standards ANSI – American National Standards Institute
|
| DIN Standard | B.S. DIN 933, DIN 931, DIN 934, DIN 912, DIN 603, DIN 6923, DIN 970, DIN 7981, DIN 7982, DIN916, DIN 913, DIN 7985 |
| UTS – Unified Thread Standard | UNC, UNF, UNEF, UNS, NPT, NPTF |
| Dimensions | ASME B18.6.3 **Exception: screws 6 inches and shorter are fully threaded. |
| ISO – International Organization for Standardization | ISO 4032, ISO 4033, ISO 4017, ISO7380 JIS standards |
| Tolerance | +/-0.01mm to +/-0.05mm |
| Head drive: | Phillips, Slotted, Phillips/Slot, Six-Lobe, etc |
| Finishing: | Zinc (yellow, white, blue, black), black oxide, Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Stainless steel: Passivated Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Stainless Steel, Mechanically Applied coating and some special one like DACROMET |
| Finish | Per ASTM A380/A380M |
| Production process | Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing |
| Origin and service-region: | European Origin of Stainless Steel Shoulder Bolts are Western European. However projects with eastern origin are possible on request. |
| Stainless Steel bolting materials Surface Coating: |
All surface finishes can be supplied, including Zinc, Galvanised, Sherardized, Electroless Nickel, Dacromet, Geomet & PTFE. |
| Surface treatment |
|
| Top Manufacturers | SPAX® Screws, GKW, Unbrako, Kundan, APL, Sundaram Precision, Infasco, EBY Fastener Etc. |
| Stainless Steel Shoulder Bolts Packing: | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Why choose us? |
|
| MOQ | 5 pieces |
| Test Certificate: |
|
| Free Samples | Yes |
| Delivery time | Regular product is about 7-15 days, custom product will according to special requirement |
| Payment Terms | T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping |
| Other available material |
|
| Uses & application | Wind tower, Nuclear power, Railway, Automotive industry, Construction, Electronic industry |
