Stainless Steel Carriage Bolts Manufacturers

Stainless Steel Ribbed Neck Carriage Bolts 5/16 and 3/8 manufacturer india

supplies a full range of M6 Stainless Steel Carriage Bolts and Coach Bolts at Factory price in China

A coach bolt or as also known as a carriage bolt has a round head along with a squared neck construction. Typically these bolts are associated with fastening either metal to metal set up or metal to wood set-up. Though the production of these bolts, like the other variation, could be done using ductile materials like copper, alloy steel, nickel, aluminum, etc, stainless steel ranks amongst the best and the most widely used ones. Amongst several reasons manufacturers prefer using stainless steel to produce them, the resistance of the material to corrosion and high mechanical properties along with its reasonable cost makes it very attractive to buyers.

Characteristically, both its shallow mushroom head as well as square neck cross-section distinguishes the Stainless Steel Ribbed Neck Carriage Bolts 5/16. Although the neck of these bolts is squared, the rest of the shank remains circular. Hence, being similar in construction to the other kinds of bolts. The construction makes the Stainless Steel Carriage Bolts self-locking, in instances where they are placed within a square-shaped hole on a metal strap. This is what permits the installation of bolts with the use of a single tool i.e. either, a spanner or wrench which is to be worked from one side.

The head of Stainless Steel Coach Bolts usually is a shallow dome, whereas the shank will be produced devoid of any threads. Moreover, the diameter of the shank will be identical to the side of the square cross-section of the said bolt. The M6 SS Carriage Bolts were created to be driven through an iron strengthening plate on both the sides of a wooden beam, wherein the squared part of the fastener was to fit into a square-shaped aperture in the ironwork.

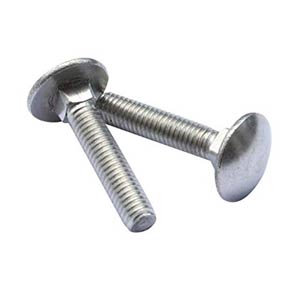

Stainless Steel Carriage Bolts
Stainless Steel Carriage Bolts

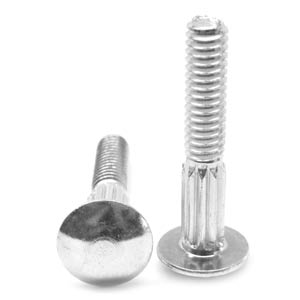

SS Ribbed Neck Carriage Bolts
SS Ribbed Neck Carriage Bolts

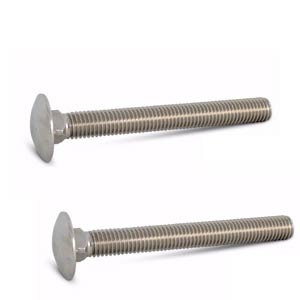

Stainless Steel Coach Bolts
Stainless Steel Coach Bolts



Table of Content



SS Carriage Bolts Specification
  • ASTM A193/ ASME SA193 for SS Carriage Bolts
Grade
18-8 Stainless Steel, 4.8, 8.8, A2, A4, A2-70; A4-70; A4-80 Carriage Bolts
British standards BS6105 (old: BSENISO 3506) which covers Part 1 bolts, screw and Us, part 2 nuts and part 4 tapping screws.
Stainless Steel Carriage Bolts Size
  • Cold Froging : M2-M24
  • Hot forging M24-M100, 1-1/2” Dia, up to 1100mm lg
  • Machining and CNC for Customized connecting element: up to M100 / 4” Dia, up to 1500mm lg

Stainless Steel Carriage Bolts M2, M3, (M3.5), M4, M5, M6, M8, M10, M12, (M14), M16, (M18), M20, (M22), M24, (M27), M30, M33, M36, M42, (M45), M48 to M160 and Custom Sizes
Length 3 mm to 200 mm
Stainless Steel Bolts, Studs Threads: METRIC, BSW, BSF, UNC, UNF or as required
Standard: DIN, ISO, JIS, GB, IS, BS, ASTM and all International Standards
ANSI – American National Standards Institute
  • ANSI B 18.2.4 2M
  • ANSI B 28.2.4 1M
  • Carriage Boltslength are defined in ASME B16.5 standard
  • Hex nuts are defined in ASME B18.2.2
  • ASME B18.5
  • GB/T5782, GB/T5783, GB5783
DIN Standard B.S. DIN 933, DIN 931, DIN 934, DIN 912, DIN 603, DIN 6923, DIN 970, DIN 7981, DIN 7982, DIN916, DIN 913, DIN 7985
UTS – Unified Thread Standard UNC, UNF, UNEF, UNS, NPT, NPTF
Dimensions ASME B18.6.3 **Exception: screws 6 inches and shorter are fully threaded.
ISO – International Organization for Standardization ISO 4032, ISO 4033, ISO 4017, ISO7380 JIS standards
Tolerance +/-0.01mm to +/-0.05mm
Head drive: Phillips, Slotted, Phillips/Slot, Six-Lobe, etc
Finishing: Zinc (yellow, white, blue, black), black oxide,
Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Stainless steel: Passivated
Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Stainless Steel, Mechanically Applied coating and some special one like DACROMET
Finish Per ASTM A380/A380M
Production process Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing
Origin and service-region: European
Origin of Stainless Steel Carriage Bolts are Western European. However projects with eastern origin are possible on request.
Stainless Steel bolting materials Surface Coating:
  • Hot Dipped Galvanizing Carriage Bolts
  • Phosphate Carriage Bolts
  • Teflon Carriage Bolts
  • Ptfe Coated Carriage Bolts
  • Xylon Carriage Bolts
  • Zinc Phosphate Carriage Bolts
  • Manganese Phosphate
  • Zinc Electro Plating (Hexavalent or Trivalent Chrome)
  • ZAC (Zinc Alluminium Flake Coating)
  • Cadmium Carriage Bolts

All surface finishes can be supplied, including Zinc, Galvanised, Sherardized, Electroless Nickel, Dacromet, Geomet & PTFE.
Surface treatment
  • Passivation
  • Polish
  • Anodizing
  • Sand blasting
  • Black oxide coating
  • Heat-disposing
  • Rust preventive oil
  • Hot dip galvanized Carriage Bolts
  • Electroplating (color, blue, white, black zinc, Ni, Cr, tin, copper, silver)
Top Manufacturers SPAX® Screws, GKW, Unbrako, Kundan, APL, Sundaram Precision, Infasco, EBY Fastener Etc.
Stainless Steel Carriage Bolts Packing: IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request
Why choose us?
  • Best Price in China and compare to China
  • Professional technical team
  • High precision threads
  • Strong production line
  • High Temperature Fasteners Inc. will be your reliable partner
MOQ 5 pieces
Test Certificate:
  • Manufacturer Test Certificate as per EN 10204 / 3.1,
  • Tensile testing to ISO 898-1
  • Nut proof load testing to ISO 898-2
  • Suitability for preloading to EN 14399-2
  • Suitability test for calibrated preload to EN 14399-10
  • Charpy Impact testing in accordance with ISO 148-1
  • Hardness testing to ISO 6508-1
  • Tri-Roll Thread Comparators
  • Calibrated gauges and tools
Free Samples Yes
Delivery time Regular product is about 7-15 days, custom product will according to special requirement
Payment Terms T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping
Other available material
  • Stainless Steel Carriage Bolts: SUS201, SUS304, SUS316, SUS410
  • Brass Carriage Bolts: C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200CuZn37), C28000(CuZn40)
  • Bronze Carriage Bolts: C51000, C52100, C54400 etc
  • Aluminum Carriage Bolts: Al6061, Al6063 etc
  • Aluminum Alloy Carriage Bolts: Al6061, Al6063 etc
  • Titanium and Titanium Alloy Carriage Bolts: TAD, TA1-TA8, TB2, TC1-TC10
  • Alloy steel Carriage Bolts: SCM435, C10B21, C10B33
Uses & application Wind tower, Nuclear power, Railway, Automotive industry, Construction, Electronic industry



Types Of Stainless Steel Carriage Bolts

Round Head Square Neck Carriage Bolt
Round Head Square Neck Carriage Bolt
Knurled-Neck Carriage Bolts
Knurled-Neck Carriage Bolts
Ribbed Neck Carriage Bolts Stainless
Ribbed Neck Carriage Bolts Stainless

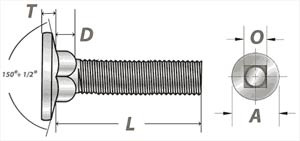

Flat Head Carriage Bolts Stainless Steel
Flat Head Carriage Bolts Stainless Steel

High Strength Carriage Bolts
High Strength Carriage Bolts
Round Head Oval Neck Carriage Bolt
Round Head Oval Neck Carriage Bolt
Round Head Carriage Bolts
Round Head Carriage Bolts
M6 Stainless Steel Carriage Bolts
M6 Stainless Steel Carriage Bolts
Stainless Steel Carriage Bolts Price List
Size
Quantity
Price in USD
1/4-20 x 1/2″
800
$279.37
1/4-20 x 3/4″
700
$279.50
1/4-20 x 1″
650
$374.91
1/4-20 x 1 1/4″
500
$304.21
1/4-20 x 1 1/2″
450
$291.21
1/4-20 x 1 3/4″
400
$265.66
1/4-20 x 2″
375
$255.00
1/4-20 x 2 1/2″
300
$224.23
1/4-20 x 3″
275
$216.62
5/16-18 x 1″
350
$306.25
5/16-18 x 1 1/4″
300
$255.43
5/1618 x 1 1/2″
250
$264.26
5/16-18 x 2″
225
$231.11
5/16-18 x 2 1/2″
200
$230.57
3/8-16 x 1″
150
$183.76
3/8-16 x 1 1/4″
125
$200.30
3/8-16 x 1 1/2″
100
$227.52
3/8-16 x 2″
100
$218.75
3/8-16 x 2 1/2″
100
$239.47

Please note this is an approx Cost of stainless steel Carriage Bolts in China. For final stainless steel carriage bolts 7/16 price list please mail us.

We delivers a wide range of stainless steel carriage bolts 3/16/ menards/ metric in Shenzhen, Pune & Chennai – China

Stainless Steel Carriage Bolts Dimensions(Carriage Bolts: Round Head Square Neck)

Carriage Bolts: Round Head Square Neck Dimensions

Carriage Bolts: Round Head, Square Neck (ASME B18.5-1990)

Basic Bolt Diameter
Body Diameter (E)
Head Diameter (A)
Head Height (H)
Square Width (O)
Square Depth (P)
Max
Min
 Max
 Min
 Max
Min
Max
Min
Max
Min
8
.1640
.157
.328
.298
.102
.083
.169
.155
.108
.078
10
.1900
.182
.436
.436
.114
.094
.199
.185
.125
.094
12
.2160
.206
.500
.468
.149
.125
.215
.197
.135
.105
1/4
.2500
.237
.594
.563
.145
.125
.260
.245
.156
.125
5/16
.3125
.298
.719
.688
.176
.156
.324
.307
.187
.156
3/8
.3750
.360
.844
.782
.208
.188
.388
.368
.219
.188
7/16
.4375
.421
.969
.907
.239
.219
.452
.431
.250
.219
1/2
.5000
.483
1.094
1.032
.270
.250
.515
.492
.281
.250
5/8
.6250
.605
1.344
1.219
.344
.313
.642
.616
.344
.313
3/4
.7500
.729
1.594
1.469
.406
.375
.768
.741
.406
.375
Carriage Bolts: Round Head, Square Neck: Tolerance on Length
Nominal Bolt Size
Nominal Bolt Length
Up to 1″
Over 1″ – 2-1/2″
Over 2-1/2″ – 4″
 Over 4″ – 6″
Longer than 6″
No. 8 – 3/8
+.02, -.03
+.02, -.04
+.04, -.06
+.06, -.10
+.10, -.18
7/16 & 1/2
+.02, -.03
+.04, -.05
+.06, -.08
+.08, -.10
+.12, -.18
9/16 – 3/4
+.02, -.03
+.06, -.08
+.08, -.10
+.10, -.10
+.14, -.18
Black Stainless Steel Carriage Bolts suppliers in Shenzhen, China, Buy from Polished Stainless Steel Carriage Bolts manufacturers in China

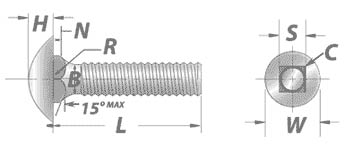

Stainless Steel Carriage Bolts: Round Head Short Neck Dimensions
Carriage Bolts: Round Head Short Neck Dimensions
Carriage Bolts: Round Head, Short Neck (ANSI/ASME B18.5)

Nominal Size or Basic Bolt Diameter
Body Diameter (B)
Head Diameter (W)
Head Height (H)
Square Width (S)
Square Depth (N)
Corner Radius on Square (C)
Fillet Radius (R)
Max
Min
 Max
 Min
 Max
Min
Max
Min
Max
Min
Max
Max
1/4
.2500
.260
.213
.594
.563
.145
.125
.260
.245
.124
.093
.031
.031
5/16
.3125
.324
.272
.719
.688
.176
.156
.324
.307
.124
.093
.031
.031
3/8
.3750
.388
.329
.844
.782
.208
.188
.388
.368
.156
.125
.047
.031
7/16
.4375
.452
.385
.969
.907
.239
.219
.452
.431
.156
.125
.047
.031
1/2
.5000
.515
.444
1.094
1.032
.270
.250
.515
.492
.156
.125
.047
.031
5/8
.6250
.642
.559
1.344
1.219
.344
.313
.642
.616
.218
.187
.078
.062
3/4
.7500
.768
.678
1.594
1.469
.406
.375
.768
.741
.218
.187
.078
.062
Carriage Bolts: Round Head, Short Neck: Tolerance on Length
Nominal Bolt Size
Nominal Bolt Length
Up to 1″
Over 1″ – 2-1/2″
Over 2-1/2″ – 4″
 Over 4″ – 6″
Longer than 6″
No. 10 – 3/8
+.02, -.03
+.02, -.04
+.04, -.06
+.06, -.10
+.10, -.18
7/16 & 1/2
+.02, -.03
+.04, -.05
+.06, -.08
+.08, -.10
+.12, -.18
9/16 – 3/4
+.02, -.03
+.06, -.08
+.08, -.10
+.10, -.10
+.14, -.18
7/8 & 1

+.08, -.10
+.10, -.14
+.12, -.16
+.16, -.20
1-1/8 – 1-1/2

+.12, -.12
+.16, -.16
+.18, -.18
+.22, -.22

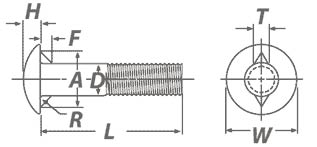

Stainless Steel Carriage Bolts: Round Head, Ribbed Neck Dimensions
Carriage Bolts: Round Head Ribbed Neck Dimensions
Carriage Bolts: Round Head, Ribbed Neck (ASME B18.5-1998)

Nominal Size or Basic Bolt Diameter
Body Diameter (B)
Head Diameter (W)
Head Height (H)
Head to Ribs (M)
Number of Ribs
Diameter Over Ribs (V)
Depth Over Ribs (D)
Fillet Radius (R)
Max
Min
 Max
 Min
 Max
Min
Up to 7/8″ Length
1″+ Length
Approx.
Min
Up to 7/8″ Length
1″ & 1-1/8″ Length
1-1/4″+ Length
Max
No 10
.1900
.199
.182
.469
.438
.114
.094
.031
.063
9
.210
.250
.407
.594
.031
1/4
.2500
.260
.237
.594
.563
.145
.125
.031
.063
10
.274
.250
.407
.594
.031
5/16
.3125
.324
.298
.719
.688
.176
.156
.031
.063
12
.340
.250
.407
.594
.031
3/8
.3750
.388
.360
.844
.782
.208
.188
.031
.063
12
.405
.250
.407
.594
.031
7/16
.4375
.425
.421
.969
.907
.239
.219
.031
.063
14
.470
.250
.407
.594
.031
1/2
.5000
.515
.483
1.094
1.032
.270
.250
.031
.063
16
.534
.250
.407
.594
.031
5/8
.6250
.642
.605
1.344
1.219
.344
.313
.094
.094
19
.660
.313
.438
.625
.062
3/4
.7500
.768
.729
1.594
1.469
.406
.375
.094
.094
22
.785
.313
.438
.625
.062
Carriage Bolts: Round Head, Ribbed Neck: Tolerance on Length
Nominal Bolt Size
Nominal Bolt Length
Up to 1″
Over 1″ – 2-1/2″
Over 2-1/2″ – 4″
 Over 4″ – 6″
Longer than 6″
No. 10 – 3/8
+.02, -.03
+.02, -.04
+.04, -.06
+.06, -.10
+.10, -.18
7/16 & 1/2
+.02, -.03
+.04, -.05
+.06, -.08
+.08, -.10
+.12, -.18
9/16 – 3/4
+.02, -.03
+.06, -.08
+.08, -.10
+.10, -.10
+.14, -.18
7/8 & 1

+.08, -.10
+.10, -.14
+.12, -.16
+.16, -.20
1-1/8 – 1-1/2

+.12, -.12
+.16, -.16
+.18, -.18
+.22, -.22
Stainless Steel Carriage Bolts: Fin Neck
Carriage Bolts: Fin Neck Dimensions
Carriage Bolts: Fin Neck (ASME B18.5-1990)

Nominal Size or Basic Bolt Diameter
Body Diameter (D)
Head Diameter (W)
Head Height (H)
Fin Thickness (T)
Distance Across Fins (A)
Fin Depth (F)
Fillet Radius (R)
Max
Min
Max
Min
Max
Min
Max
Min
Max
Min
Max
Min
Max
Min
No 10
.1900
.199
.182
.469
.438
.114
.094
.098
.078
.395
.375
.088
.076
.031
.015
1/4
.2500
.260
.237
.594
.563
.145
.125
.114
.094
.458
.438
.104
.094
.031
.015
5/16
.3125
.324
.298
.719
.688
.176
.156
.145
.125
.551
.531
.135
.125
.031
.015
3/8
.3750
.388
.360
.844
.782
.208
.188
.161
.141
.645
.625
.151
.141
.031
.015
7/16
.4375
.452
.421
.969
.907
.239
.219
.192
.172
.739
.719
.182
.172
.031
.015
1/2
.5000
.515
.483
1.094
1.032
.270
.250
.208
.188
.833
.813
.198
.188
.031
.015
Stainless Steel Carriage Bolts: Flat Head, Square Neck
Carriage Bolts: Flat Head Square Neck Dimensions
Carriage Bolts: Flat Head, Square Neck

Bolt Diameter & Thread Pitch
Head Diameter (A)
Head Height (T)
Square Width (O)
Square Depth (D)
Max
Min
Max
Min
Max
Min
Max
Min
1/4-20
.640
.590
.098
.078
.260
.245
.156
.125
Also Check Fasteners Weight Chart




Shop from Our Large Selection of High Strength Carriage Bolts in China, Round Head and Knurled-Neck Carriage Bolts manufacturers in Shenzhen, Pune & Chennai – China
