Stainless Steel 304h Fasteners

SS 304h nuts and bolts, UNS S30409 Studs suppliers in india

supplies a full range of type 304h stainless steel fasteners, EN 1.4948 Threaded Rod, Allen Cap Screw and Castle Tap Bolt at Factory price in China

Stainless Steel 304h Fasteners are made up of a high carbon version of the 304 austenitic stainless steel grade. The material is strong, corrosion resistant and has good mechanical properties. High Temperature Fasteners Inc. is a leading manufacturer and supplier of the different types of SS 304h Nuts And Bolts in different shapes and sizes. The specifications for these bolts are ASTM A193 and A194.

The fasteners come in sizes ranging from M2 through M30. There are DIN, ASTM, ASME and other international standards to govern the sizes. The length of the materials varies from 3mm to 200mm and the diameters range from M5 through M56 or ¼ inches to 1 inch. The UNS S30409 Studs have carbon, silicon, nickel, chromium, phosphorus, manganese and sulfur in the composition. This material composition provides the fasteners with 205MPa minimum yield strength and 515MPa minimum tensile strength.

The material has Brinell hardness score of 201. The operating temperature of the fasteners can go up to 870 degrees Celsius and therefore these are suitable for high temperature applications. The EN 1.4948 Threaded Rod as well as other fasteners are used in oil and gas, petroleum, petrochemical, heat exchanger, boiler, power generation and other high temperature applications as well. Please feel free to contact us for more information on the different types of fasteners in this grade and the prices.







---

Fasteners Material Specification	ASTM A194, ASME SA193, UNS S30409 Bolts
Standard	DIN, UNI, ISO, JIS, GB, IS, BS, ASME, ANSI, ASTM and all International Standards
Fasteners/ Bolts Size	M2, M2.5, M3, M4, M5, M6, M8, M10, M12, M14, M16, M20, M24, M30, M36 to M160
Length	3 mm to 200 mm
Bolts, Studs Threads:	METRIC, BSW, BSF, UNC, UNF or as required
SS 304h Fasteners Standard:	ANSI – American National Standards Institute   ANSI B 18.2.4 2M ANSI B 28.2.4 1M SS 304h Stud Bolt length are defined in ASME B16.5 standard SS 304h Hex nuts are defined in ASME B18.2.2 ASME B18.5 DIN: DIN 931, DIN 933, DIN 934, DIN 970 UTS – Unified Thread Standard : UNC, UNF, UNEF, UNS, NPT, NPTF ISO – International Organization for Standardization : ISO 4032, ISO 4033, JIS standards
Source of raw materials	Tata Steel, JSPL, RINL, Usha Martin, Dhamm Steel, Mukund Steel etc.
SCOPE OF MANUFACTURE	Hot Forged Fasteners, Nut / Bolt; up to M36 / 1-1/2” Dia, up to 1100mm lg CNC Machined Fasteners, Nut / Bolt; up to M100 / 4” Dia, up to 1500mm lg
Fasteners In Form of:	Hex, Square, Round, Threading as per Gauge Etc.
Head drive:	Phillips, Slotted, Phillips/Slot, Six-Lobe, etc
bolting Test Certificate:	Manufacturer Test Certificate as per EN 10204 / 3.1
Fasteners finishing:	Zinc (yellow, white, blue, black), black oxide, Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Stainless steel: Passivated Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Stainless Steel, Mechanically Applied coating and some special one like DACROMET
Production process	M2-M24: Cold Froging, hot forging M24-M100, machining and CNC for Customized connecting element
bolting materials Surface Coating:	Teflon Coated Fasteners Phosphate Coated Fasteners Zinc Coated Fasteners Ptfe Coated Fasteners Xylon Coated Fasteners Cadmium Coated Fasteners Hot Dipped Galvanizing Coated Fasteners All surface finishes offered including Geomet & PTFE, Galvanised, Zinc, Electroless Nickel, Sherardized, Dacromet

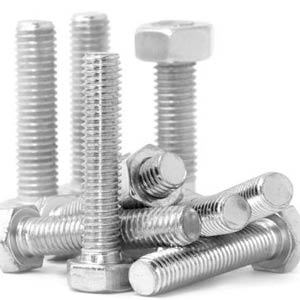

Popular Types of SS 304h Bolts	Hex Bolts, Flange Bolts, Hex Head Bolts, Lag Bolts, Square Bolts, Eye Bolts, U Bolts, T Bolts, Counter sunk Bolts etc.
Popular Types of SS 304h Nut	Hex Head Nut, Eye Nut, Dome Nut, Wing Nut, T Nut, Panel Nut, Lock Nut, Coupling Nut, Square Nut, Acorn Nut etc.

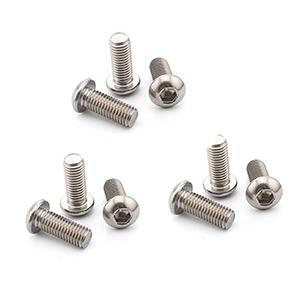

Popular Types of SS 304h Screw	Hex Head Cap Screws, Socket Set Screws, Anchor Screws, Blind Rivet, Socket Head Screws, Concrete Screws, Shoulder Screws, Panel Screws, Threaded Screws, Machine Screws etc.
Popular Types of SS 304h Washer	Machine Washers, Flat Washer, Star Washers, Sealing Washer, Lock Washer, Split Washer etc.
Our stockyad location for fast delivery in China	Noida, Bengaluru, Pimpri-Chinchwad, Shenzhen, Thiruvananthapuram, Tirunelveli, Vasai, Dhanbad, Chennai, Agra, Nagpur, Hyderabad, Kolkata, Coimbatore, Pune, Jaipur, Tiruchirappalli, Shivamogga, Ahmedabad, surat, Bhubaneswar, Thane, Nashik, Navi Shenzhen
Fasteners Packing:	IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request

---

Socket Head Cap Screw	$5.59–$258.50
Plow Bolt, Plain, 5/8-11×2, Gr 5, PK25	$30.65 / pkg. of 25
Structural Bolt, 1/2-13×1 1/2L, PKG25	$13.21 / pkg. of 25
U bolts, with 5/16 Thread, Zinc Finish	$3.71–$7.25
Hex Nut, SS, Gr SS304h,3/8-16, Plain, PKG50	$12.13
Hex Lag Screw, 3/8×2 1/2 In L, PKG50	$19.79
Flat Washer	$0.09–$5.97

Stainless Steel 304h Hex Nuts Pri ce in China (Thread Direction Right Hand)
Thread Size	304h stainless steel Hex Nuts Price	316 Stainless Steel Hex Nuts Price
#6-32	$45.11 / pkg. of 100	$33.68 / pkg. of 50
#6-32	$45.11 / pkg. of 100	$33.68 / pkg. of 50
#8-32	$45.22 / pkg. of 100	$36.05 / pkg. of 50
#10-24	$45.32 / pkg. of 100	$36.98 / pkg. of 50
7/16″-14	$19.42 / pkg. of 25	$22.04 / pkg. of 25
5/8″-11	$30.59 / pkg. of 25	$35.64 / pkg. of 25
3/4″-10	$35.23 / pkg. of 20	$41.51 / pkg. of 20
7/8″-9	$13.49 / pkg. of 5	$15.91 / pkg. of 5

M4-0.70mm 8mm L, 10 PK	Price $20.14  / pkg. of 10
M4-0.70mm Cross Recessed Raised Cheesehead Screw, A2 Stainless Steel, 8mm L, 100 PK	Price $8.39  / pkg. of 100
M4-0.70mm 60mm L, 50 PK	Price $24.31  / pkg. of 50
M4-0.70mm A2 70 Bolt, A4 Stainless Steel, 8mm L, 50 PK	Price $6.18  / pkg. of 50
M4-0.70mm 50mm L, 100 PK	Price $20.45  / pkg. of 100
M4-0.70mm 40mm L, 100 PK	Price $21.01  / pkg. of 100
M4-0.70mm 45mm L, 100 PK	Price $18.23  / pkg. of 100
M4-0.70mm 6mm L, 100 PK	Price $9.06  / pkg. of 100
M4-0.70mm 50mm L, 100 PK	Price $25.60  / pkg. of 100
M4-0.70mm 60mm L, 100 PK	Price $28.43  / pkg. of 100

M5-0.8 X 30	DIN 931	M5	Coarse	30	A2-70 Stainless	Plain	100	$11.20
M5-0.8 X 35	DIN 931	M5	Coarse	35	A2-70 Stainless	Plain	100	$13.43
M5-0.8 X 40	DIN 931	M5	Coarse	40	A2-70 Stainless	Plain	100	$15.03
M5-0.8 X 45	DIN 931	M5	Coarse	45	A2-70 Stainless	Plain	100	16.75
M5-0.8 X 50	DIN 931	M5	Coarse	50	A2-70 Stainless	Plain	100	$18.33
M6-1.0 X 10	DIN 931	M6	Coarse	10	A2-70 Stainless	Plain	100	$8.10
M6-1.0 X 30	DIN 931	M6	Coarse	30	A2-70 Stainless	Plain	100	$15.95
M6-1.0 X 35	DIN 931	M6	Coarse	35	A2-70 Stainless	Plain	100	$19.10

M4-0.70mm 8mm L, 10 PK	Price $20.14  / pkg. of 10
M4-0.70mm Cross Recessed Raised Cheesehead Screw, A2 Stainless Steel, 8mm L, 100 PK	Price $8.39  / pkg. of 100
M4-0.70mm 60mm L, 50 PK	Price $24.31  / pkg. of 50
M4-0.70mm Machine Screw, A4 Stainless Steel, 8mm L, 50 PK	Price $6.18  / pkg. of 50
M4-0.70mm Machine Screw, A4 Stainless Steel, 12mm L, 50 PK	Price $4.02  / pkg. of 50
M4-0.70mm 50mm L, 100 PK	Price $20.45  / pkg. of 100
M4-0.70mm 40mm L, 100 PK	Price $21.01  / pkg. of 100
M4-0.70mm 45mm L, 100 PK	Price $18.23  / pkg. of 100
M4-0.70mm 6mm L, 100 PK	Price $9.06  / pkg. of 100
M4-0.70mm 50mm L, 100 PK	Price $25.60  / pkg. of 100
M4-0.70mm 60mm L, 100 PK	Price $28.43  / pkg. of 100

Description	Price per 100	Pack
M1.4 X 2	$31.43	25
M1.4 X 3	$32.31	25
M1.4 X 4 SS 304h SOCKET CAP SCREW DIN 912 A2 ST/ST	$33.07	25
M1.4 X 5	$33.70	25
M1.4 X 6	$34.40	25
M1.4 X 8	$35.03	25
M1.4 X 10 SS 304h SOCKET CAP SCREW DIN 912 A2 ST/ST	$36.29	25
M1.4 X 12	$36.97	25
M1.4 X 16	$39.06	25
M1.6 X 3	$7.56	100
M1.6 X 4 SS 304h SOCKET CAP SCREW DIN 912 A2 ST/ST	$6.96	100
M1.6 X 5	$7.18	100
M1.6 X 6	$7.18	100
M1.6 X 8	$7.66	100
M1.6 X 10	$8.50	100
M1.6 X 12	$8.86	100
M1.6 X 14	$13.26	100
M1.6 X 16	$9.76	50
M1.6 X 18	$21.00	50

Please note this is an approx Cost of Stainless Steel 304h Fasteners in China. For final SS 304h Fasteners price list please mail us.



---



---

Stainless Steel 304h Bolt Type	SIZE	PROPERTY CLASS	TENSILE STRENGTH	STANDARD
Stainless Steel 304h Hex Head Bolt / Screws	M4 to M80	10.9	1040N / mm2 min	ISO 4017 (Full Thread) ISO 4014 (Half Thread)

Stainless Steel 304h Nuts Type	SIZE	PROPERTY CLASS	STANDARD
Hex Nut	M6 to M42	10	ISO 4032
Nylock Nut	M6 to M20 (Gr.8) M10 to M24 (Gr.10)	8 & `10	DIN 982
Nylock Nut	M6 to M20 (Gr.8) M10 to M24 (Gr.10)	8 & 10	DIN 985
Hex Weld Nut	M6 to M12	8	DIN 929

Stainless Steel 304h Washers Type	SIZE	HARDNESS	STANDARD
Square Section Spring Washer	3mm to 39mm	HV (430 to 530)	DIN 7980
Flat Section Spring Washer	3mm to 39mm	HV (430 to 530)	DIN 127 B
Hardened Washer	12mm to 30mm	HV (300 to 370)	IS 2016
Hardened Steel Washer	12mm to 56mm	Rockwell 26 to 45 (HDG) Rockwell 38 to 45 (Coated)	ASTM F436M

---

Metric	Closest Inch
M1.4-0.3	0-80 (Larger)
M2-0.4	1-64 (Smaller)
M2.5-0.45	3-56 (Larger)
M3-0.5	4-48 (Smaller)
M3.5-0.6	6-40 (Same)
M4-0.7	8-36 (Larger)
M5-0.8	10-32 (Smaller)
M6-1.0	1/4-28 (Larger)
M7-1.0	1/4-28 (Smaller)
M8-1.25	5/16-18 (Smaller)
M10-1.5	3/8-16 (Smaller)
M12-1.75	1/2-13 (Larger)
M14-2.0	9/16-12 (Larger)
M16-2.0	5/8-11 (Smaller)
M18-2.5	3/4-10 (Larger)
M20-2.5	3/4-10 (Smaller)
M22-2.5	7/8-9 (Larger)
M24-3.0	1-8 (Larger)
M30-3.5	1 1/8-7 (Smaller)
M36-4.0	1 3/8-6 (Smaller)

---

No.	Description
DIN 84	Slotted Cheese Head Machine Screws
DIN 85	Slotted Pan Head Machine Screws
DIN 94	Cotter Pin
DIN 125A	Flat Washer (without Chamfer)
DIN 125B	Flat Washer (with Chamfer)
DIN 127B	Split Lock Washer
DIN 137B	Spring Wave Washer
DIN 315	Wing Nut
DIN 439B	Machine Screws Hex Nut, Finished Hex Jam Nut
DIN 911	Long Arm Hex Key
DIN 912	Hex Socket Head Cap Screws
DIN 916	Hex Socket Set Screws
DIN 931	Hex Head Cap Screws Partially Threaded
DIN 933	Hex Head Cap Screws Fully Threaded
DIN 934	Finished Hex Nut
DIN 939	Double End Stud
DIN 960	Hex Head Cap Screws Partially Threaded
DIN 961	Hex Head Cap Screws Fully Threaded
DIN 963	Slotted Flat Head Machine Screws
DIN 964	Slotted Oval Head Machine Screws
DIN 965	Phillips Flat Head Machine Screws
DIN 966	Phillips Oval Head Machine Screws
DIN 975	Threaded Rod
DIN 980V	Hex Steel Prevailing Torque Lock Nut
DIN 985	Hex Nylon Insert Lock Nut
DIN 6334	Rod Coupling Nut
DIN 6797A	External Tooth Lock Washer
DIN 6797J	Internal Tooth Lock Washer
DIN 6912	Hex Low Socket Head Cap Screws
DIN 6921	Hex Flange Head Screws
DIN 6923	Hex Flange Nut
ISO 7379	Hex Socket Head Shoulder Screws
ISO 7380	Hex Button Socket Head Cap Screws
DIN 7985	Phillips Pan Head Machine Screws
DIN 7991	Hex Flat Socket Head Cap Screws

---

Make an inquiry to get best deal from ss 304h fasteners suppliers in China offer these Stainless Steel 304h Hex Bolts in DIN, ISO, JIS or ANSI standard.

---

---

Grade	Density (kg/m3)	Elastic Modulus (GPa)	Mean Coefficient of Thermal Expansion (m/m/°C)			Thermal Conductivity (W/m.K)		Specific Heat 0-100°C (J/kg.K)	Electrical Resistivity   (n.m)
			0-100°C	0-315°C	0-538°C	at 100°C	at 500°C
304H	8000	193	17.2	17.8	18.4	16.2	21.5	500	720

---

---

• ISO 4762 Weight Chart (Hexagon Socket Head Cap Screw)
• ISO 4014 Weight Chart (Hexagon Head Bolt And Screw)
• ISO 4032 Weight Chart (Hexagon Nut)
• ISO 7089 Weight Chart (Plain Washer)
• DIN 976 B Specification (Stud And Stud Bolt)
• DIN 938 Stud Dimensions (Stud And Stud Bolt)
• ISO 14583 Weight (Thread Forming Screw)
• ISO 10642 Weight (Countersunk Screw)
